Description

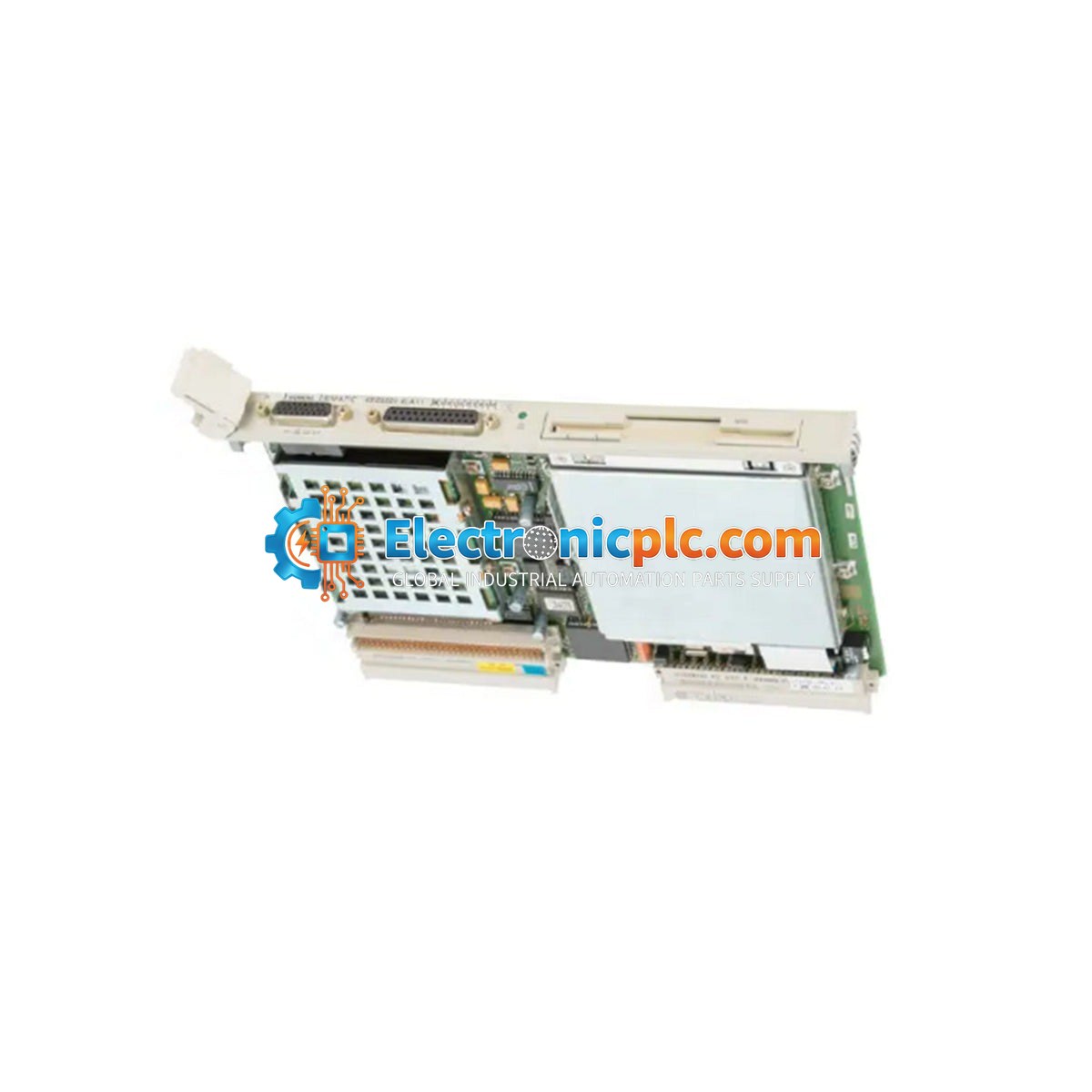

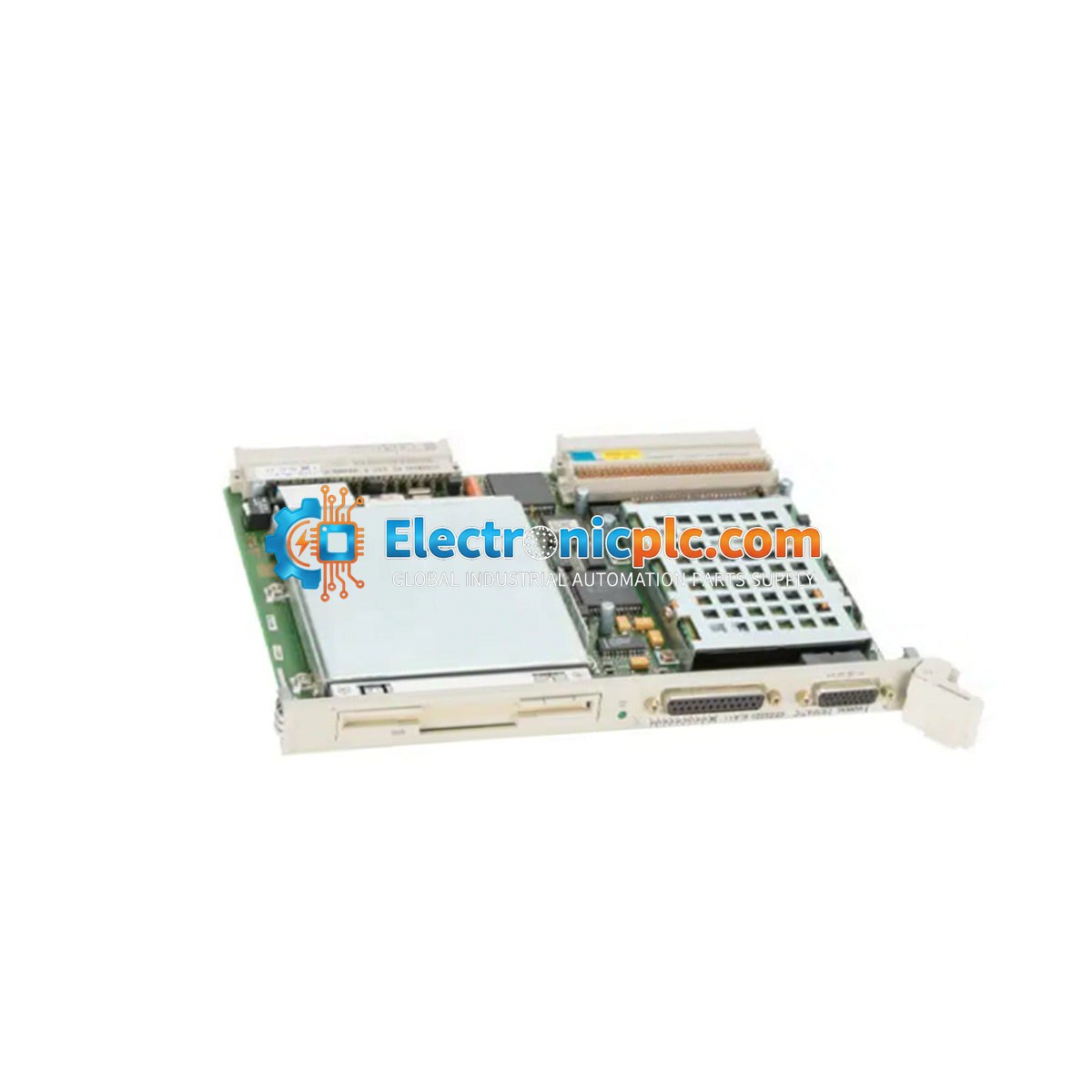

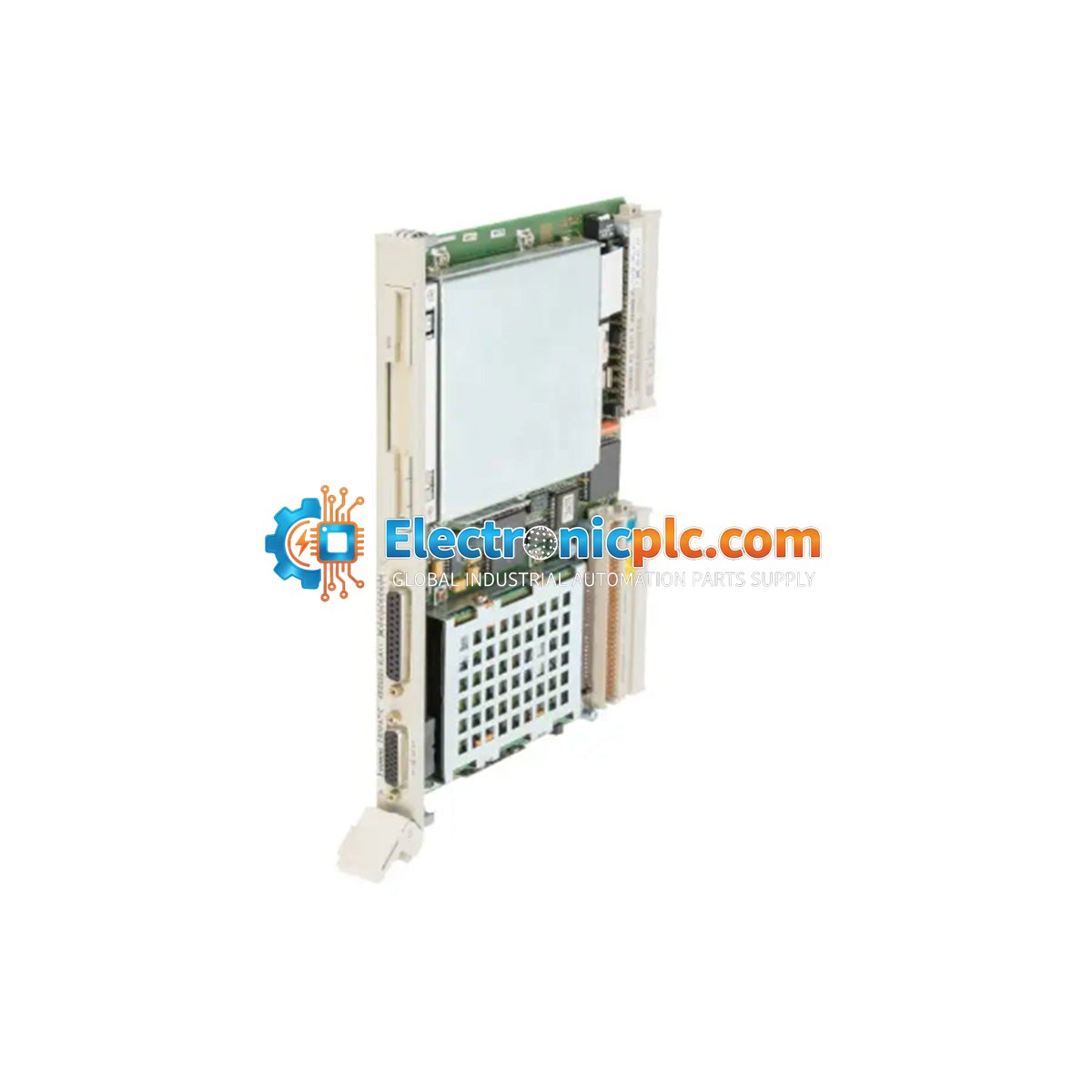

The Siemens 6ES5581-4LA11 is a specialized mass storage module designed for the legacy SIMATIC S5 automation platform. Featuring an integrated 1.4 GB hard disk, this module is engineered to operate in conjunction with CP 581 and CP 486 communications processor architectures. It provides essential local data logging, recipe management, and process archiving capabilities, ensuring reliable data retention and rapid access to historical information at the machine control level.

Features

• Integrated 1.4 GB hard disk storage for high-capacity industrial data logging.
• Direct interface with SIMATIC S5 rack backplane for high-speed parallel bus communication.
• Optimized for CP 581 and CP 486 co-processor integration, offloading storage tasks from the main PLC CPU.
• Ruggedized design to withstand industrial vibration and thermal cycling.
• Built-in hardware status indicators for real-time monitoring of read/write cycles and bus states.

Applications

This module is widely utilized in legacy industrial environments requiring robust local data buffering, including automotive assembly lines, chemical processing plants, and power generation facilities. It is critical for maintaining data integrity during network interruptions and facilitating rapid system recovery.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before inserting or removing the module from the rack.
• Verify correct alignment with the backplane connector to prevent pin damage.
• Maintain proper cabinet ventilation to ensure the module operates within the specified 0-55 deg C range.
• Handle with standard ESD precautions to protect internal circuitry.
• Secure the module using the provided locking mechanisms to ensure a stable connection under vibration.

FAQ

Is this module compatible with modern S7 systems?

No, the 6ES5581-4LA11 is specifically designed for the legacy SIMATIC S5 platform and is intended for use with CP 581/486 communication processors. It is not compatible with S7-300 or S7-400 series hardware.

Does this module require external power?

The module is powered directly through the SIMATIC S5 rack backplane bus; no external power supply wiring is required.
