Description

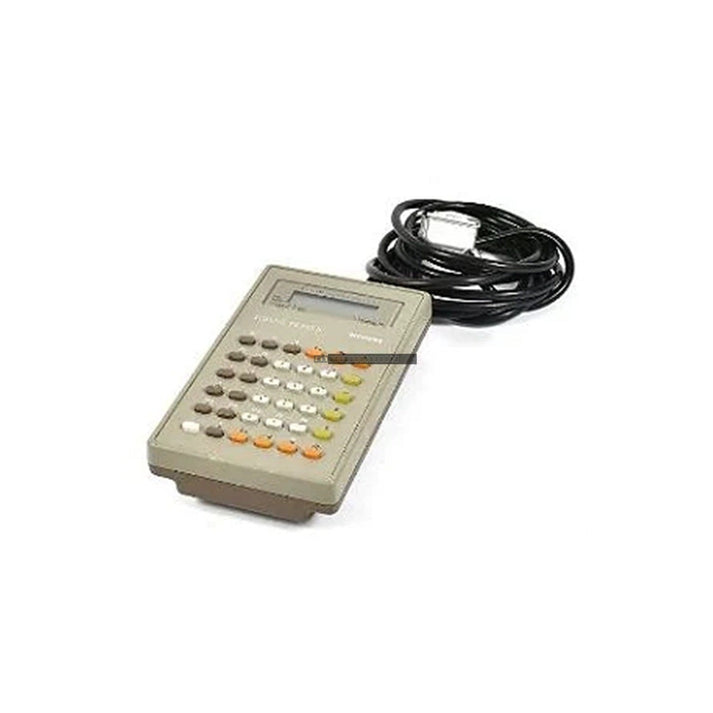

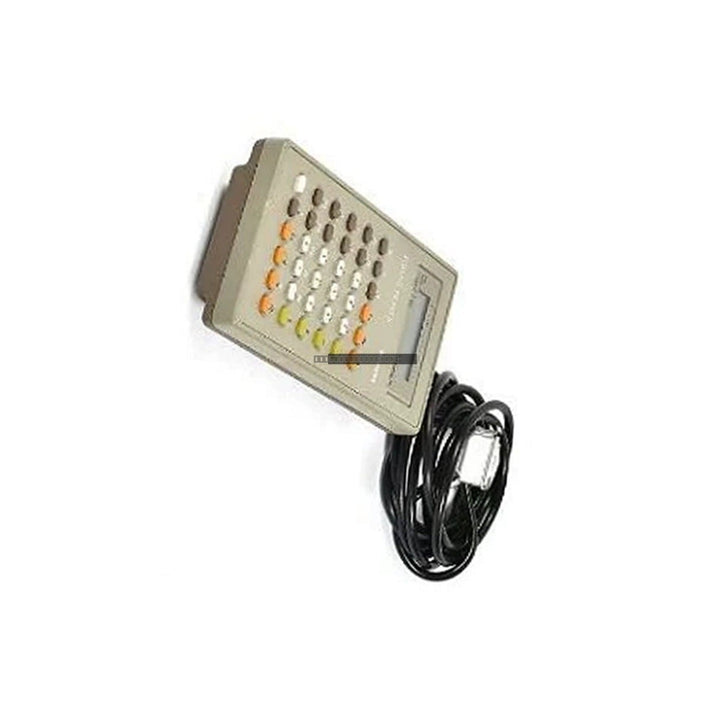

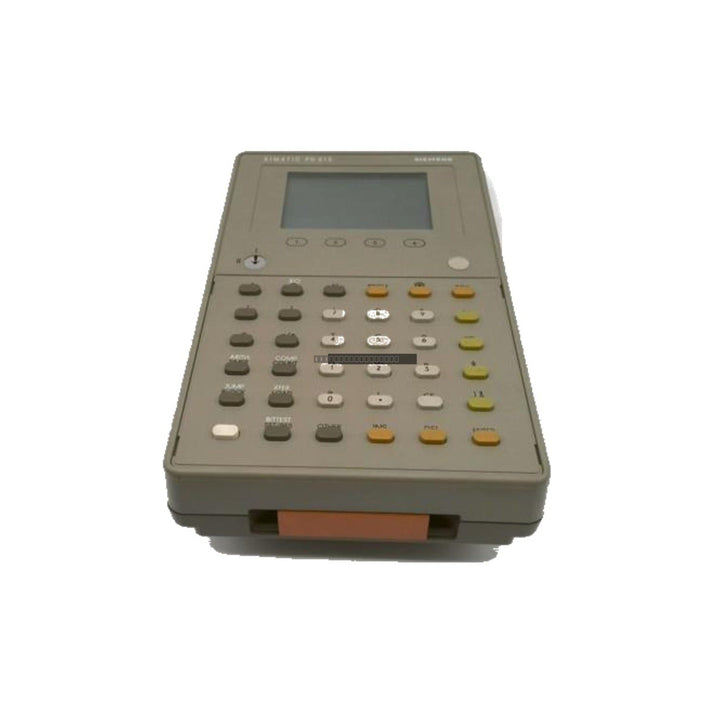

The Siemens PG 615 (6ES5615-0UB11) is a specialized handheld programming terminal engineered for the maintenance, diagnostics, and logic modification of legacy Siemens Simatic S5 automation systems. This portable unit facilitates direct, on-site interaction with the PLC, allowing technicians to monitor memory states, debug logic blocks, and perform forced operations without the need for external PC-based software. Its compact, rugged design is specifically tailored for field environments, including municipal infrastructure, heavy manufacturing, and marine control systems, effectively reducing downtime by enabling rapid troubleshooting at the machine level.

Features

• Dedicated handheld interface for Simatic S5 PLC programming and diagnostics.
• Ruggedized alpha-numeric keypad designed for industrial field use.
• Integrated liquid crystal display optimized for viewing STEP 5 programming structures.
• Reliable TTY 20 mA current loop communication interface for noise-immune data transmission.
• Durable ABS enclosure with IP50 ingress protection against dust.
• Low power consumption design, drawing power directly from the PLC interface.

Applications

This terminal is primarily utilized in industrial settings relying on legacy Simatic S5 hardware, such as wastewater treatment facilities, paper production plants, and marine engine control rooms. It is an essential tool for maintenance engineers performing on-site logic verification, timer adjustments, and memory monitoring.

Technical Specifications

Installation Guidelines

• Ensure the PLC is powered down or in a safe state before connecting the terminal to the interface port to prevent potential electrical surges.
• Verify the integrity of the TTY communication cable; ensure it is shielded and routed away from high-voltage power lines to maintain signal quality.
• Handle the device with care; while the enclosure is ruggedized, the LCD screen is sensitive to high-impact forces.
• Store the unit in a dry, climate-controlled environment when not in use to maintain the longevity of the internal electronic components.
• Always inspect the interface connector pins for debris or oxidation before insertion into the PLC port.

FAQ

Is this terminal compatible with modern S7 PLCs?
No, the 6ES5615-0UB11 is specifically designed for the legacy Simatic S5 architecture and utilizes a TTY current loop interface, which is not natively compatible with S7 series hardware.

Does the unit require an external power supply?
No, the PG 615 draws its operating power (2.4 W) directly from the PLC interface port during connection.
