Description

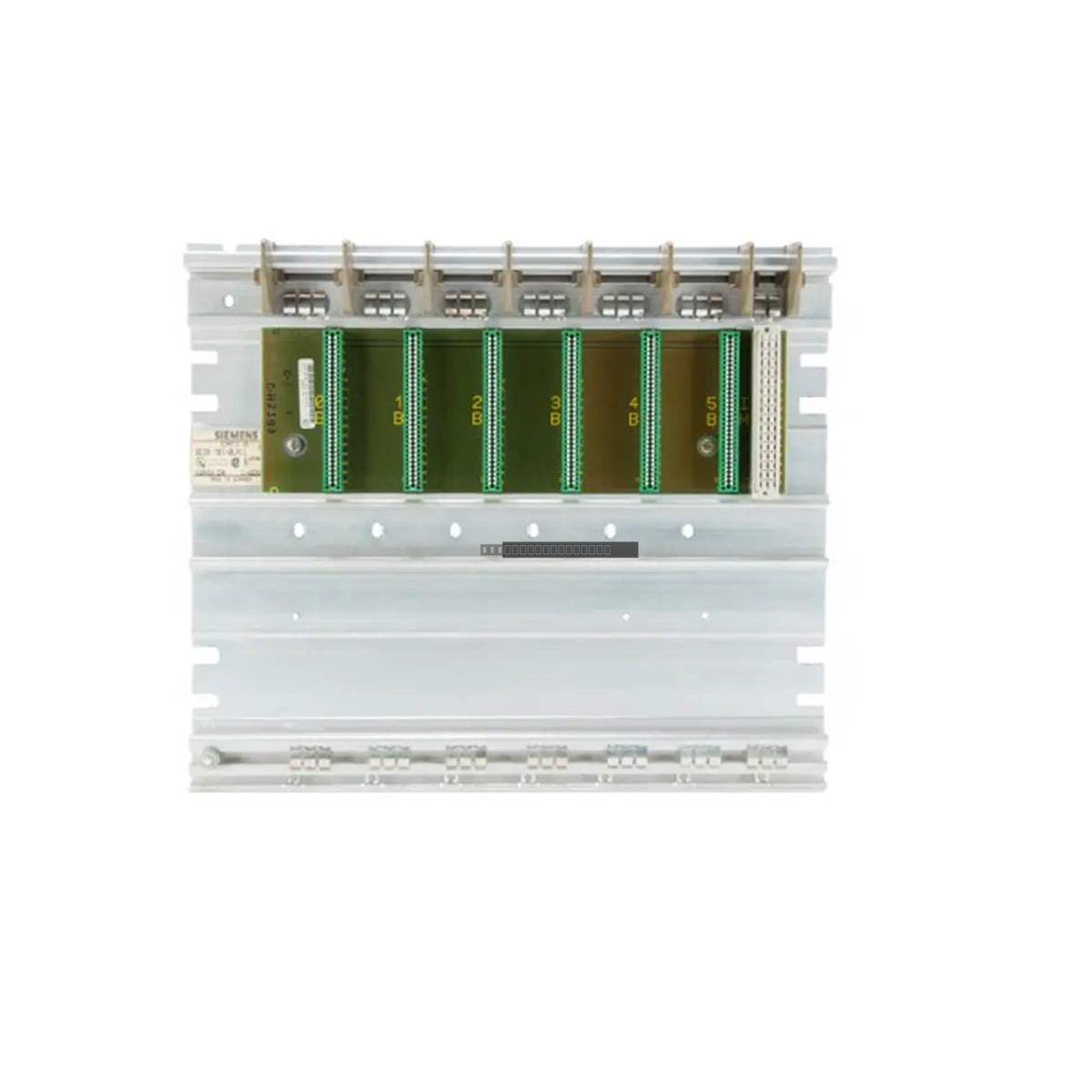

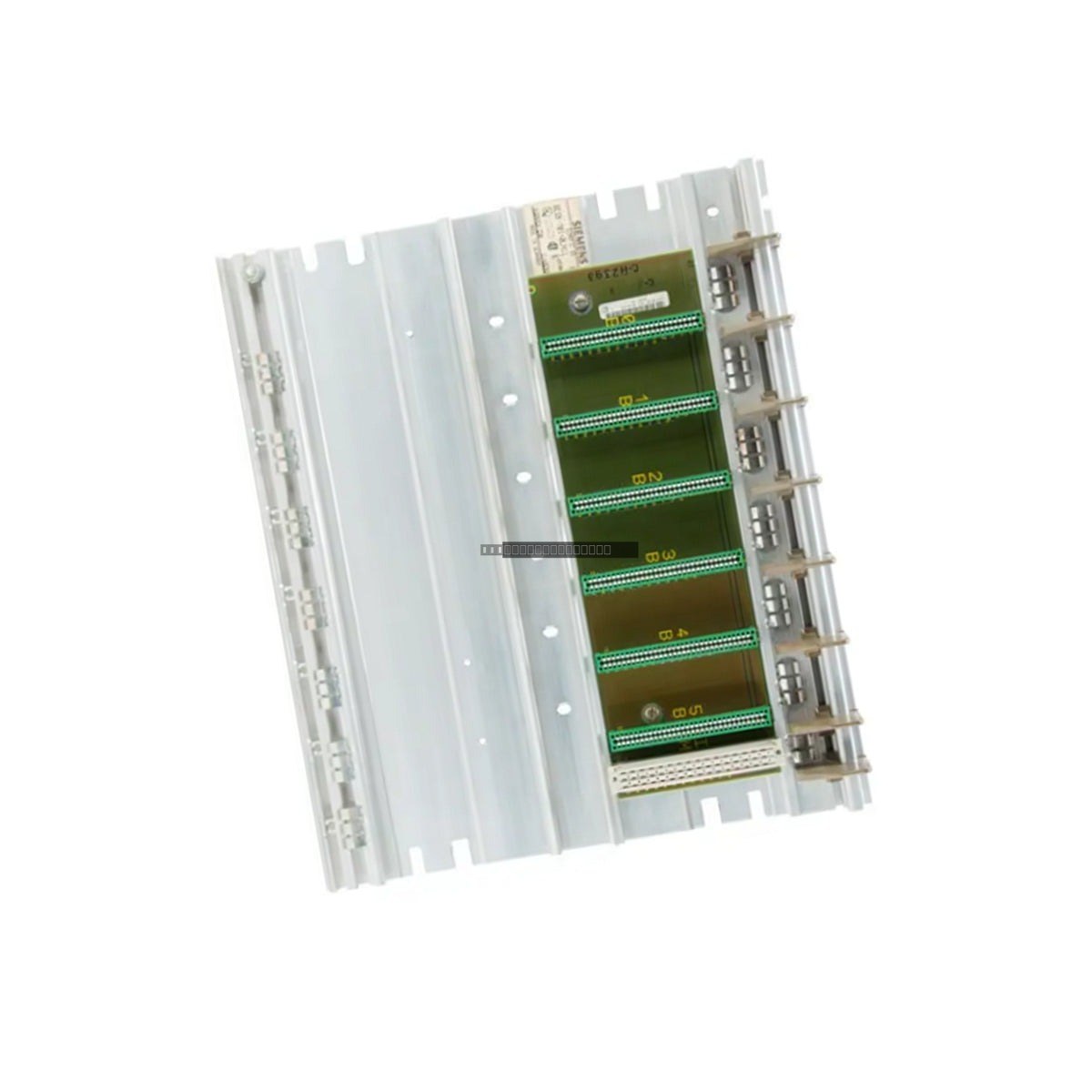

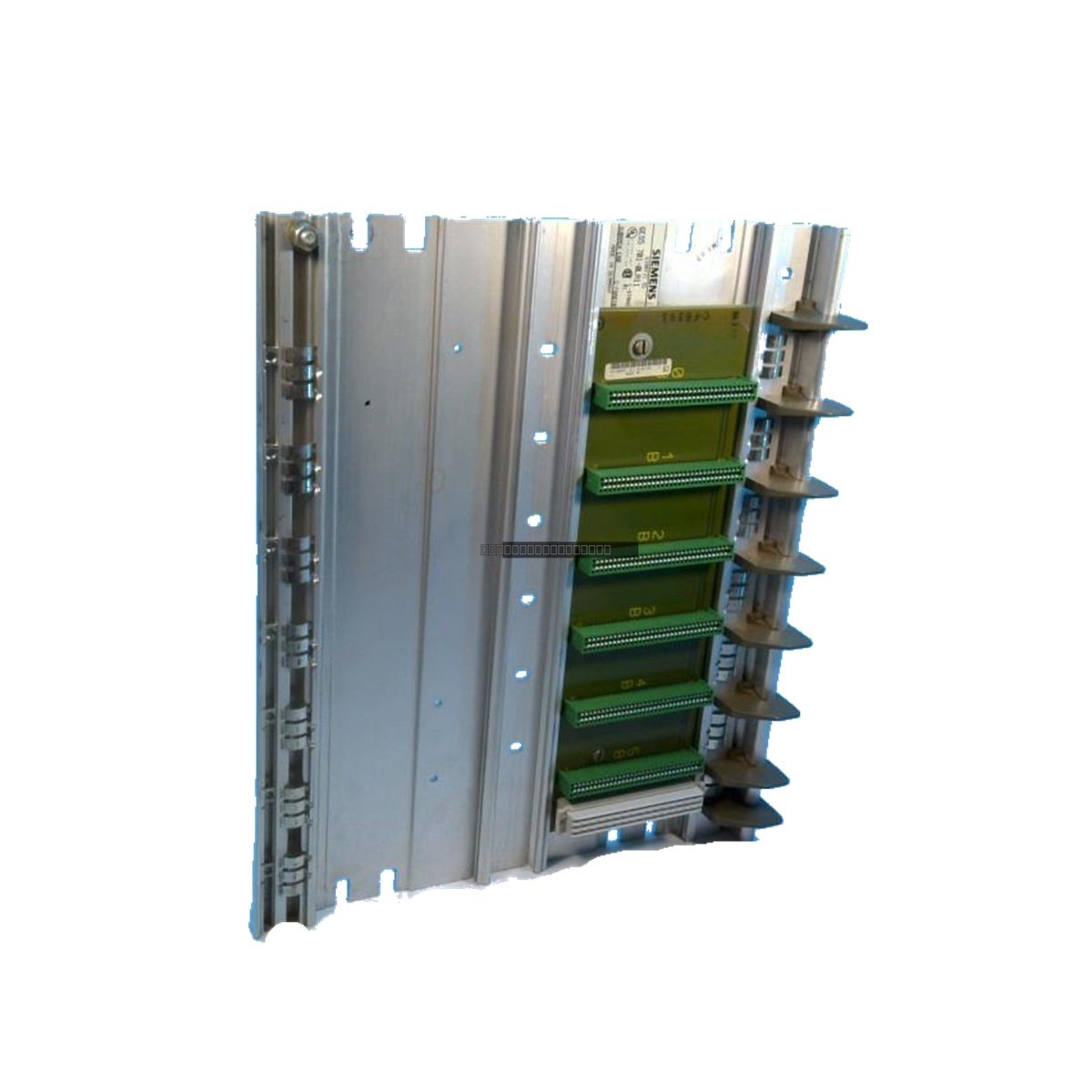

The Siemens 6ES5701-0LA11 is a robust expansion rack designed for the Simatic S5-115U programmable logic controller system. This chassis serves as a critical hardware extension, providing the necessary mechanical and electrical infrastructure to increase the I/O capacity of an S5-115U configuration. By facilitating a stable backplane connection, this unit ensures reliable communication between the central processor and various I/O modules in demanding industrial environments such as manufacturing lines and automated processing facilities.

Features

• Engineered for the Siemens Simatic S5-115U PLC platform.
• Provides 7 physical slots for flexible module arrangement.
• Supports a mix of digital, analog, and specialized S5 I/O modules.
• Robust mechanical construction designed to withstand industrial vibration.
• Integrated backplane bus ensures consistent signal integrity and power distribution.
• Grounding brackets included for effective EMI mitigation.

Applications

This expansion chassis is widely utilized in legacy automation systems where additional I/O density is required for machine control, process monitoring, and factory automation. It is ideal for scaling existing S5-115U architectures in sectors including automotive manufacturing, metal processing, and material handling.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected from the rack before inserting or removing any modules.
• Mount the chassis securely to a flat, vibration-dampened surface to maintain backplane alignment.
• Verify that the grounding lugs are properly bonded to the control cabinet's earth ground to protect against electromagnetic interference.
• Maintain adequate clearance around the unit to allow for natural convection cooling and to prevent overheating.
• Handle all internal bus connectors with care to prevent pin damage during module installation.

FAQ

Is this rack compatible with other Siemens S5 series?
The 6ES5701-0LA11 is specifically designed for the S5-115U series. Please consult your system documentation to ensure compatibility with your specific controller model.

Does this unit require an external power supply?
The rack itself acts as a passive backplane. Power is typically distributed through the system's power supply module installed within the rack or via the central controller interface.
