Description

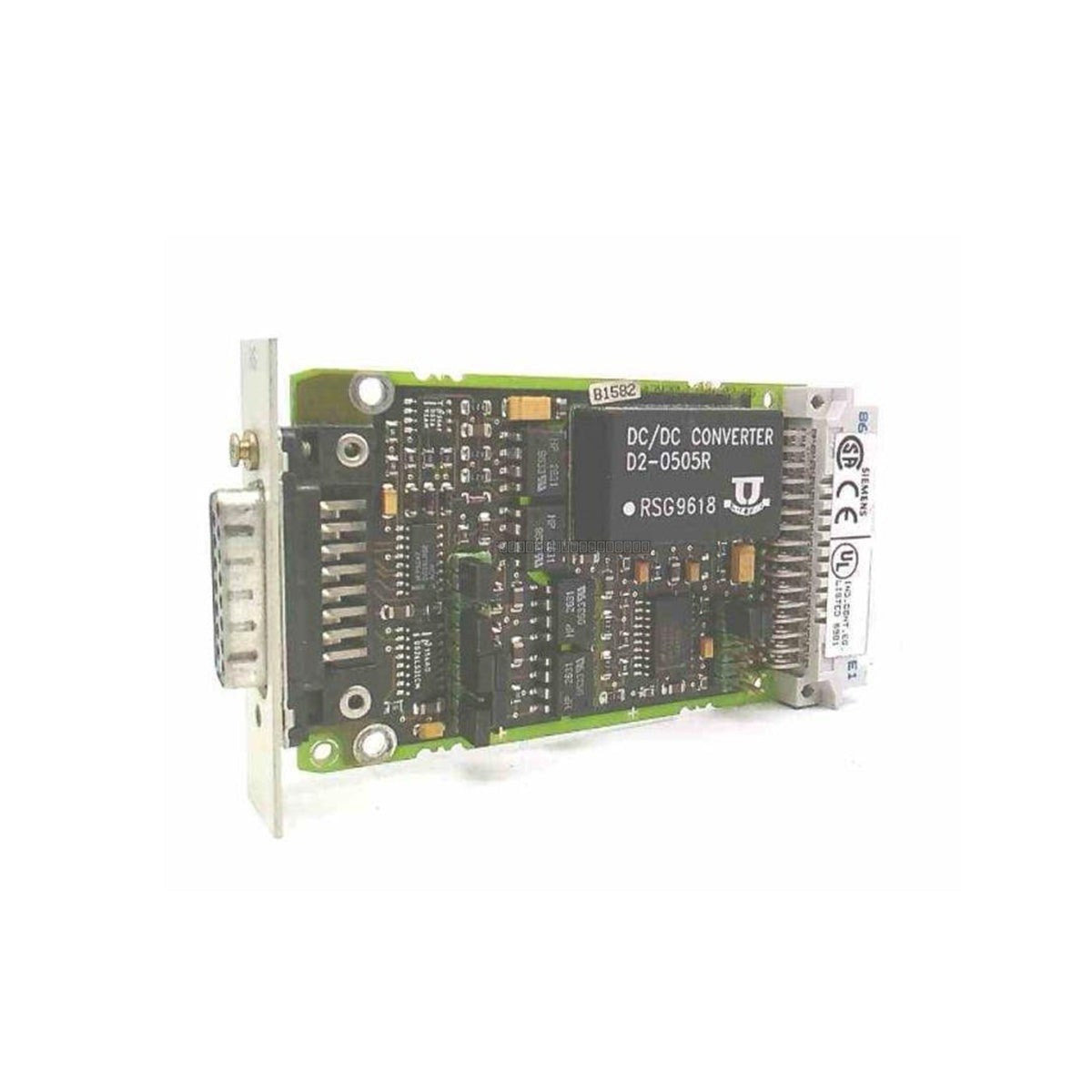

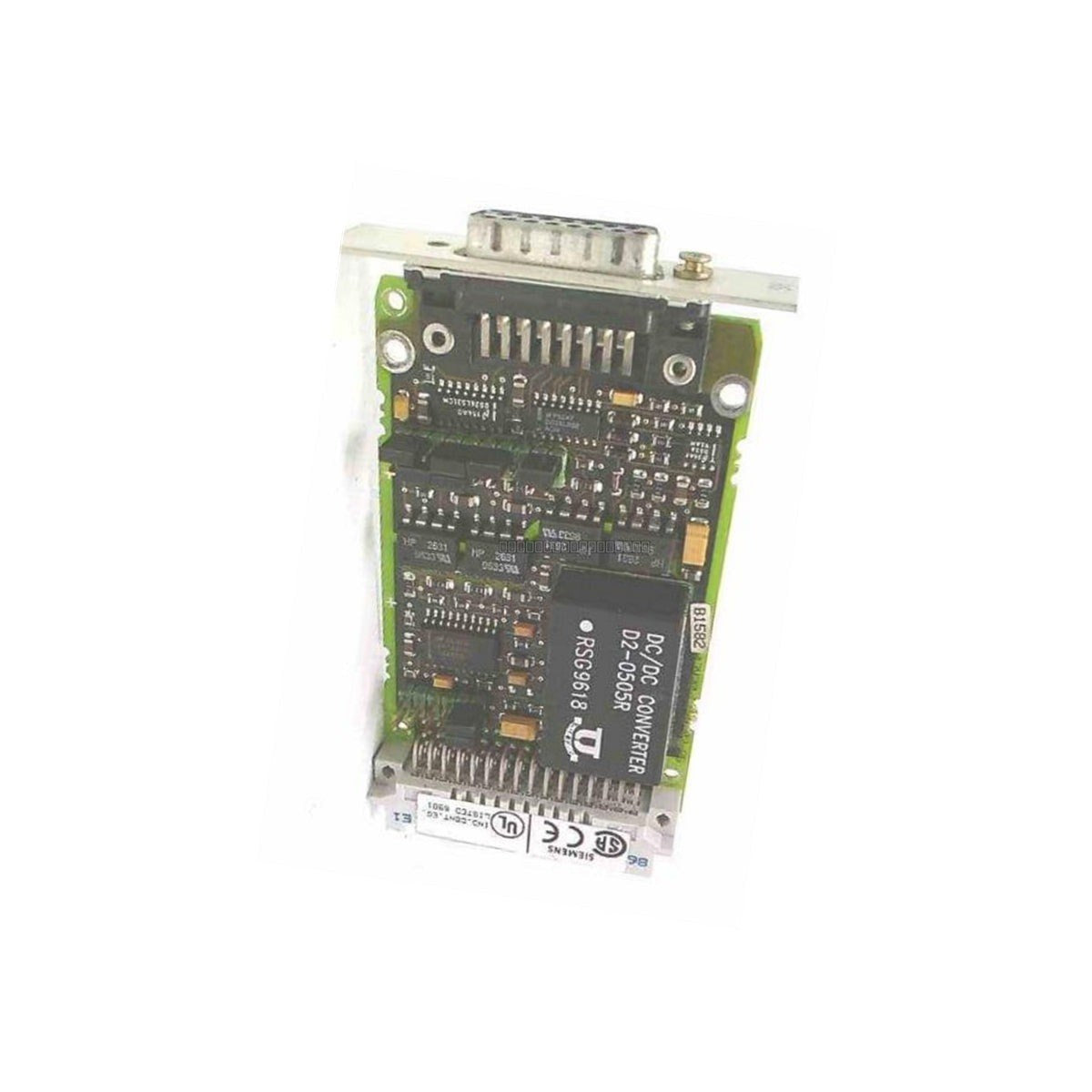

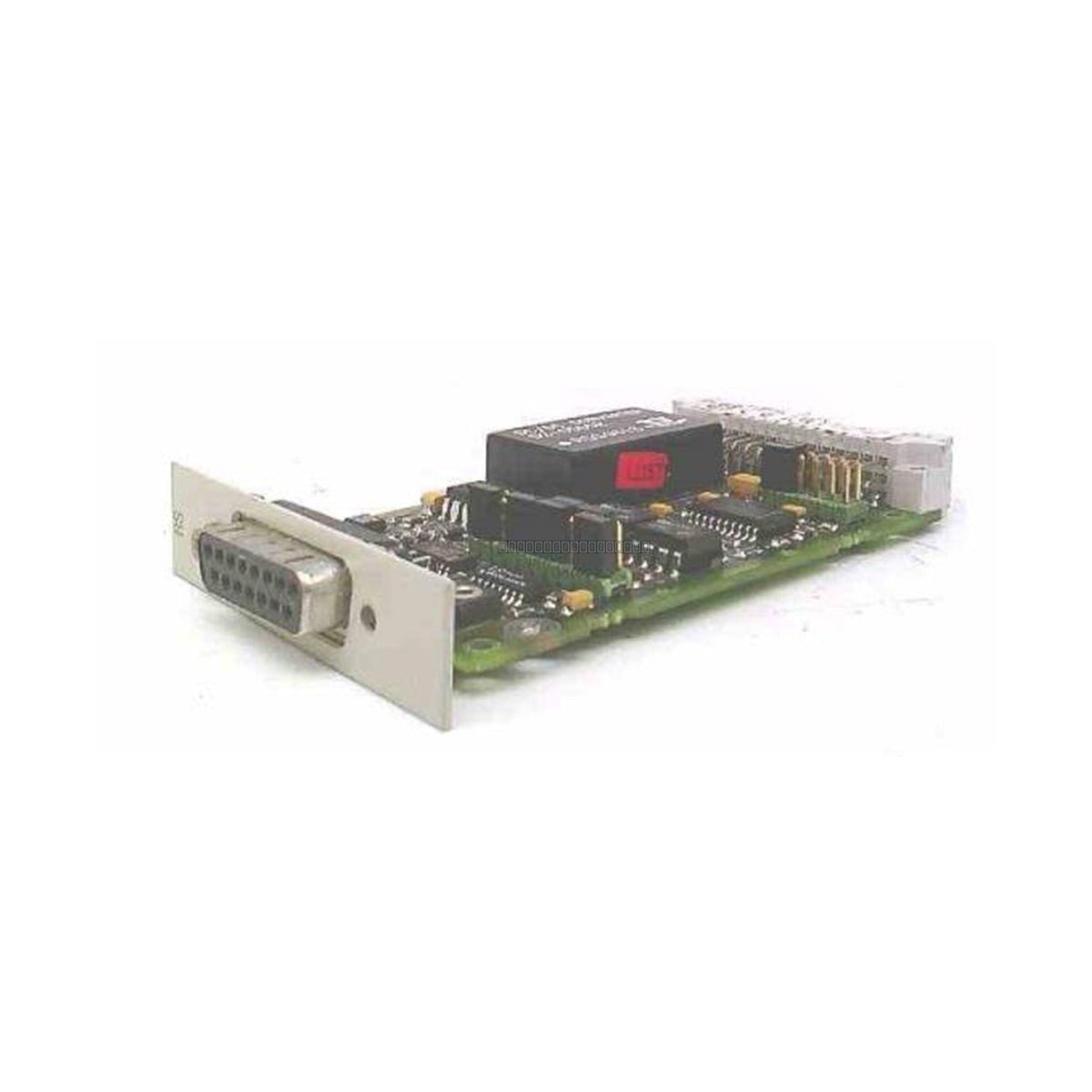

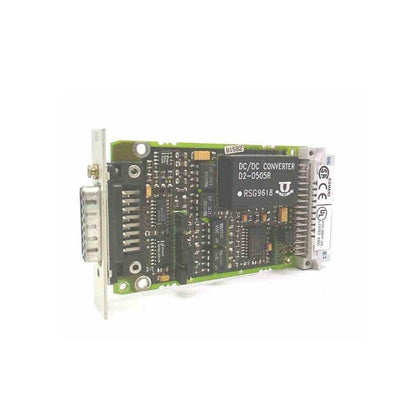

The Siemens 6ES5752-0AA43 is a dedicated interface module engineered for the CP 524 communications processor within the legacy Simatic S5 automation architecture. This hardware component establishes deterministic point-to-point data links and protocol conversions, allowing legacy programmable logic controllers (PLCs) to interface with peripheral devices or higher-level supervisory systems. It is a critical component for maintaining legacy infrastructure in heavy industrial manufacturing, power generation, and chemical processing facilities.

Features

• Designed specifically for integration with the CP 524 communications processor.
• Supports S5-135U and S5-155U rack architectures.
• Facilitates high-speed data exchange via protocols such as RK 512, 3964R, or ASCII drivers.
• Integrated optocouplers provide galvanic isolation between internal PLC logic and external communication lines.
• Robust PCB design optimized for high-EMI industrial environments.
• Powered directly via the S5 backplane bus.

Applications

This module is primarily used to extend the operational life of legacy Simatic S5 systems. It is suitable for applications requiring reliable serial communication, data routing, and protocol bridging in environments where migrating to newer control platforms is not currently feasible.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is completely disconnected before inserting or removing the module.
• Handle the module by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Ensure the module is fully seated in the designated slot of the S5-135U or S5-155U rack to ensure proper backplane connection.
• Route communication cables away from high-voltage power lines and sources of significant electromagnetic interference to maintain signal integrity.
• Verify that the host CP 524 firmware is compatible with the required communication protocol before commissioning.

FAQ

What is the primary function of the 6ES5752-0AA43?

This module acts as an interface bridge for the CP 524 communications processor, enabling serial data communication and protocol handling for Simatic S5-135U and S5-155U PLC systems.

Does this module require external power?

No, the module draws its required logic power directly from the S5 backplane bus.

Is this module galvanically isolated?

Yes, the module utilizes integrated optocouplers to provide galvanic isolation, protecting the PLC logic from field-side electrical noise and voltage transients.
