Description

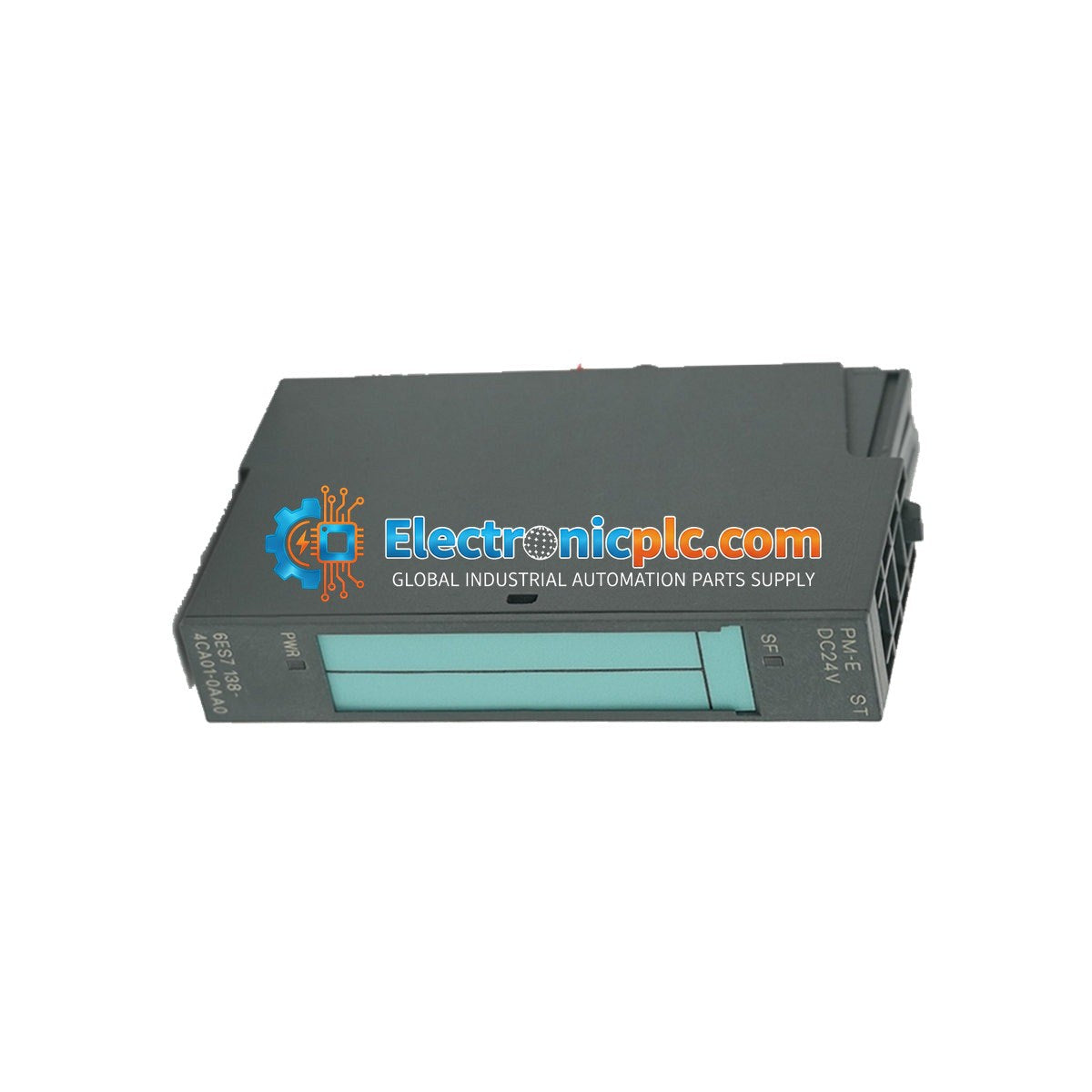

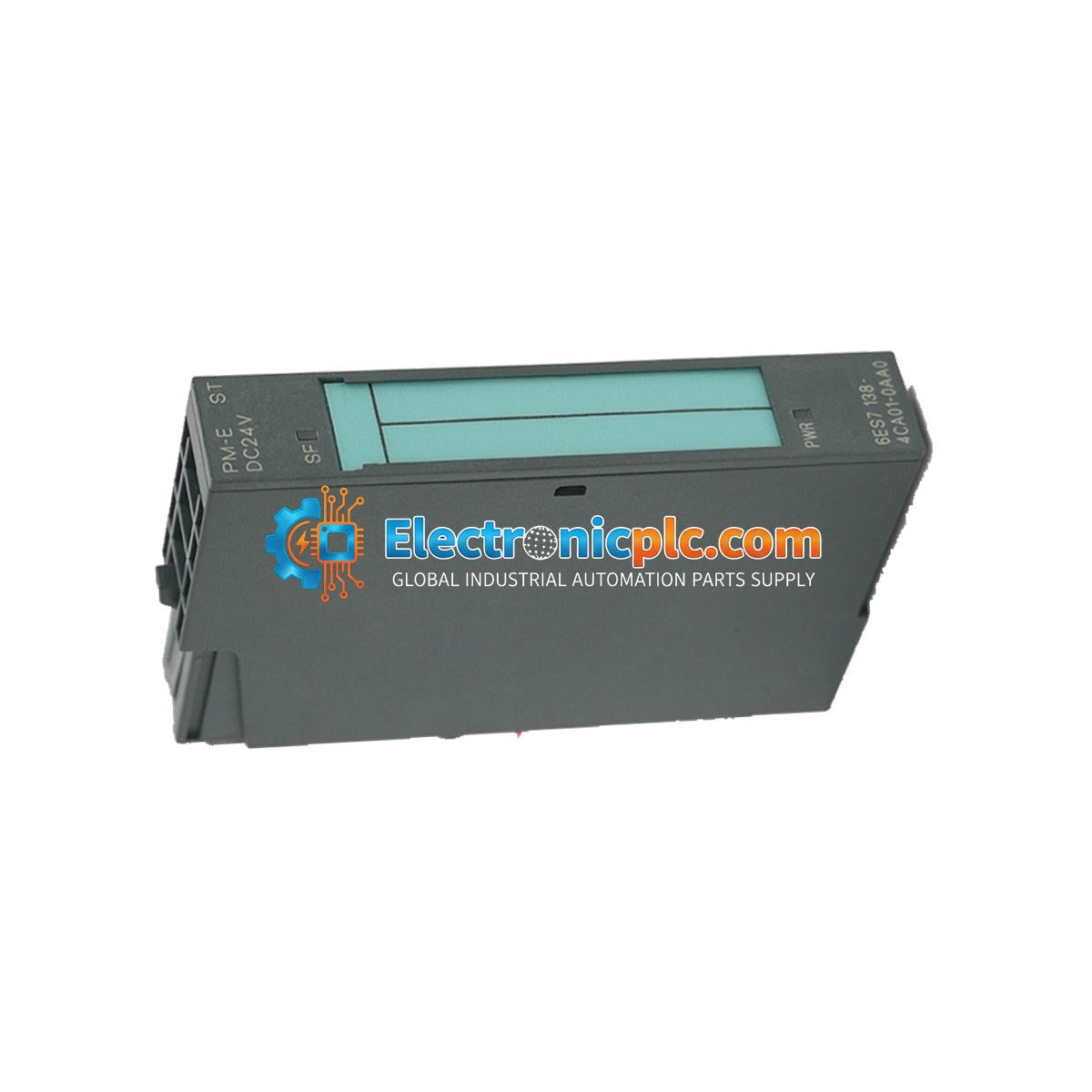

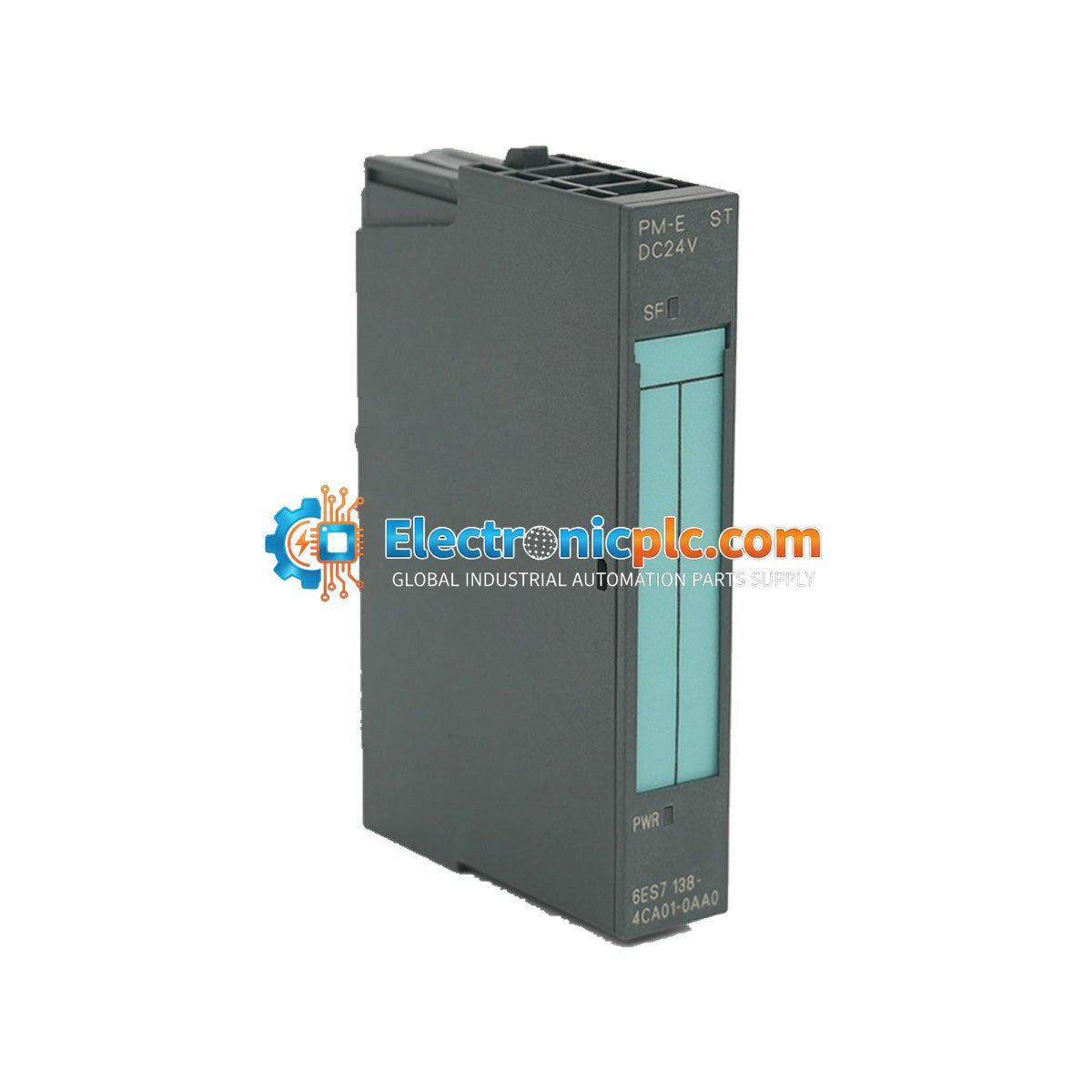

The Siemens SIMATIC DP 6ES7138-4CA01-0AA0 is a PM-E power module designed for the ET 200S distributed I/O system. This module serves as an essential interface for supplying load voltage to connected sensors and actuators, providing necessary electrical isolation and system segmentation within the I/O station. The module monitors the supply voltage for all electronic modules within its specific voltage group, ensuring reliable operation of the distributed I/O.

Features

• Designed for the SIMATIC ET 200S distributed I/O system
• Integrated diagnostic capabilities for load voltage monitoring
• Supports 24 V DC supply voltage
• Compatible with fail-safe modules
• Status byte reporting via process input image (PII)
• Efficient power management with low power loss

Applications

• Automotive and manufacturing machine control
• Building automation and low-voltage control systems
• Distributed data acquisition for assembly lines
• Marine and industrial infrastructure applications

Technical Specifications

Installation Guidelines

• The module must be mounted onto a compatible TM-P terminal module to receive power and signal connectivity.
• Ensure the power supply is disconnected before inserting or removing the module from the rack.
• Connect the 24 V DC load voltage directly to the terminals of the TM-P terminal module.
• Commissioning and maintenance should only be performed by qualified personnel.
• Ensure proper grounding and labeling of circuits in accordance with local safety standards.
• Maintain adequate ventilation to ensure the module operates within its specified temperature range.

FAQ

What is the 6ES7138-4CA01-0AA0?

The Siemens 6ES7138-4CA01-0AA0 is a 24V DC PM-E power module for the SIMATIC ET 200S distributed I/O system.

What diagnostics does it support?

It provides diagnostic monitoring, such as detecting missing load voltage, which is reported via the status byte in the process input image.

Is this module suitable for fail-safe applications?

Yes, the PM-E DC24V power module is suitable for use with fail-safe modules in the ET 200S system.
