Description

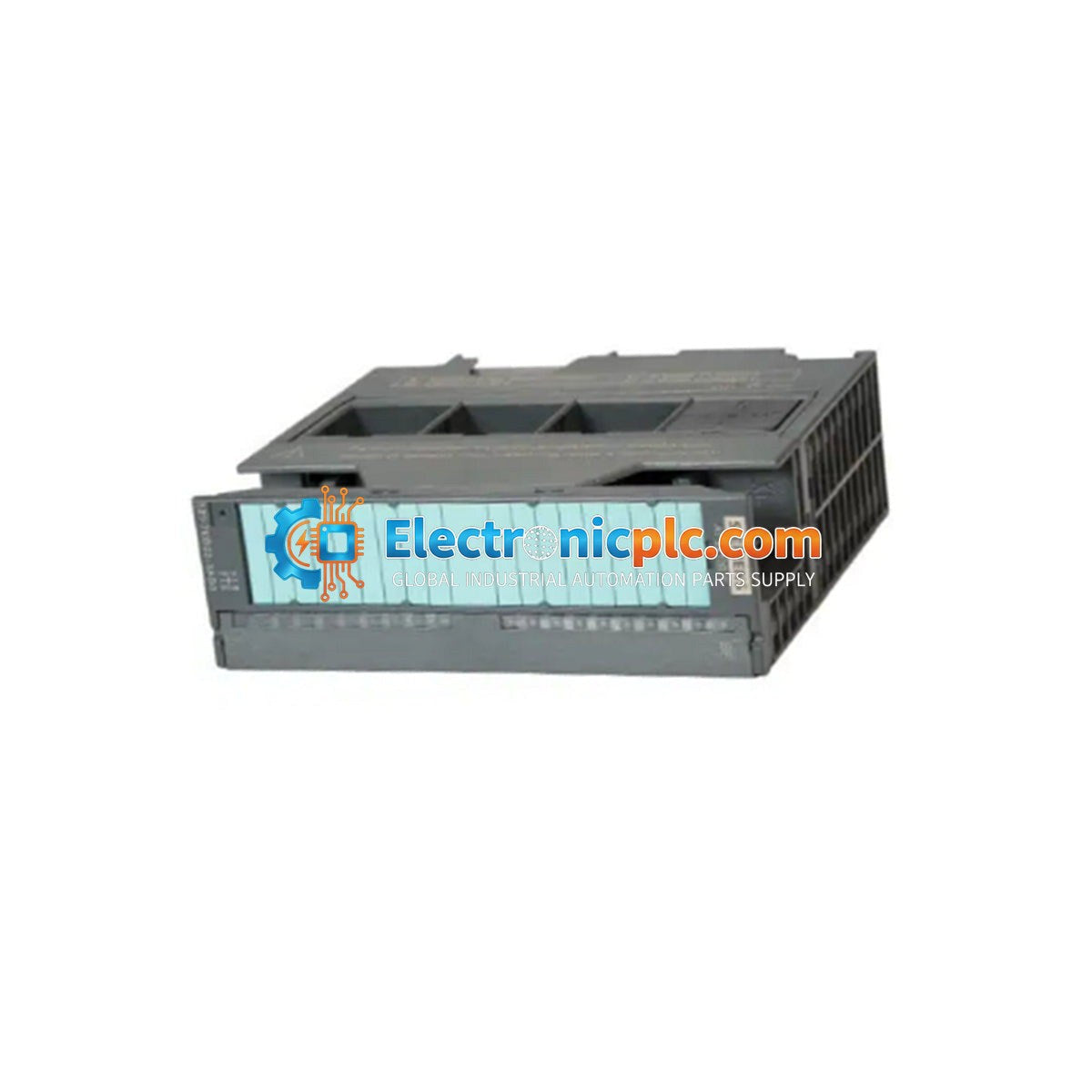

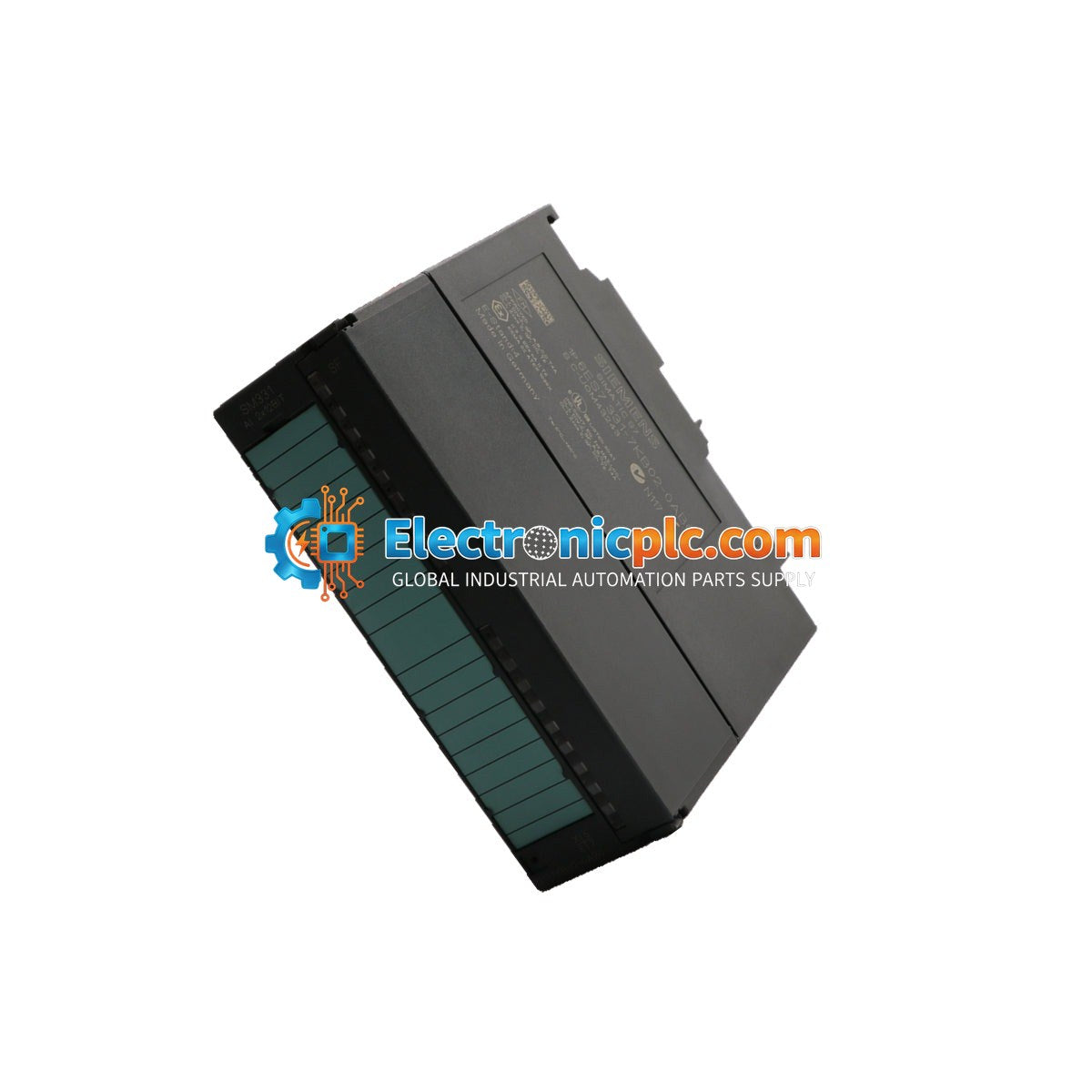

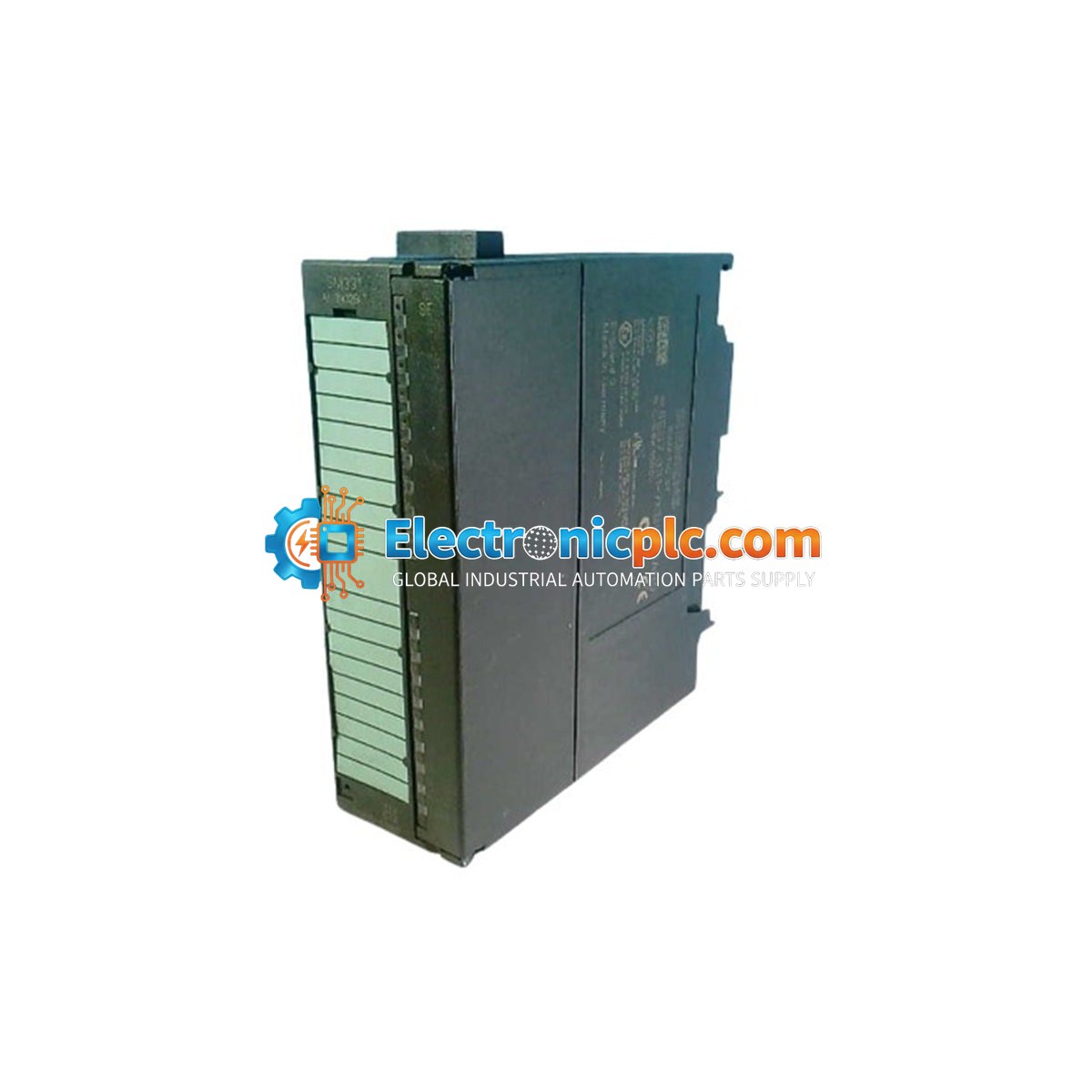

The Siemens 6ES7331-7KB02-0AB0 is an isolated analog input module designed for the SIMATIC S7-300 automation system. This SM 331 module provides two analog input channels capable of processing various signal types, including voltage, current, thermocouples, and resistance measurements. It is engineered to provide high-precision data acquisition with selectable resolutions of 9, 12, or 14 bits, making it suitable for diverse industrial process control applications.

Features

• 2 isolated analog input channels.
• Supports multiple signal types: Voltage (U), Current (I), Thermocouples, and Resistors.
• Configurable resolution: 9, 12, or 14 bits.
• Integrated alarm functionality for process monitoring.
• Standard 20-pole front connector interface for reliable wiring.
• Designed for integration into the modular S7-300 PLC architecture.

Applications

This module is widely utilized in industrial automation environments for monitoring critical process variables. Typical applications include temperature sensing via thermocouples, pressure or flow monitoring via standard current/voltage loops, and resistance-based measurement tasks in manufacturing, energy, and infrastructure control systems.

Technical Specifications

Installation Guidelines

• Ensure the PLC power supply is switched off before installing or removing the module from the S7-300 rack.
• Mount the module onto the standard DIN rail and secure it using the integrated locking mechanism.
• Use shielded cables for analog signal transmission to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the module and the S7-300 backplane to maintain signal integrity.
• Verify that the front connector is fully seated and locked to prevent intermittent contact.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module.

FAQ

What signal types does this module support?

The 6ES7331-7KB02-0AB0 supports voltage, current, thermocouple, and resistor inputs, allowing for flexible configuration depending on the sensor type connected to the channels.

Is this module isolated?

Yes, this SM 331 module features isolated analog inputs to protect the CPU and other modules from potential ground loops or voltage surges in the field wiring.
