Description

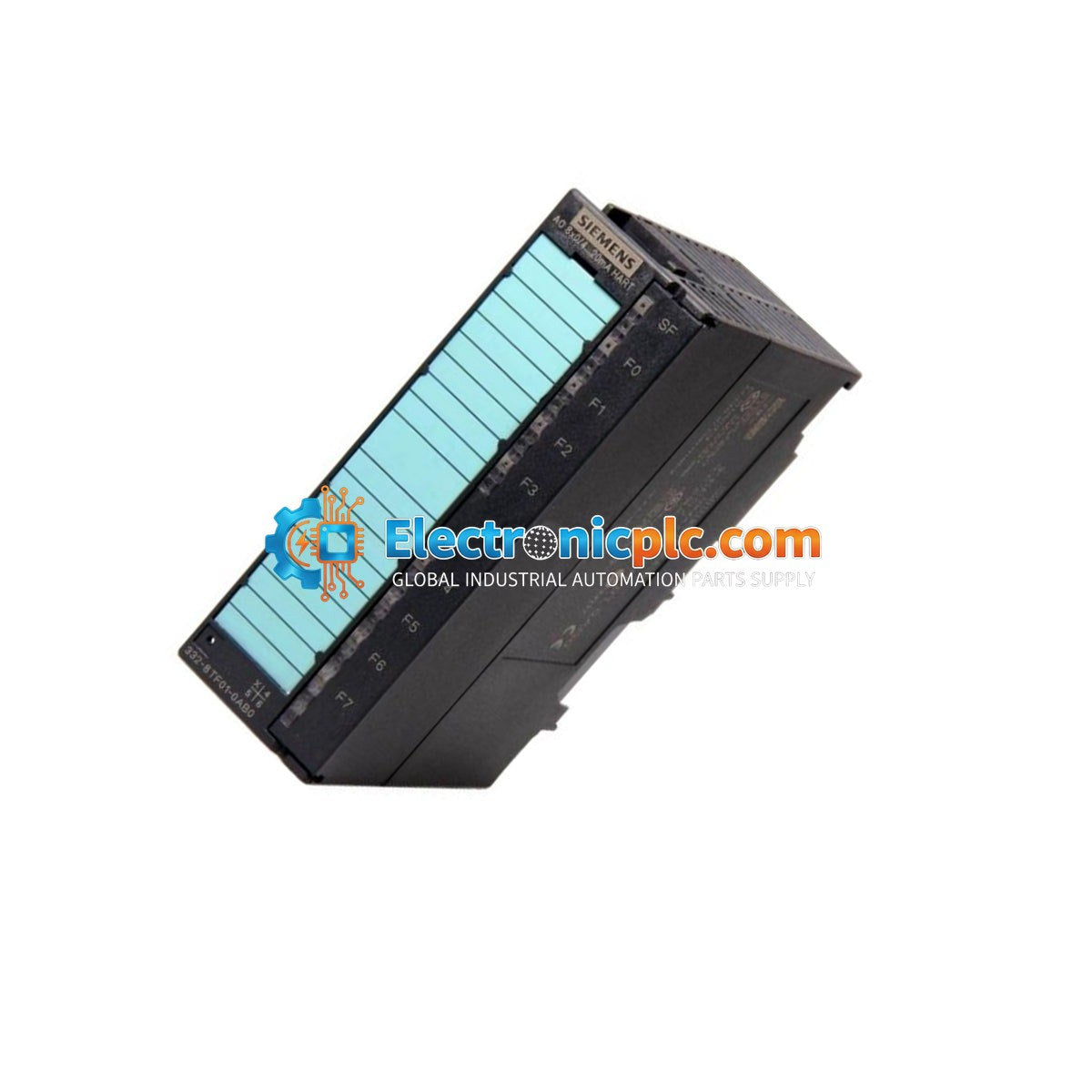

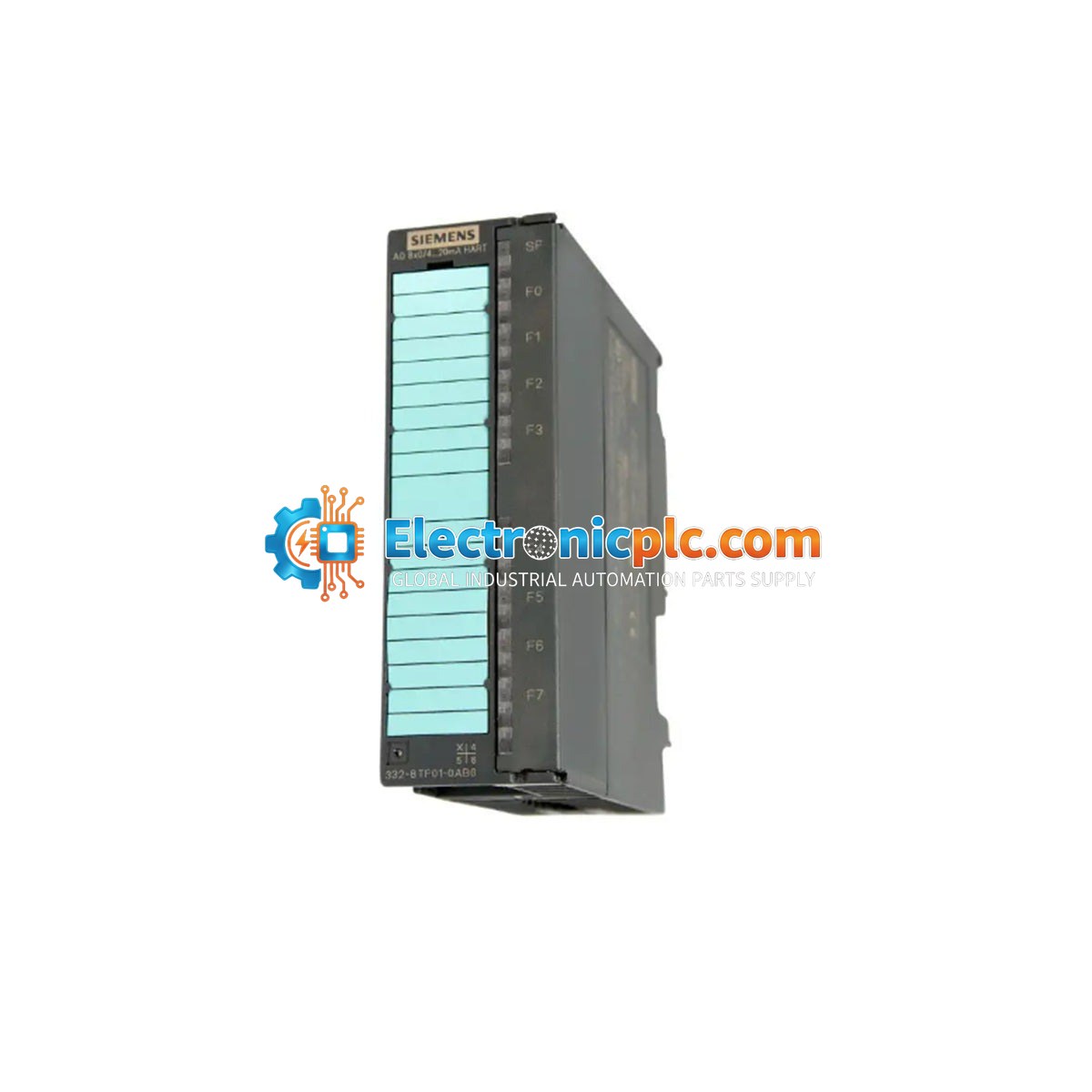

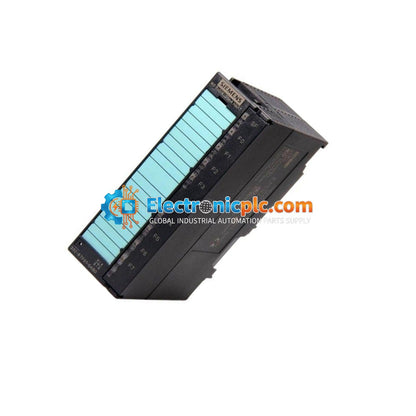

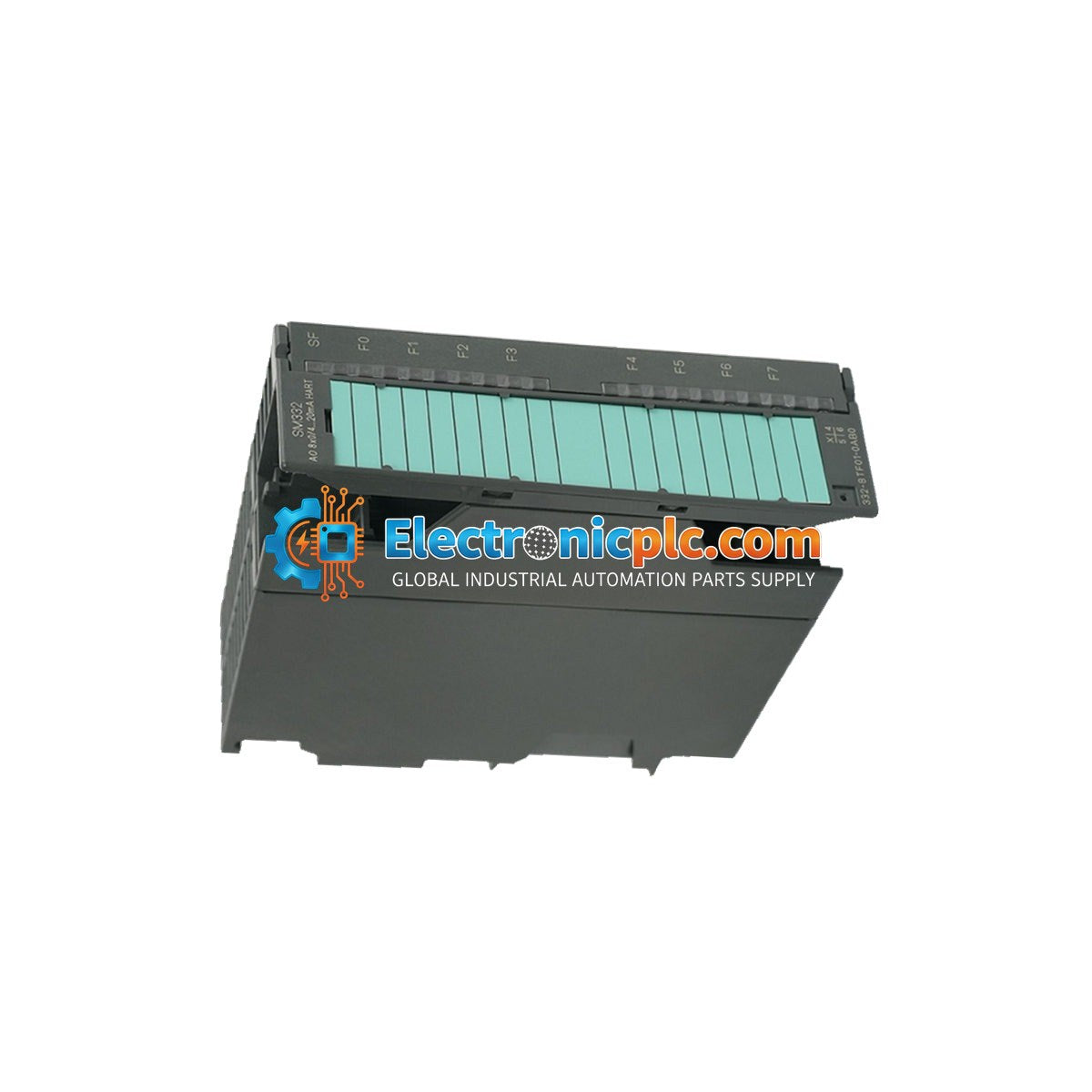

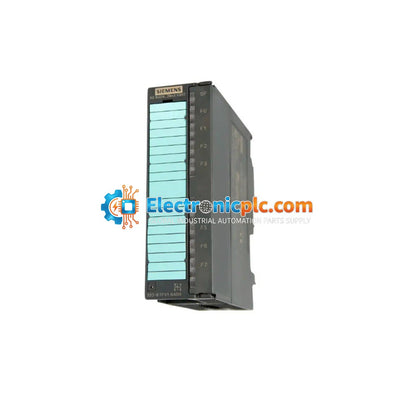

The Siemens 6ES7332-8TF01-0AB0 is a high-performance analog output module from the SIMATIC S7-300 and ET 200M product families. Designed for demanding industrial environments, this SM 332 module provides eight independent current output channels supporting 0/4 to 20 mA signals with integrated HART communication. It is engineered for use in distributed I/O systems, specifically requiring the IM 153-2 interface module for operation.

Features

• 8 analog output channels with HART protocol support.
• Configurable output ranges: 0 to 20 mA or 4 to 20 mA.
• High-precision 16-bit resolution with overrange capability.
• Supports redundancy for high-availability control applications.
• Local diagnostic buffer with timestamping for efficient troubleshooting.
• Supports firmware updates and reading of HART auxiliary variables from field devices.
• Electrical isolation of 500 V DC between channels and backplane bus.

Applications

• Chemical and Petrochemical: Precise actuator and valve control in hazardous areas.
• Water and Wastewater: Flow control and chemical dosing via HART-enabled instrumentation.
• Pharmaceutical: Process stability and precise dosing with advanced diagnostic capabilities.
• Oil and Gas: High-availability systems requiring redundancy to minimize downtime.
• Food and Beverage: Continuous monitoring and adjustment of process variables.

Technical Specifications

Installation Guidelines

• Mounting: Designed for installation in an ET 200M distributed I/O station. Ensure the module is securely seated in the rack.
• Wiring: Requires a standard 20-pin front connector. Use shielded cabling for analog signals to minimize EMI, with a maximum length of 800 meters.
• Power Supply: Connect a 24 V DC (20.4–28.8 V) supply. Ensure correct polarity before powering on.
• Hot-Swapping: The module supports removal and insertion during operation (hot-swapping) only when used with an active backplane bus in an ET 200M configuration.
• Safety: Do not disconnect or open the module while the circuit is live in flammable or combustible atmospheres. Always power down the system before performing maintenance or wiring changes in non-hazardous areas.

FAQ

What is the 6ES7332-8TF01-0AB0?

The Siemens 6ES7332-8TF01-0AB0 is a SIMATIC DP HART analog output module (SM 332, 8 AO) designed for the ET 200M distributed I/O system.

Does the module support hot-swapping?

Yes, the module supports removal and insertion during operation, provided it is used with an S7/M7-400 CPU master and an active backplane bus in an ET 200M configuration.

What is the resolution of the analog outputs?

The module features 16-bit resolution, ensuring high-precision control for industrial processes.
