Description

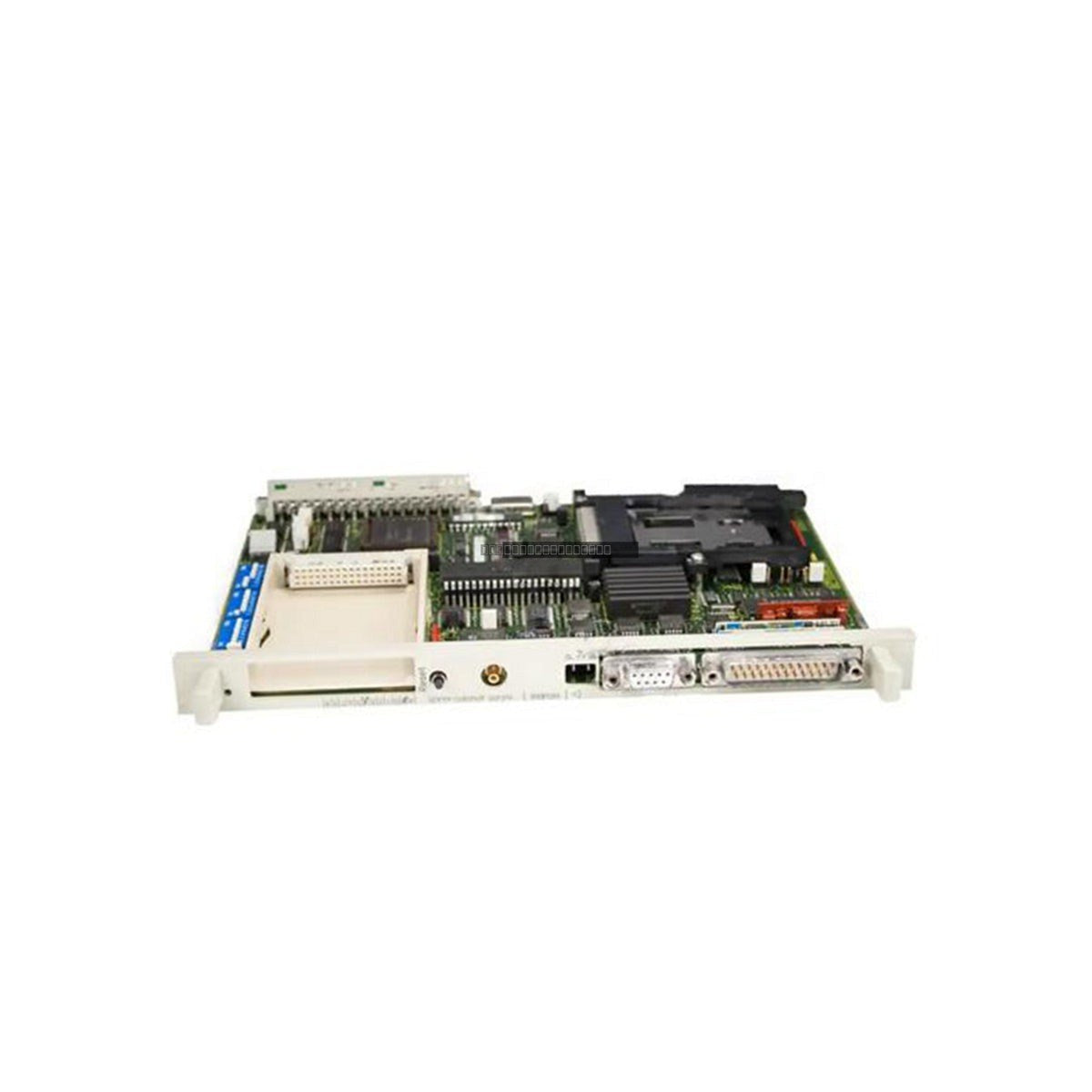

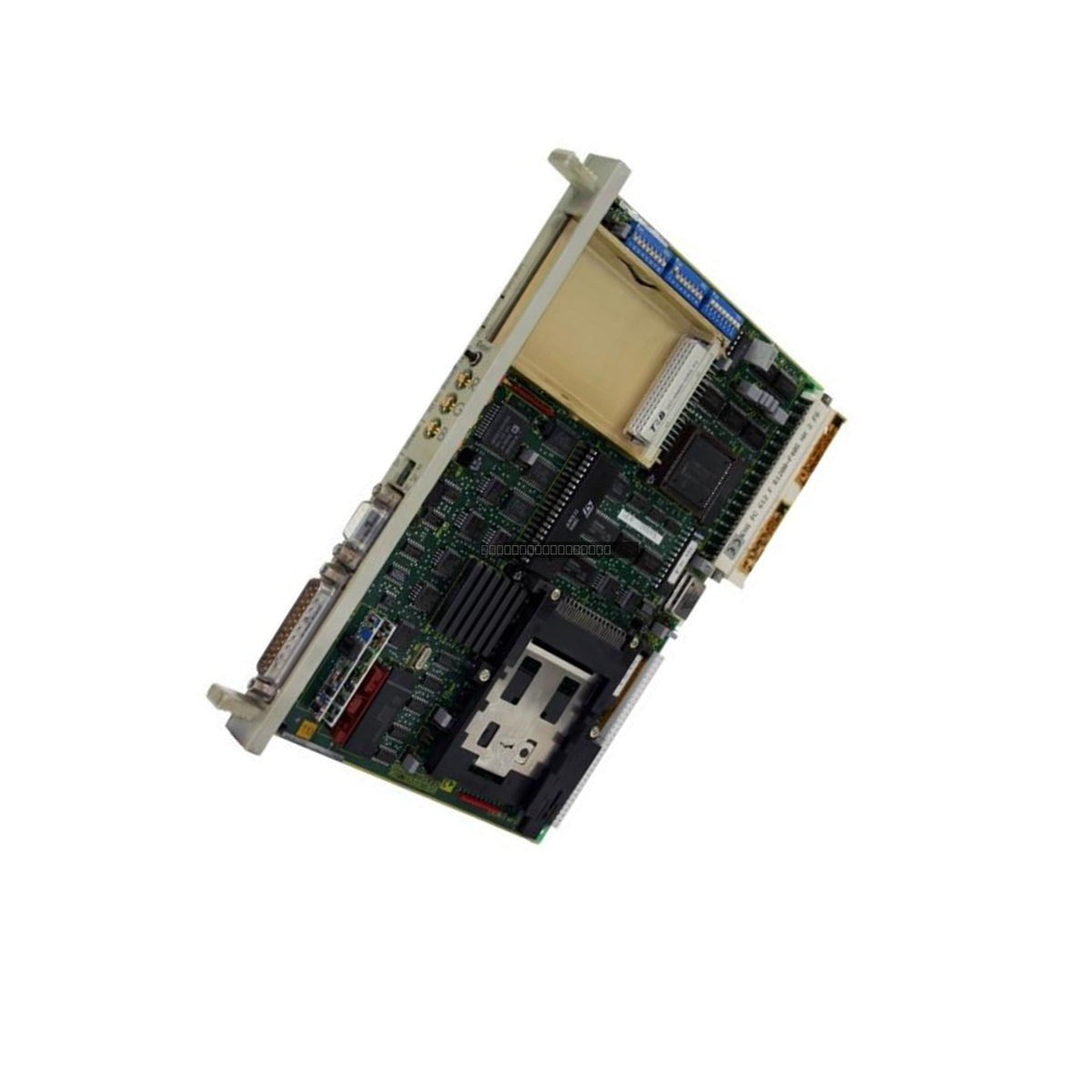

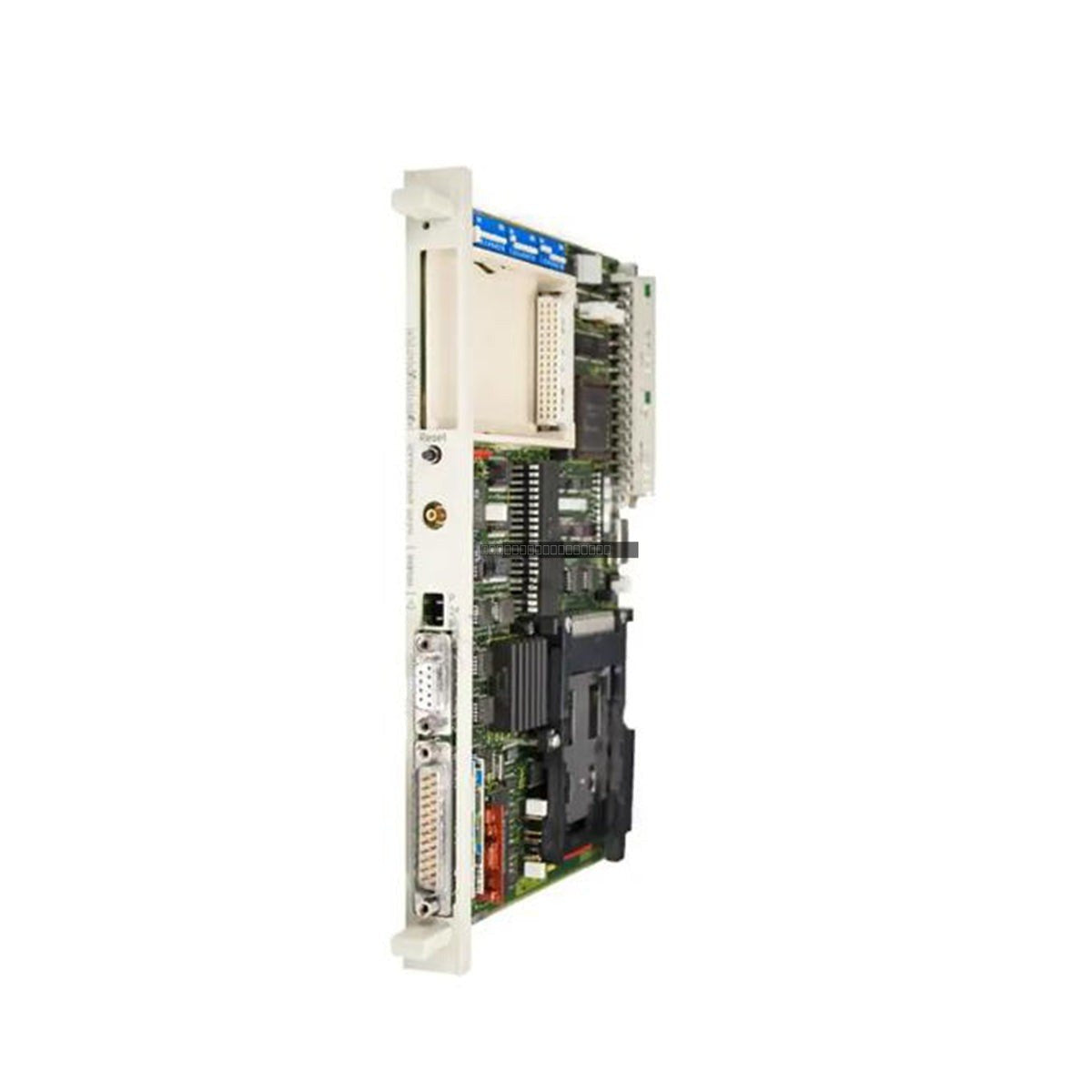

The Siemens 6FM1470-3AA25 is a specialized WF 470A intelligent display processor designed for the Simatic S5 automation system. This module serves as a dedicated graphics engine, offloading visualization tasks from the primary CPU to provide high-fidelity color monitoring and diagnostic feedback. It is engineered to support complex process environments, enabling operators to visualize real-time system states and process deviations efficiently.

Features

• Intelligent graphics processing for Simatic S5 series controllers.
• Supports multilingual graphical output, including German, English, French, and Russian.
• Features a dedicated expansion slot for external memory modules to accommodate additional font libraries and graphical assets.
• Optimized for high-speed screen refresh rates to ensure responsive operator interaction.
• Integrated EMI shielding to maintain signal integrity in demanding industrial environments.

Applications

This module is primarily utilized in industrial control rooms for applications such as power generation, heavy manufacturing, and mining operations. It is essential for systems requiring detailed process visualization, alarm monitoring, and rapid diagnostic status reporting.

Technical Specifications

Installation Guidelines

• Ensure the Simatic S5 rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the designated backplane slot to ensure proper communication with the CPU.
• Ensure adequate ventilation within the control cabinet to maintain operating temperatures below 55 degC.
• Maintain proper grounding practices for the rack assembly to minimize the impact of electromagnetic interference.
• Handle the PCB with standard ESD precautions to prevent damage to sensitive internal components.

FAQ

What is the primary function of the Siemens 6FM1470-3AA25?

This module acts as an intelligent display processor for the Simatic S5 system, responsible for generating color graphics and managing diagnostic data visualization to assist operators in monitoring process states.

Does this module support memory expansion?

Yes, the unit includes a dedicated slot for external memory modules, which allows for the expansion of font libraries and graphic storage capacity.
