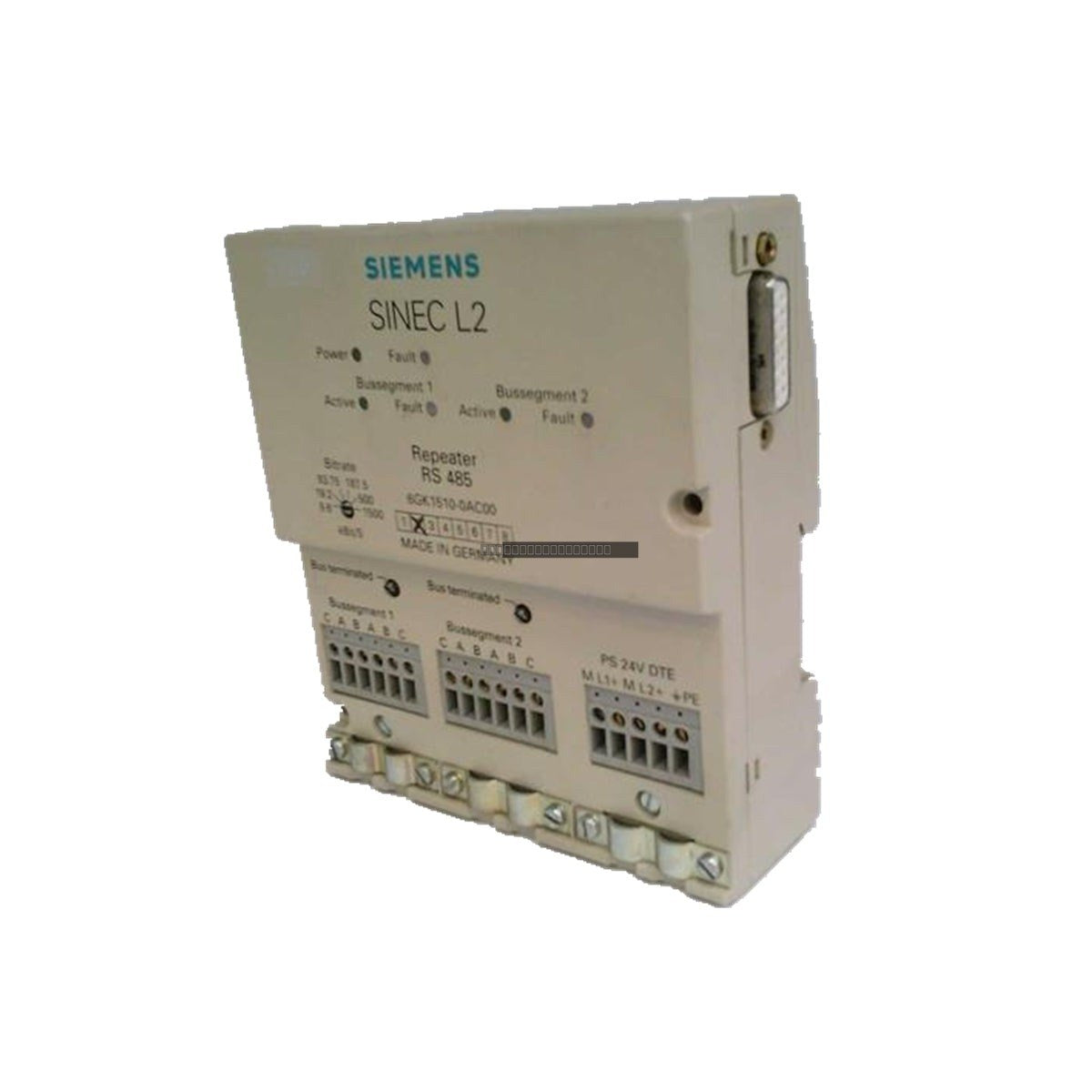

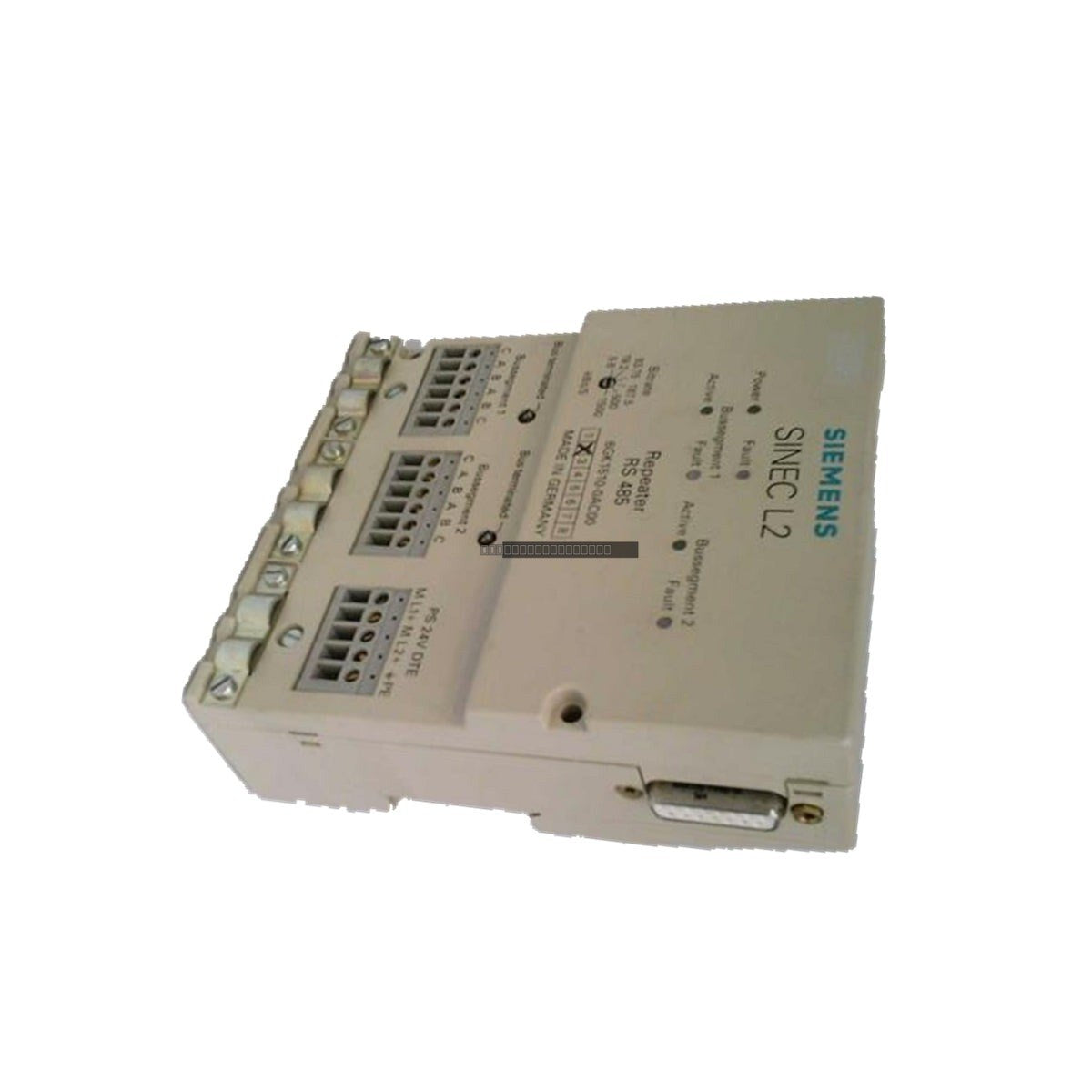

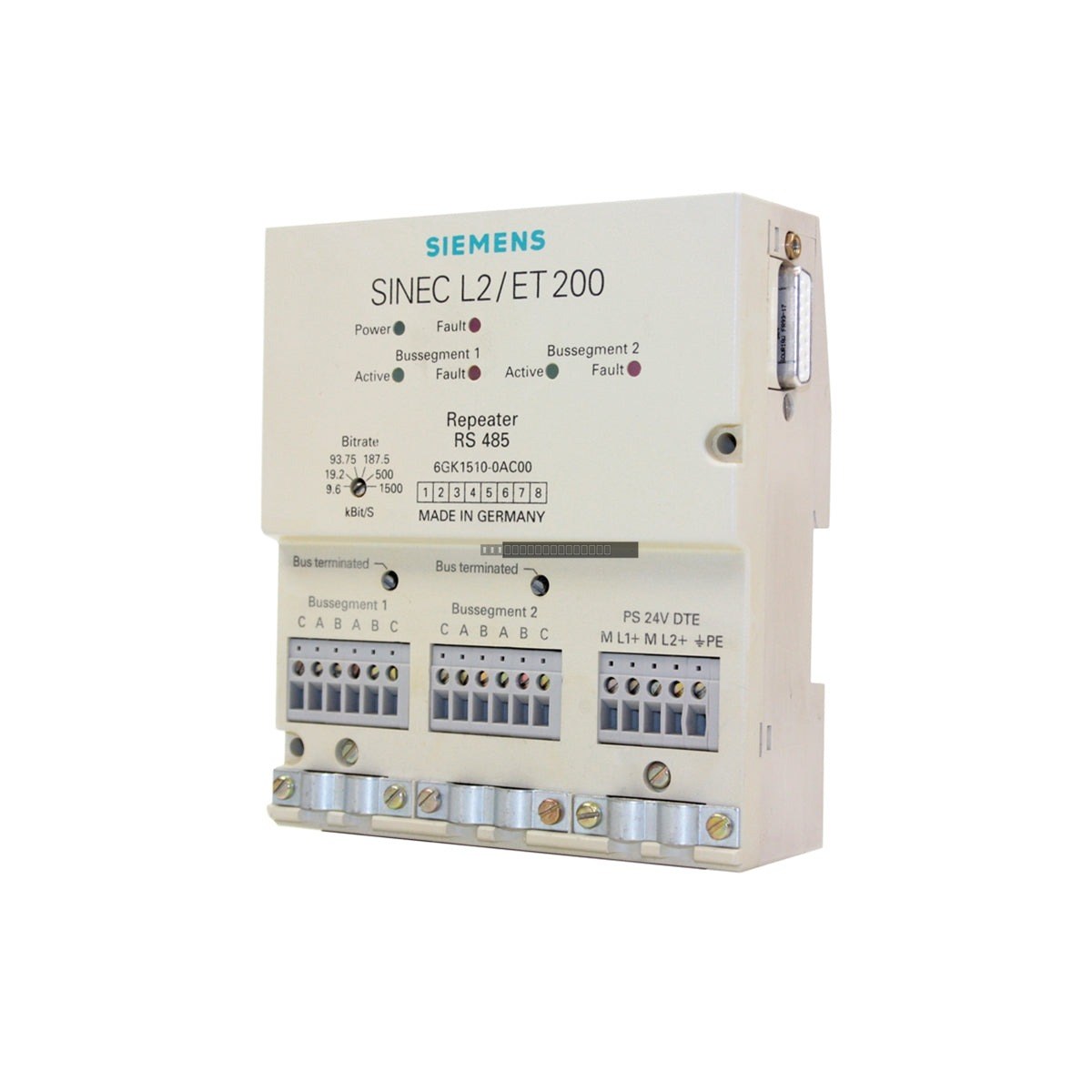

The Siemens 6GK1510-0AC00 is an active RS 485 repeater module engineered for the Simatic Net industrial communication environment. Designed to maintain signal integrity over extended physical distances, this module amplifies and regenerates Profibus signals, effectively preventing attenuation and data corruption in complex, distributed network architectures.

Features

• Supports a wide range of transmission rates from 9.6 kbit/s up to 1500 kbit/s.
• Automatic baud rate detection for seamless integration into existing Profibus segments.
• Integrated galvanic isolation to protect against transient voltage surges and mitigate ground loop interference between segments.
• Real-time diagnostic LEDs for monitoring power status, bus activity, and transmission integrity.
• Robust physical layer signal regeneration without modifying data frame content.

Applications

This repeater is primarily deployed in large-scale industrial environments such as thermal power plants, chemical processing facilities, and mining operations. It is essential for configurations requiring extended cable runs or increased node counts where signal degradation poses a risk to communication stability.

Technical Specifications

Installation Guidelines

• Ensure the module is mounted in a well-ventilated cabinet to maintain ambient temperatures within the 0 to 60 deg C range.
• Use appropriate shielded Profibus cabling to maintain the integrity of the galvanic isolation.
• Verify power supply polarity (24 VDC) before connecting to the terminal block to prevent internal circuitry damage.
• Maintain proper grounding practices to minimize the impact of electromagnetic noise in high-interference environments.
• Always disconnect power before installing or removing the module from the mounting rail.

FAQ

Does this module require manual configuration for baud rates? No, the 6GK1510-0AC00 features automatic baud rate detection and adapts to the network speed autonomously.

Can this module be used for protocols other than Profibus? This unit is specifically designed as an RS 485 repeater for Profibus and related Simatic Net physical layer applications.
