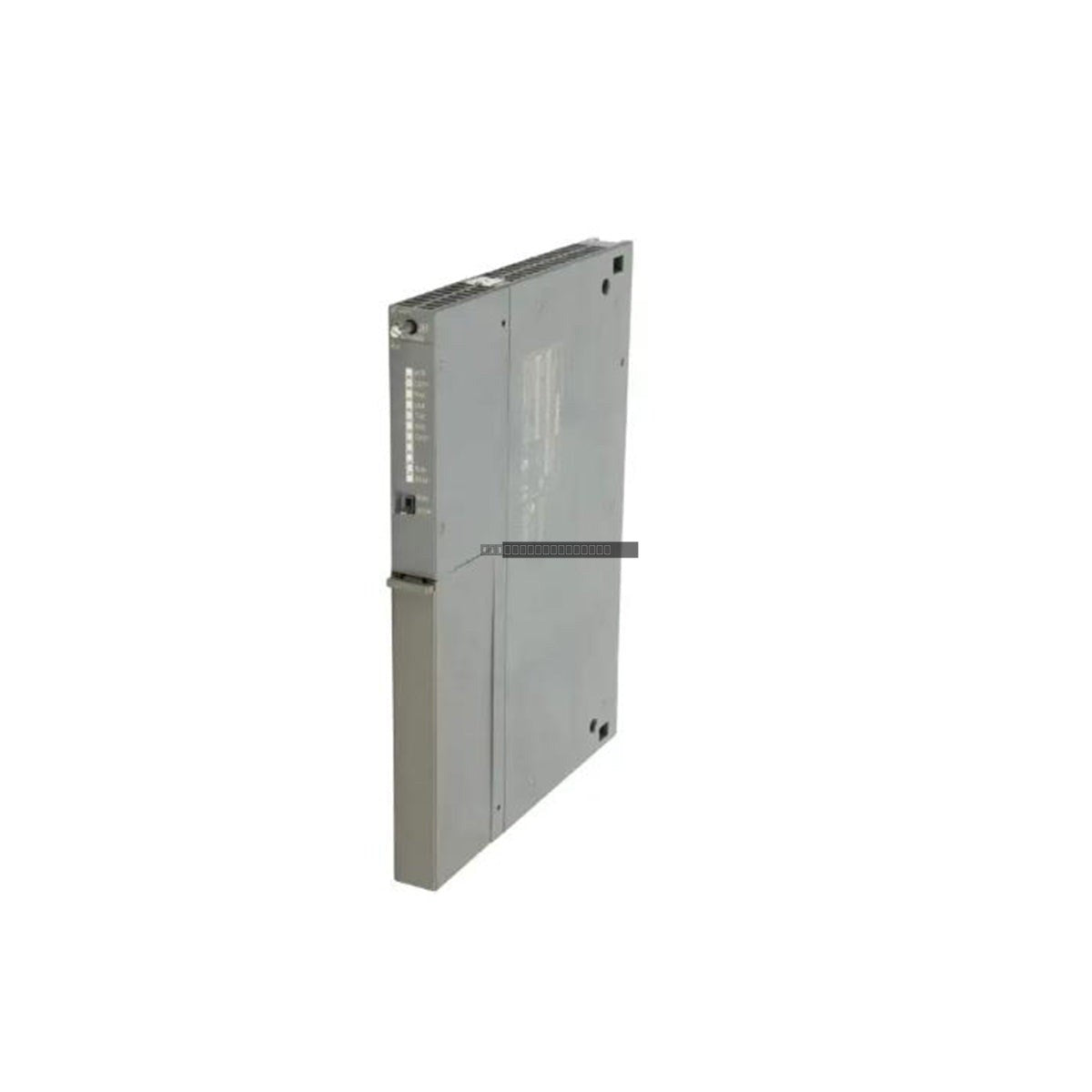

The Siemens 6GK7443-1EX11-0XE0 is a high-performance communications processor designed for the SIMATIC S7-400 automation system. This CP 443-1 module facilitates robust network connectivity, acting as a bridge between the PLC and industrial Ethernet environments. It features an integrated 2-port switch for 10/100 Mbit/s data transfer, supporting seamless integration into complex control architectures.

Features

• Integrated 2-port RJ45 switch for 10/100 Mbit/s Ethernet connectivity.
• Comprehensive protocol support including ISO, TCP, and UDP.
• Functions as a PROFINET IO controller for distributed I/O management.
• Supports S7 communication and open communication via SEND/RECEIVE blocks.
• Enables S7 routing and flexible IP configuration via DHCP or block-based methods.
• Enhanced security and management features including IP Access Control Lists and time synchronization.
• Supports advanced diagnostic capabilities via an extended web interface.
• Optimized for rapid deployment with Fast Startup and PROFIenergy support.

Applications

This communications processor is specifically engineered for industrial automation tasks requiring reliable networking in S7-400 systems. It is commonly utilized for plant-wide data exchange, integration of distributed PROFINET I/O, and as a gateway for supervisory control and data acquisition (SCADA) systems.

Technical Specifications

Installation Guidelines

• Ensure the S7-400 rack is powered down before inserting or removing the CP 443-1 module to prevent electrical damage.
• Mount the module in the designated slot of the S7-400 backplane, ensuring it is fully seated and secured.
• Use shielded twisted-pair Ethernet cables (Cat5 or higher) to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain proper ventilation within the control cabinet to ensure operating temperatures remain within the 0 to 60 degC range.
• Follow standard ESD precautions when handling the module to protect internal circuitry.

FAQ

Is this module compatible with all S7-400 CPUs?
The 6GK7443-1EX11-0XE0 is designed for the S7-400 series; however, please verify your specific CPU firmware and project configuration requirements in the TIA Portal or STEP 7 software before installation.

Does this module support PROFINET IO?
Yes, this unit functions as a PROFINET IO controller, allowing it to manage distributed I/O devices over an Ethernet network.
