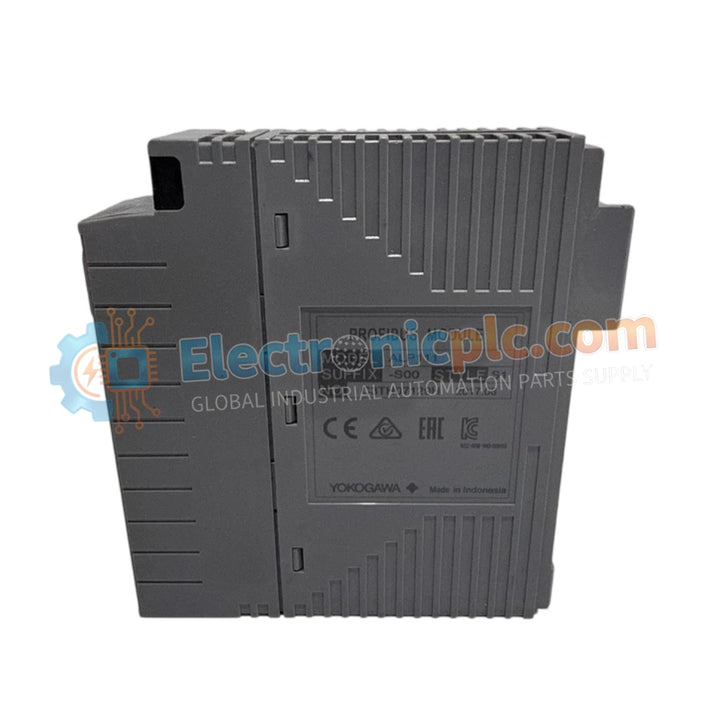

The 7M190-YDM05, also cataloged as the 7M190-YDM05 Analog Input Module, operates as a dedicated hardware component for high-resolution signal acquisition within industrial process control systems. This module provides direct electrical execution of analog-to-digital signal conversion for up to 16 channels, facilitating the processing of precision voltage signals within demanding operational environments.

Hardware Specifications

Signal Acquisition and Isolation

The 7M190-YDM05 is engineered to capture analog signals with 16-bit resolution, ensuring high granularity for control loop feedback. Its internal architecture utilizes 1500 VAC galvanic isolation, which decouples the field-side input circuits from the control system backplane. This isolation prevents the propagation of ground loops and common-mode noise, maintaining signal integrity in electrically noisy environments. The module is designed for wide-temperature range stability, supporting continuous performance in conditions from -20 deg C to +70 deg C.

Frequently Asked Questions

Q: Does the 7M190-YDM05 support hot-swapping during active system operation?

A: No, this module does not support hot-swapping. The controller rack must be powered down or placed in a defined maintenance mode prior to extraction or installation to prevent damage to the backplane communication pins or electrical shorting of the input channels.

Q: How is the accuracy maintained across different temperature ranges?

A: Accuracy is maintained through high-precision internal reference components and digital filtering circuits that compensate for thermal drift, ensuring the ±0.1% measurement tolerance is held across the specified operational temperature range.

Field Installation Guidelines

• Ensure the host controller power is disconnected before installing the module into the designated rack slot.
• Verify that the I/O rack is properly grounded to the plant earth bus to optimize the effectiveness of the 1500 VAC isolation.
• Use shielded, twisted-pair cabling for all 16 analog input channels to mitigate electromagnetic interference (EMI).
• Secure the module using the provided front-panel locking clips; ensure proper alignment to avoid bending the backplane pins during seating.
• Route signal wiring through dedicated conduits separate from high-voltage AC lines to maintain measurement precision and prevent noise coupling into the analog loops.
