Description

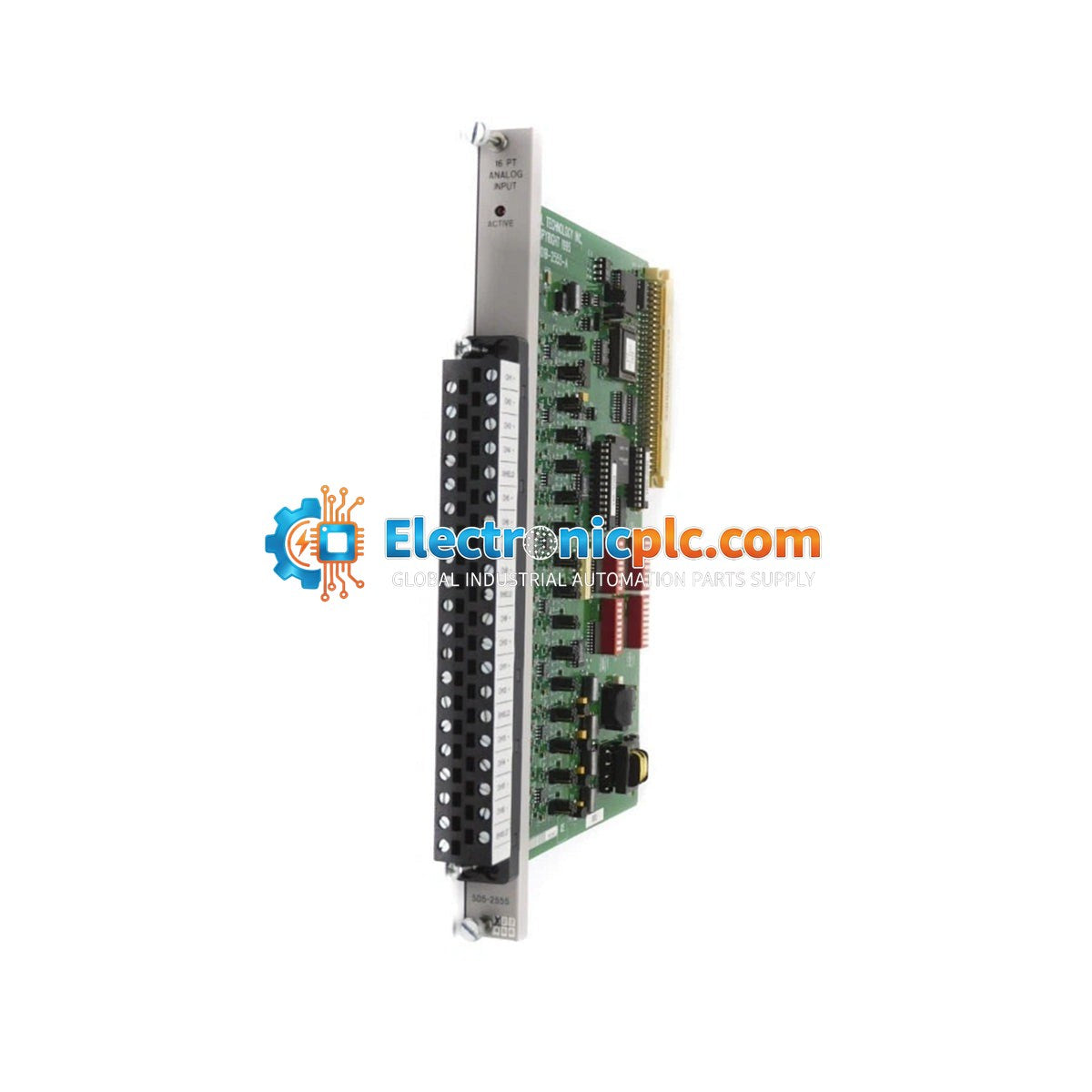

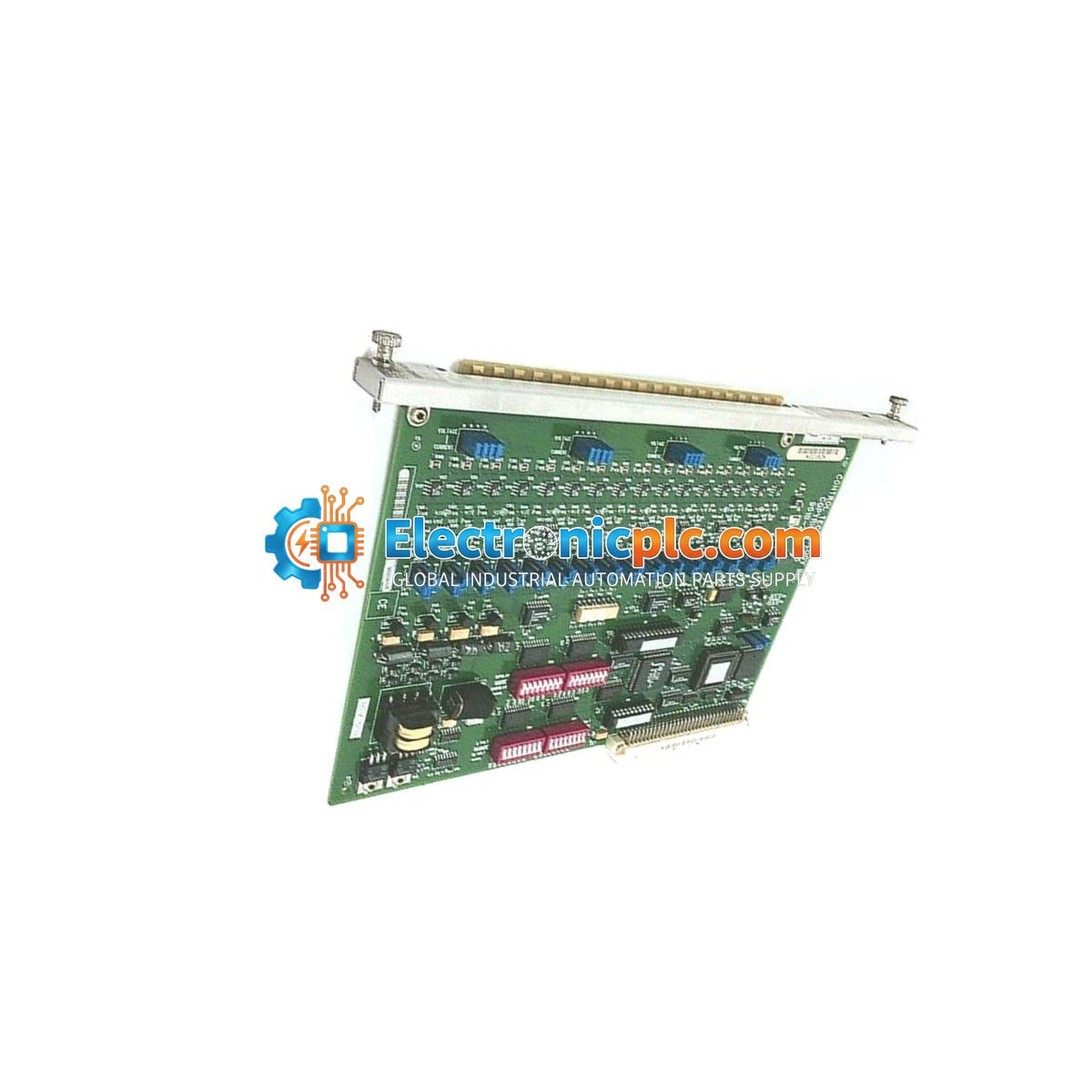

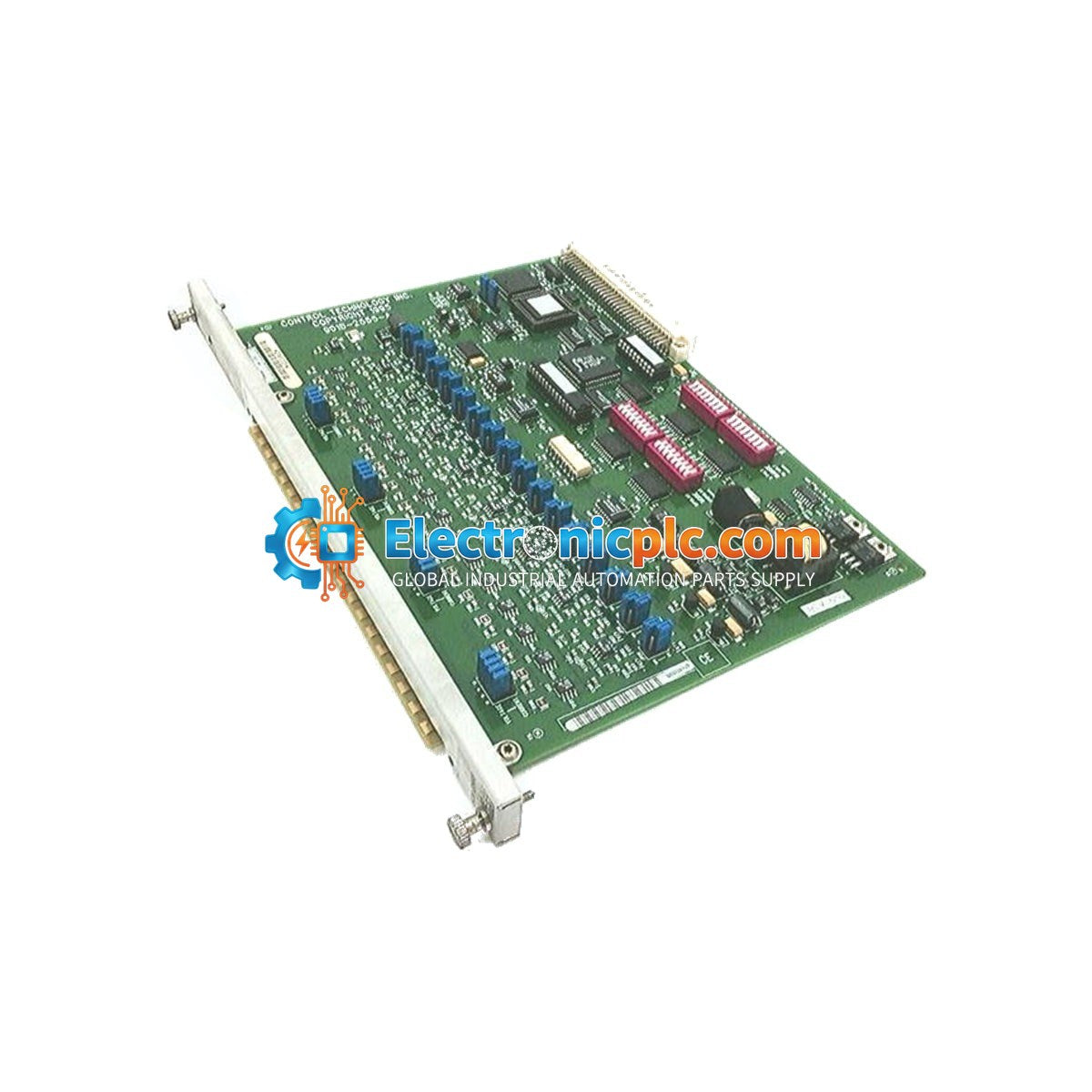

The 901B-2555-A is a high-performance control board engineered by Control Technology Inc (CTI) for integration with Siemens-compatible industrial automation systems, specifically within the CTI 2500 Series and classic controller environments. This specialized processing unit is designed to handle complex logic sequences and high-speed I/O management within a PLC rack environment. By offloading critical control tasks from the primary CPU, the 901B-2555-A enhances overall system responsiveness and fault tolerance, maintaining continuous uptime in demanding industrial applications.

Features

• Optimized for high-integrity signal processing and low-latency communication across the backplane.
• Multi-layer PCB design for superior thermal management and electromagnetic shielding.
• Supports deterministic execution of control algorithms for critical safety and process loops.
• Integrated diagnostic indicators for real-time health monitoring and rapid fault isolation.
• Designed for seamless expansion of host PLC capabilities in motion control and data acquisition tasks.

Applications

This control board is extensively utilized in sectors requiring high reliability and continuous operation, including:

• Petrochemical refining and processing facilities.
• Water and wastewater treatment plants.
• Automated assembly lines and high-density machine control systems.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Handle the board by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Ensure the module is fully seated in the designated rack slot to establish a secure backplane connection.
• Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the specified 0-60 deg C range.
• Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

Is the 901B-2555-A compatible with all Siemens PLCs?

The 901B-2555-A is specifically designed for compatibility with CTI 2500 Series and classic controllers that interface with CTI hardware. Please verify your specific controller model and backplane configuration before installation.

What should I do if the diagnostic indicators show a fault?

First, verify that the board is fully seated in the rack slot and that the backplane connection is secure. If the fault persists, refer to your system's diagnostic manual to interpret the specific error code indicated by the board's LEDs.
