Description

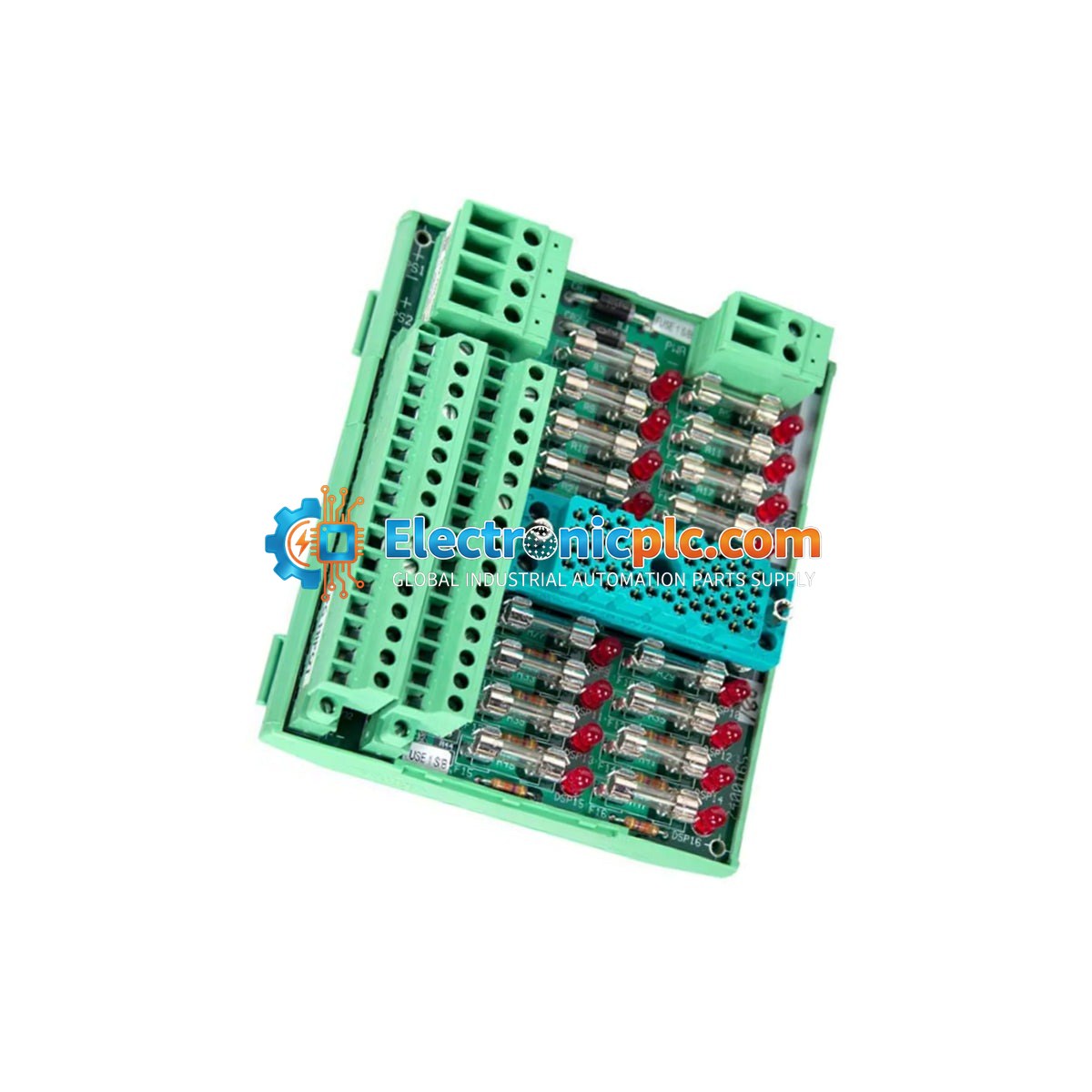

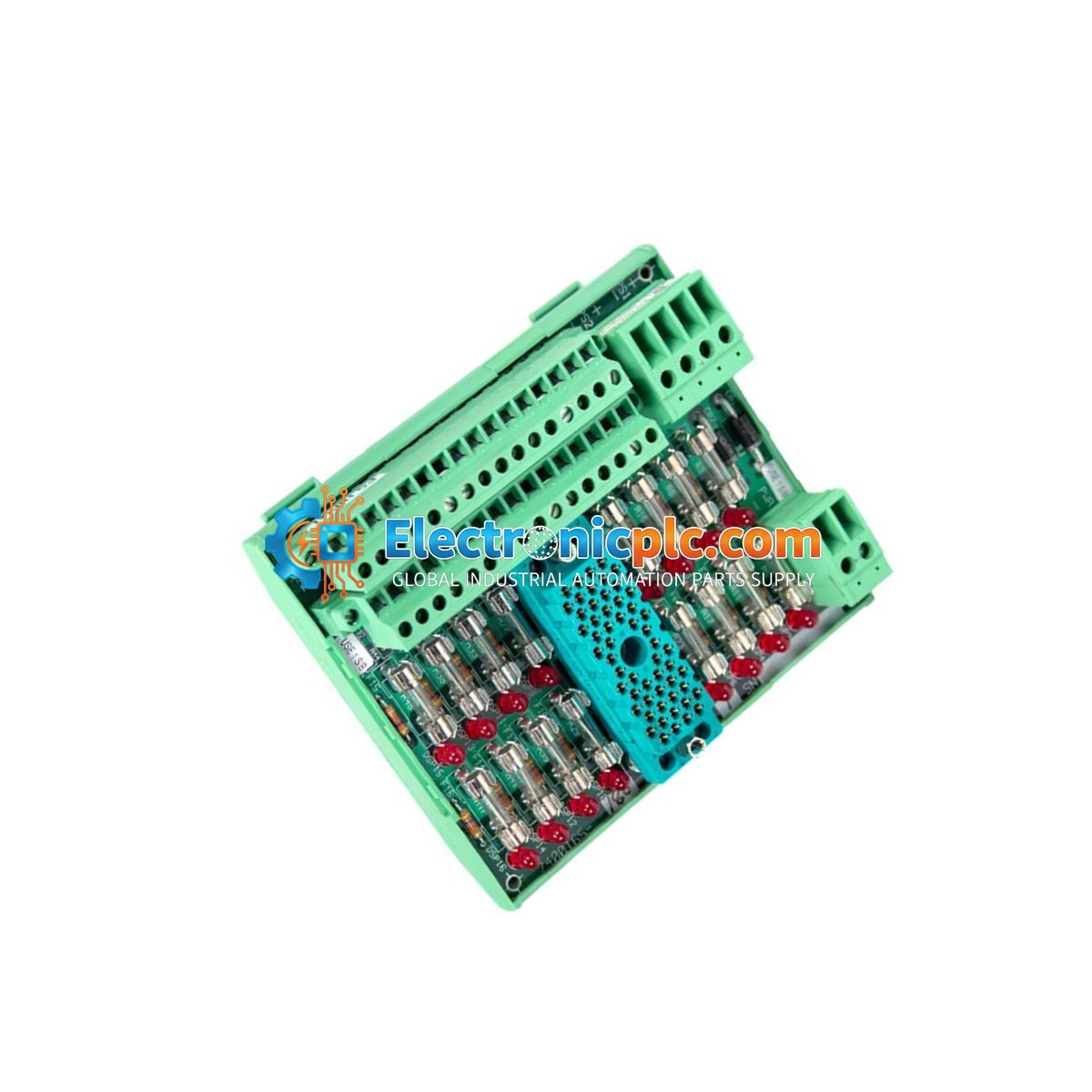

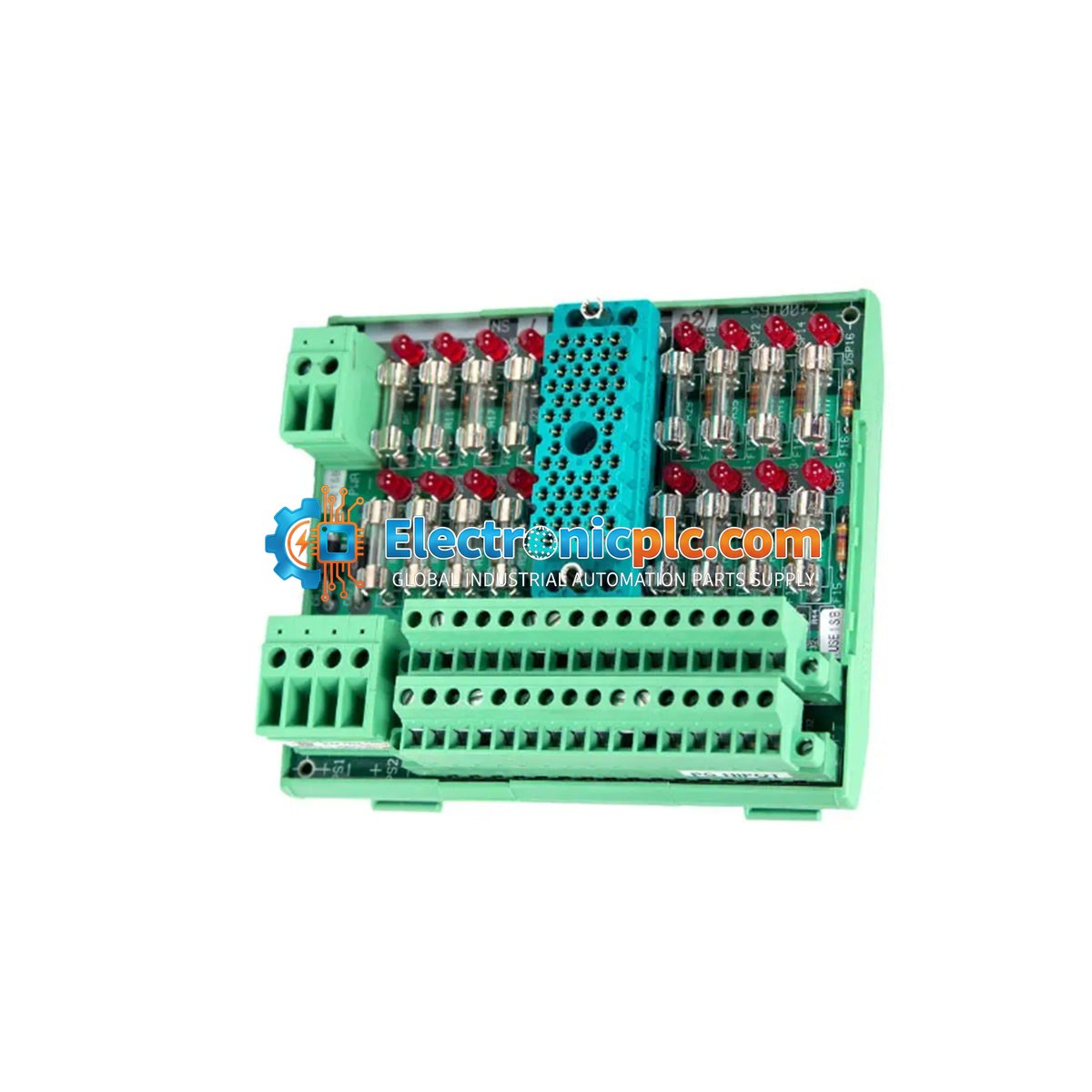

The 9563-810 is a high-density digital input termination panel designed for use within the Invensys Triconex Safety Instrumented System (SIS). This commoned-type panel serves as the physical interface between field-level digital sensors and the Tricon controller, supporting up to 16 input points. It is engineered for high-reliability applications in demanding industrial environments, including petrochemical plants, power generation facilities, and offshore platforms, providing robust signal routing and electrical protection.

Features

• Supports 16 commoned digital input points for streamlined field wiring.
• High-voltage isolation: 1500 VAC field-to-system and 250 VAC channel-to-channel.
• Optimized for 24 VDC nominal operation with high signal fidelity.
• Designed for operation in extreme temperatures ranging from -40 to 70 deg C.
• Facilitates rapid maintenance and diagnostic access via standardized terminal blocks.
• Prevents electrical surges from impacting central logic, enhancing safety loop integrity.

Applications

This termination panel is specifically designed for integration into Triconex safety-critical control loops. It is commonly deployed in emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems where high-density, reliable digital input termination is required.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the termination panel to prevent electrical damage.
• Mount the panel in a secure, vibration-resistant cabinet environment.
• Use appropriate shielded cabling for field inputs to minimize EMI in noisy industrial environments.
• Verify all terminal connections are tightened to manufacturer specifications to ensure low-resistance contact.
• Maintain proper clearance around the panel to allow for adequate airflow and thermal dissipation.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components.

FAQ

What is the primary function of the 9563-810?

The 9563-810 acts as a termination interface that connects field digital sensors to the Triconex controller, providing necessary signal isolation and protection for the safety system.

Can this panel be used in outdoor or harsh environments?

Yes, the unit is rated for an operating temperature range of -40 to 70 deg C, making it suitable for non-climate-controlled industrial cabinets.
