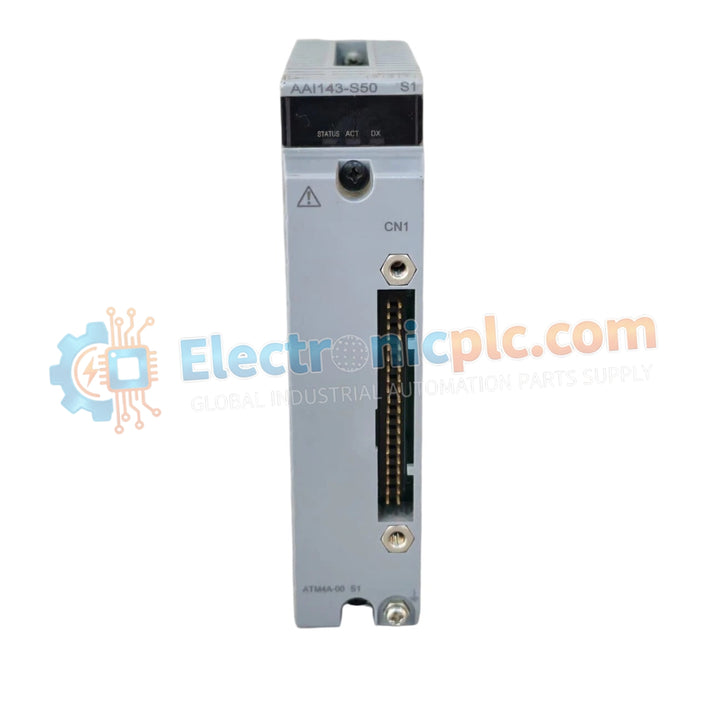

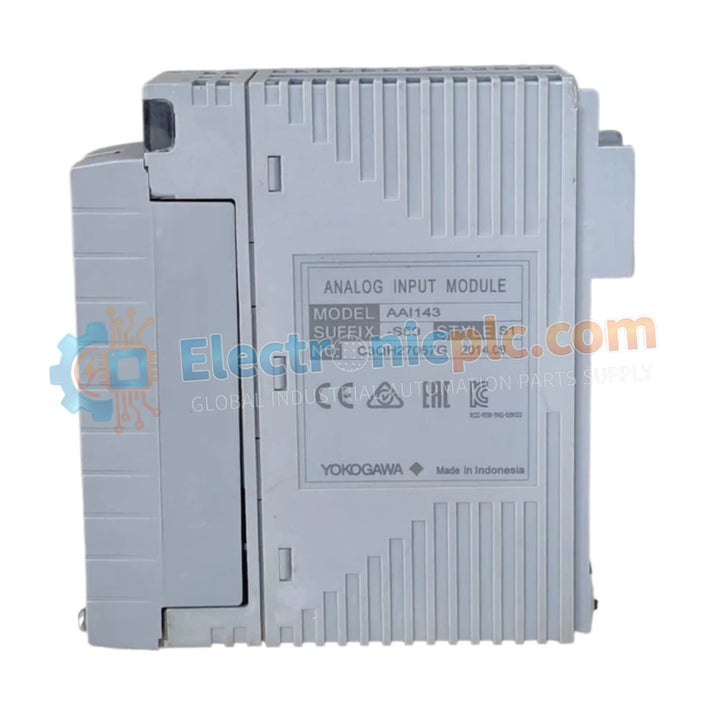

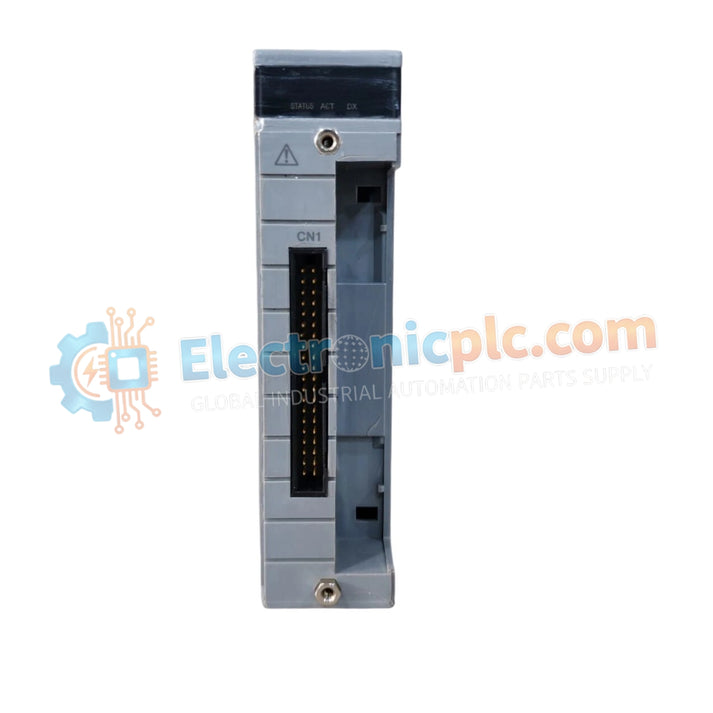

Configured for high-precision signal acquisition in process control networks, the YOKOGAWA AAI143-S50 S1 (AAI143-S50 Analog Input Module) provides direct physical electrical interface for 4-20 mA instrumentation loops within DCS architectures.

Suffix Breakdown & Model Matrix

• AAI143-S50: Base analog input module designation for current-based signals.
• S1: Revision level identifying standard chassis-mount compatibility and connector configuration.

Hardware Specifications

DCS Process Control Integration

The AAI143-S50 S1 module incorporates channel-to-channel isolation to prevent ground loop interference and common-mode noise propagation throughout the DCS instrumentation bus. It is engineered to support the 4-20 mA HART loop protocol, enabling seamless data communication with intelligent field transmitters. The internal signal conditioning circuits are designed to maintain high accuracy and stability, minimizing signal drift in high-density process environments. Cold junction compensation (CJC) and differential input stages ensure reliable conversion of analog field inputs into digital process values.

Frequently Asked Questions

Q: Does this module support HART protocol communication?

A: Yes. The AAI143-S50 S1 is designed to support the 4-20 mA HART protocol, allowing for simultaneous analog signal transmission and digital communication with field devices.

Q: Is this module capable of being removed while the DCS is powered?

A: The module supports standard industrial rack-mount maintenance procedures. Verify the specific backplane hot-swap compatibility and system-level fail-safe requirements in your technical manual prior to performing live removal.

Field Installation Guidelines

1. Ensure the control loop is in a safe/manual state within the DCS logic to prevent unexpected process output changes during installation.
2. Align the module with the cabinet backplane guide rails, ensuring the connector pins seat squarely before engaging the locking mechanism.
3. Tighten the front-panel mounting screws to ensure the module chassis achieves a low-impedance bond with the grounded system enclosure to mitigate EMI.
4. Verify all wiring terminal connections are torqued to manufacturer specifications to ensure signal integrity and prevent resistive connection heating.
5. Maintain a minimum clearance of 10 cm above and below the module to facilitate convection cooling and prevent thermal drift.
