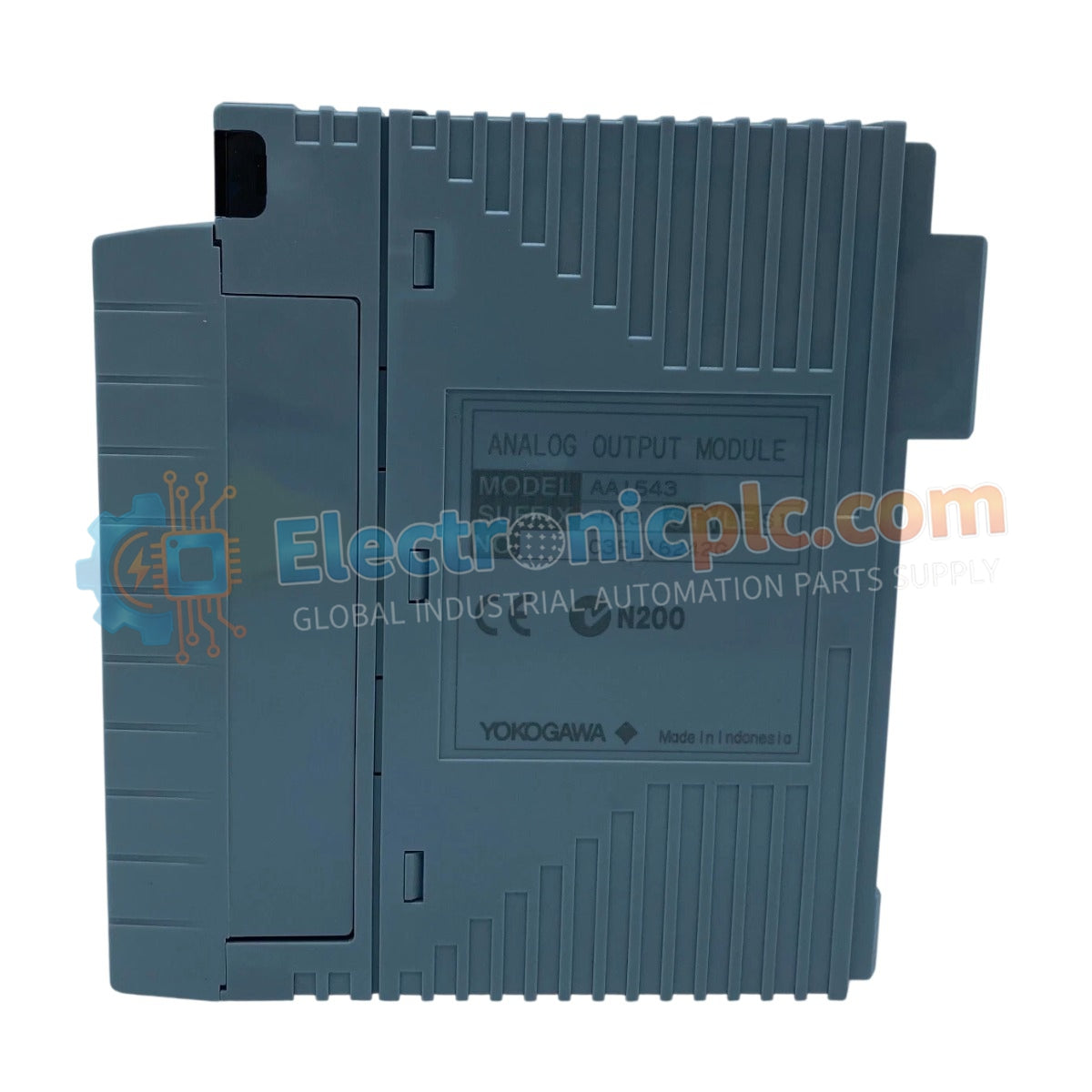

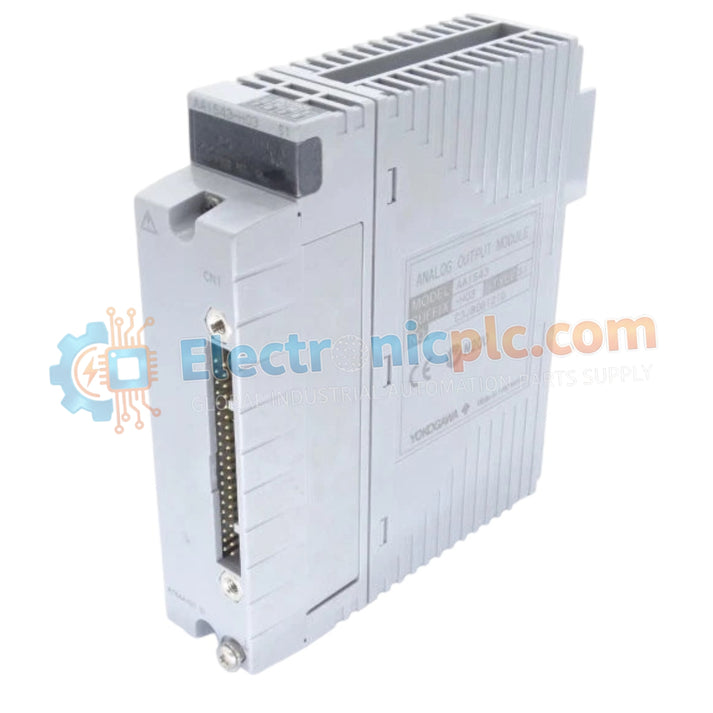

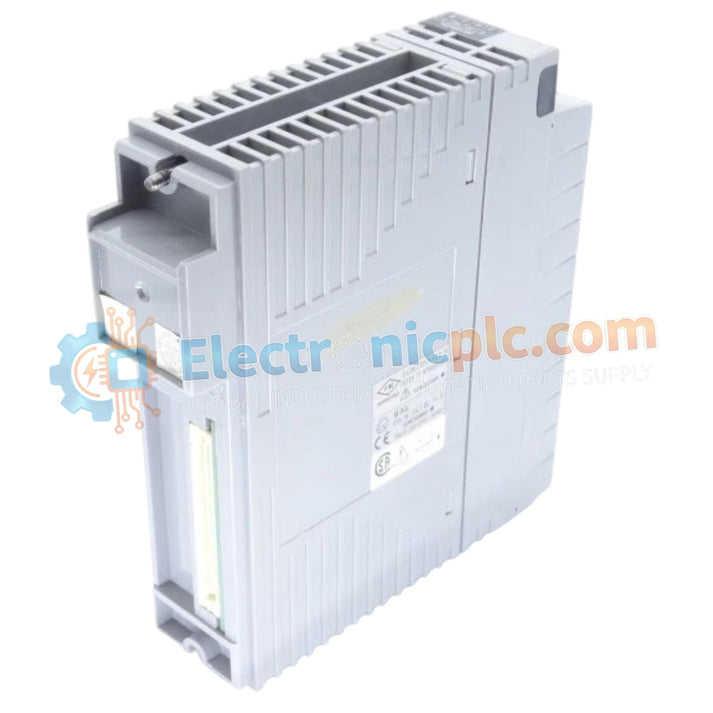

The YOKOGAWA AAI543-H03, also cataloged as the AAI543-H03 Current Output Module, operates as a dedicated hardware component for high-density 4-20 mA control signal output within DCS instrumentation networks.

Suffix Breakdown & Model Matrix

• AAI543-H03: Base analog output module designation, configured for multi-channel isolated current output and integrated HART communication support.

Hardware Specifications

4-20 mA HART Loop Integration

The AAI543-H03 module provides isolated current output channels, ensuring the suppression of common-mode noise and the prevention of ground loop formation between the DCS rack and field-mounted final control elements. The HART protocol integration allows for bidirectional digital communication over the analog loop, facilitating remote calibration and diagnostic monitoring of connected valve positioners or I/P transducers. Each channel is monitored for circuit integrity, with internal logic capable of detecting open-loop conditions.

Frequently Asked Questions

Q: Does the AAI543-H03 support redundant configurations?

A: Yes, this module is engineered to operate in dual-redundant pairs. When configured as such, the system logic manages the signal handover between modules to ensure continuous output during a primary module fault.

Q: Is this module capable of being removed while the DCS is powered?

A: The module is intended for rack-mount maintenance. Always consult the specific system-level manual to verify the backplane hot-swap compatibility and ensure that control loops are in a safe, manual state prior to removal.

Field Installation Guidelines

1. Confirm that the associated control loops are in a manual or safe-hold state within the DCS logic to prevent uncontrolled actuator movement during installation.
2. Align the module with the cabinet backplane guide rails, ensuring the connector pins seat squarely before engaging the locking mechanism.
3. Tighten the front-panel mounting screws to ensure the module chassis achieves a low-impedance bond with the system ground, which is necessary for EMI mitigation.
4. Verify that all field wiring is torqued to the manufacturer’s specification to ensure signal integrity and prevent connection heating.
5. Provide a minimum clearance of 10 cm above and below the module to facilitate convection cooling and prevent thermal drift in the output current.
