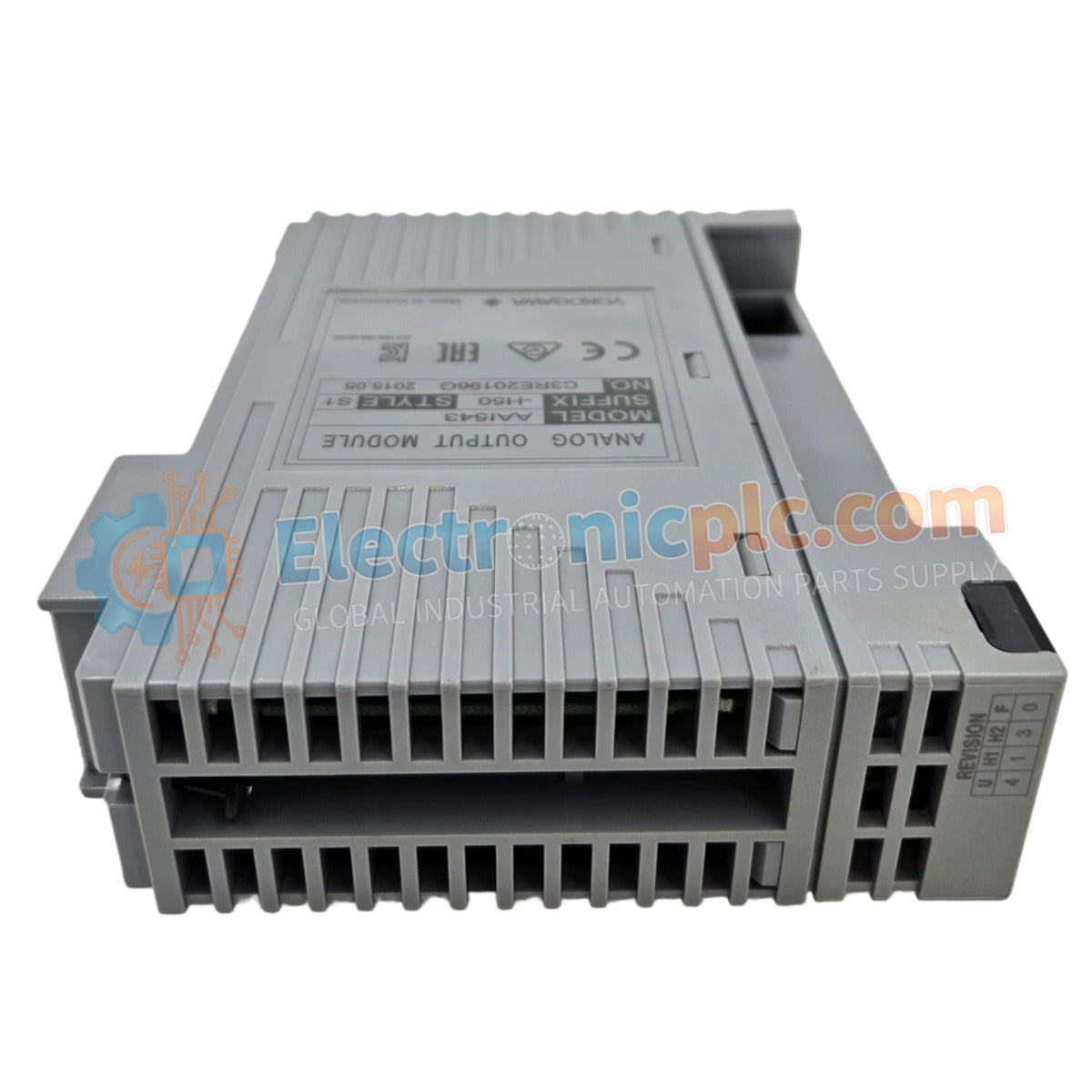

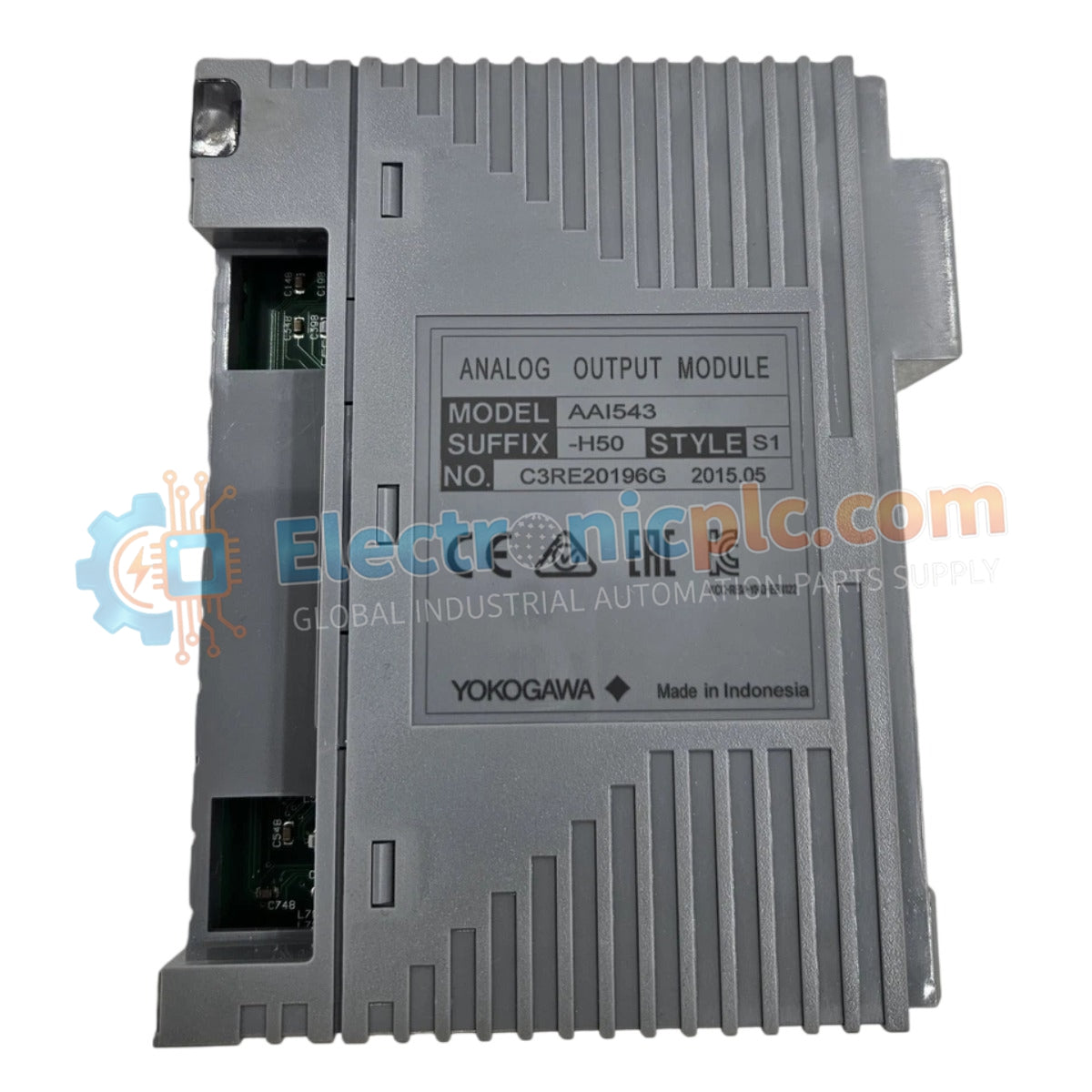

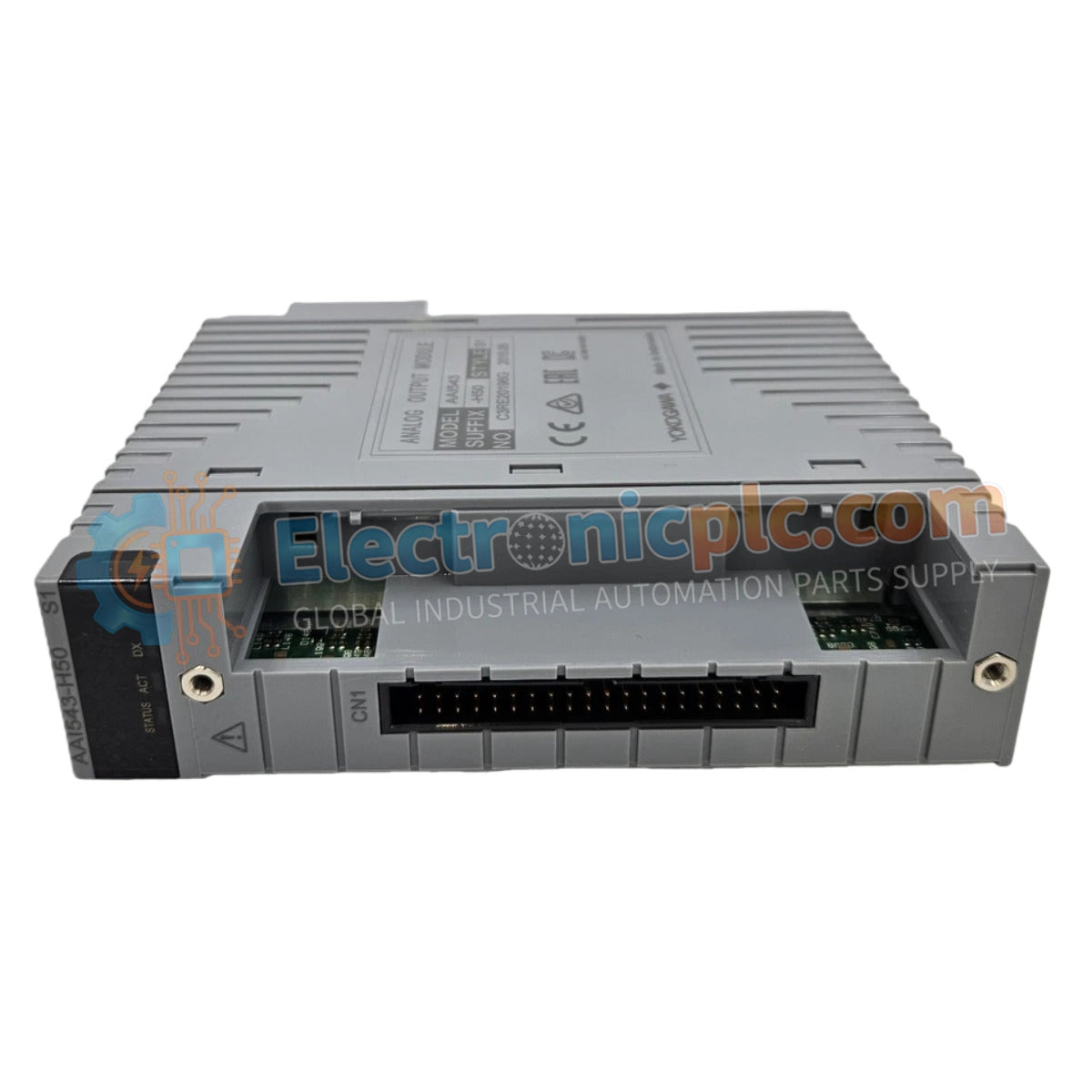

Configured for precision signal conversion in process control networks, the YOKOGAWA AAI543-H50 (AAI543-H50 Analog Output Module) provides direct physical electrical execution for actuator positioning and field device modulation.

Suffix Breakdown & Model Matrix

• AAI543-H50: Base analog output module designation, configured for standard output signal range and field connectivity.

Hardware Specifications

DCS Process Control Integration

The AAI543-H50 module utilizes channel-to-channel isolation to prevent potential ground loop interference within the DCS instrumentation architecture. It is engineered to maintain high-accuracy output signal delivery, supporting 4-20 mA HART loop protocol integration for seamless communication with intelligent field instruments. The internal circuitry is optimized to suppress signal noise, ensuring that control output remains stable even under electromagnetic conditions common in high-density process environments. Cold junction compensation (CJC) capabilities are utilized where necessary to maintain analog accuracy across all integrated output channels.

Frequently Asked Questions

Q: Does the AAI543-H50 support live removal and insertion?

A: The module is designed for industrial rack-mount environments; however, verify the specific backplane hot-swap capability and system-level fail-safe requirements before performing removal under energized conditions.

Q: How should I manage the 4-20 mA loop during module maintenance?

A: Ensure that the control loop is transitioned to a manual or safe-hold state within the DCS logic to prevent uncontrolled actuator movement during module replacement.

Field Installation Guidelines

1. Verify that the system power is isolated or the control loop is in a safe state before mounting the module.
2. Align the module with the cabinet backplane guide rails, ensuring the connector pins seat squarely before engaging the locking mechanism.
3. Tighten the front-panel mounting screws to ensure the module chassis achieves a low-impedance bond with the grounded system enclosure to mitigate EMI.
4. Verify all wiring terminal connections are torqued to manufacturer specifications to ensure low-resistance connectivity.
5. Maintain a minimum clearance of 10 cm above and below the module to facilitate convection cooling and prevent thermal drift.
