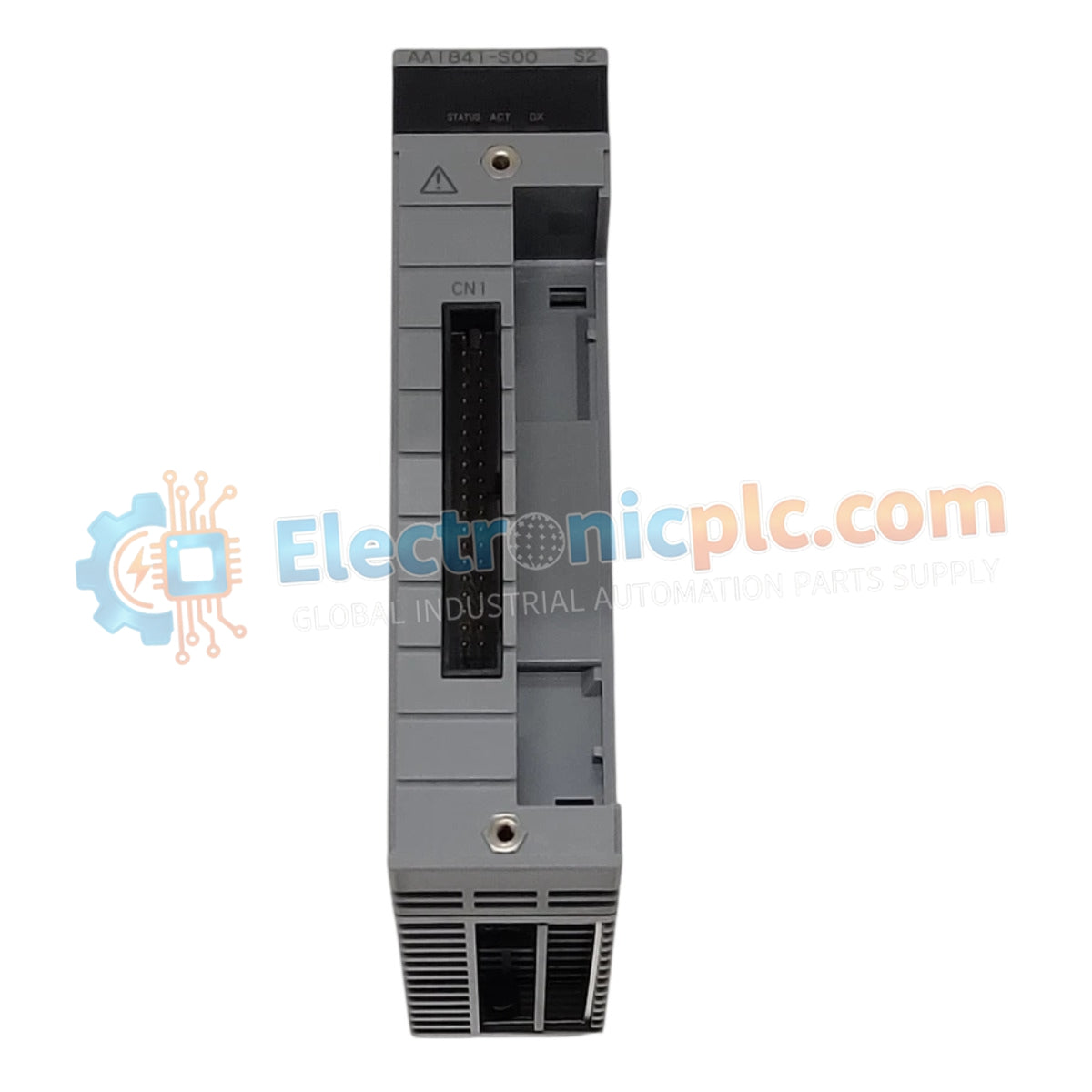

Configured for high-density signal integration in process control networks, the YOKOGAWA AAI841-S00-S2 (AAI841-S00 Analog Input/Output Module) provides direct physical electrical interface for combined 4-20 mA instrumentation loops and control actuators within DCS architectures.

Suffix Breakdown & Model Matrix

• AAI841-S00: Base analog input/output module designation, configured for mixed-signal channel handling.
• S2: Revision level identifying standard chassis-mount compatibility and connector configuration.

Hardware Specifications

DCS Process Control Integration

The AAI841-S00 S2 module incorporates channel-to-channel isolation to prevent ground loop interference and common-mode noise propagation throughout the DCS instrumentation bus. It is engineered to support simultaneous 4-20 mA HART loop protocol integration, enabling seamless data communication with field transmitters and actuators. The internal signal conditioning circuits are designed to maintain high accuracy and stability, minimizing signal drift in high-density process environments. Differential input and output stages ensure reliable conversion of analog field signals into digital process values and vice versa.

Frequently Asked Questions

Q: Does this module support HART protocol communication on all channels?

A: Yes. The AAI841-S00 S2 is designed to support 4-20 mA HART protocol communication, allowing for concurrent analog signal transmission and digital diagnostics with field instruments.

Q: Is this module capable of being removed while the DCS is powered?

A: The module supports standard industrial rack-mount maintenance procedures. Verify the specific backplane hot-swap compatibility and system-level fail-safe requirements in your technical manual prior to performing live removal to prevent process disruption.

Field Installation Guidelines

1. Ensure the control loop is in a safe/manual state within the DCS logic to prevent unexpected process output changes during installation.
2. Align the module with the cabinet backplane guide rails, ensuring the connector pins seat squarely before engaging the locking mechanism.
3. Tighten the front-panel mounting screws to ensure the module chassis achieves a low-impedance bond with the grounded system enclosure to mitigate EMI.
4. Verify all wiring terminal connections are torqued to manufacturer specifications to ensure signal integrity and prevent resistive connection heating.
5. Maintain a minimum clearance of 10 cm above and below the module to facilitate convection cooling and prevent thermal drift.
