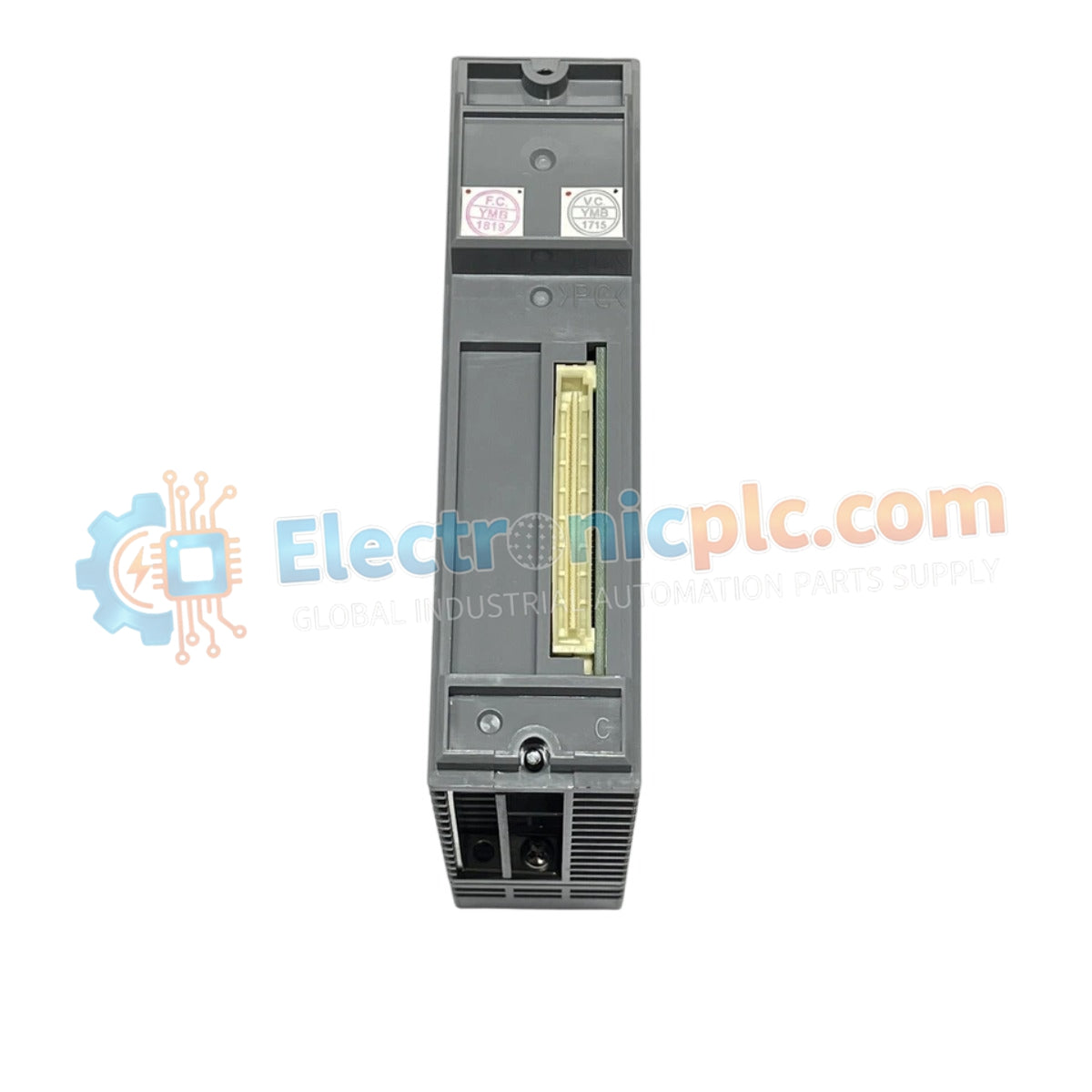

The YOKOGAWA AAIB4-H53 (AAIB4-H53 Analog Output Module) serves as the primary AAIB4-H53 Analog Output Module utilized to execute high-density 4-20 mA control signal output across DCS platforms.

Suffix Breakdown & Model Matrix

• AAIB4-H53: Base analog output module designation, configured for 16-channel isolated signal output and KS Cable Interface compatibility.

Hardware Specifications

DCS Process Control Integration

The AAIB4-H53 module incorporates channel-to-channel isolation to prevent ground loop interference within the DCS instrumentation architecture. It supports the 4-20 mA HART loop protocol for robust communication with intelligent field devices. The internal circuitry provides a 1500 V AC withstanding voltage rating between the output and the system, ensuring high-voltage isolation in complex process environments. The module features circuit-open detection at current levels below 0.65 mA, allowing for rapid fault diagnostics. Integration is facilitated via the KS Cable Interface Adapter, which provides a physical connection path to AEA4D Terminal Boards.

Frequently Asked Questions

Q: What is the primary interface method for this module?

A: The module is designed to connect to AEA4D Terminal Boards using a dedicated KS Cable Interface Adapter for efficient field wiring.

Q: How does ambient temperature affect signal accuracy?

A: The module exhibits a thermal drift characteristic of +/- 16 uA per deg C change in ambient temperature.

Field Installation Guidelines

1. Verify system power is isolated before mounting the module to the backplane.
2. Ensure the module is seated fully in the chassis to engage the backplane pins and achieve secure grounding.
3. Connect the KS Cable Interface Adapter to the AEA4D Terminal Board, ensuring proper pin alignment to avoid signal crosstalk.
4. Tighten the front-panel mounting screws to maintain a low-impedance bond with the grounded cabinet enclosure.
5. Verify all wiring terminal connections are torqued to manufacturer specifications to ensure connectivity and prevent resistive heating.
