Description

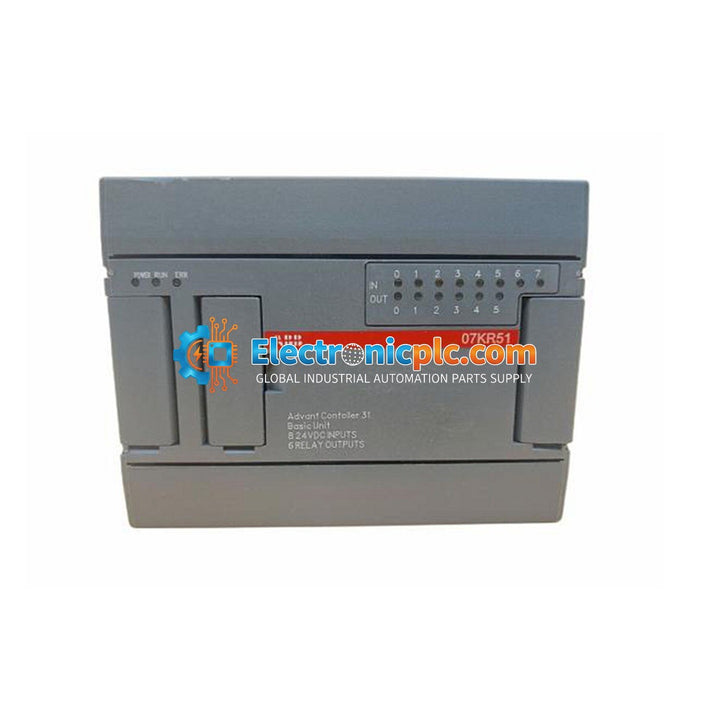

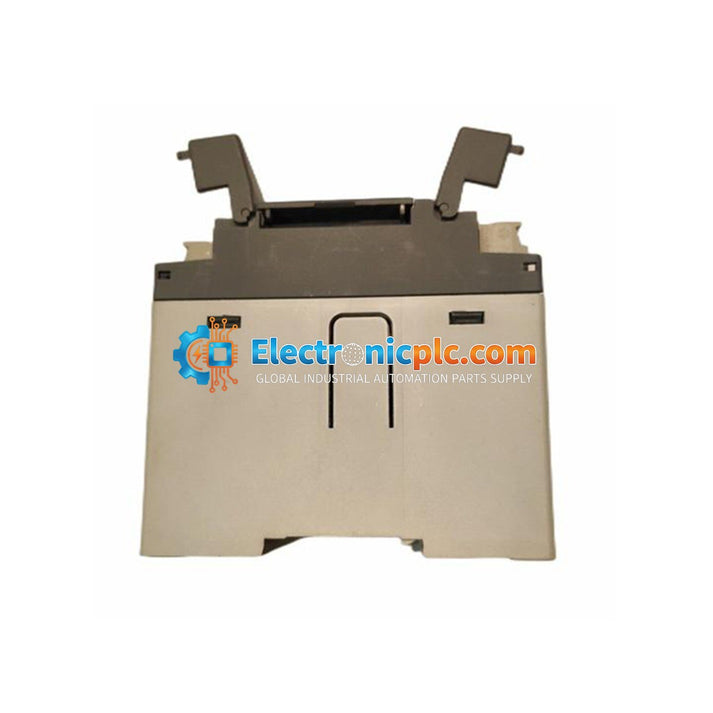

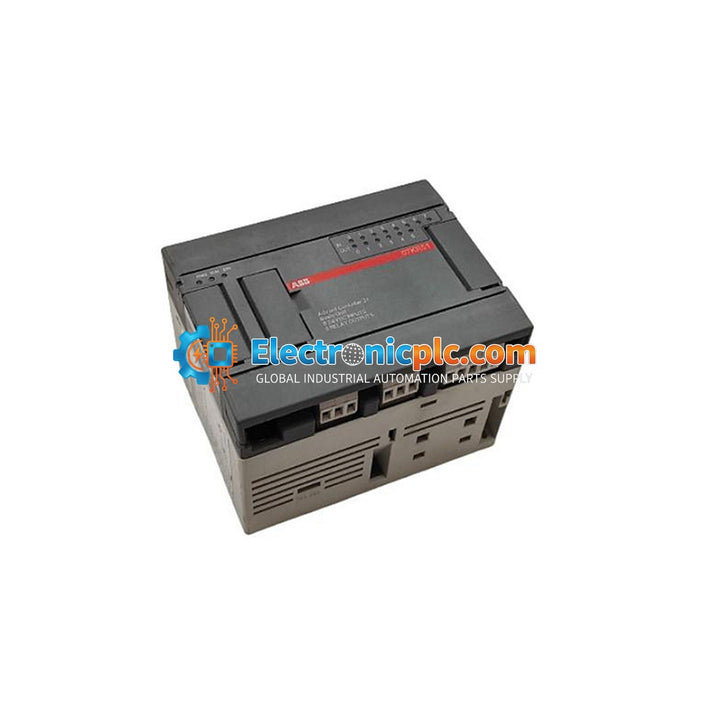

The ABB 07KR51 is a compact basic unit within the Advant Controller 31 (AC31) series. Designed for industrial automation and control tasks, this controller provides a robust platform for managing digital and analog I/O signals in small to medium-sized applications. It serves as a central processing unit capable of executing user programs stored in Flash EPROM, ensuring reliable operation in diverse industrial environments.

Features

• Integrated 24V DC power supply support.
• Equipped with 6 relay outputs for direct load control.
• Supports high-speed hardware counter inputs up to 7 kHz.
• Expandable I/O capacity supporting up to 1000 digital I/O points and extensive analog I/O configurations.
• Non-volatile Flash EPROM memory for secure program storage.

Technical Specifications

Installation Guidelines

• Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
• Use shielded cables for all I/O connections to minimize electromagnetic interference (EMI).
• Verify that the power supply is disconnected before performing any wiring or module replacement.
• Ensure proper grounding of the controller chassis to a common reference point to maintain signal integrity.
• Follow local electrical codes and ABB hardware installation manuals regarding terminal torque and wire gauge requirements.

FAQ

What is the primary function of the 07KR51?
The 07KR51 is a basic controller unit for the ABB Advant Controller 31 system, used for processing logic and managing I/O in automated control systems.

Can the I/O capacity be expanded?
Yes, the AC31 series supports expansion modules to reach the maximum specified digital and analog I/O counts.

What type of memory does this unit use?
The unit utilizes Flash EPROM for user program storage, which allows for reliable, non-volatile data retention.
