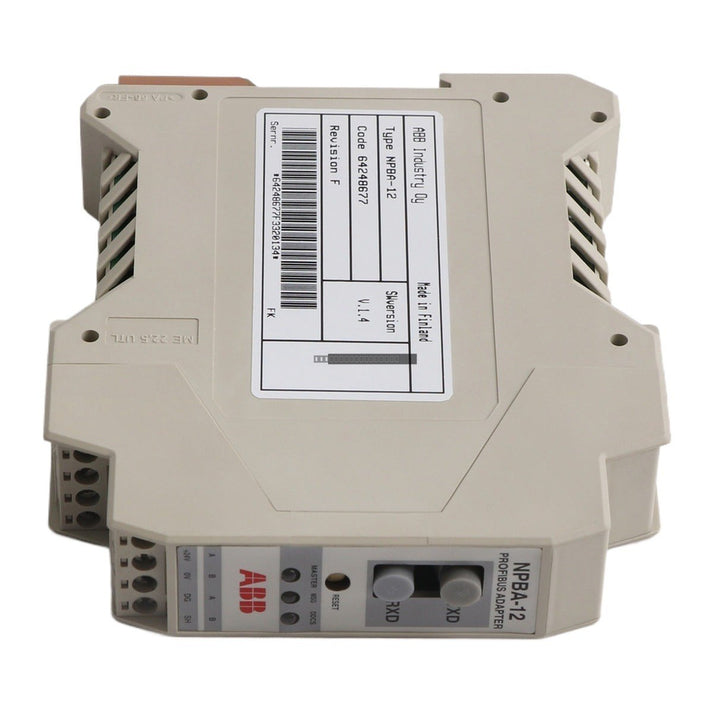

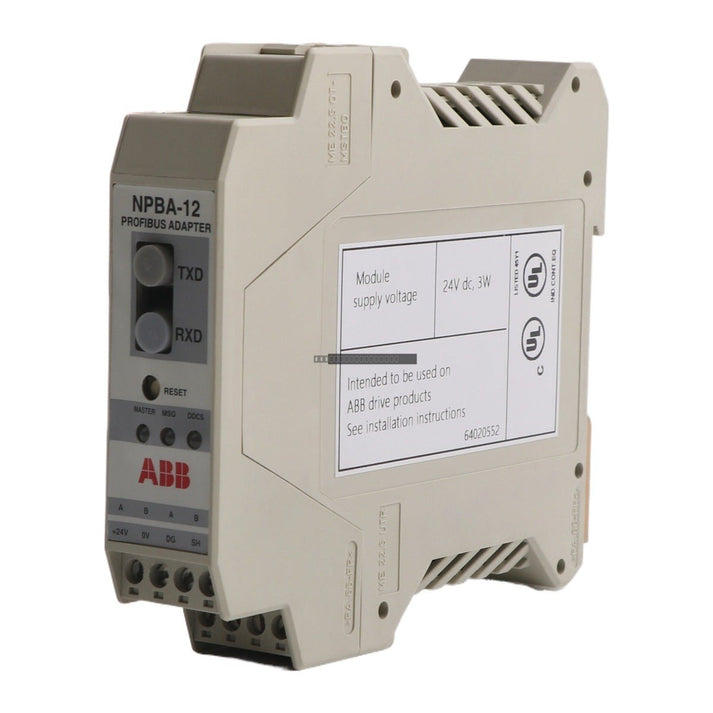

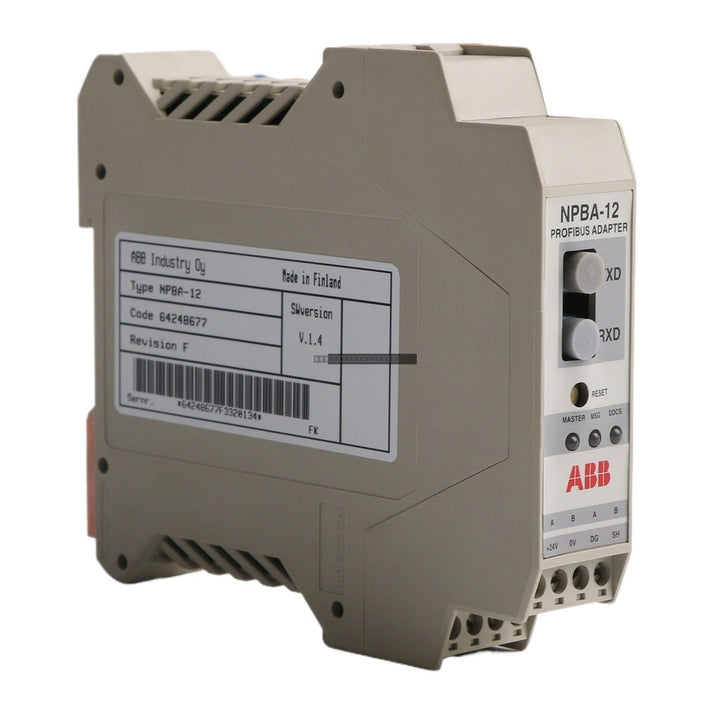

The ABB NPBA-12 is a dedicated Profibus adapter module designed to facilitate seamless communication between ABB drives and Profibus DP fieldbus networks. This module allows for efficient integration of drive control and monitoring into larger industrial automation systems, supporting standardized data exchange protocols.

Features

• Enables Profibus DP connectivity for compatible ABB drive units.
• Configuration and settings are managed directly via the drive interface control panel.
• Compact plastic enclosure suitable for standard industrial environments.
• Designed for straightforward mounting onto standard DIN-style mounting rails.
• Low power consumption profile of 70 mA at 24 V DC.

Technical Specifications

Installation Guidelines

• Ensure the drive is fully powered down before attempting to install or remove the NPBA-12 module.
• Mount the module securely onto the designated rail within the drive cabinet, ensuring proper alignment with the internal communication port.
• Verify that the module is firmly seated to prevent intermittent connection issues caused by vibration.
• Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Follow standard ESD (electrostatic discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the NPBA-12?

The NPBA-12 acts as a communication gateway, allowing an ABB drive to function as a slave device on a Profibus DP fieldbus network.

How is the module configured?

Configuration is performed through the drive's local control panel interface, which allows for the setup of communication parameters and network addresses.

Does this module require external power?

The module is powered via the drive's internal supply, consuming approximately 70 mA at 24 V DC during operation.
