Description

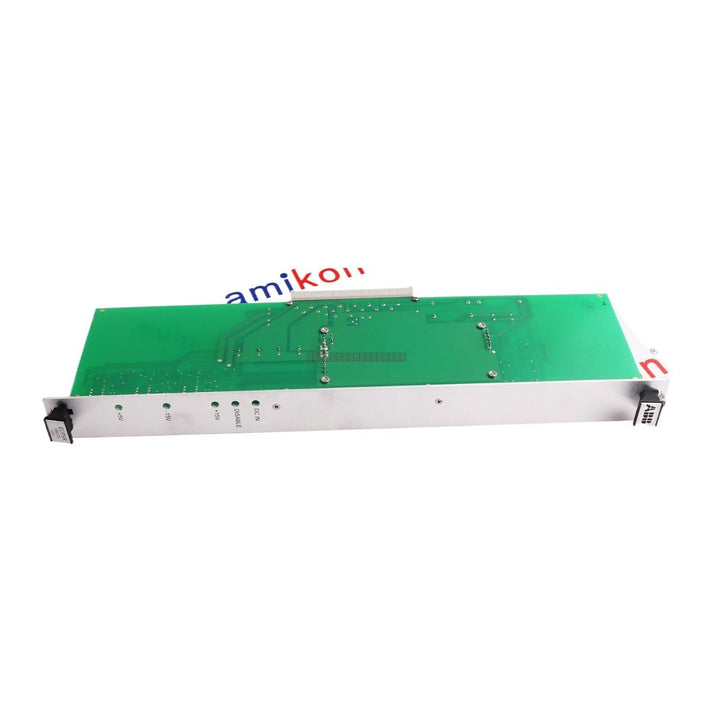

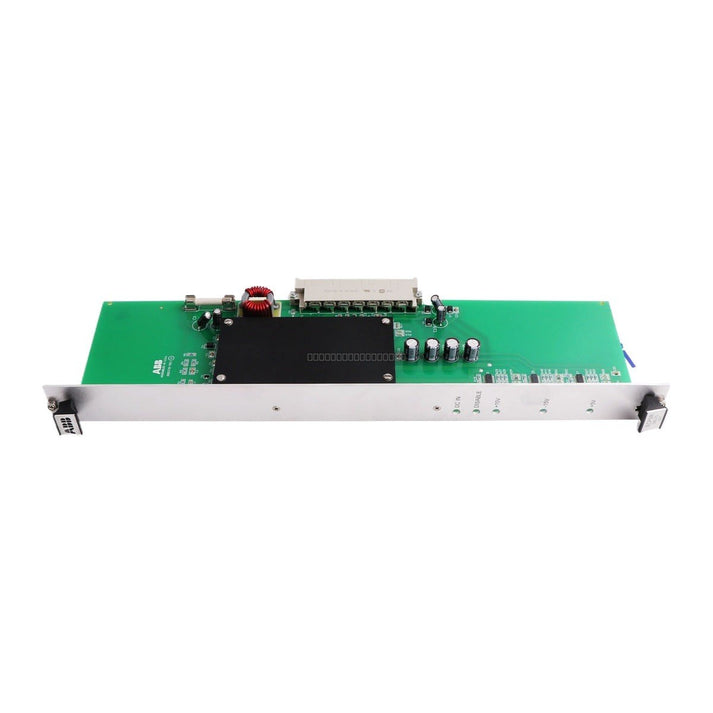

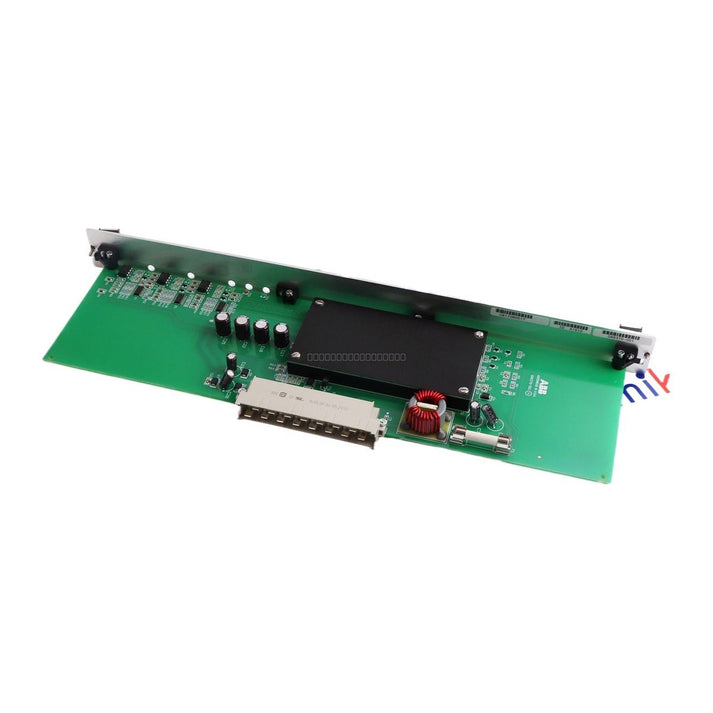

The ABB 086370-001 is a specialized Accuray module designed for high-precision signal processing in industrial control environments. This module provides reliable data acquisition and conversion capabilities, supporting standard industrial voltage ranges to ensure compatibility with legacy Accuray systems.

Features

• High-resolution 16-bit ADC/DAC signal processing for accurate data conversion.
• Supports configurable signal voltages of +/- 10 VDC or 5 VDC.
• Robust design with an IP20 protection rating for controlled cabinet environments.
• Engineered for stable operation within a wide temperature range.

Technical Specifications

Installation Guidelines

• Ensure the control cabinet is properly grounded before installing the module.
• Power down the system before inserting or removing the module from the rack to prevent electrical damage.
• Maintain adequate clearance around the module to facilitate proper airflow and cooling.
• Use shielded cables for signal connections to minimize electromagnetic interference (EMI).
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal components.

FAQ

What is the primary function of the 086370-001?

This is an Accuray module used for signal processing, specifically designed to handle high-resolution analog-to-digital and digital-to-analog conversions within ABB Accuray systems.

What are the power requirements for this module?

The module operates on a 24 VDC power supply.

Is this module suitable for harsh industrial environments?

The module is rated IP20, meaning it is intended for use in protected, clean, and dry environments such as an industrial control cabinet.
