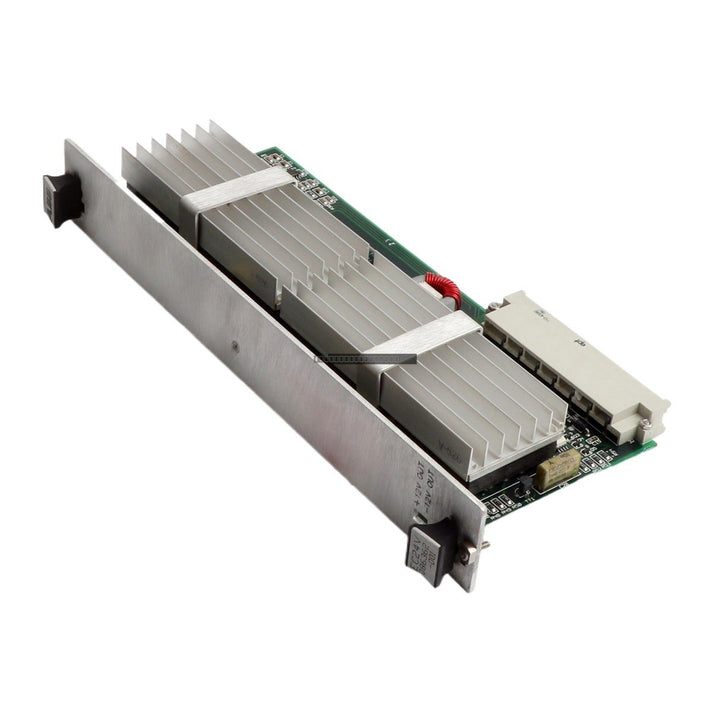

The ABB Accuray EC24V (086362-001) is a specialized bulk DC power supply module designed for industrial control applications. This unit provides reliable power distribution and integrated signal processing capabilities, ensuring stable operation within Accuray system architectures.

Features

• Integrated 32-bit DSP for high-speed signal processing
• 4 MB Flash memory for firmware and configuration storage
• Flexible I/O configuration including 6 digital inputs and 2 configurable analog inputs
• Robust isolation between I/O and logic circuits
• Compact design suitable for standard industrial control cabinets

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installation or removal of the module.
• Mount the module in a well-ventilated enclosure to maintain operating temperatures within the specified range.
• Use shielded cables for all analog signal connections to minimize electromagnetic interference (EMI).
• Verify that the input supply voltage matches the 24V DC +/- 10% requirement before energizing.
• Ensure proper grounding of the module chassis to the system common ground point to prevent noise coupling.

FAQ

What is the primary function of the EC24V module?
The EC24V is a bulk DC power supply module that also incorporates digital and analog I/O processing for ABB Accuray systems.

Can this module operate in high-humidity environments?
The module is rated for 5-95% relative humidity, provided the environment is non-condensing.

What is the power requirement for this unit?
The unit requires a 24V DC supply with a tolerance of +/- 10% and consumes no more than 15W during operation.
