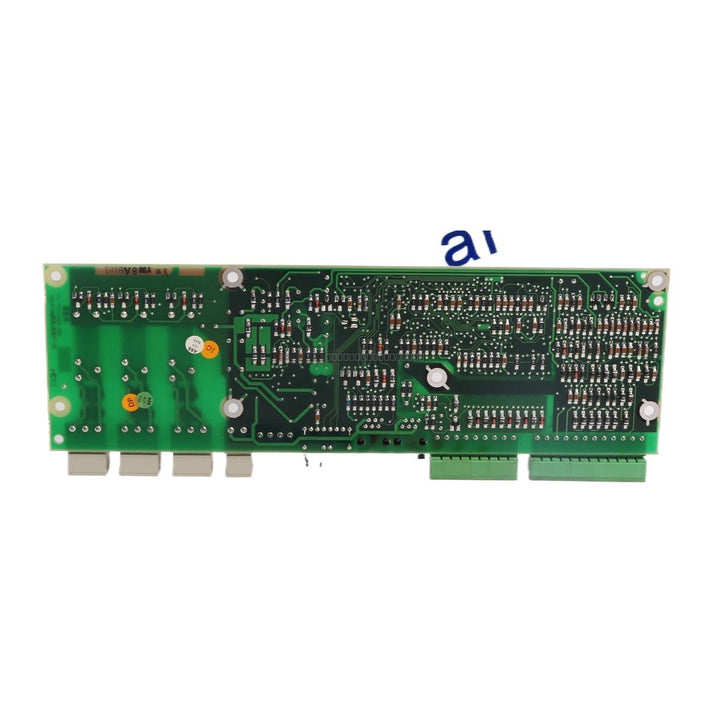

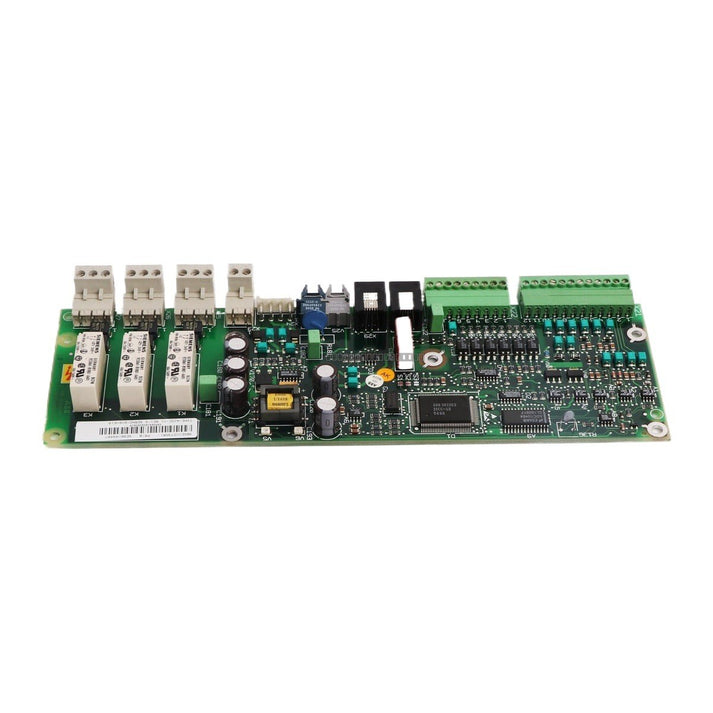

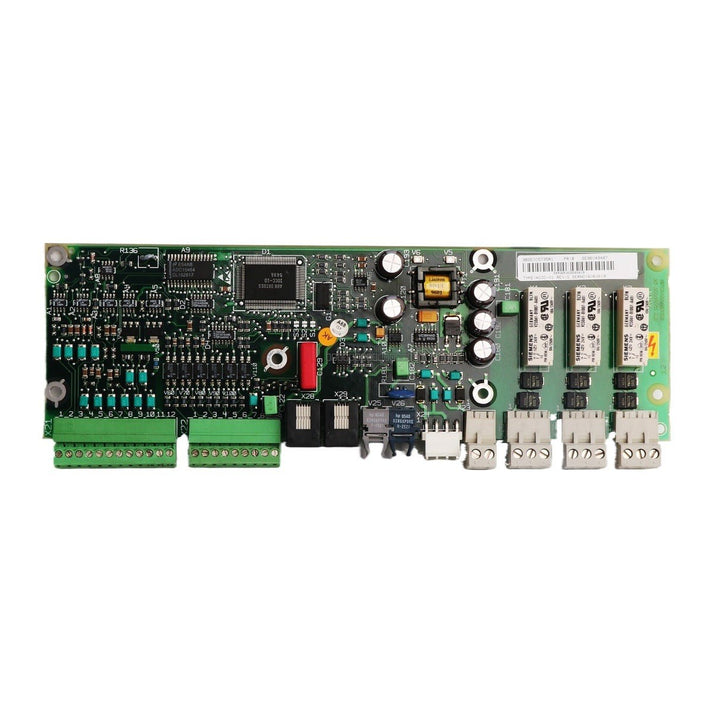

The ABB NIOC-01 is an I/O base board designed for use within the ACS 600 series drive systems. This component serves as a standard I/O interface, facilitating communication and signal processing between the drive control unit and external field devices. As a critical spare part for legacy ACS 600 installations, the NIOC-01 ensures reliable signal distribution for monitoring and control applications.

Features

• Standard I/O kit configuration for seamless integration with compatible ACS 600 drives.
• Robust PCB construction designed for industrial control environments.
• Direct interface support for essential drive I/O functions.
• Genuine ABB spare component, identified by part number 3BSE005735R1.

Applications

This I/O base board is specifically engineered for the ABB ACS 600 drive family. It is typically utilized in industrial automation, motor control centers, and process manufacturing environments where precise control of drive parameters and external I/O signal management is required.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the drive system before attempting to remove or install the NIOC-01 board.
• Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Verify that the board is correctly seated in the designated slot and that all connectors are fully engaged.
• Ensure the environment is free from excessive dust, moisture, and vibration to maintain long-term reliability.
• Consult the original ACS 600 hardware manual for specific wiring diagrams and configuration settings required for your drive setup.

FAQ

Is the NIOC-01 still in production?

No, the NIOC-01 has been discontinued by the manufacturer. It is now primarily available as a spare part for maintenance and repair of existing legacy systems.

What is the primary function of the NIOC-01?

The NIOC-01 acts as the base board for I/O signals in the ACS 600 drive, providing the necessary hardware interface for connecting external control signals to the drive's control unit.
