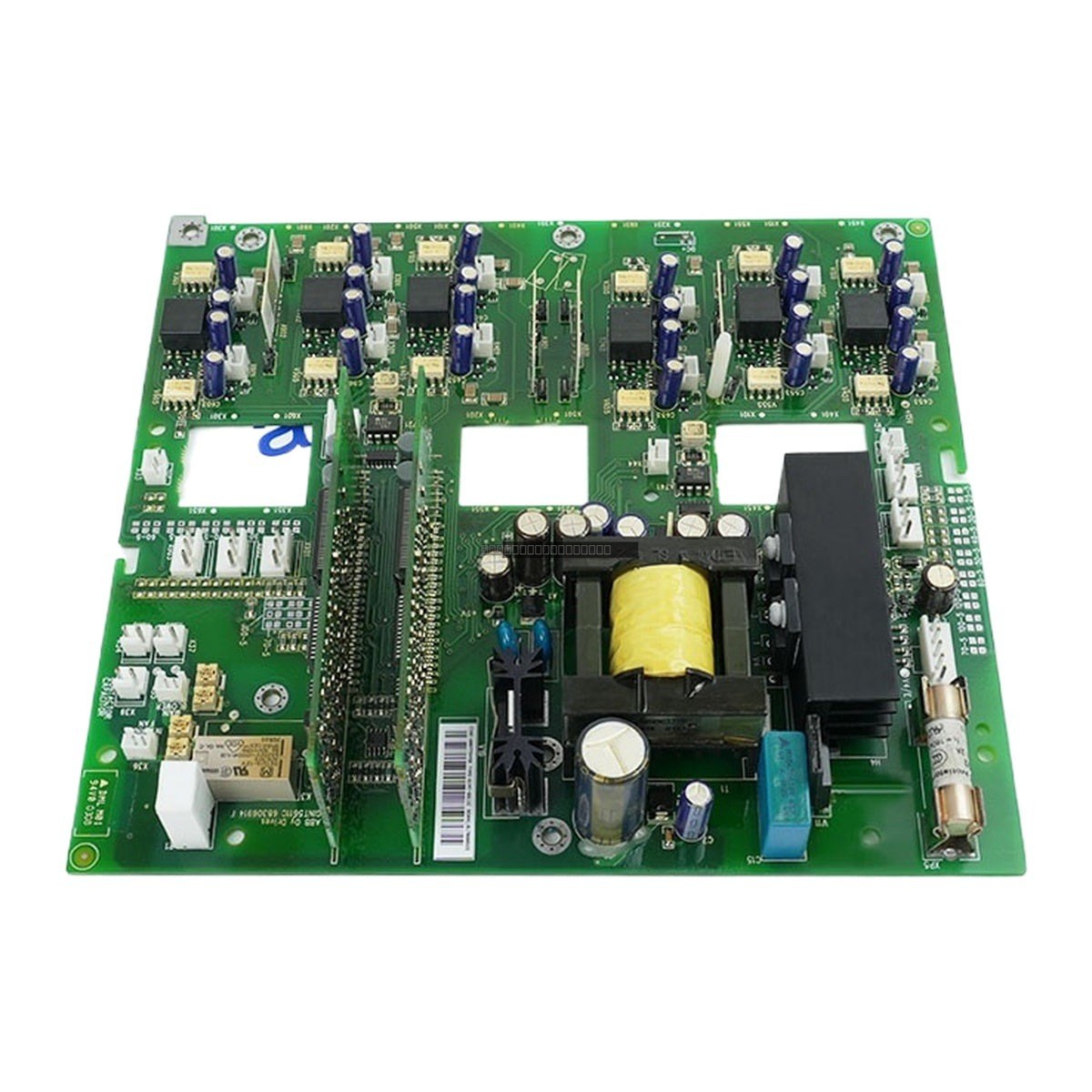

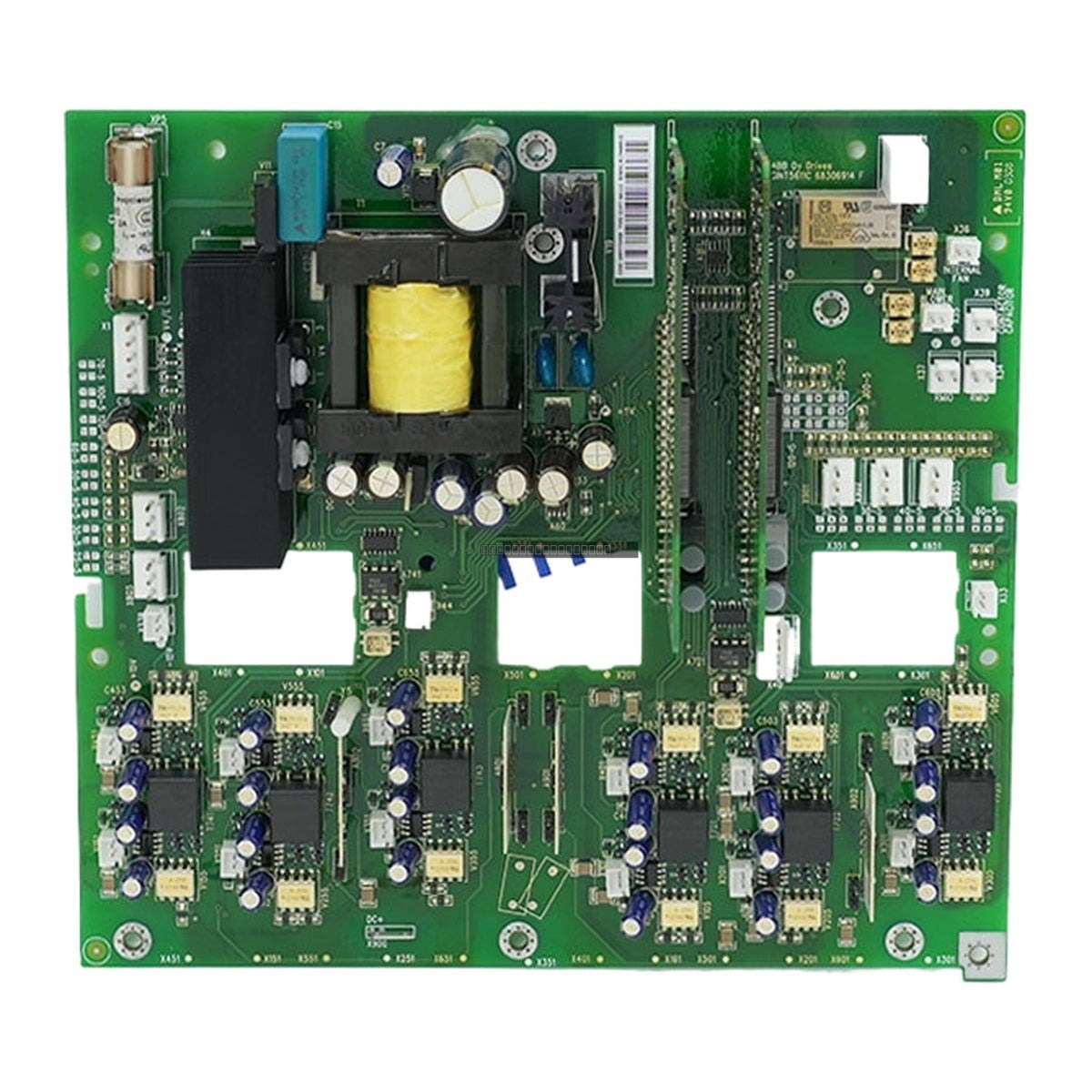

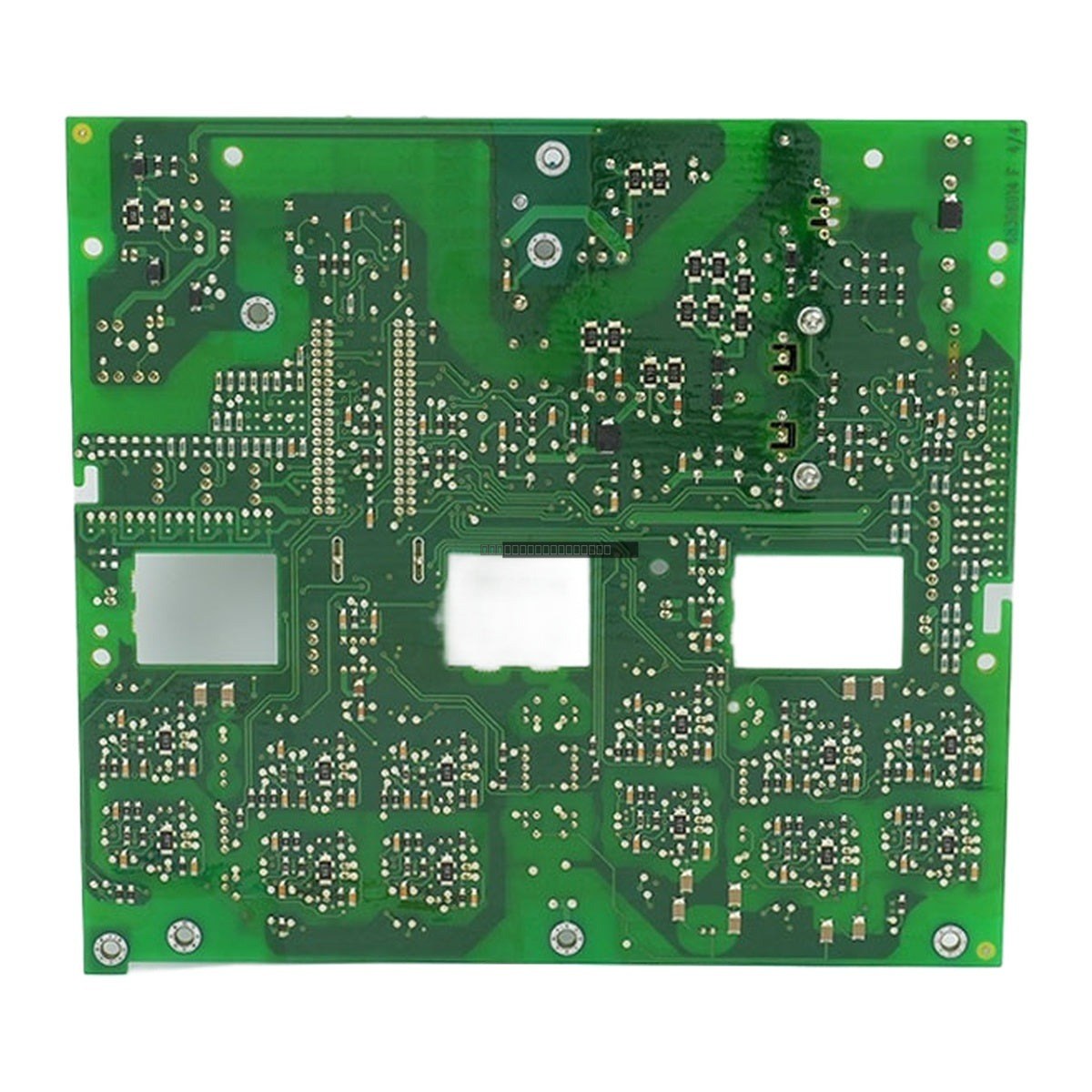

The ABB GINT-6611C (68577349) is a specialized gate driver and main circuit interface board engineered for the ABB ACS800 series of variable frequency drives. This component serves as the vital link between the drive's control unit and the power stage, facilitating precise IGBT switching, motor control, and power management within industrial drive systems.

Features

• Designed specifically for integration within the ABB ACS800 drive family.
• Manages critical real-time data exchange and control signals for power components.
• Supports high-performance motor control and operational stability.
• Facilitates accurate IGBT gate drive output.

Applications

• Oil & Gas and Petrochemical processing lines.
• Mining and metal processing, including hoisting and melting systems.
• Water and wastewater management, specifically for pump control in treatment facilities.
• Power generation, including traditional plant infrastructure and renewable energy systems.

Technical Specifications

Installation Guidelines

• Configuration: Boards may require manual configuration of current scaling solder pads to align with the specific frame size (e.g., R5, R6) and power rating of your drive. Incorrect scaling can cause current measurement faults.
• Earthing: Ensure the board is properly earthed via the mounting screws. In cabinet assemblies, connect the module to the PE busbar using copper braid to maintain EMC compliance and personnel safety.
• Handling: Always power down the drive and allow sufficient time for DC bus capacitors to discharge before attempting to install or remove the board. Handle with ESD-safe precautions.

FAQs

What is the primary function of the GINT-6611C?

It acts as the primary interface between the control unit and the power stage, managing the switching signals for the IGBTs to control motor speed and torque.

Is this board compatible with all ACS800 drives?

It is designed for specific ACS800 series configurations. Always verify your drive's frame size and power rating against the board's specifications before installation.

What should I do if my drive reports a current measurement fault?

Check the solder pad configuration on the board to ensure it is correctly scaled for your specific drive frame size and power rating.
