Description

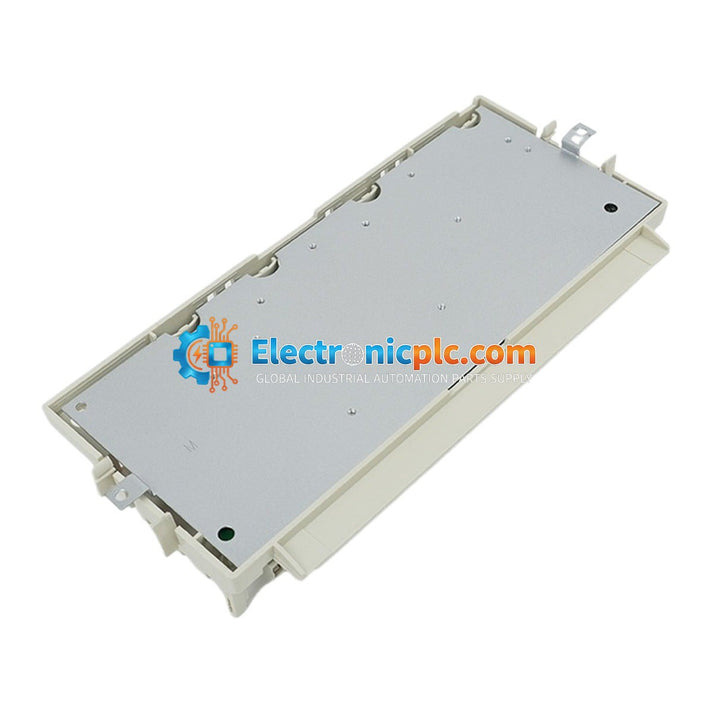

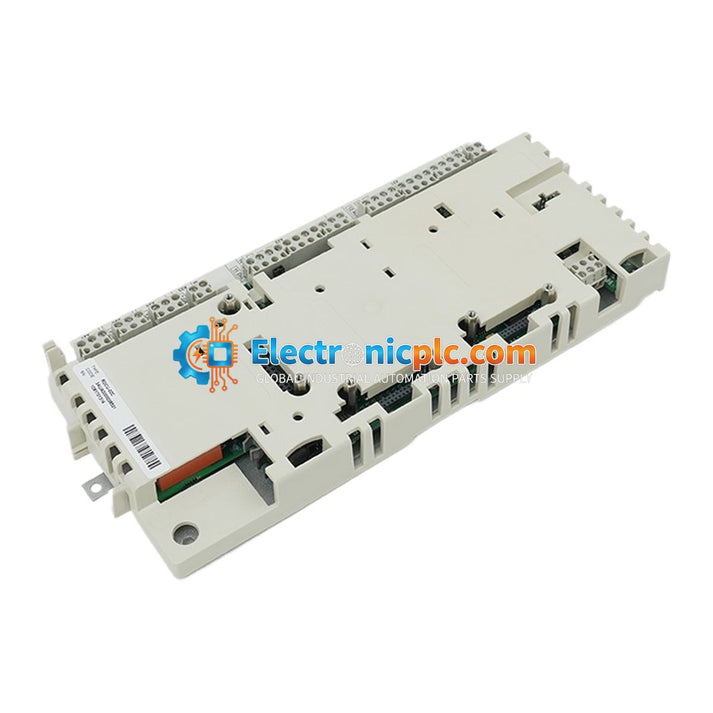

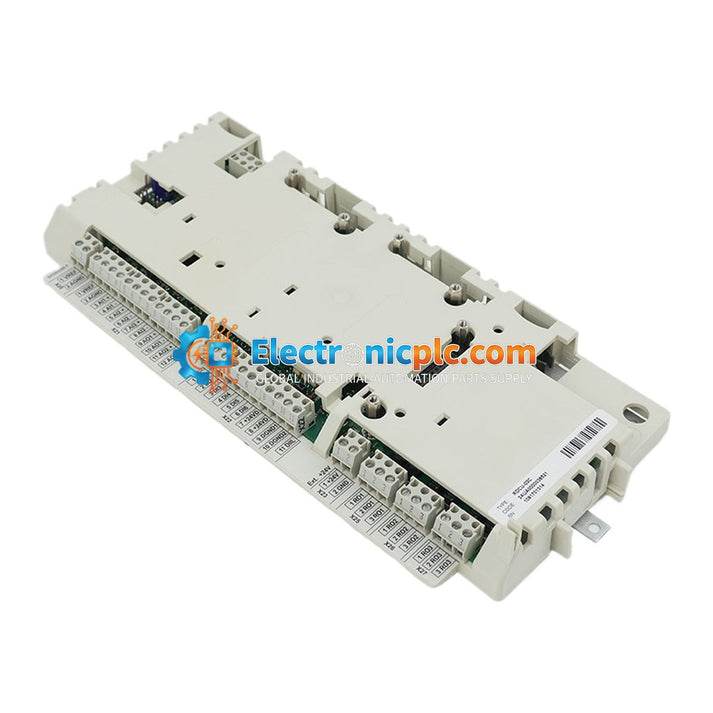

The ABB RDCU-02C (Product ID: 64607901) is a high-performance drive control unit designed for the ACS800 series of low-voltage AC drives. Serving as the central control board, this unit manages motor control, I/O connectivity, and system diagnostics. It is supplied as a coated spare part for maintenance and replacement in industrial automation systems.

Features

• Central control board for ABB ACS800 series drives
• Integrated fiber optic TX/RX for reliable PPCS communication (10 MBd)
• Versatile I/O: 3 analog inputs, 2 programmable analog outputs, 7 digital inputs, and 3 relay outputs
• Supports precise speed and torque regulation
• Robust, detachable terminal blocks for ease of maintenance
• Auxiliary +24 V DC output for external devices

Applications

• Power & Energy: Wind converters and hydro plant control systems
• Petrochemical & Chemicals: Process control for oil, gas, and chemical plants
• Water & Wastewater: Pumping and distribution management
• HVAC: Industrial ventilation and large-scale cooling systems
• Heavy Industry: Motor load control for mining and cement manufacturing

Technical Specifications

Installation Guidelines

• Mounting: The unit is designed for installation on a 35 x 7.5 mm DIN mounting rail.
• Grounding: Secure the base plate to the rail using two screws. These screws are critical for functional grounding; ensure contact surfaces are clean and free of oxidation or grease.
• Clearance: Maintain adequate space around the ventilation holes to allow free airflow. Avoid mounting directly above heat-generating components.
• EMI Protection: Maintain a minimum separation of 500 mm from high-EMI sources such as motor cabling, brake choppers, or contactors to prevent signal interference.
• Safety: Always power down the drive system before inserting or removing the control unit or any option modules.

FAQ

What is the ABB RDCU-02C?

The ABB RDCU-02C is a drive control unit that serves as the primary control board for ABB ACS800 series frequency converters, managing motor control, communication, and I/O tasks.

Which drive models are compatible with the RDCU-02C?

It is primarily designed for the ACS800 drive family, including the ACS800-04 and ACS800-04M series.

How is the unit powered?

Power is supplied via connector X34 at 24 V DC. It can also be powered by the inverter's internal power supply board, provided the total current draw does not exceed 1 A.
