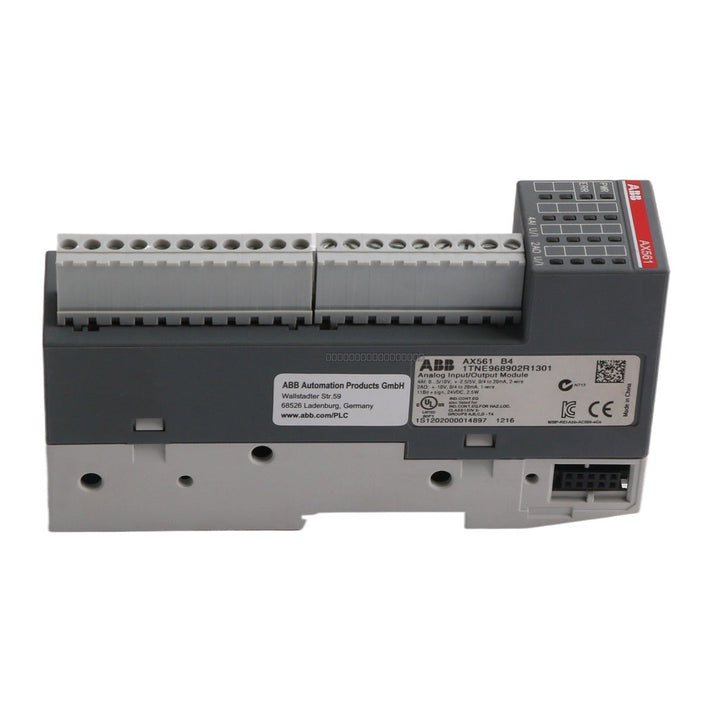

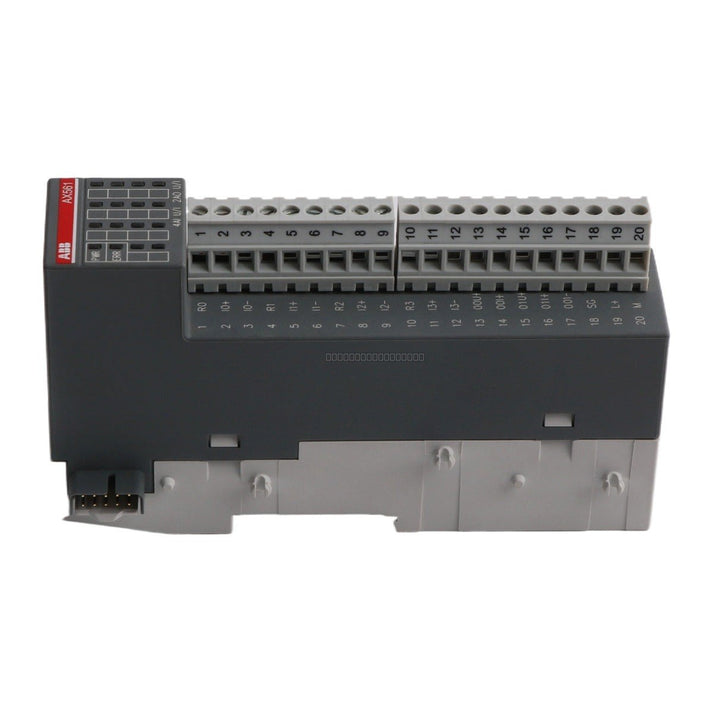

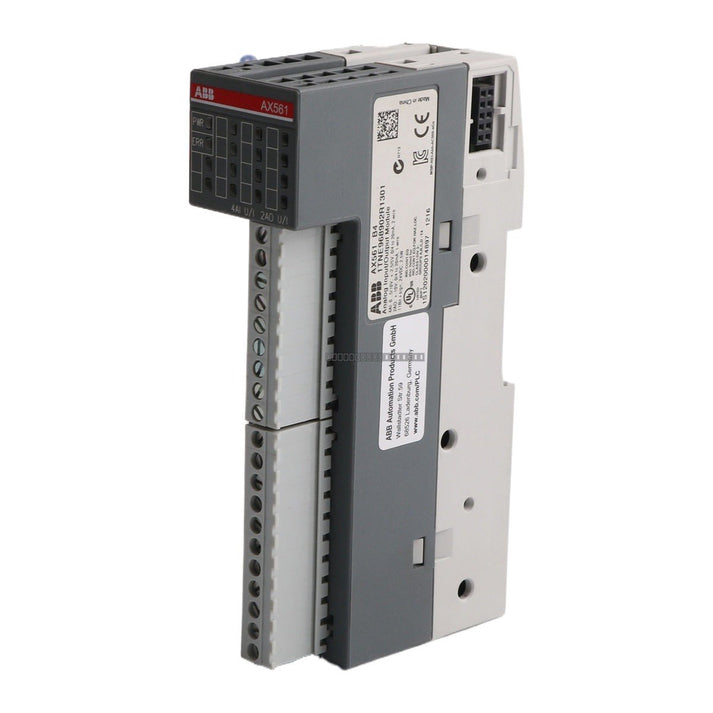

The ABB AX561 (1TNE968902R1301) is a high-performance analog input/output module designed for the AC500-eCo programmable automation controller platform. This compact S500-eCo series module provides versatile signal processing capabilities, featuring 4 individually configurable analog inputs and 2 configurable analog outputs, making it suitable for a wide range of industrial process control and monitoring tasks.

Features

• 4 Configurable Analog Inputs (AI0-AI3) and 2 Configurable Analog Outputs (AO0-AO1)
• 12-bit resolution (13-bit for version E0 or later)
• Comprehensive protection against reverse polarity, short circuits, and temporary overvoltage
• Supports multiple signal ranges: 0-10V, ±10V, 0-20mA, and 4-20mA
• Compact S500-eCo form factor optimized for DIN rail mounting
• Integrated diagnostics and high-speed signal processing

Applications

• Process Automation: Monitoring of temperature, pressure, flow, and level sensors in continuous manufacturing.
• Building Management: HVAC control, energy monitoring, and industrial lighting management.
• Machine Building: Integration with drives, valves, and actuators for custom machinery control.
• Industrial Monitoring: Reliable acquisition of analog sensor data for safety and compliance.

Technical Specifications

Installation Guidelines

• Power Off: Always disconnect the 24V DC power supply before installing or removing the module. Plugging or unplugging while powered can cause electrical damage.
• Mounting: Designed for standard DIN rail mounting within the AC500-eCo system. Ensure adequate ventilation space around the module.
• Wiring: Connect the 24V DC supply to terminals L+ and M. Use shielded, twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
• Grounding: For stable reference potential, interconnect the M terminal to the M/ZP terminal on the CPU or communication interface module.
• Shielding: For cable runs exceeding 20 meters, shielded and grounded cables are mandatory to maintain signal integrity.

FAQ

What is the AX561 1TNE968902R1301?

The ABB AX561 is a compact, S500-eCo series analog I/O module used for process control and industrial automation within the AC500 PLC platform.

How should I connect long cables?

Analog signals are sensitive to electromagnetic interference. If your connection cable exceeds 20 meters, you must use a shielded and grounded cable to ensure accuracy.

Can I remove the module while the system is powered?

No. It is strictly prohibited to plug, unplug, or connect signal terminals while the power is switched ON. Ensure all voltage sources are disconnected before servicing.

How much power does the module consume?

The module requires a 24V DC supply. Power consumption is approximately 5 mA per module added to your CPU or communication interface.
