Description

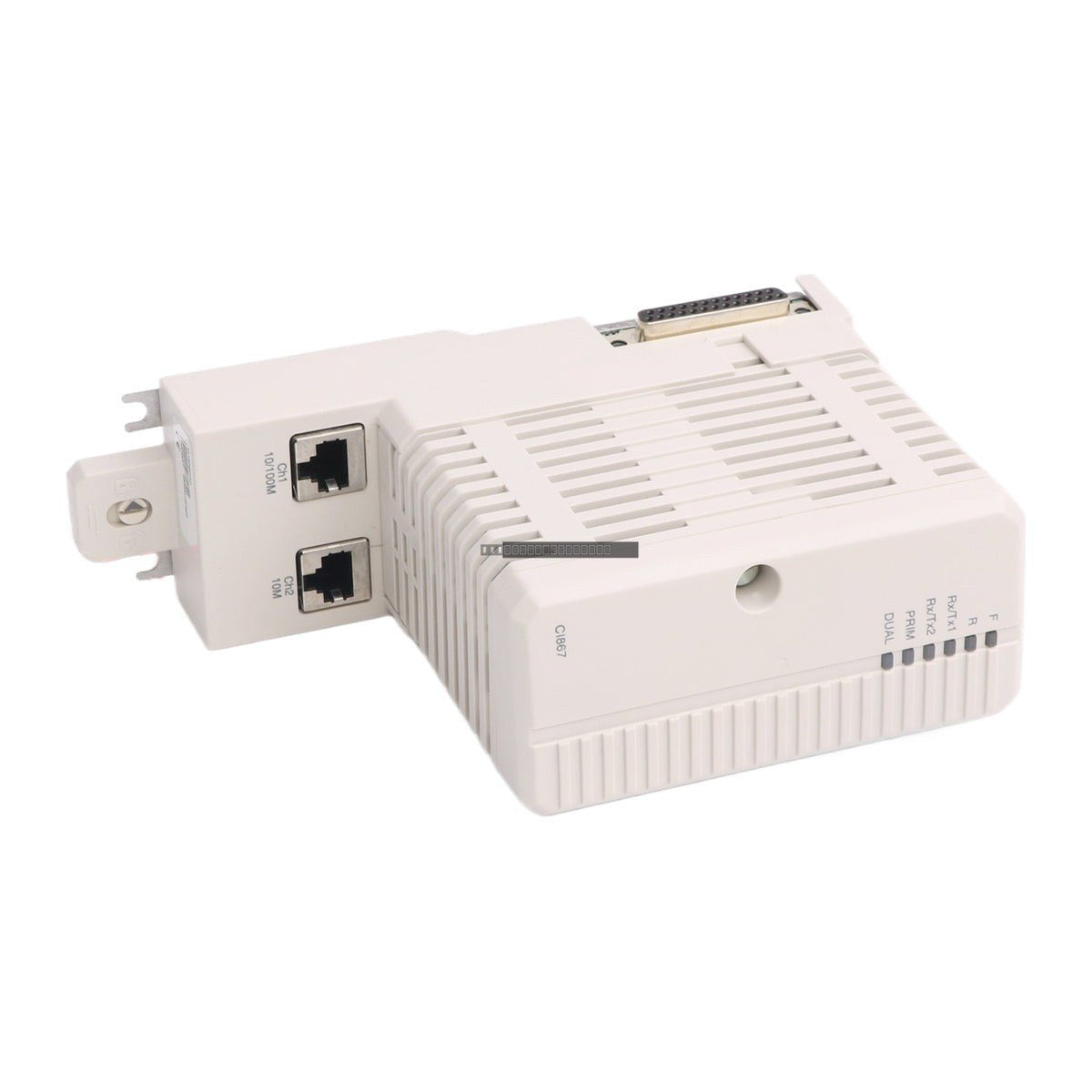

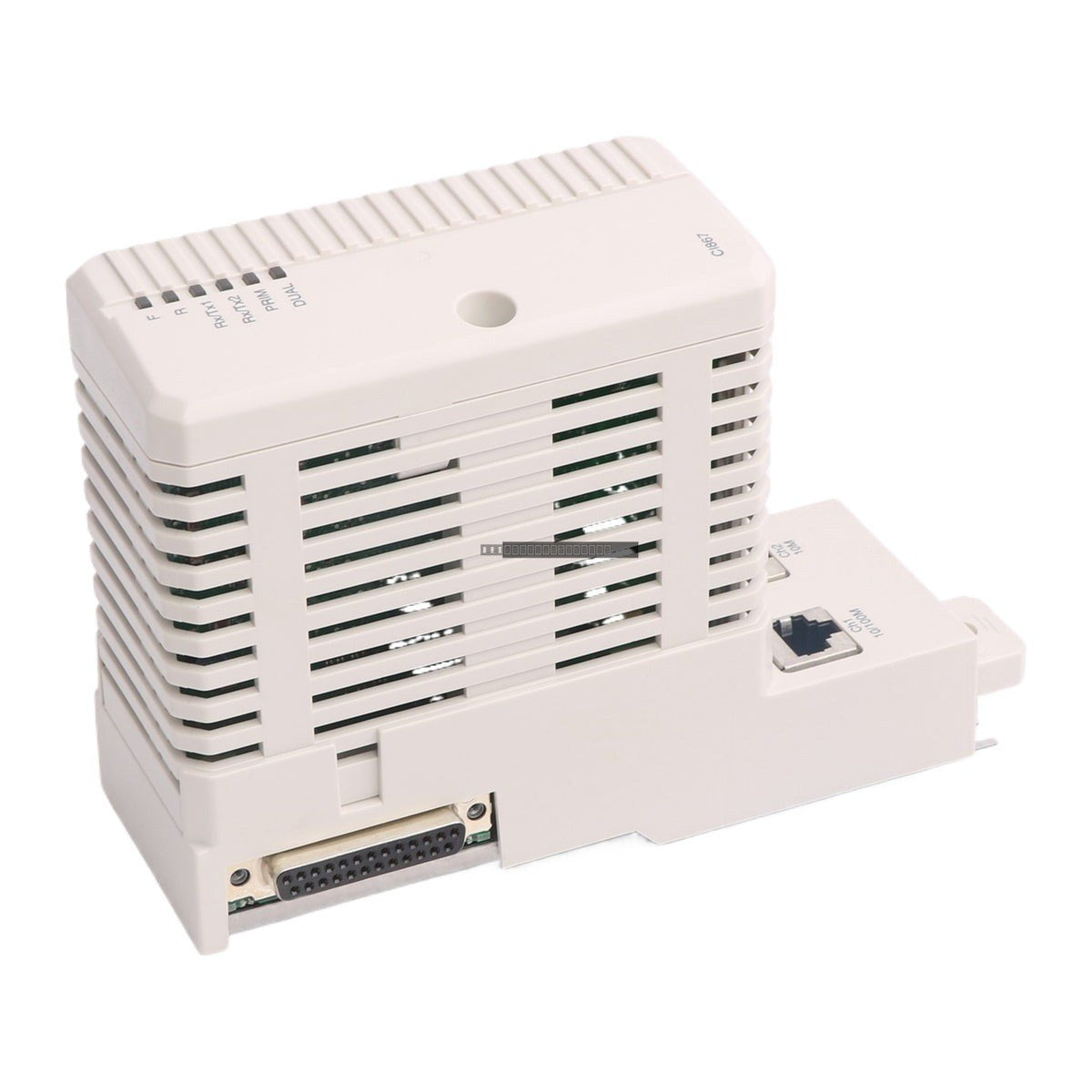

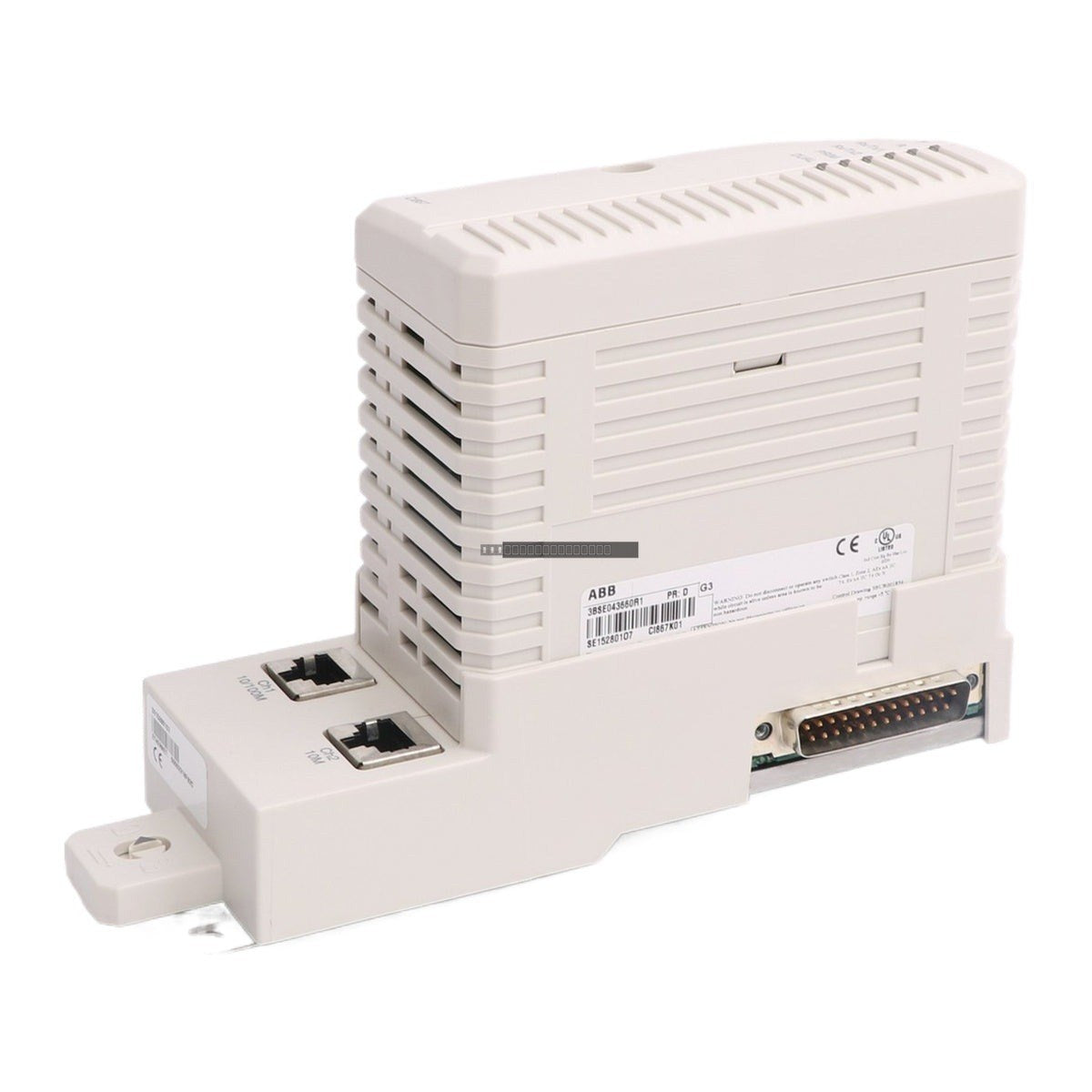

The ABB CI867K01 (3BSE043660R1) is a high-performance communication interface module designed for the Advant AC 800M controller series. This module facilitates seamless integration of Modbus TCP communication, allowing the controller to function as either a Master or a Slave device within an industrial network. It is engineered to provide reliable data exchange in demanding automation environments.

Features

• Supports Modbus TCP communication protocol for flexible network integration.
• Configurable as either a Master or Slave node.
• Equipped with a standard RJ-45 female 8-pin connector for Ethernet connectivity.
• Supports transmission speeds of 10/100 Mbit/s.
• Designed for integration with the AC 800M controller CEX bus.
• Maximum capacity of 12 units on the CEX bus.

Technical Specifications

Installation Guidelines

• Ensure the AC 800M controller is powered down before installing or removing the CI867K01 module.
• Mount the module securely onto the CEX bus interface as specified by the system configuration.
• Use shielded Ethernet cabling to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain adequate ventilation around the module to ensure operation within the specified 55 degC maximum ambient temperature.
• Handle with care to prevent electrostatic discharge (ESD) damage during installation.

FAQ

Can this module act as both a Master and a Slave?
Yes, the CI867K01 is designed to support both Master and Slave roles for Modbus TCP communication depending on your system configuration.

What is the maximum number of these modules supported on the CEX bus?
The system supports up to 12 units on the CEX bus.

What is the operating temperature range?
The module is rated for operation between 0 and +55 degC.
