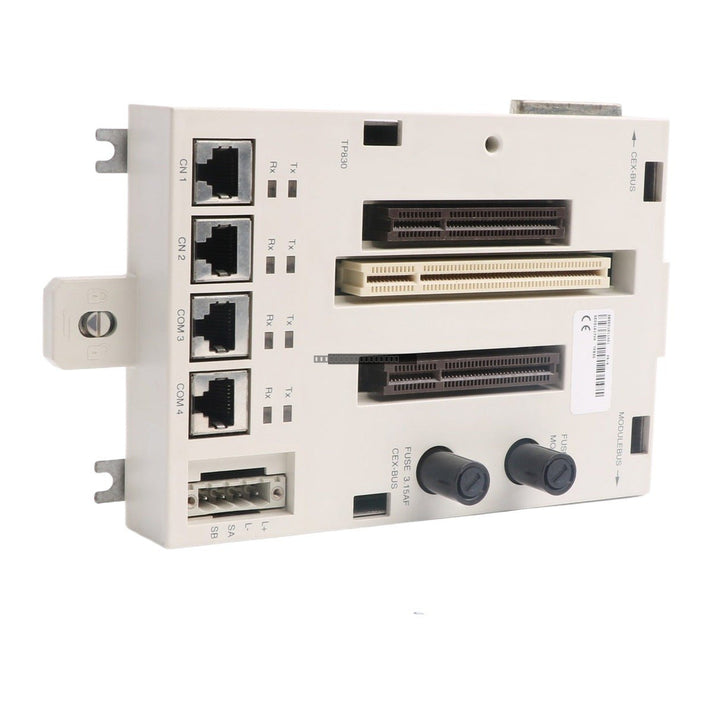

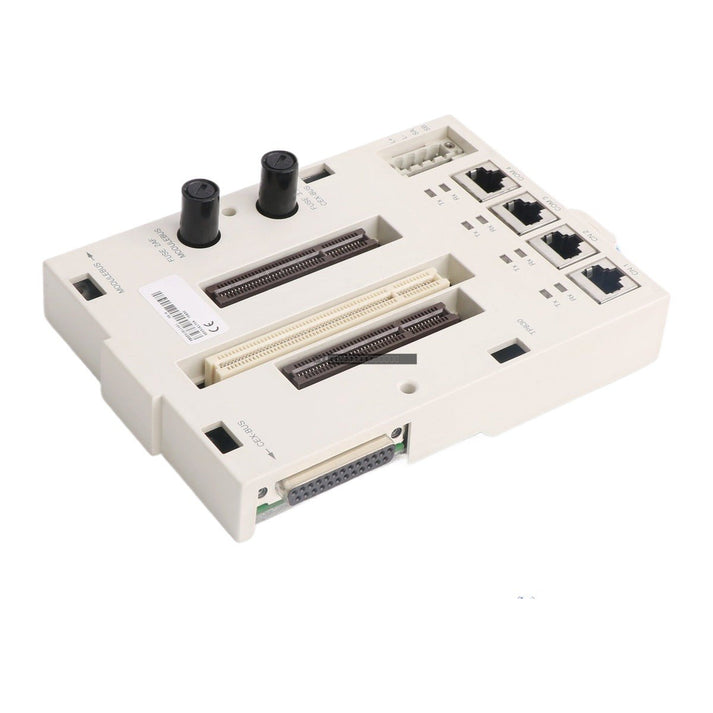

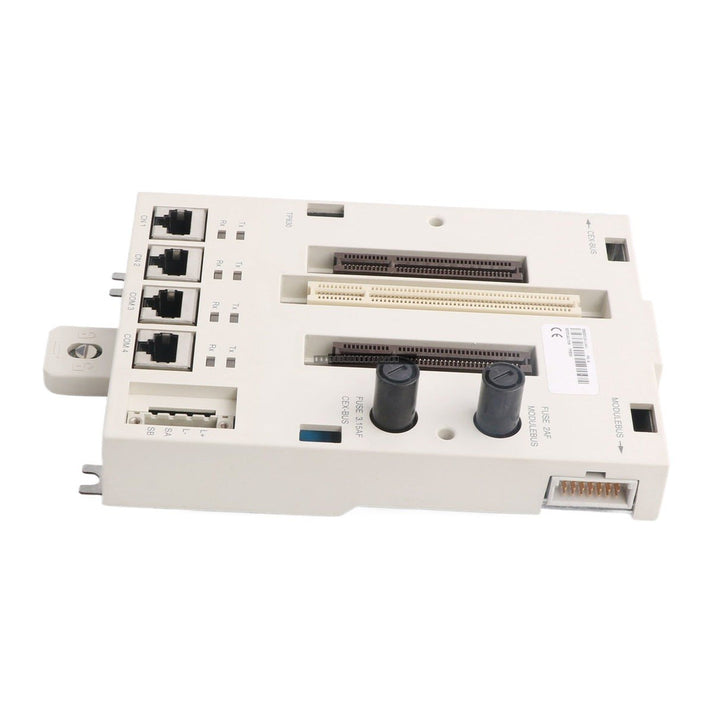

The ABB TP830 (3BSE018114R1) is a baseplate designed for the Advant AC800M control system. This mounting base serves as the physical interface and connection platform for I/O modules within the system architecture, ensuring secure mechanical support and reliable signal distribution.

Features

• Robust mechanical design for industrial control environments
• Optimized for seamless integration with AC800M series I/O modules
• Supports standard power and communication backplane connectivity
• Engineered for high reliability in demanding process automation applications

Technical Specifications

Installation Guidelines

• Ensure the mounting surface is clean, level, and free from excessive vibration before installation.
• Verify that the baseplate is securely fastened to the DIN rail or cabinet mounting plate according to system specifications.
• Always power down the control system before installing or removing any I/O modules from the baseplate to prevent electrical damage.
• Maintain proper clearance around the baseplate to ensure adequate airflow and heat dissipation.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module and its connectors.

FAQ

What is the primary function of the TP830 baseplate?

The TP830 acts as a mounting and connection base for ABB AC800M I/O modules, providing the necessary electrical path and mechanical mounting structure within the control cabinet.

Is this baseplate compatible with other series?

The TP830 is specifically designed for the ABB Advant AC800M system. Please verify your system documentation to ensure compatibility with your specific I/O module part numbers.
