Description

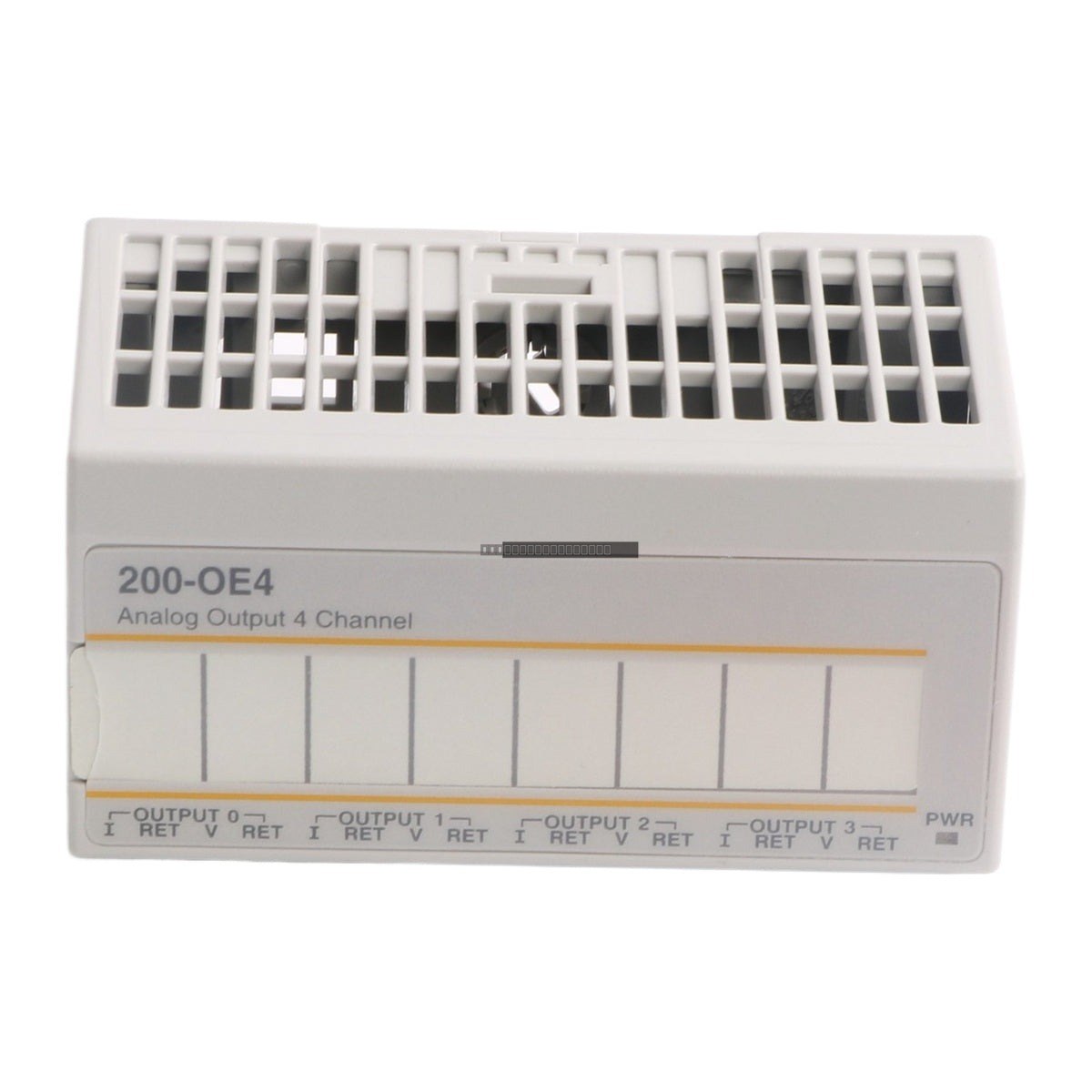

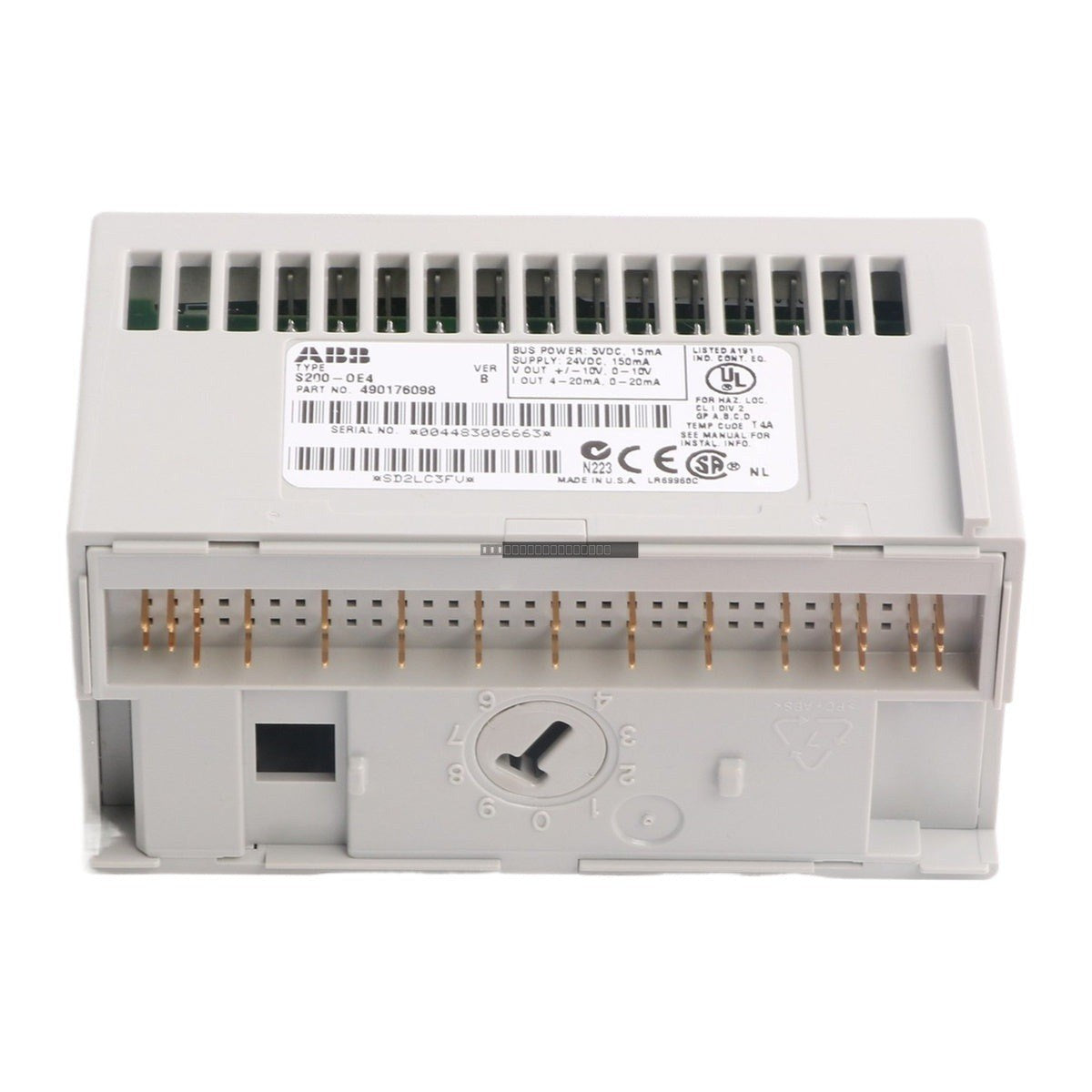

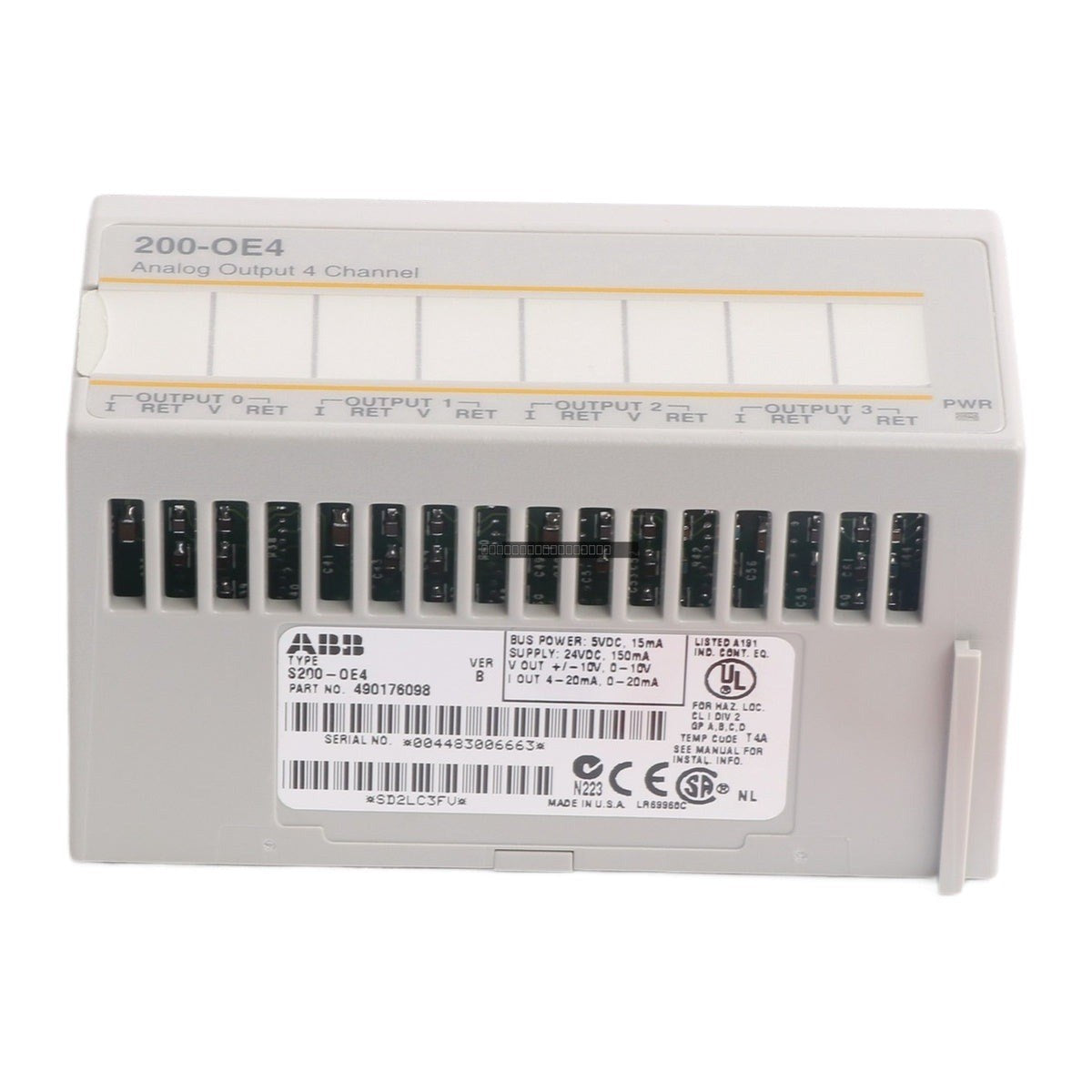

The ABB S200-OE4 is an analog output module designed for use within the Advant Controller 250 series. This module provides four channels of analog output, specifically engineered to interface with field devices requiring 24VDC control signals. As a component of the S200 I/O system, it facilitates reliable signal conversion and distribution in industrial automation environments.

Features

• Four-channel analog output configuration.
• Designed for 24VDC operation.
• Compatible with Advant Controller 250 series architectures.
• Compact form factor for high-density rack mounting.
• Robust industrial design for process control applications.

Applications

This module is typically utilized in process control systems where precise analog signal output is required for actuators, valves, or variable frequency drives. It is commonly found in manufacturing, power generation, and water treatment facilities relying on ABB Advant Controller technology.

Technical Specifications

Installation Guidelines

• Ensure the controller power is disconnected before installing or removing the module from the I/O rack.
• Verify that the module is firmly seated in the backplane connector to ensure proper signal integrity.
• Maintain adequate ventilation around the controller rack to prevent overheating of electronic components.
• Use shielded cabling for analog signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Is the S200-OE4 still in production?
No, this model has been discontinued by the manufacturer. We provide high-quality surplus units to support legacy systems.

What is the primary function of this module?
The S200-OE4 acts as an analog output interface, converting digital control signals from the Advant Controller into 24VDC analog outputs for field instrumentation.
