Description

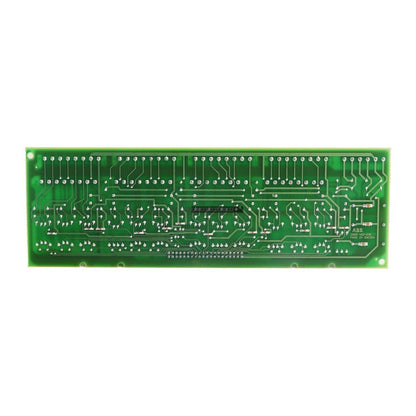

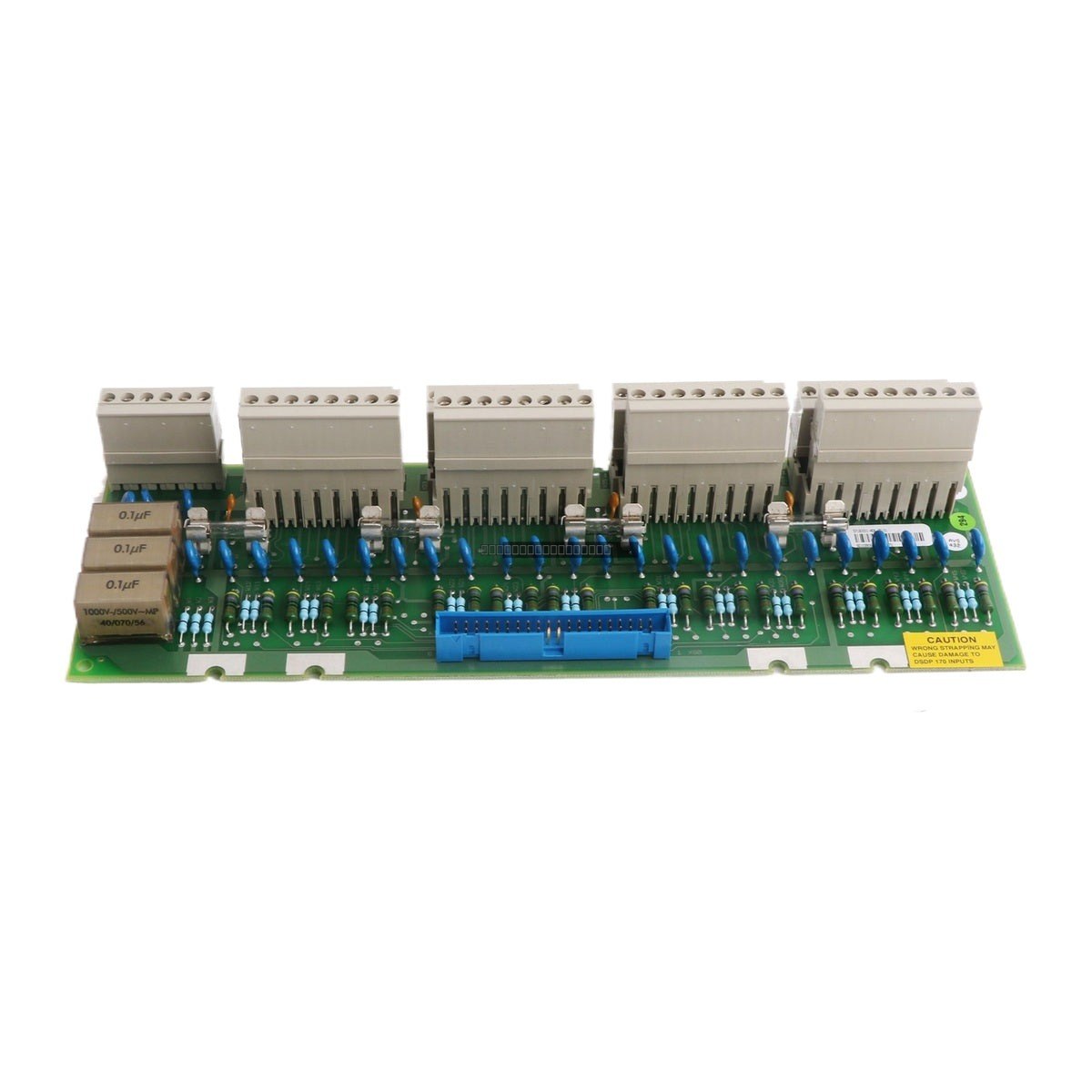

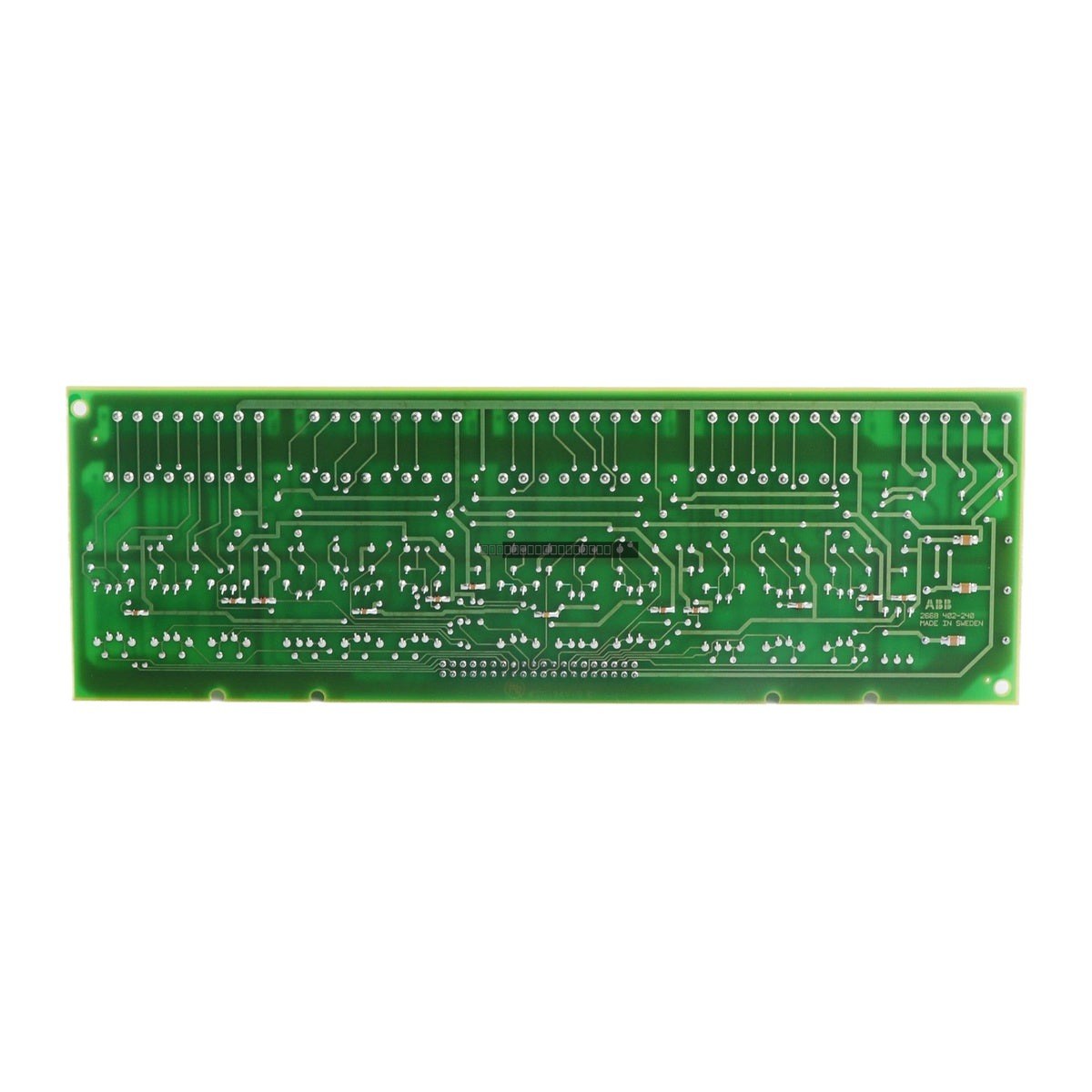

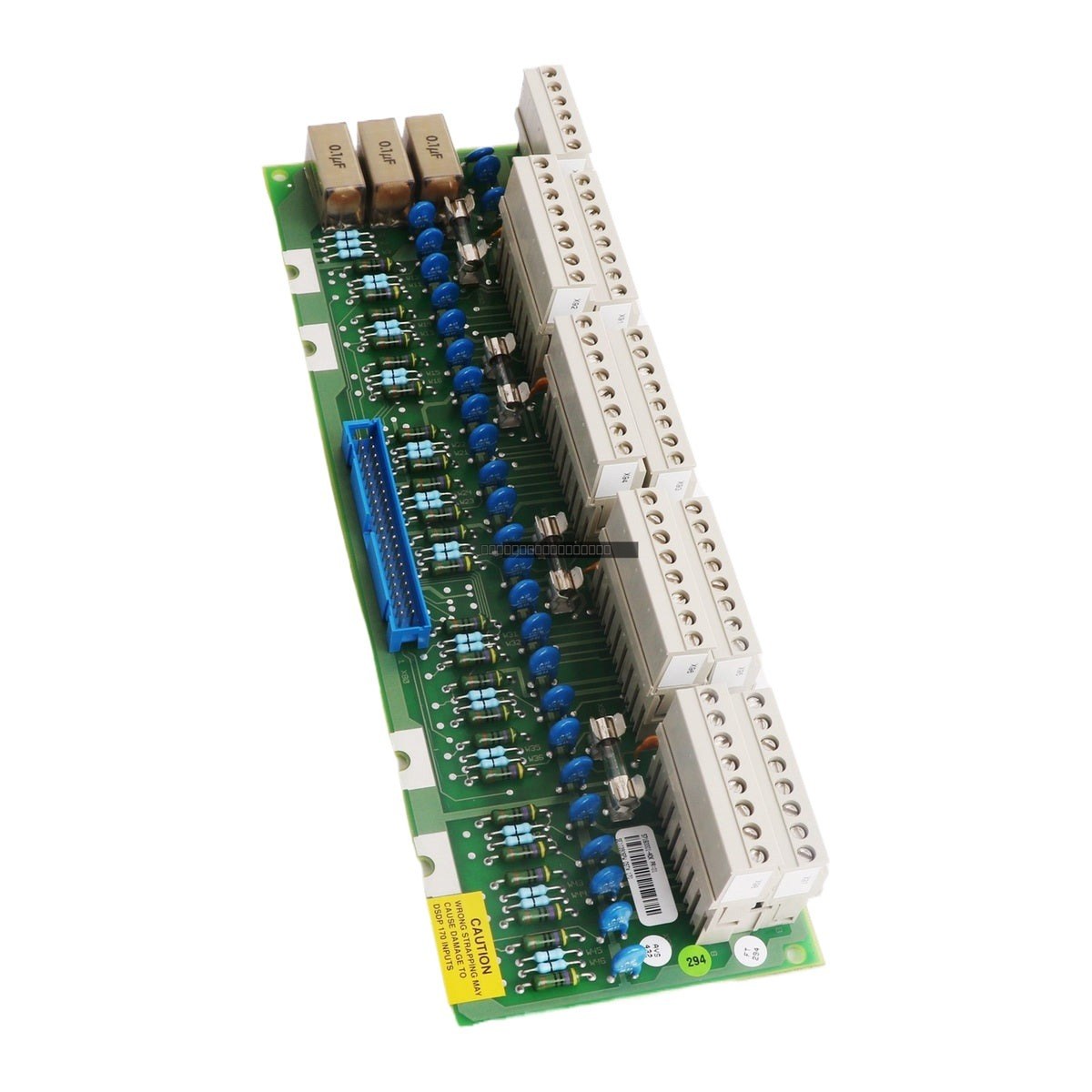

The ABB DSTX170 (57160001-ADK) is a specialized connection unit designed for integration within the ABB Advant Master control system architecture. This module serves as a critical interface component, facilitating the physical connection and signal routing between field-level I/O devices and the controller subrack. It is engineered to ensure reliable communication and signal integrity within the Advant Controller environment, specifically supporting S100 I/O configurations.

Features

• Designed for seamless integration with Advant Controller 410 and 450 systems.
• Provides robust physical interface for S100 I/O module connectivity.
• Supports reliable signal distribution in industrial automation environments.
• Engineered for high-availability control applications.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the connection unit from the subrack.
• Verify that the module is correctly seated in the designated slot to ensure proper backplane connection.
• Use shielded cabling for field signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the specified -20 degC to +70 degC range.
• Handle with standard ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal circuitry.

FAQ

What is the primary function of the DSTX 170?

The DSTX 170 acts as a connection interface for S100 I/O modules, providing the necessary physical wiring path between external field devices and the Advant controller subrack.

Which controller systems is this unit compatible with?

This unit is specifically designed for use with the ABB Advant Controller 410 (AC 410) and Advant Controller 450 (AC 450) series.

Is this unit still supported?

While the product may be classified as End-Of-Life (EOL) by the manufacturer, we continue to provide access to these units for maintenance and system support requirements.
