Description

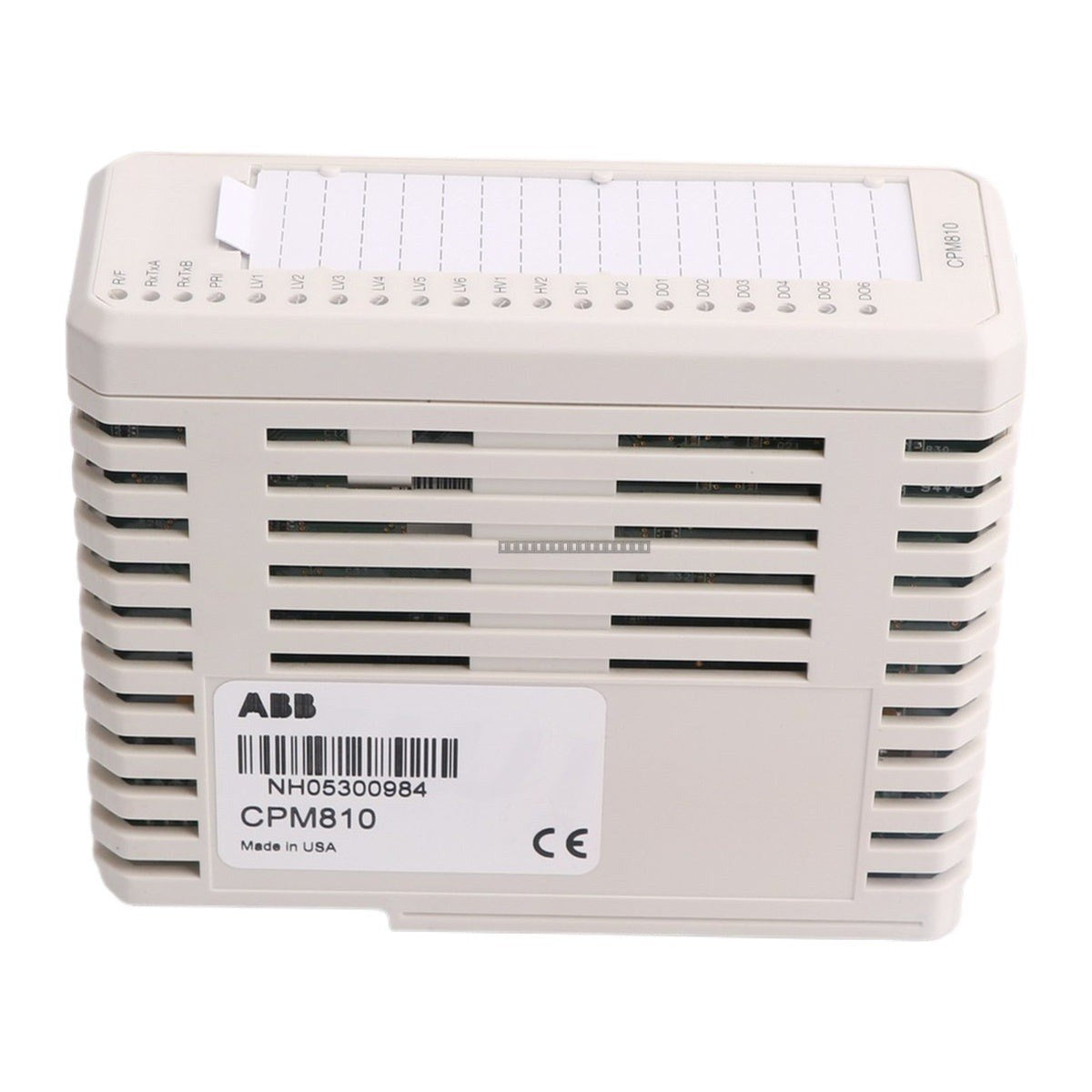

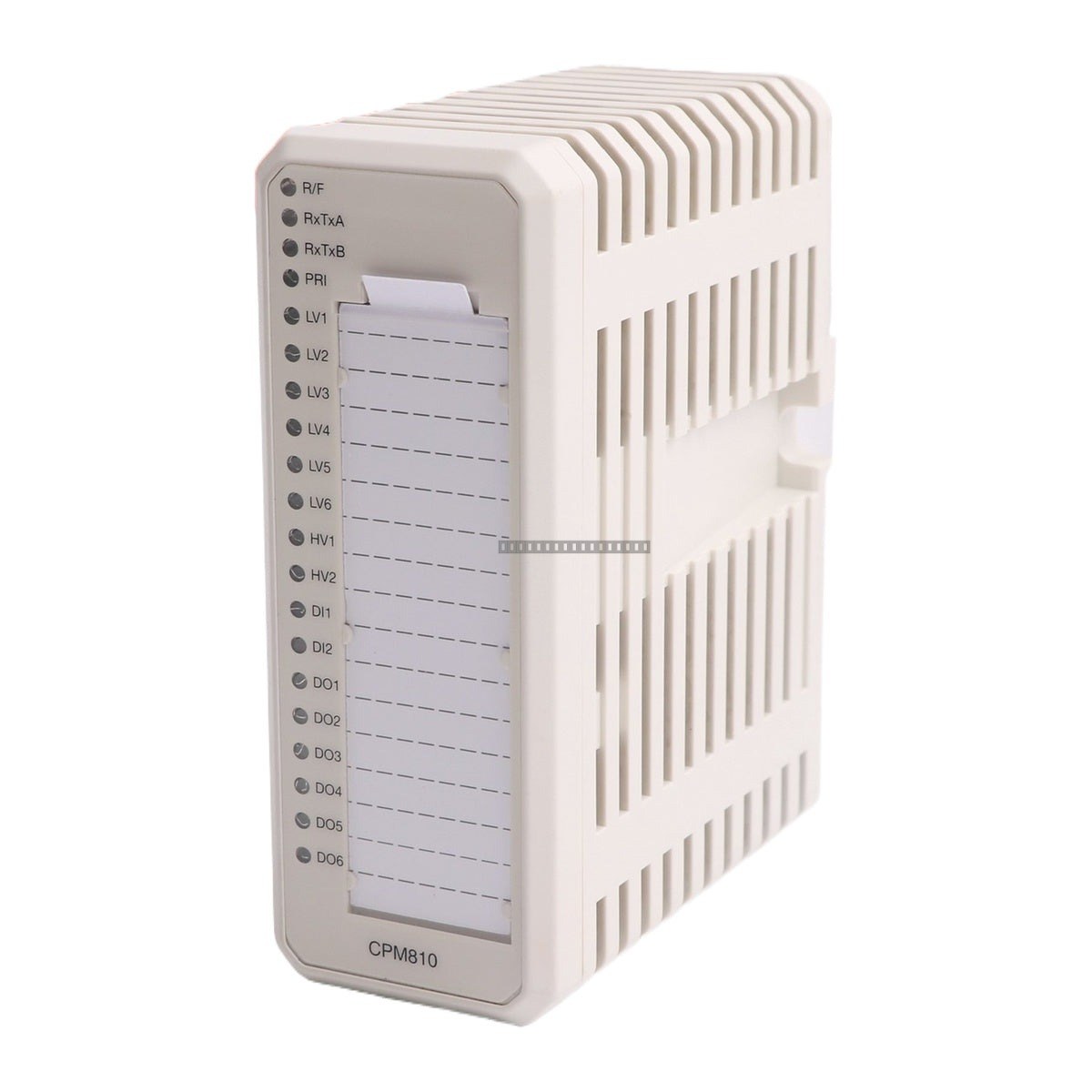

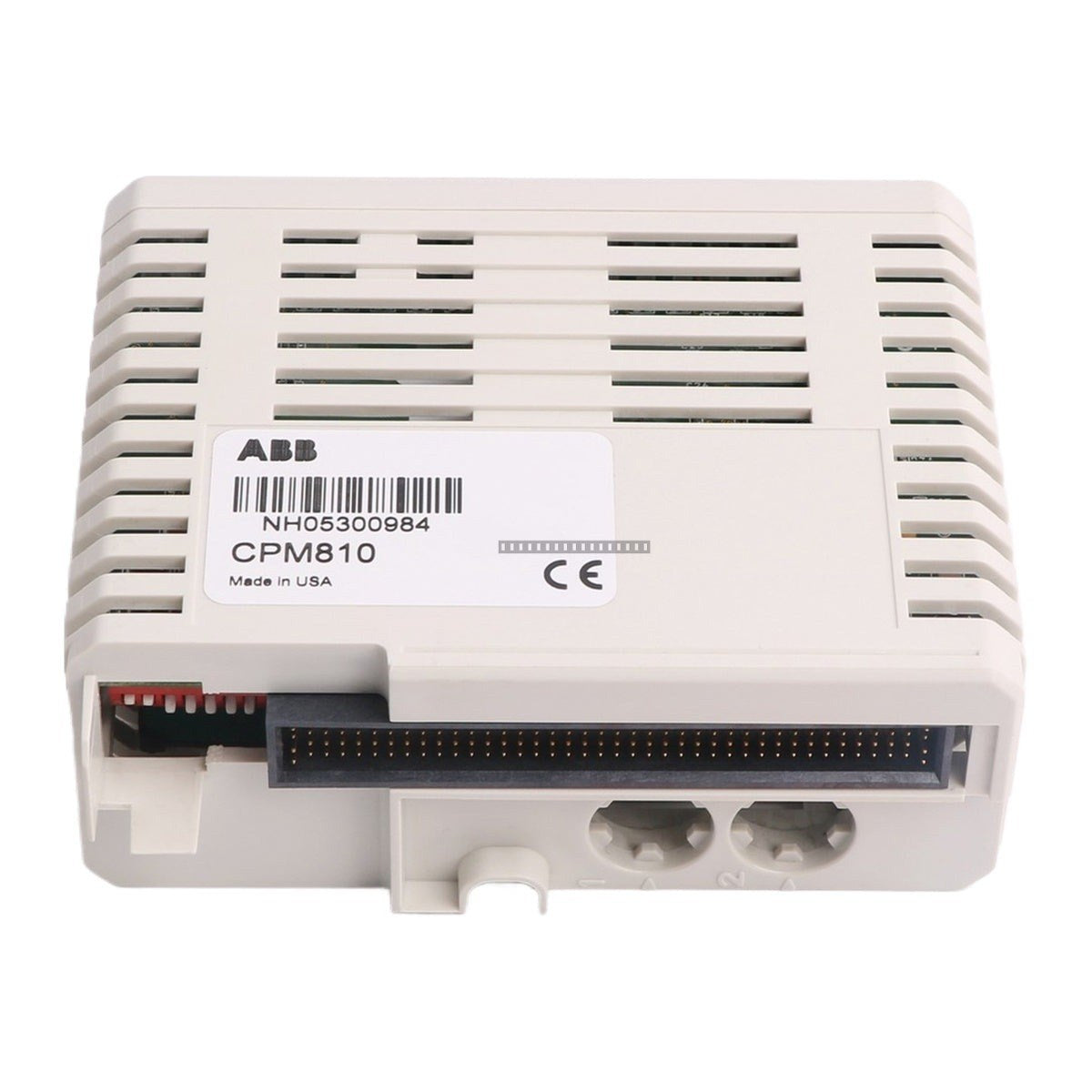

The ABB CPM810 is a high-performance Common Processor Module designed for use within the Advant OCS and Advant 800xA control system environments. This module serves as a central processing unit, utilizing a 32-bit RISC-based architecture to manage complex control tasks and system communication within industrial automation networks.

Features

• 32-bit RISC-based microprocessor architecture for efficient instruction execution.
• Integrated 64 MB Flash memory and 32 MB SDRAM for robust application performance.
• Optimized for low power consumption, typically operating at 8 W.
• Designed for integration into ABB Advant OCS and 800xA control system racks.
• Wide operating temperature range suitable for demanding industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the control system rack is powered down before inserting or removing the CPM810 module to prevent electrical damage.
• Verify that the module is correctly seated in the designated slot and that the locking mechanism is engaged.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
• Ensure that the 5 V DC power supply is stable and properly grounded according to ABB Advant system installation standards.

FAQ

What is the primary function of the CPM810?

The CPM810 acts as a Common Processor Module, providing the computational power required to execute control logic and manage data exchange within the ABB Advant OCS and 800xA automation platforms.

Can this module operate in extreme temperatures?

Yes, the module supports an extended temperature range of -25 degC to +70 degC, provided that derating guidelines are followed as per the manufacturer's technical documentation.
