Description

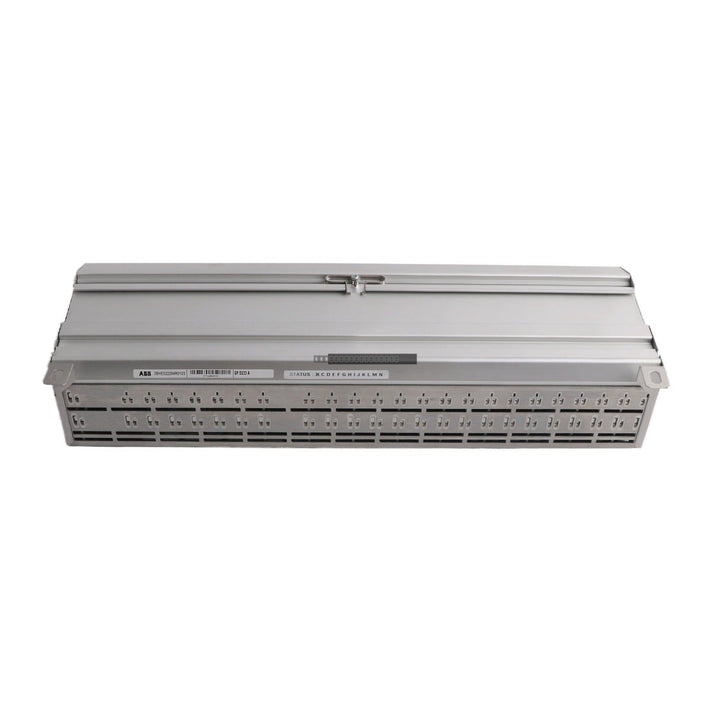

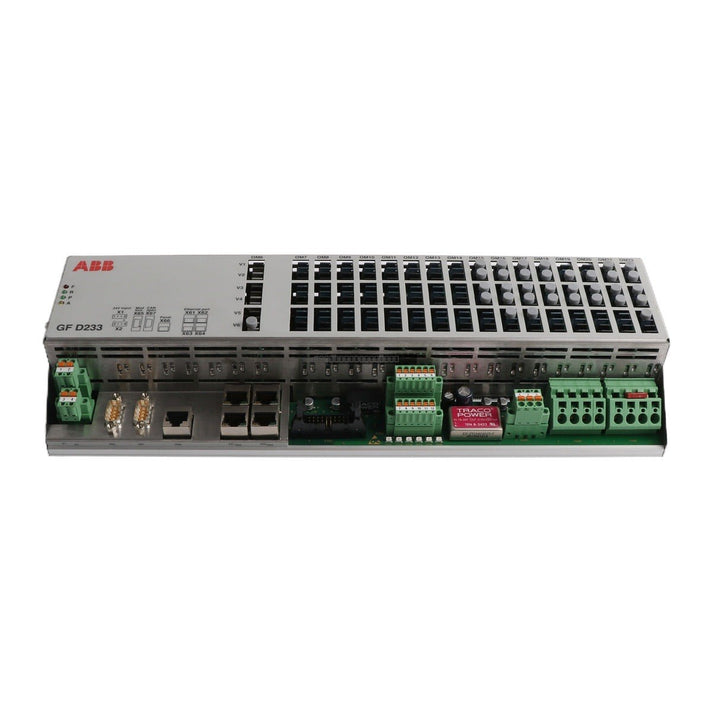

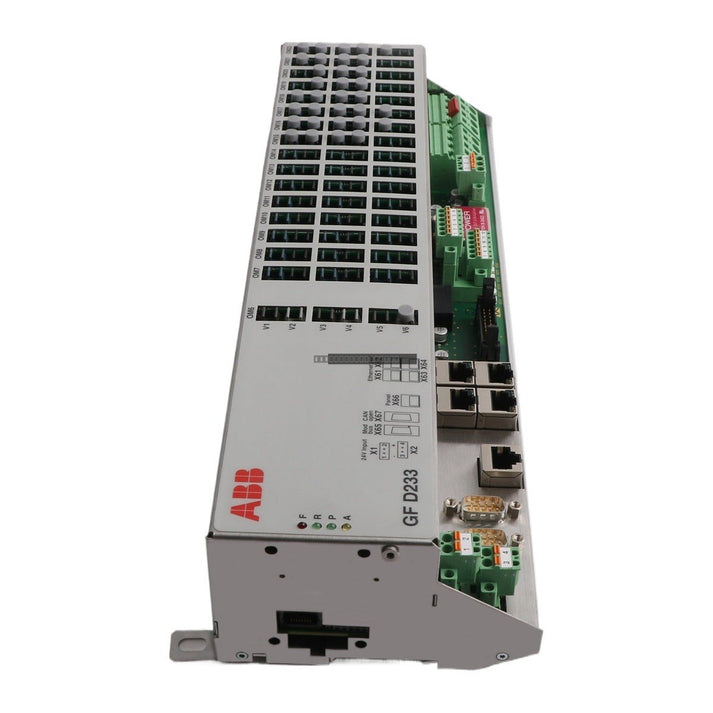

The GFD233 A (3BHE022294R0103) is a high-performance IGBT module designed for use within ABB Advant OCS and Advant-800xA industrial control systems. Engineered for demanding power electronics applications, this module provides reliable switching performance in high-voltage environments, ensuring efficient power conversion and control for industrial drives and power distribution equipment.

Features

• High-voltage capability with a typical collector-emitter voltage of 3300 V.
• Robust gate-emitter voltage handling up to +/- 20 V.
• Supports continuous collector currents ranging from 1200 A to 1500 A.
• Capable of handling peak currents up to 3000 A for transient load requirements.
• High isolation voltage (6-10 kV) for enhanced system safety and protection.
• Designed for high-temperature operation with a maximum junction temperature rating of 125-150 degC.

Technical Specifications

Installation Guidelines

• Ensure the mounting surface is clean, flat, and thermally conductive to facilitate proper heat dissipation.
• Apply a high-quality thermal interface material (TIM) between the module baseplate and the heatsink.
• Verify that all electrical connections are tightened to the manufacturer's specified torque to prevent overheating and contact resistance.
• Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to internal gate structures.
• Ensure the cooling system (forced air or liquid) is fully operational before applying power to the module.
• Always power down and discharge the DC bus capacitors before performing any installation or maintenance on the module.

FAQ

Q: Is this module compatible with all Advant OCS systems?
A: The GFD233 A is specifically intended for use in compatible ABB power electronics configurations. Please verify your system's hardware compatibility list or the original equipment documentation before installation.

Q: What is the primary function of this IGBT module?
A: This module acts as a high-power electronic switch, facilitating the rapid switching required for pulse-width modulation (PWM) in motor drives and power converters.
