Description

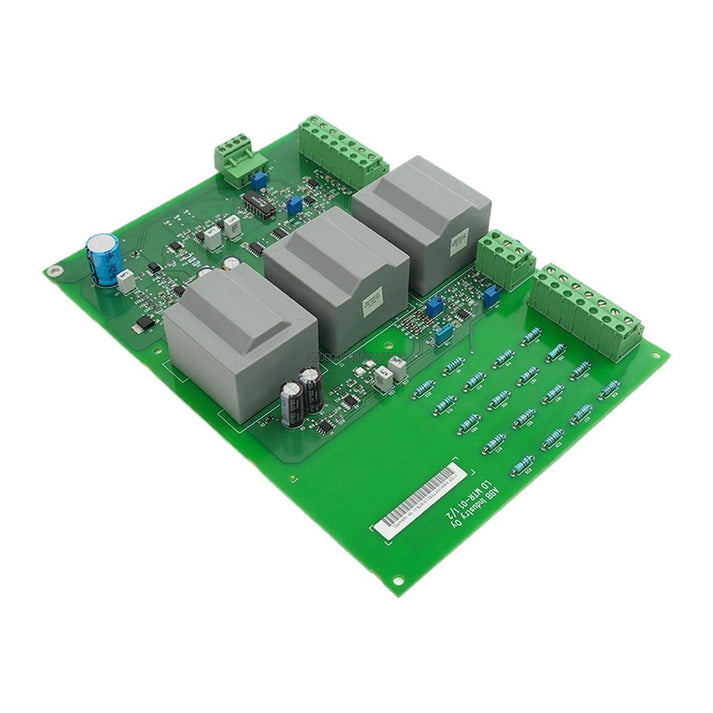

The ABB LDMTR-01 (63940135F) is a specialized LCDC module designed for integration within the ABB Advant OCS and Advant 800xA control system environments. This module serves as a critical component for managing input/output operations, providing reliable signal processing and control functionality required for industrial automation tasks.

Features

• Designed for seamless compatibility with ABB Advant OCS and 800xA systems.
• Supports 24 VDC supply voltage with a tolerance of ±10%.
• Configured for relay output operations ranging from 0 to 24 VDC.
• Robust construction suitable for standard industrial control cabinet environments.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the rack or backplane.
• Verify that the module is securely seated in the designated slot to ensure proper electrical contact with the system bus.
• Maintain proper grounding practices to protect against electrostatic discharge (ESD) and electromagnetic interference (EMI).
• Ensure the installation environment meets the specified temperature and humidity requirements to prevent thermal stress or condensation-related faults.
• Route signal cables away from high-voltage power lines to minimize induced noise.

FAQ

What systems is the LDMTR-01 compatible with?

This module is specifically engineered for use with ABB Advant OCS and Advant 800xA industrial control systems.

What is the operating temperature range for this module?

The module is rated for operation between 0 degC and 55 degC in non-condensing environments.

Does this module require specific power supply considerations?

Yes, the module operates on a 24 VDC supply. Ensure your power source is stable and within the ±10% tolerance range to maintain optimal performance.
