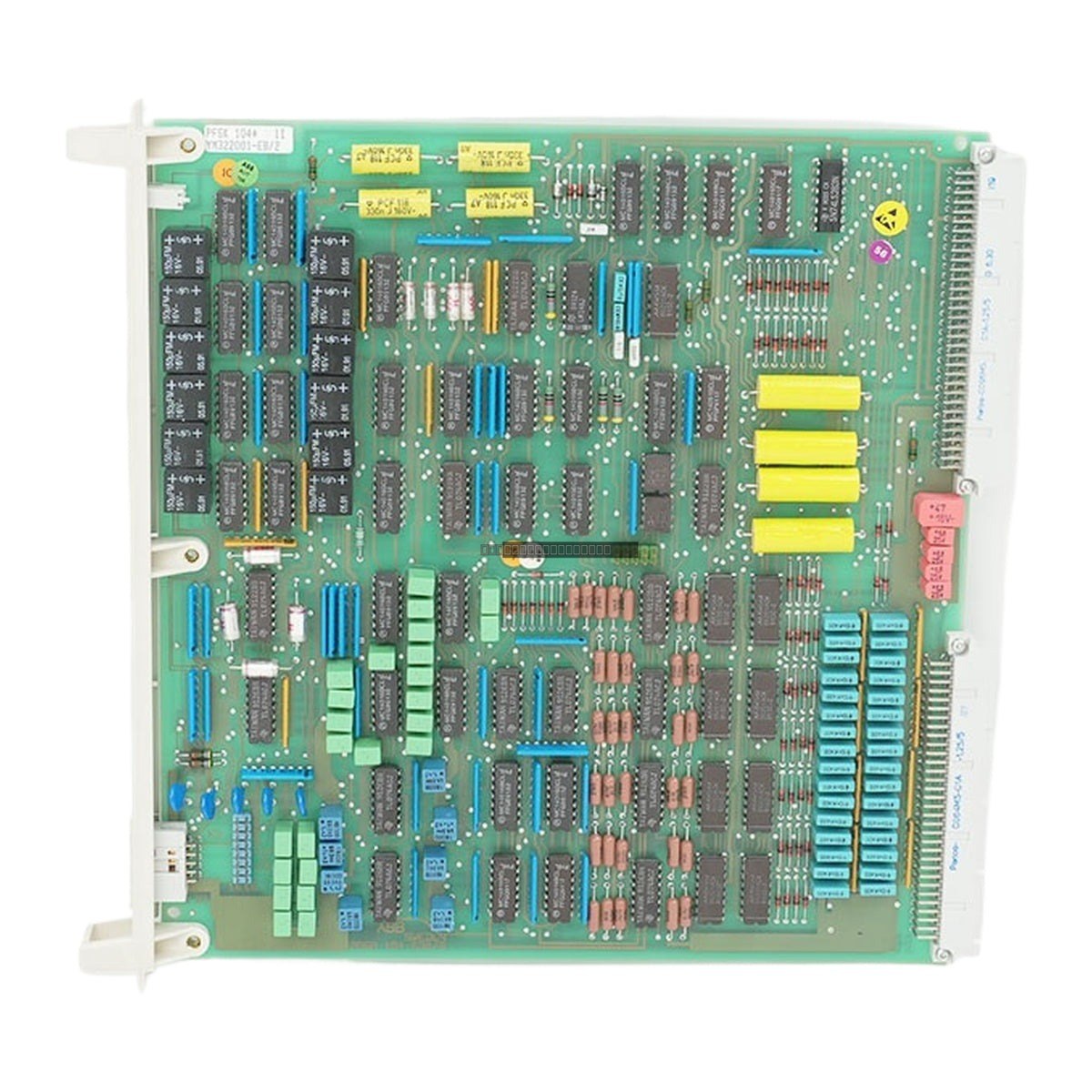

The ABB PFSK104 (YM322001-EB) is a specialized signal processing and control board designed for high-performance industrial automation environments. It is a critical component frequently utilized in Millmate Strip Tensiometer systems and as a global control module for ABB medium-voltage circuit breakers, including the AMVAC and R-MAG series.

Features

• High-precision signal processing for industrial automation.
• Integrated control functionality for magnetic actuator systems.
• Designed for robust performance in demanding plant environments.
• Supports critical monitoring and control tasks in metal processing and power distribution.

Applications

• Metal Processing & Rolling Mills: Manages strip tension, roll force, and flatness monitoring in steel and aluminum production lines.
• Circuit Breaker Control: Serves as a global control and monitoring component for AMVAC indoor and R-MAG outdoor magnetic circuit breakers.
• Tension Measurement: Utilizes Pressductor technology for reliable strip tension monitoring in high-temperature furnace applications.
• Process Automation: Provides reliable signal processing for complex industrial drive and control loops.

Technical Specifications

Installation Guidelines

• Handling: This module contains sensitive electronic components. Always use proper ESD (Electrostatic Discharge) protection when handling the board.
• Mounting: Ensure the board is securely seated in the designated rack or housing slot. Verify that all locking mechanisms are engaged to prevent vibration-induced disconnection.
• Power: Always disconnect power from the system before inserting or removing the module to prevent electrical damage.
• Environment: Install in a clean, dry environment within the specified temperature range. Ensure adequate ventilation to prevent heat buildup.
• Maintenance: Check the revision level of your board. Units at Revision 9 or higher include enhanced durability features, such as upgraded aluminum electrolyte capacitors.

FAQs

What is the primary function of the PFSK104 YM322001-EB?

The PFSK104 is a signal processing and control board primarily used for managing strip tension in rolling mills and as a control interface for magnetic circuit breaker systems.

Is this module compatible with older systems?

Yes, the PFSK104 is often used in legacy ABB Advant OCS and 800xA systems. It is frequently sourced for maintenance and support of systems that have reached End-Of-Life (EOL) status.

What should I check before installation?

Verify that your system power supply is stable at 24 V DC and inspect the board for any physical damage or debris before installation. Ensure the revision level matches your system requirements.
