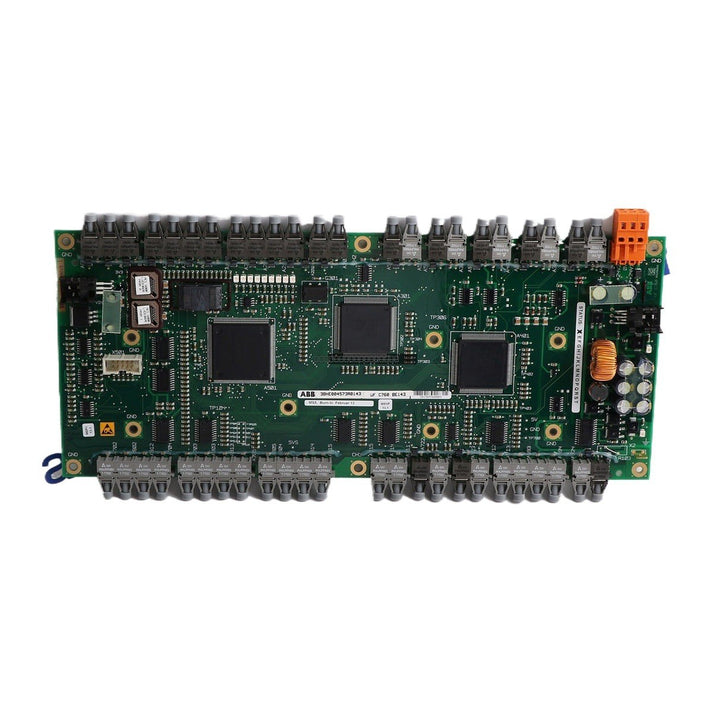

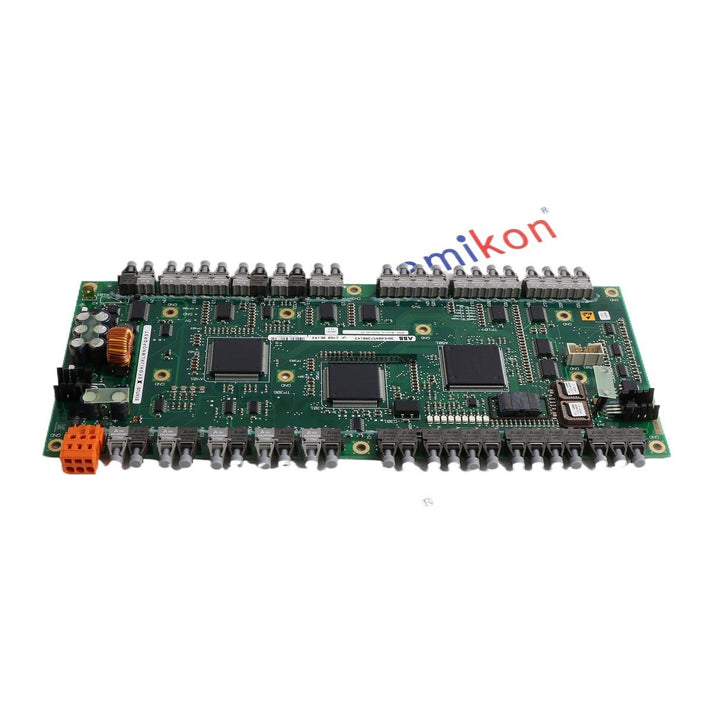

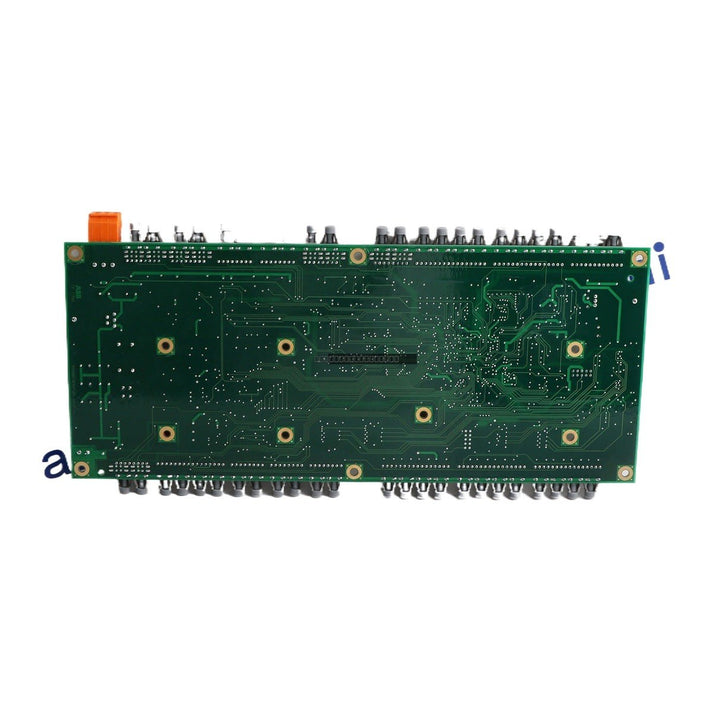

The ABB UF C760 BE143 (3BHE004573R0143) is a high-performance interface board designed for integration within ABB Advant OCS and Advant-800xA control systems. This module serves as a critical link in industrial automation, facilitating precise signal conditioning and communication between field instrumentation and the central control architecture.

Features

• Supports standard industrial signal ranges including 0-10V and 4-20mA.
• Integrated electrical isolation rated at 1500V AC to ensure signal integrity and protection against ground loops.
• Equipped with a 32-bit processor for high-speed signal processing.
• Fast control loop update times of less than 100 microseconds.
• High measurement accuracy maintained at ±0.1% of span.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the interface board to prevent electrical damage.
• Mount the module in a clean, dry environment within an industrial enclosure to protect against dust and moisture.
• Use shielded cables for all analog I/O connections to minimize electromagnetic interference (EMI).
• Maintain proper ventilation within the cabinet; ensure the module is not obstructed by wiring or other components to allow for heat dissipation.
• Verify that the power supply voltage is within the specified +24V DC (±10%) range before commissioning.

FAQ

What is the primary function of the UF C760 BE143?

This module acts as an interface board for ABB Advant OCS and 800xA systems, providing signal isolation and conversion for analog inputs and outputs.

What is the isolation rating of this board?

The unit provides 1500V AC isolation to protect the control system from field-side electrical disturbances.

Does this module require special environmental considerations?

Yes, it is rated for operation between 0 degC and +55 degC. If the ambient temperature exceeds 40 degC, performance derating is required to maintain operational reliability.
