Description

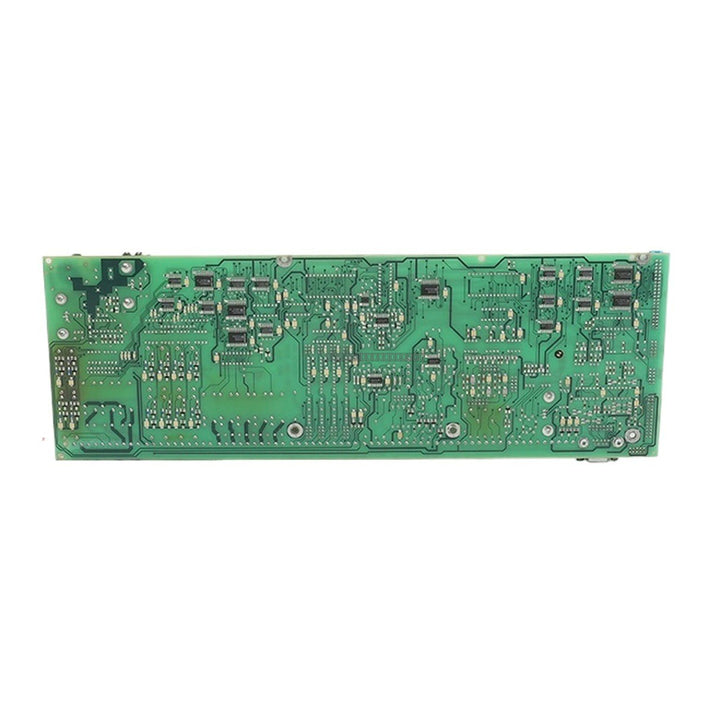

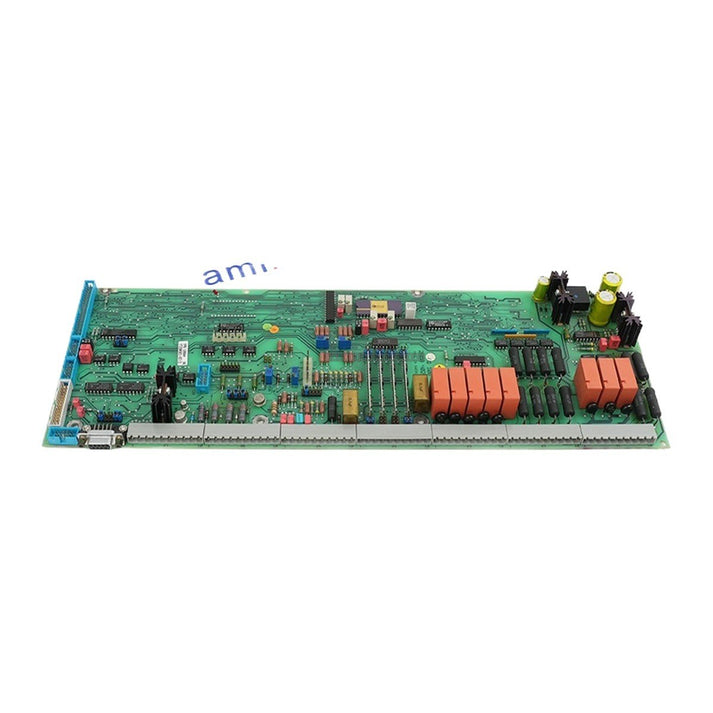

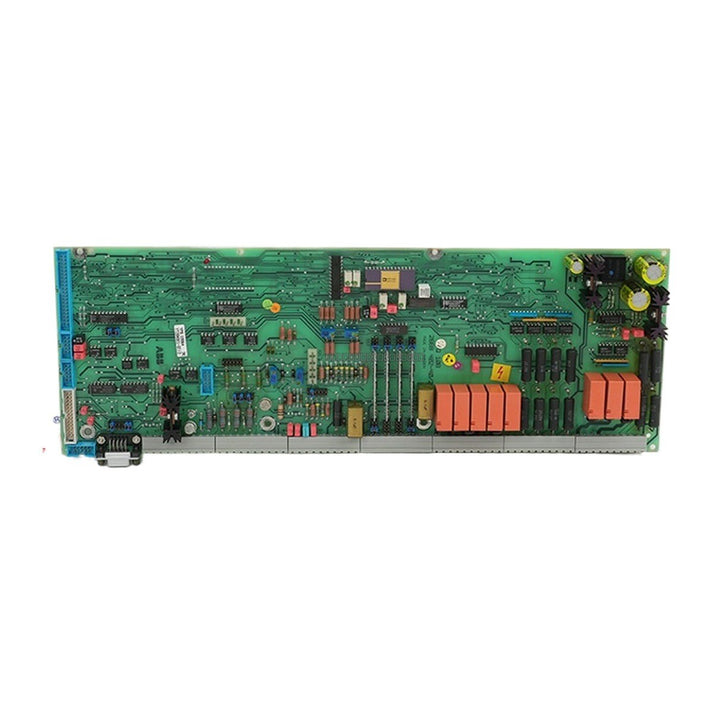

The ABB YPQ108A (YT204001-DT) is a specialized I/O board designed for integration within ABB Advant OCS and Advant-800xA control systems. This module serves as a critical interface component, providing robust signal processing and connectivity for industrial automation environments. It features a resistive network configuration to support precise signal conditioning and reliable data acquisition.

Features

• Integrated resistive network for signal conditioning.
• High-density I/O configuration for versatile control applications.
• Galvanic isolation between channels and the system bus to enhance noise immunity.
• Designed for compatibility with ABB Advant OCS and 800xA system architectures.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the I/O board.
• Handle the module using ESD-safe procedures to prevent damage to sensitive electronic components.
• Verify that the module is securely seated in the designated rack slot and that all locking mechanisms are engaged.
• Ensure proper grounding of the cabinet to minimize electromagnetic interference (EMI).
• Route signal cables away from high-voltage power lines to maintain signal integrity.
• Maintain adequate ventilation within the cabinet to ensure the module operates within the specified temperature range.

FAQ

What systems are compatible with the YPQ108A?

The YPQ108A is engineered for use with ABB Advant OCS and Advant-800xA control systems.

What is the primary function of the resistive network on this board?

The resistive network is utilized for signal conditioning, ensuring that input signals are correctly scaled and protected before being processed by the system controller.

Does this module require external power?

Yes, the module operates on a 24 V dc power supply, which must be provided according to the system's power distribution specifications.
