Description

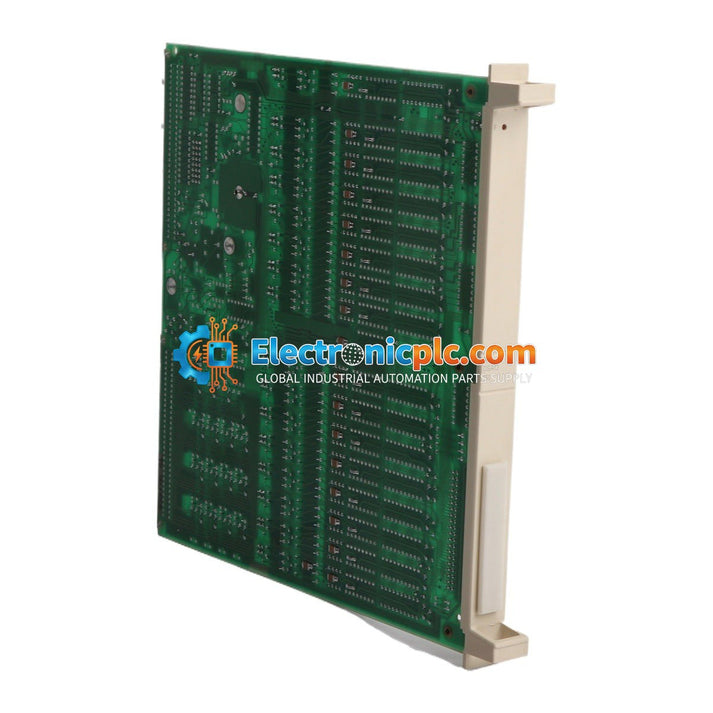

The ABB DSAO130 is a high-density analog output module designed for the Advant S100 I/O system. This module provides 16 channels of analog output, supporting flexible configuration for various industrial control applications. As a critical component in the S100 I/O family, the DSAO130 is engineered to provide reliable signal conversion and output control for actuators, valves, and other analog-controlled field devices.

Features

• 16-channel analog output density for space-efficient control cabinet design.
• Configurable output ranges including 0-10 V and 0-20 mA.
• Designed for seamless integration with the ABB Advant S100 I/O architecture.
• Robust construction suitable for demanding industrial environments.

Applications

The DSAO130 is typically utilized in process automation environments such as power generation, chemical processing, and water treatment facilities where precise analog control of field instrumentation is required via the Advant S100 I/O bus.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the S100 I/O rack.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the module is firmly seated in the backplane connector to ensure reliable communication and power distribution.
• Route analog signal wiring away from high-voltage AC lines and high-EMI sources to minimize signal interference.
• Ensure proper grounding of the I/O rack to maintain signal integrity and safety standards.

FAQ

Is the DSAO130 still in production?

No, the DSAO130 has been discontinued by the manufacturer. We provide this module as a refurbished or surplus spare part to support legacy system maintenance.

What is the difference between the DSAO130 and the 57120001-FG?

The 57120001-FG is the alternate spare part number for the DSAO130 module; they refer to the same hardware specification.
