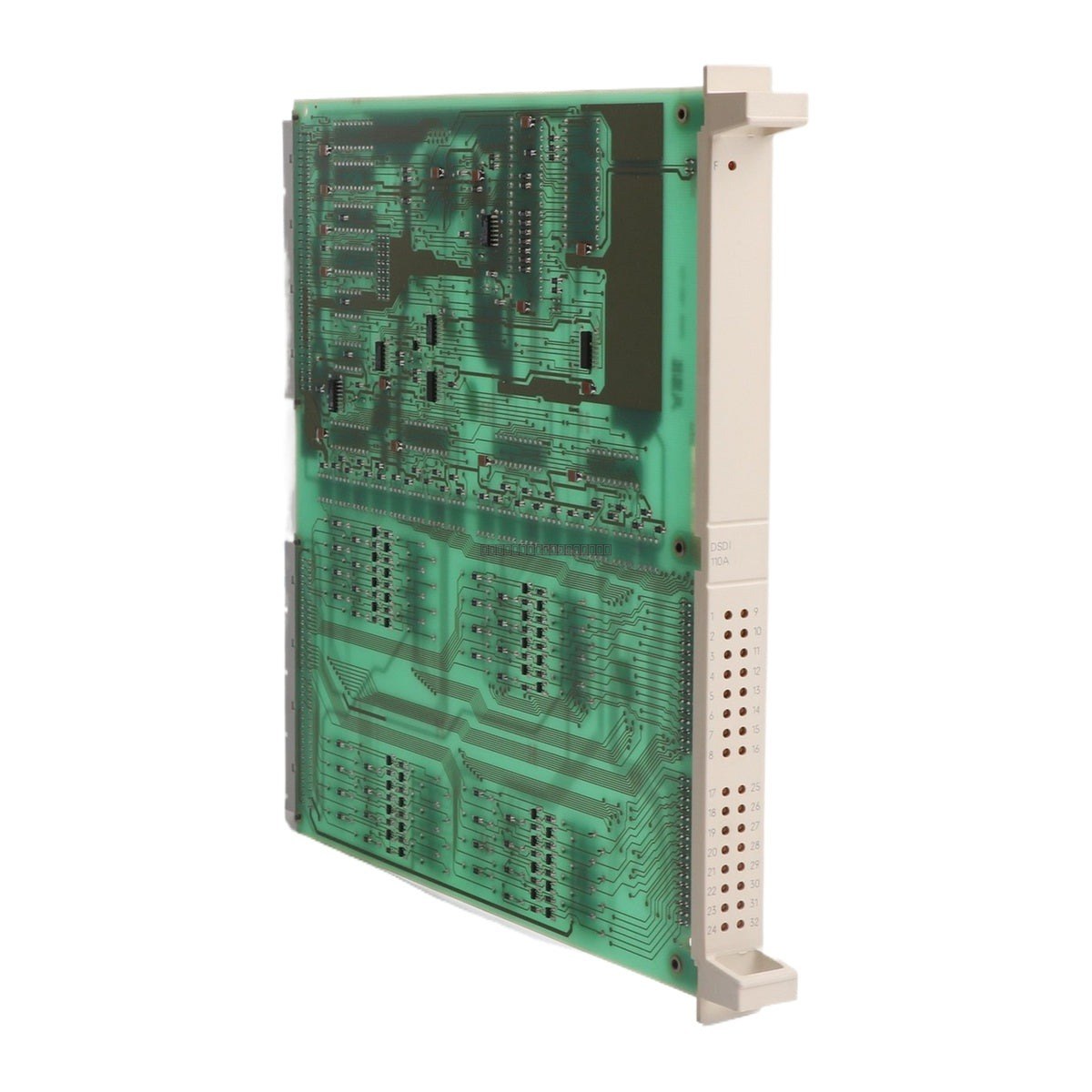

The ABB DSDI110A (57160001-AAA) is a digital input module designed for the Advant S100 I/O system. This module provides reliable signal acquisition for industrial control environments, featuring opto-isolated inputs to ensure electrical separation between field devices and the control system.

Features

• Designed for Advant S100 I/O rack mounting.
• Integrated LED status indicators for visual diagnostic monitoring of input channels.
• Opto-isolated input circuitry for enhanced noise immunity and protection.
• Standard 24 VDC input voltage compatibility.
• Robust design suitable for demanding industrial temperature ranges.

Applications

This module is typically deployed in process automation systems where digital status monitoring of field sensors, switches, or contact closures is required. It is commonly found in ABB Advant OCS or MasterPiece control configurations.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the I/O rack.
• Verify that the module is correctly seated in the designated slot to ensure proper backplane communication.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
• Maintain proper grounding practices for the S100 I/O rack to protect against surge and static discharge.
• Ensure adequate ventilation around the rack to maintain operating temperatures within the specified limits.

FAQ

What is the primary function of the DSDI110A?
The DSDI110A is a digital input module used to interface field-level digital signals with the ABB Advant S100 I/O system.

Does this module require external power?
Yes, it operates on a 24 VDC power supply with a tolerance of +/- 15%.

Is this module suitable for extreme environments?
The module is rated for an operating temperature range of -40 degC to +70 degC, making it suitable for a wide variety of industrial conditions.
