Description

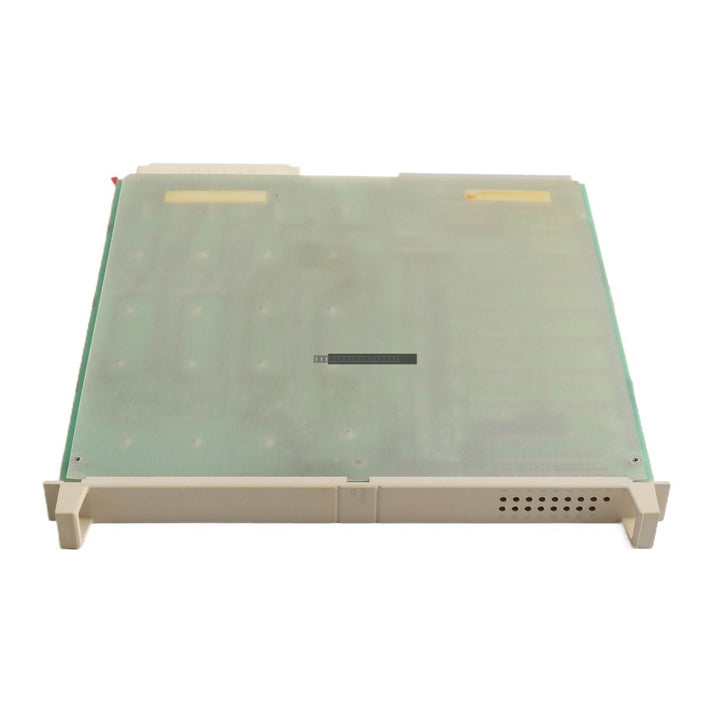

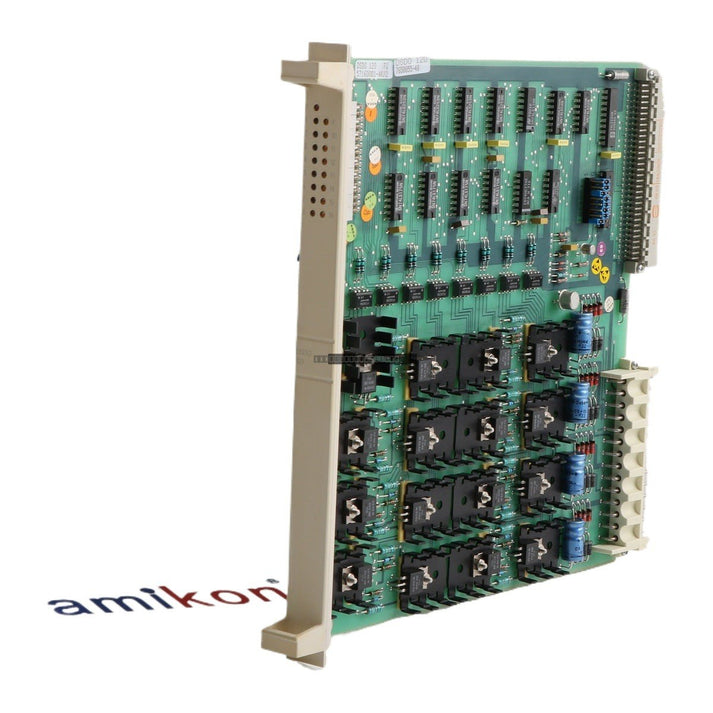

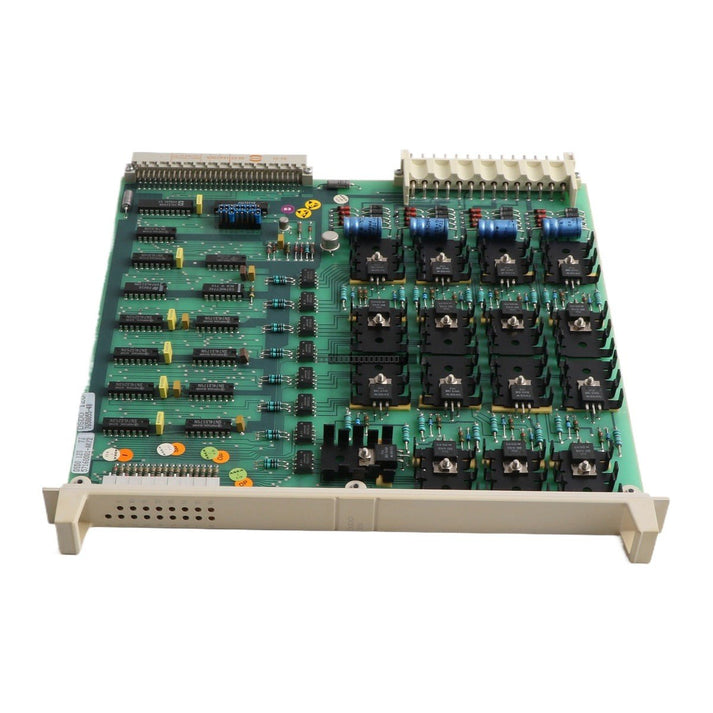

The ABB DSDO120 is a digital output module designed for the Advant S100 I/O system. This unit provides reliable switching capabilities for industrial control applications, supporting a voltage range of 24-48VDC with a current rating of 1A per channel. It is engineered to integrate seamlessly into existing Advant OCS or S100 I/O configurations, ensuring consistent performance in demanding automation environments.

Features

• Designed for Advant S100 I/O system compatibility.
• Supports 24-48VDC digital output switching.
• Rated for 1A output current per channel.
• Robust construction suitable for industrial control cabinets.
• Direct replacement or spare for part number 57160001-AK.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the S100 I/O rack backplane to ensure proper signal and power connectivity.
• Use appropriate ESD protection when handling the module to prevent damage to internal electronic components.
• Route signal wiring away from high-voltage cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure adequate ventilation in the cabinet to maintain operating temperatures within the manufacturer's specified limits.

FAQ

What is the primary function of the DSDO120?
The DSDO120 is a digital output module used to interface the Advant S100 I/O system with field devices, allowing the controller to switch 24-48VDC loads.

Is this module compatible with other I/O systems?
The DSDO120 is specifically designed for the ABB Advant S100 I/O architecture. It is not intended for use in non-compatible PLC or DCS platforms.

What does the spare part number 57160001-AK indicate?
This is an alternative identification code associated with the DSDO120 module, often used for inventory tracking and cross-referencing within ABB documentation.
