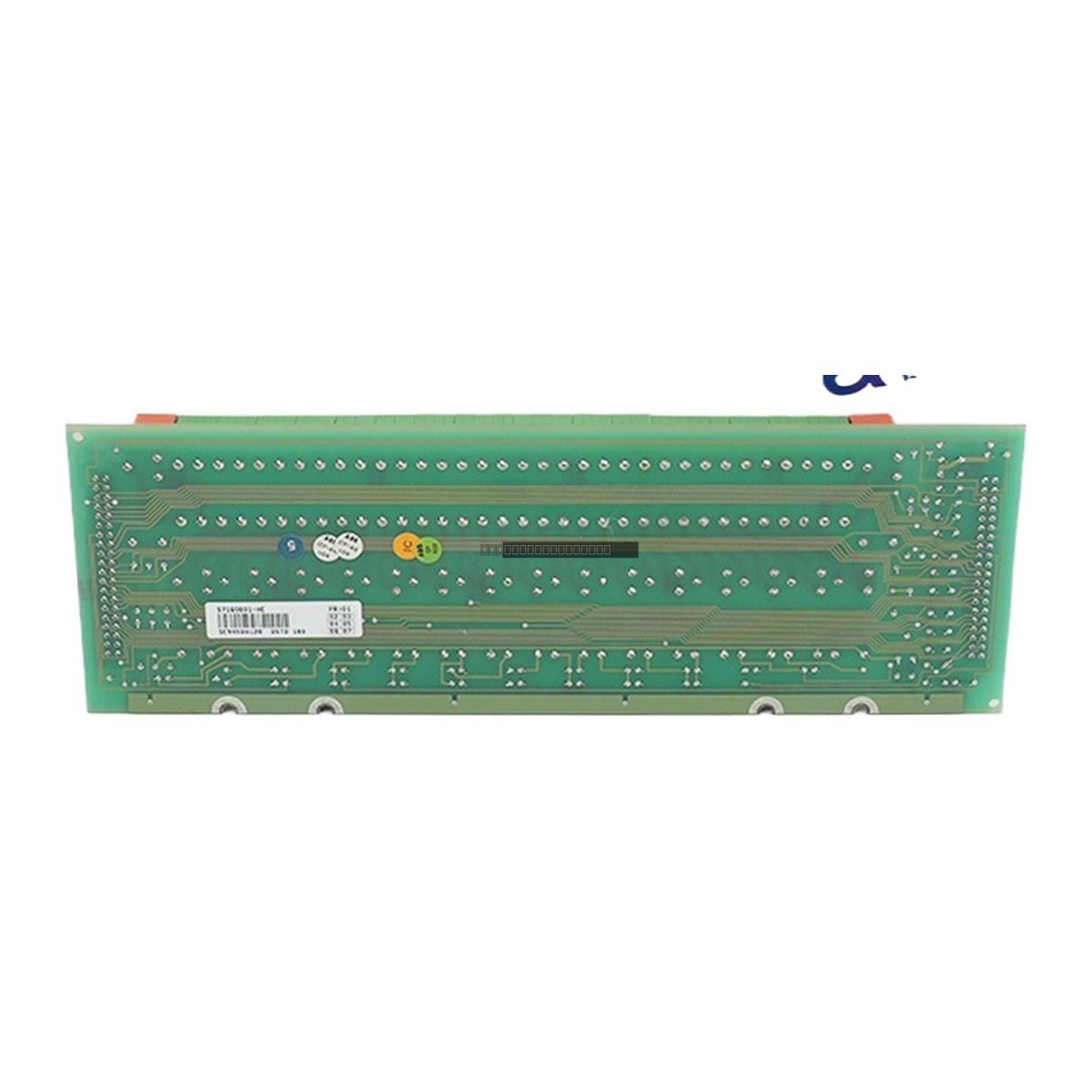

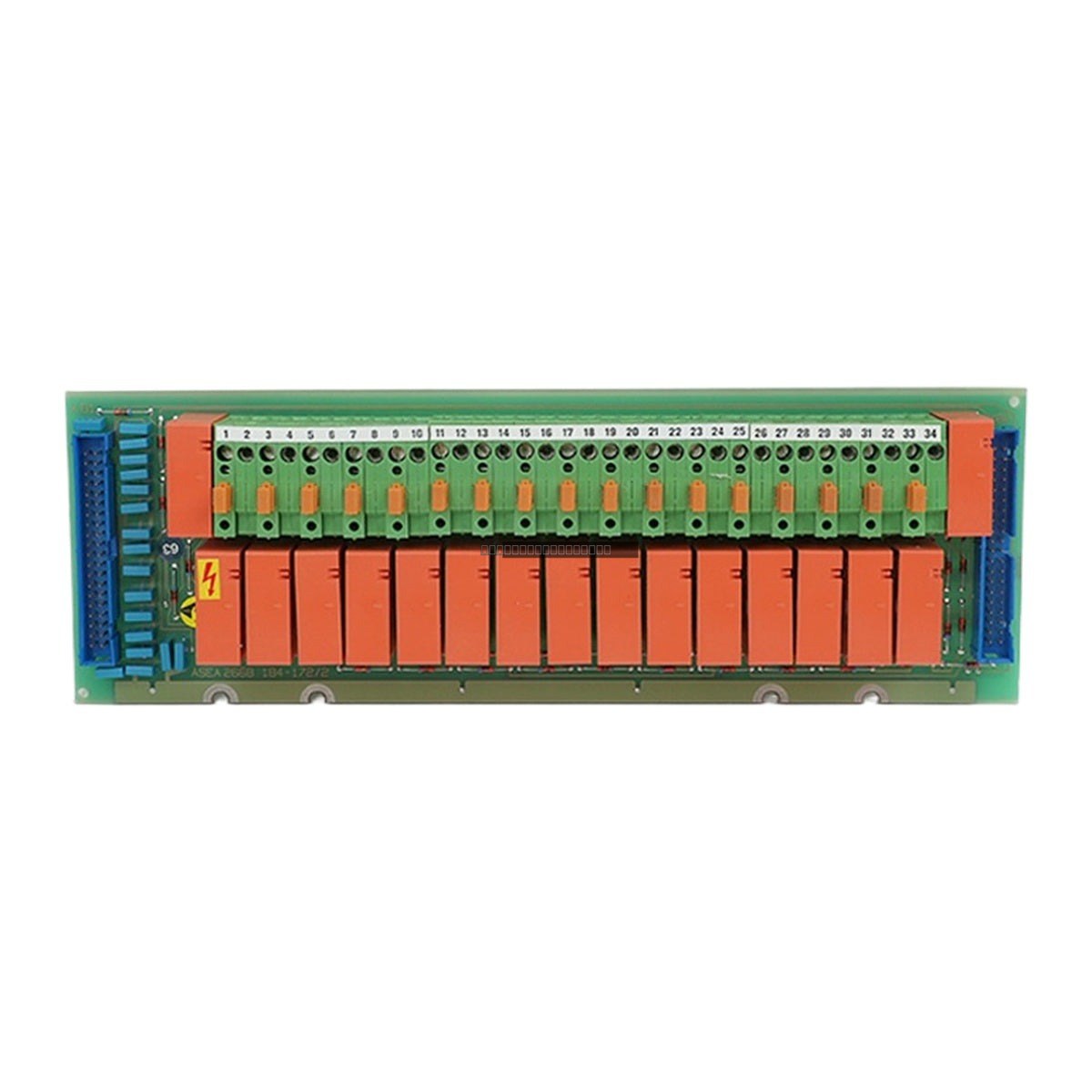

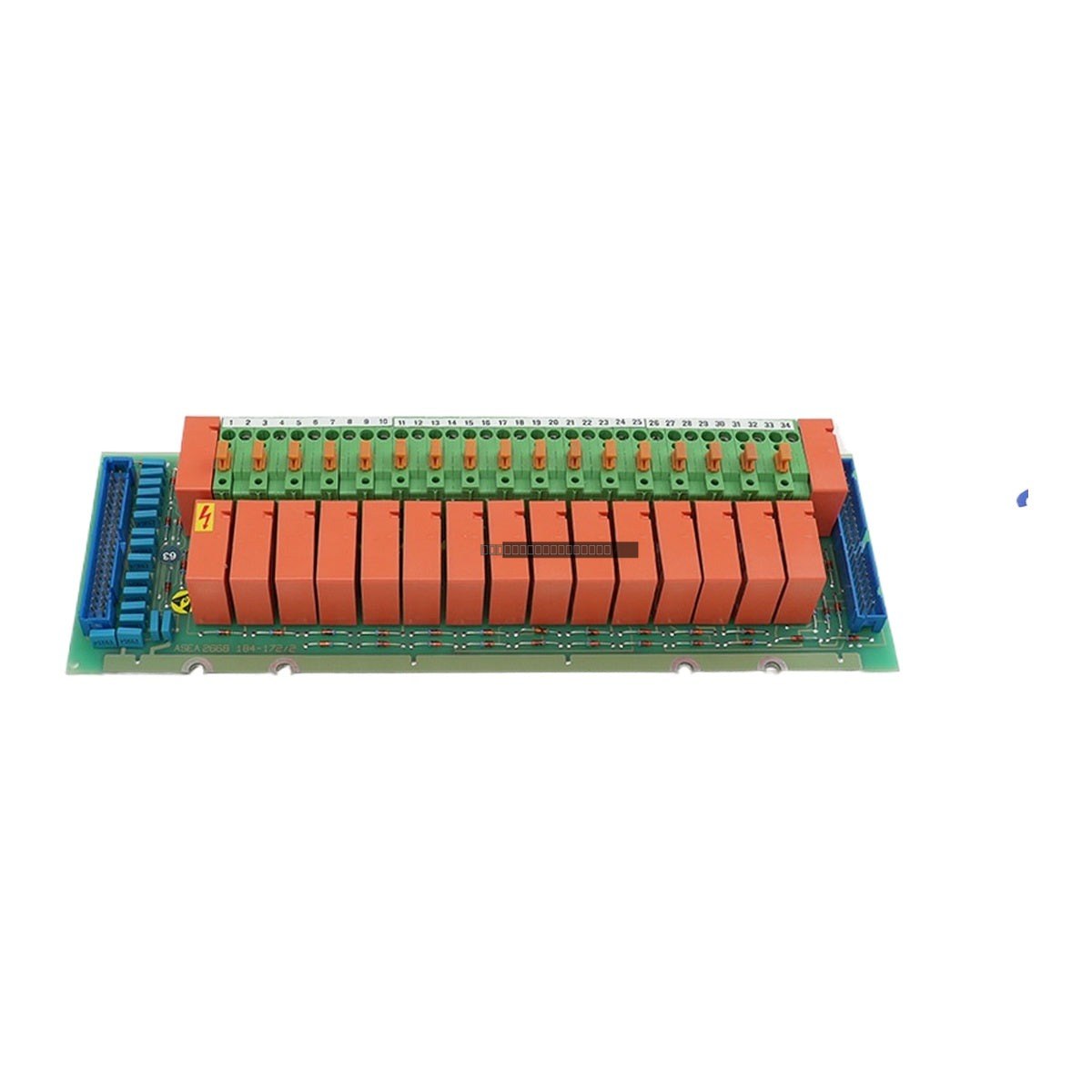

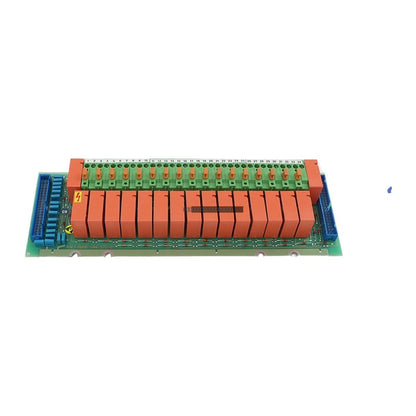

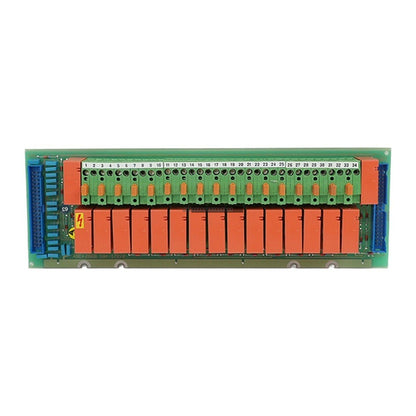

The ABB DSTD180 (57160001-HE) is a dedicated connection unit designed for use within the Advant S100 I/O system. This U-connection board serves as a critical interface component, facilitating reliable signal distribution and field wiring termination for industrial automation applications.

Features

• Designed for seamless integration with ABB Advant S100 I/O architecture.
• Equipped with a 46-count mixed connector configuration for high-density signal handling.
• Robust design suitable for demanding industrial environments.
• Integrated fuse protection using standard 5 x 20 mm glass fuses for channel safety.
• Supports both DC and AC switching voltages to accommodate diverse field devices.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the connection unit from the rack.
• Verify that all field wiring is properly secured to the 46-count connectors to prevent intermittent signal loss.
• Maintain adequate ventilation within the cabinet to ensure the unit operates within the specified 0 to +55 degC range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the PCB to prevent component damage.
• Ensure that the fuse ratings match the application requirements to maintain effective circuit protection.

FAQ

What is the primary function of the DSTD180?

The DSTD180 acts as a connection unit for the Advant S100 I/O system, providing the necessary physical interface and signal routing between field devices and the I/O modules.

Are the fuses included with the unit?

The unit is designed to utilize standard 5 x 20 mm glass fuses. Please verify your specific application requirements for fuse amperage when commissioning the hardware.
