Description

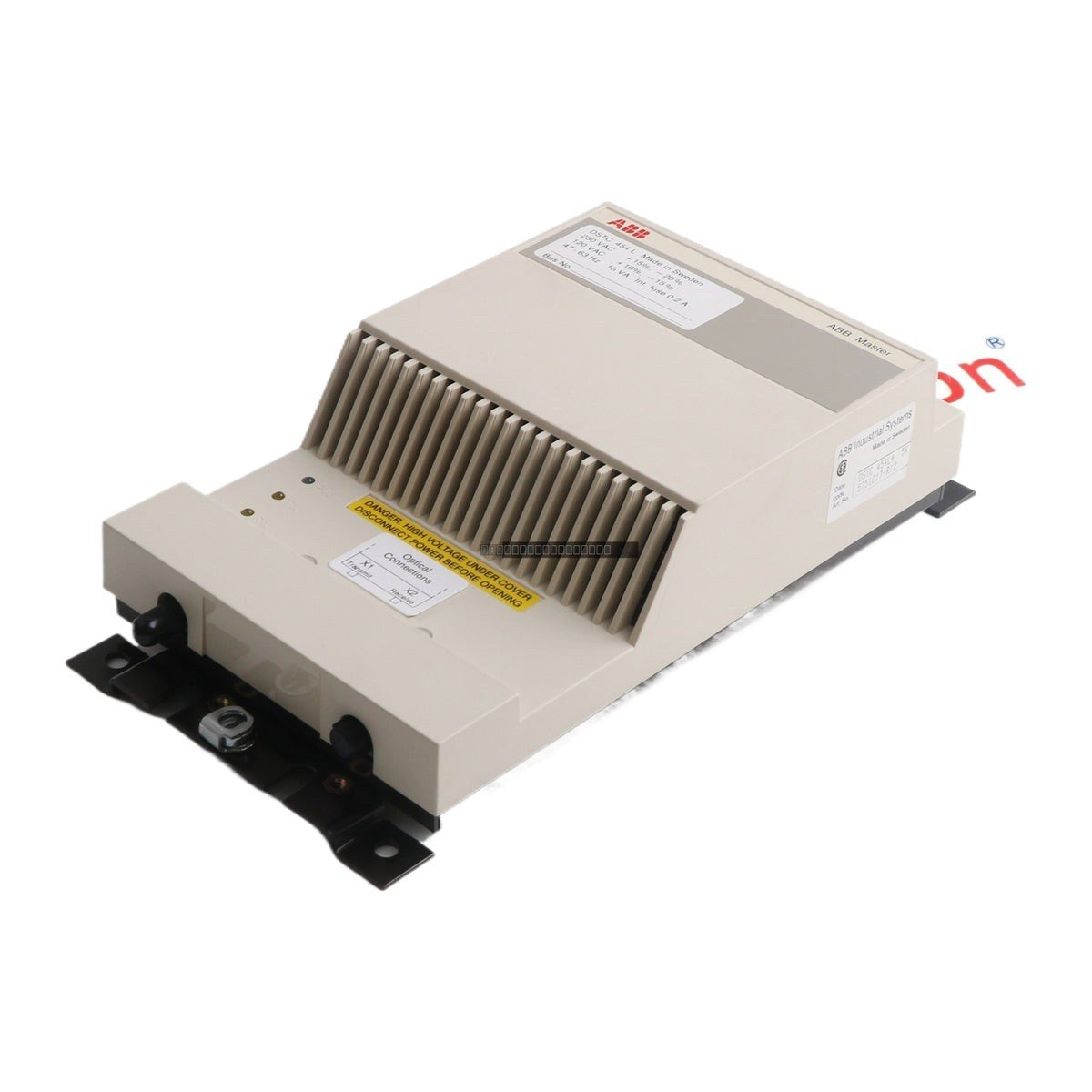

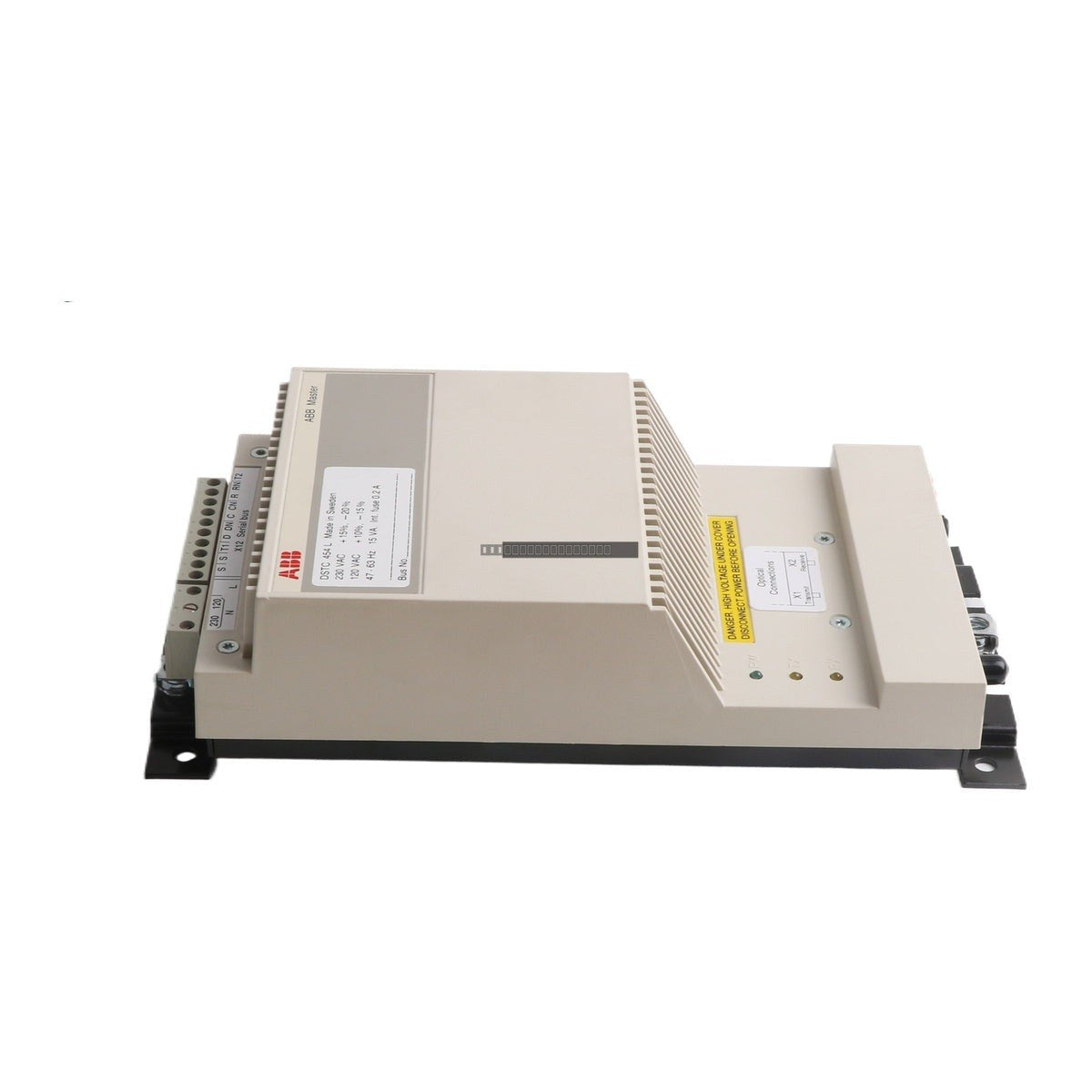

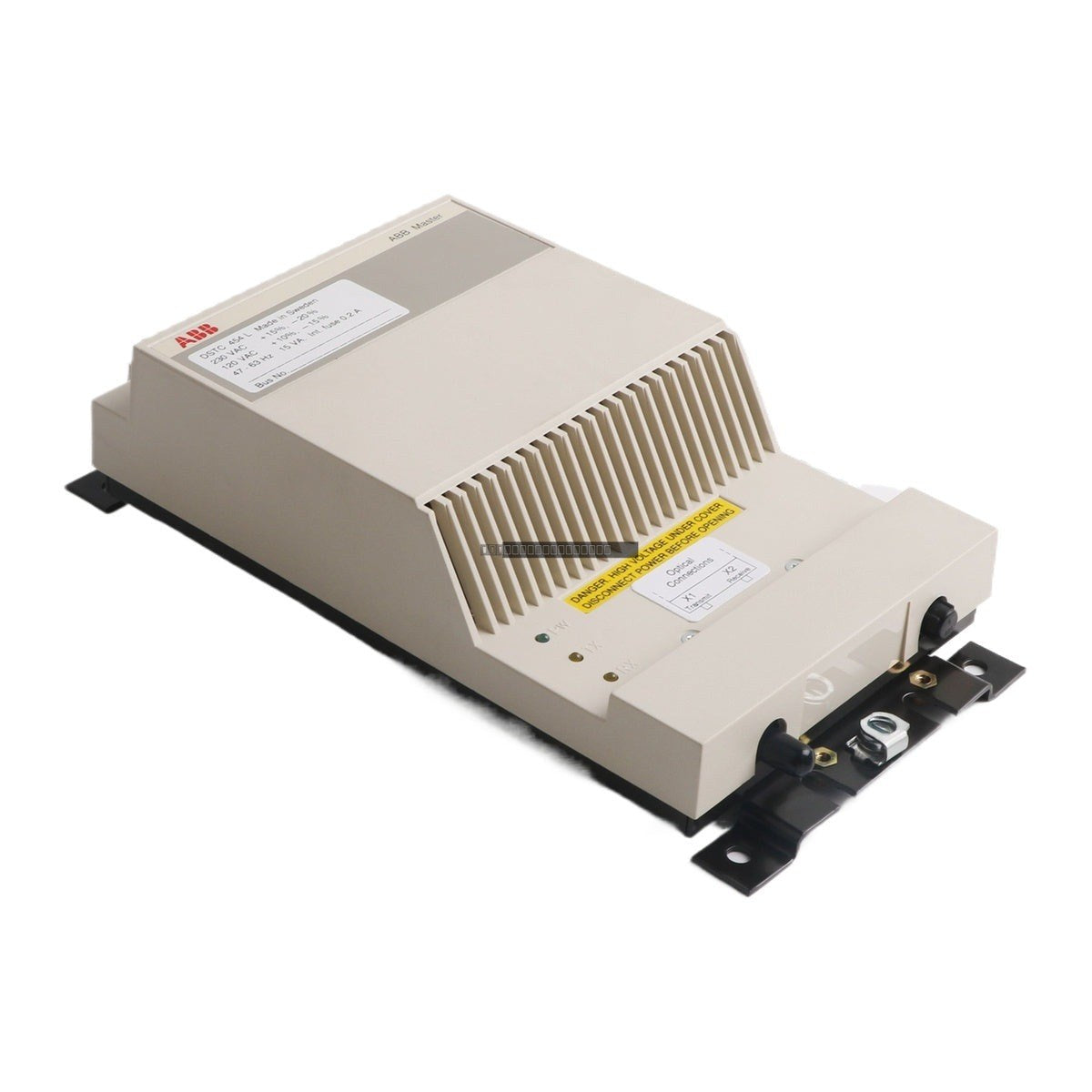

The ABB DSTC454L is a specialized LDB (Local Data Bus) modem designed for fiber optic communication within the Advant S400 I/O system. This module facilitates reliable data transmission across fiber optic media, ensuring robust connectivity in industrial environments where electromagnetic interference (EMI) or long-distance signal integrity is a concern.

Features

• Designed for integration with ABB Advant S400 I/O architectures.
• Fiber optic interface for high-noise immunity and secure data transmission.
• Compact modular design for standard industrial rack mounting.
• Compatible with legacy system components identified by spare model 5751017-R.

Applications

This modem is primarily utilized in distributed control systems (DCS) to extend the communication range of the Local Data Bus. It is typically found in power generation, chemical processing, and heavy industrial automation facilities where fiber optic backbones are required to connect remote I/O stations to the central controller.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the module to prevent electrical damage.
• Handle the fiber optic connectors with care; ensure they are clean and free of dust or debris before insertion to maintain signal quality.
• Verify that the fiber optic cable bend radius is maintained according to manufacturer specifications to prevent signal attenuation.
• Ensure the module is properly seated in the rack and that all locking mechanisms are engaged.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the DSTC454L?
The DSTC454L acts as a fiber optic modem for the Local Data Bus (LDB) in ABB Advant S400 systems, allowing for communication over fiber optic cabling.

Is this module compatible with the 5751017-R spare part?
Yes, the DSTC454L is associated with the spare model number 5751017-R.
