Description

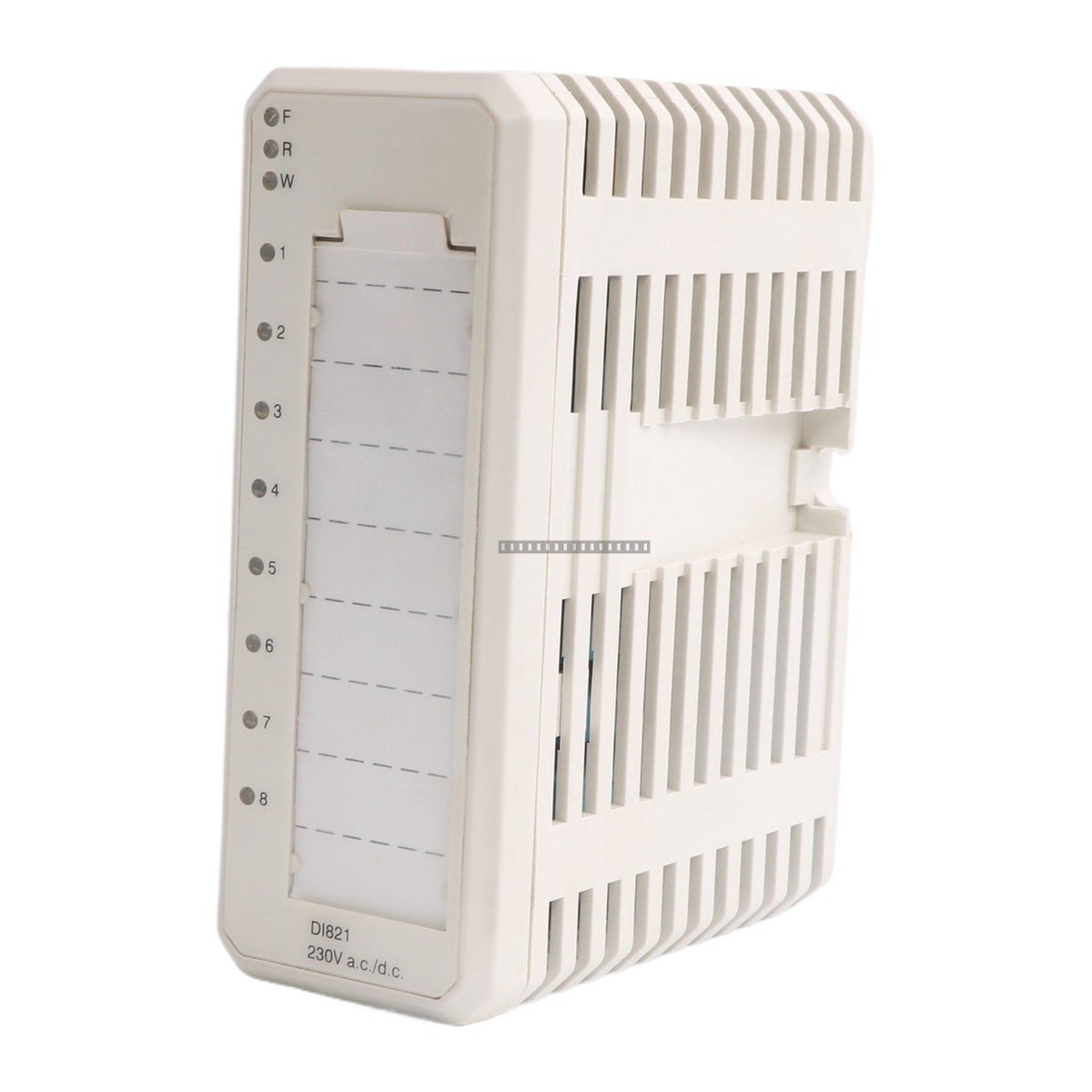

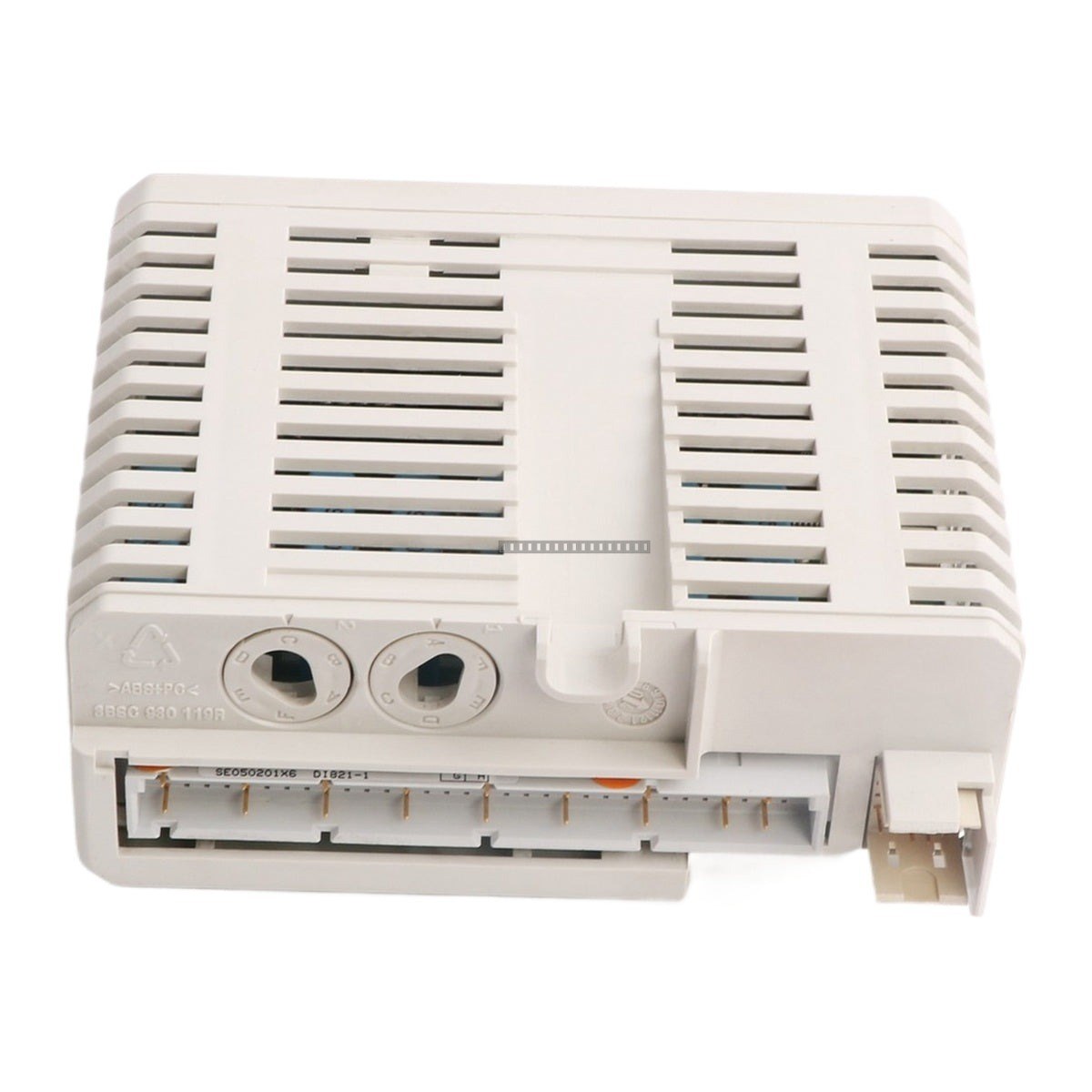

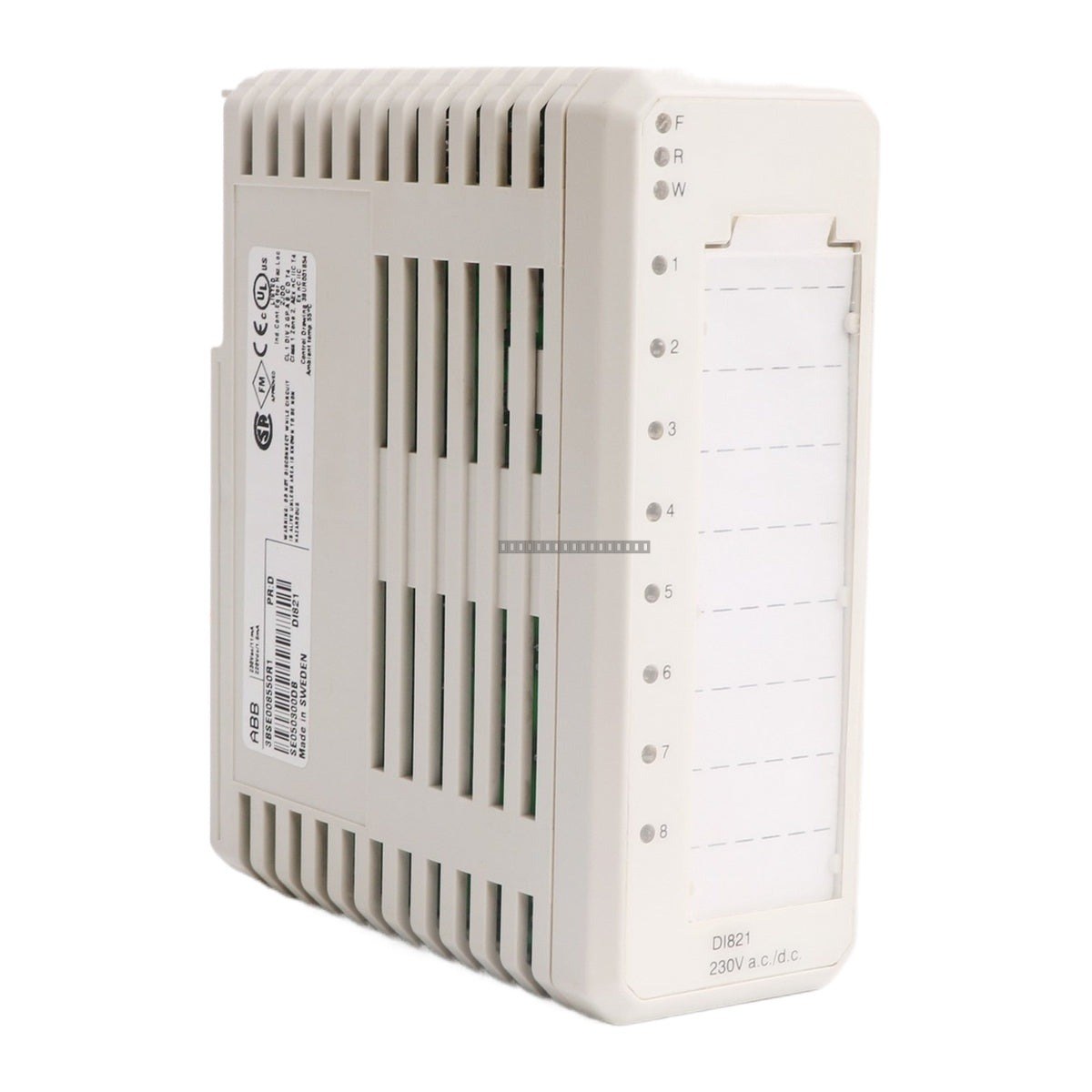

The ABB DI821 is a digital input module designed for the S800 I/O series. It provides 8 input channels suitable for 230V AC or DC voltage levels, allowing for integration of high-voltage field signals into the Advant OCS or other compatible control systems. This module is engineered for industrial environments requiring robust signal processing and reliable I/O density.

Features

• 8-channel digital input configuration.
• Supports both 230V AC and 230V DC input signals.
• Compatible with the ABB S800 I/O distributed architecture.
• Compact design for efficient rack space utilization.
• Optical isolation between field signals and the system bus for enhanced protection.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the I/O rack.
• The DI821 module should be mounted in a clean, dry environment within the specified operating temperature range.
• Use appropriate shielded cabling for field inputs to minimize electromagnetic interference (EMI).
• Verify that the field voltage matches the module rating (230V AC/DC) before making connections to avoid equipment damage.
• Ensure proper grounding of the S800 I/O station to maintain signal integrity and safety compliance.

FAQ

What is the primary function of the ABB DI821?
The DI821 is a digital input module used to interface 230V AC or DC field signals with an ABB automation system.

Is this module compatible with other S800 I/O components?
Yes, the DI821 is designed specifically for the S800 I/O series and is compatible with standard S800 mounting bases and communication interfaces.
