Description

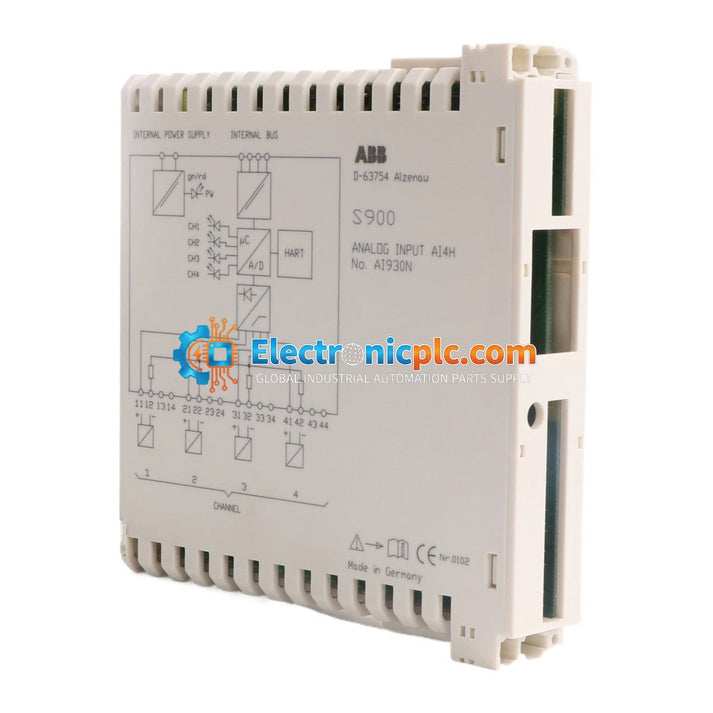

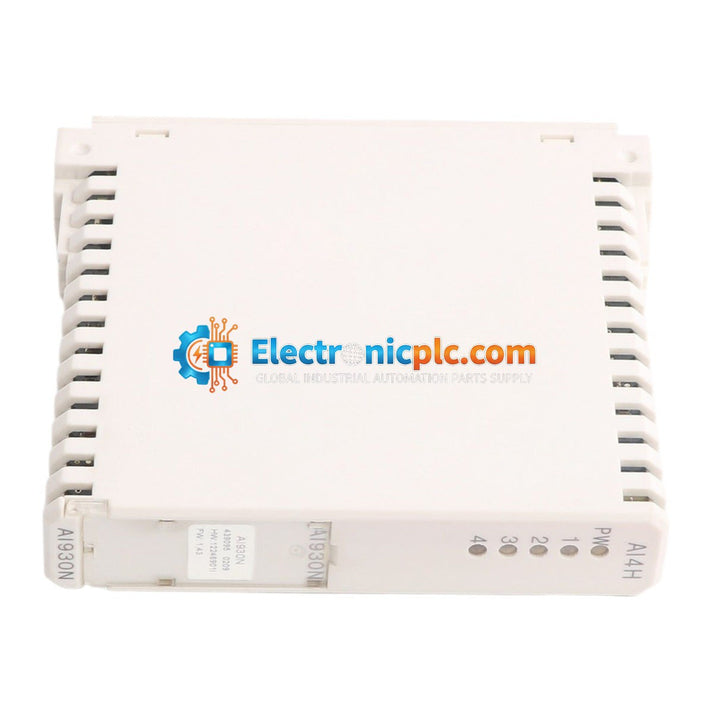

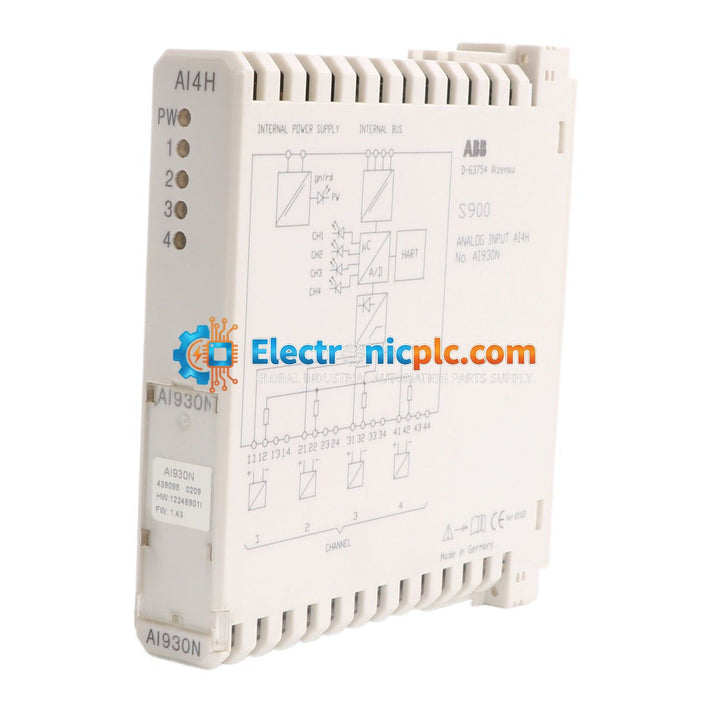

The ABB AI930N is a HART-enabled analog input module designed for the S900 I/O series. This module provides high-precision signal acquisition for industrial automation systems, allowing for the integration of field devices that support the HART communication protocol. It is engineered to perform in demanding process control environments, offering reliable data conversion and diagnostic capabilities for analog field instruments.

Features

• HART protocol support for bi-directional communication with field devices.
• Designed for integration within the ABB S900 remote I/O system architecture.
• Supports standard analog signal processing for process instrumentation.
• Robust construction suitable for industrial process control applications.
• Facilitates remote configuration and monitoring of connected field sensors.

Applications

The AI930N module is typically deployed in process industries such as oil and gas, chemical processing, power generation, and water treatment. It is used to interface field-mounted transmitters (such as pressure, temperature, or flow sensors) with the main control system, enabling both primary process variable monitoring and secondary HART diagnostic data acquisition.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the S900 rack.
• Handle the module using ESD-safe practices to prevent damage to internal electronic components.
• Verify that the module is correctly seated in the designated slot and that the locking mechanism is fully engaged.
• Ensure that field wiring is properly shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
• Check that the terminal assignments match the specific wiring diagram for the AI930N to ensure correct polarity and signal integrity.

FAQ

What is the primary function of the AI930N module?
The AI930N is an analog input module that supports HART communication, allowing it to read analog process values while simultaneously accessing digital diagnostic data from smart field devices.

Is this module compatible with other S900 series components?
Yes, the AI930N is designed specifically for the ABB S900 I/O system. Please verify your system configuration and backplane compatibility before installation.
