Description

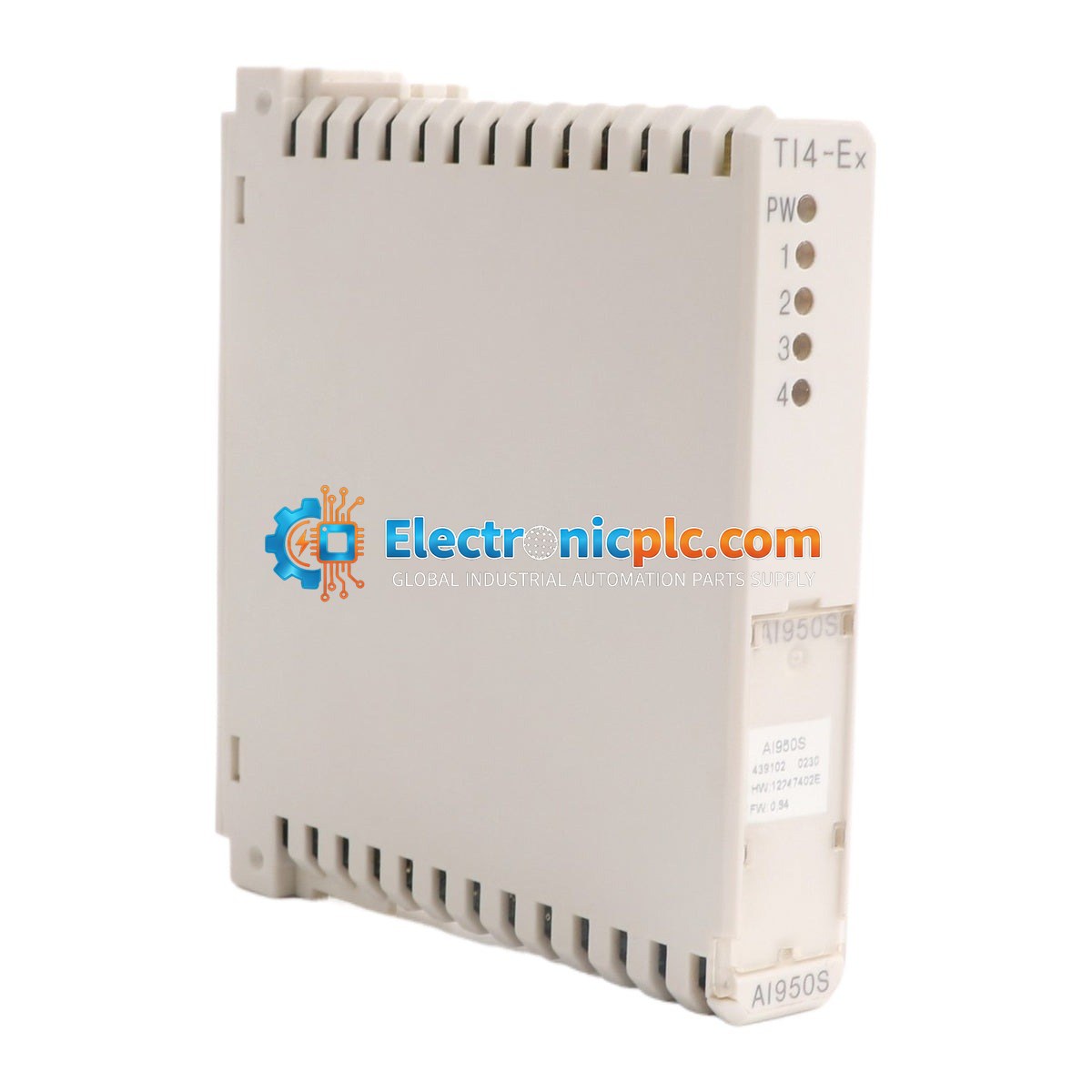

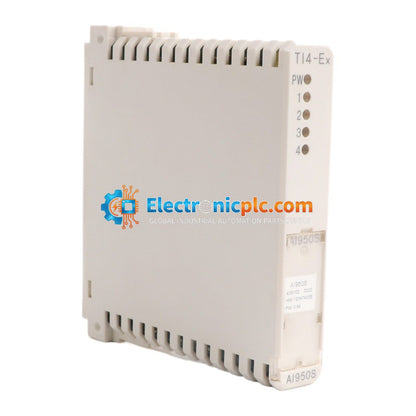

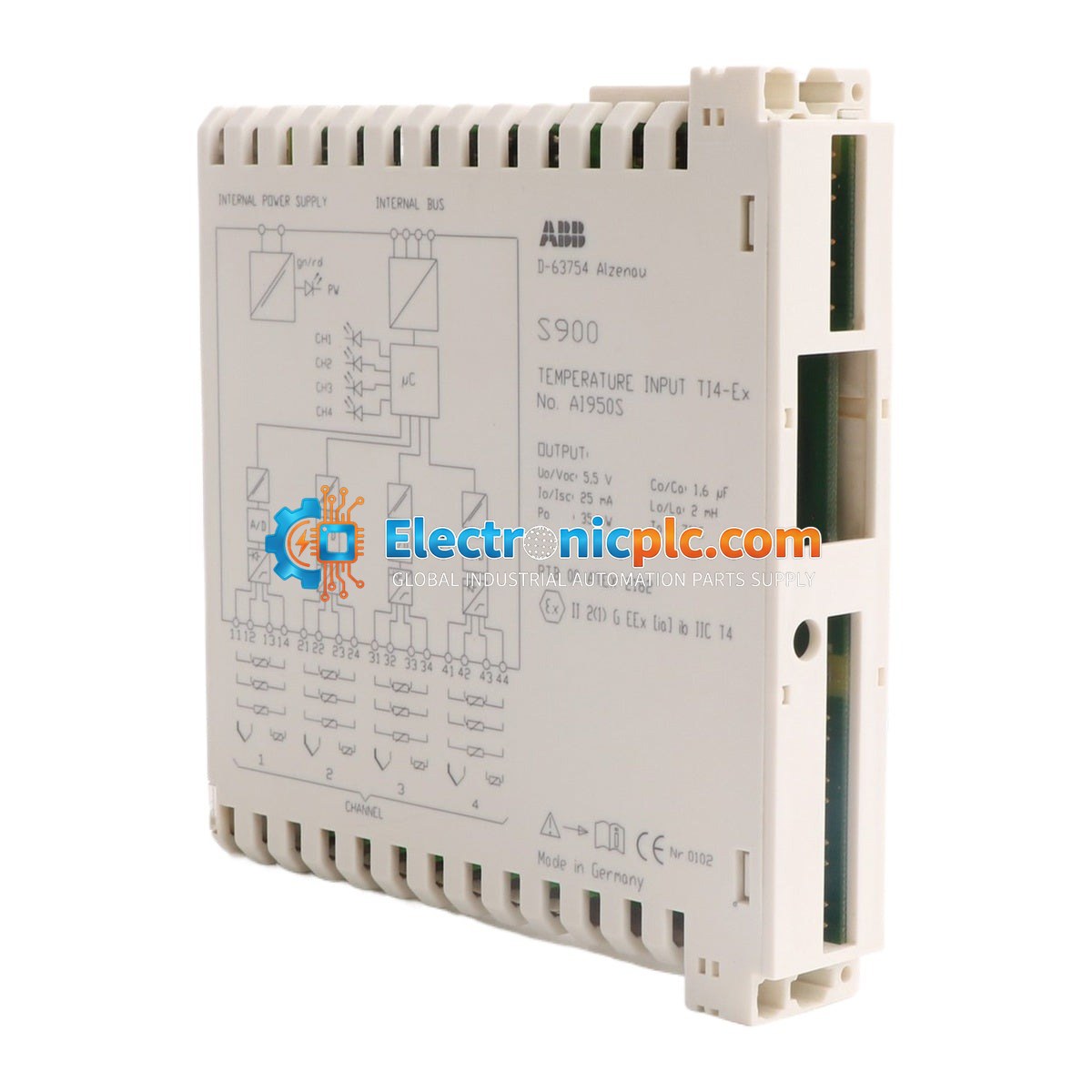

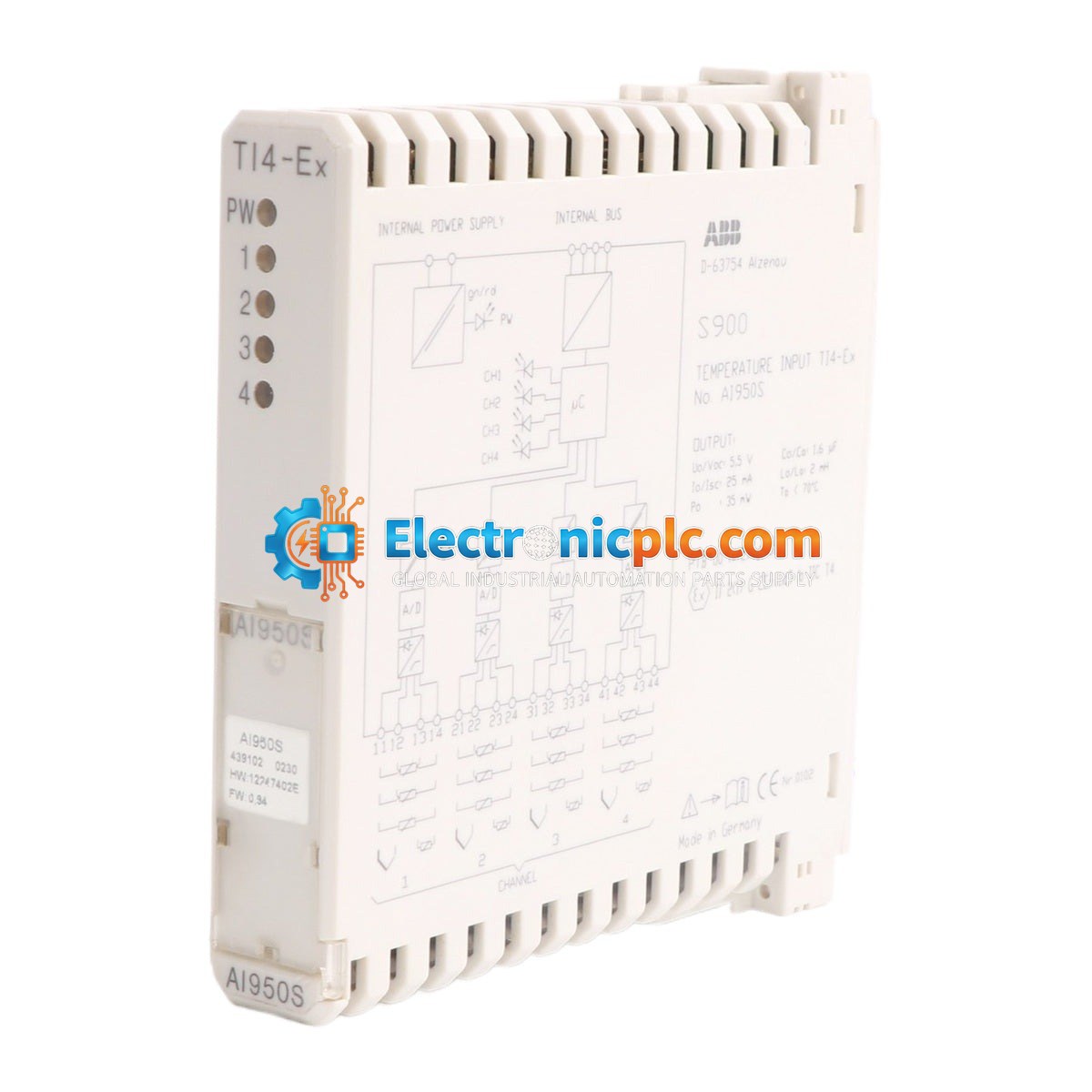

The ABB AI950S is a high-performance analog input module designed for the Advant S900 I/O system. This temperature input unit (TI4-EX) is engineered for precise temperature measurement in industrial environments, providing reliable data acquisition for control and monitoring applications. It serves as a critical component in the S900 remote I/O architecture, ensuring seamless integration with ABB control systems.

Features

• Designed for temperature signal acquisition in hazardous area applications (Ex-rated).
• Supports multi-channel temperature input configurations.
• Robust construction for demanding industrial process automation.
• Compatible with the ABB Advant S900 I/O series infrastructure.
• Integrated diagnostic capabilities for improved system reliability.

Applications

The AI950S module is typically deployed in process industries such as oil and gas, chemical manufacturing, and power generation where accurate temperature monitoring is essential for safety and operational efficiency. It is commonly used in distributed control systems (DCS) to interface field sensors with the main controller.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module from the S900 rack.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
• Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
• Use shielded cabling for all analog input signals to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the S900 I/O system according to the site-specific installation manual.
• Maintain adequate clearance around the module to allow for proper heat dissipation and ventilation.

FAQ

What is the primary function of the ABB AI950S?

The AI950S is an analog input module specifically designed to process temperature signals within the ABB Advant S900 I/O system, often used in hazardous area applications.

Is the AI950S compatible with other S900 series modules?

Yes, the AI950S is designed to operate within the Advant S900 I/O platform. Please verify your specific system configuration and backplane compatibility before installation.
