Description

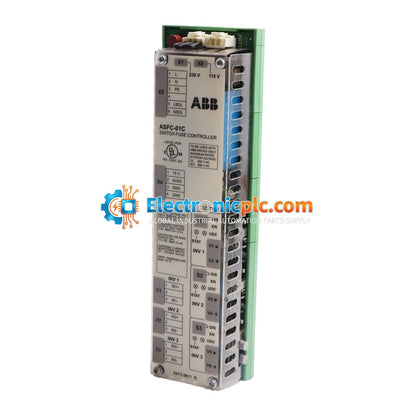

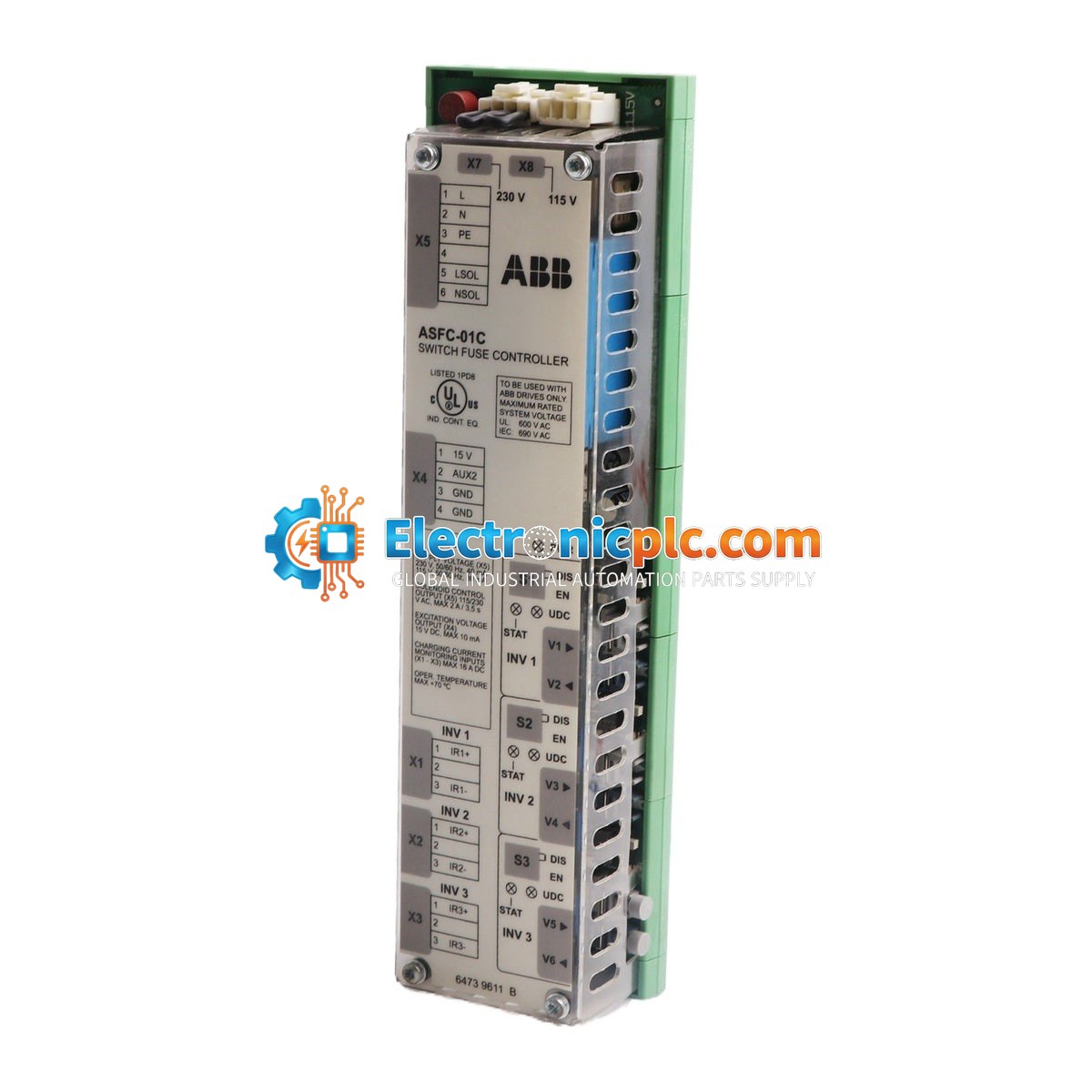

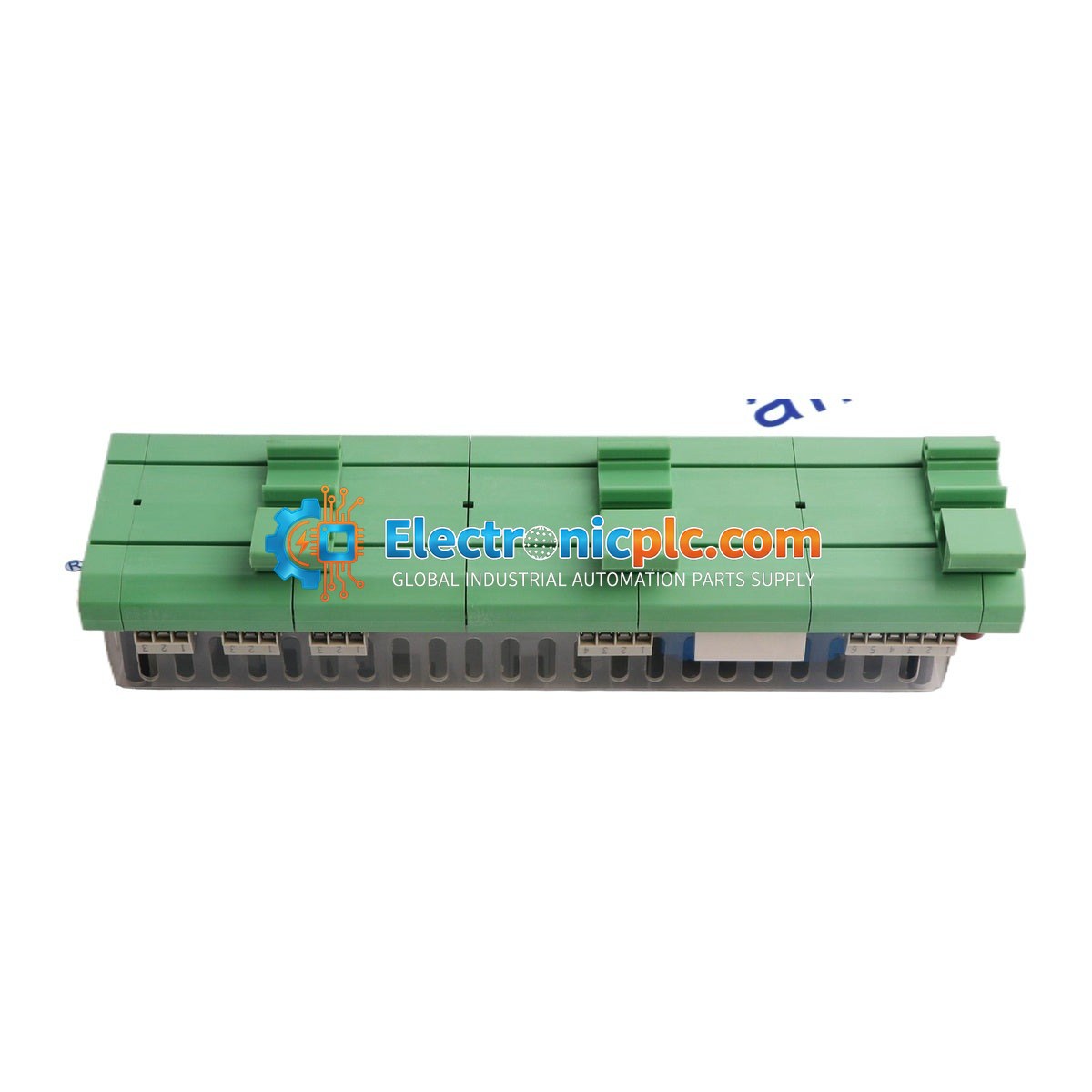

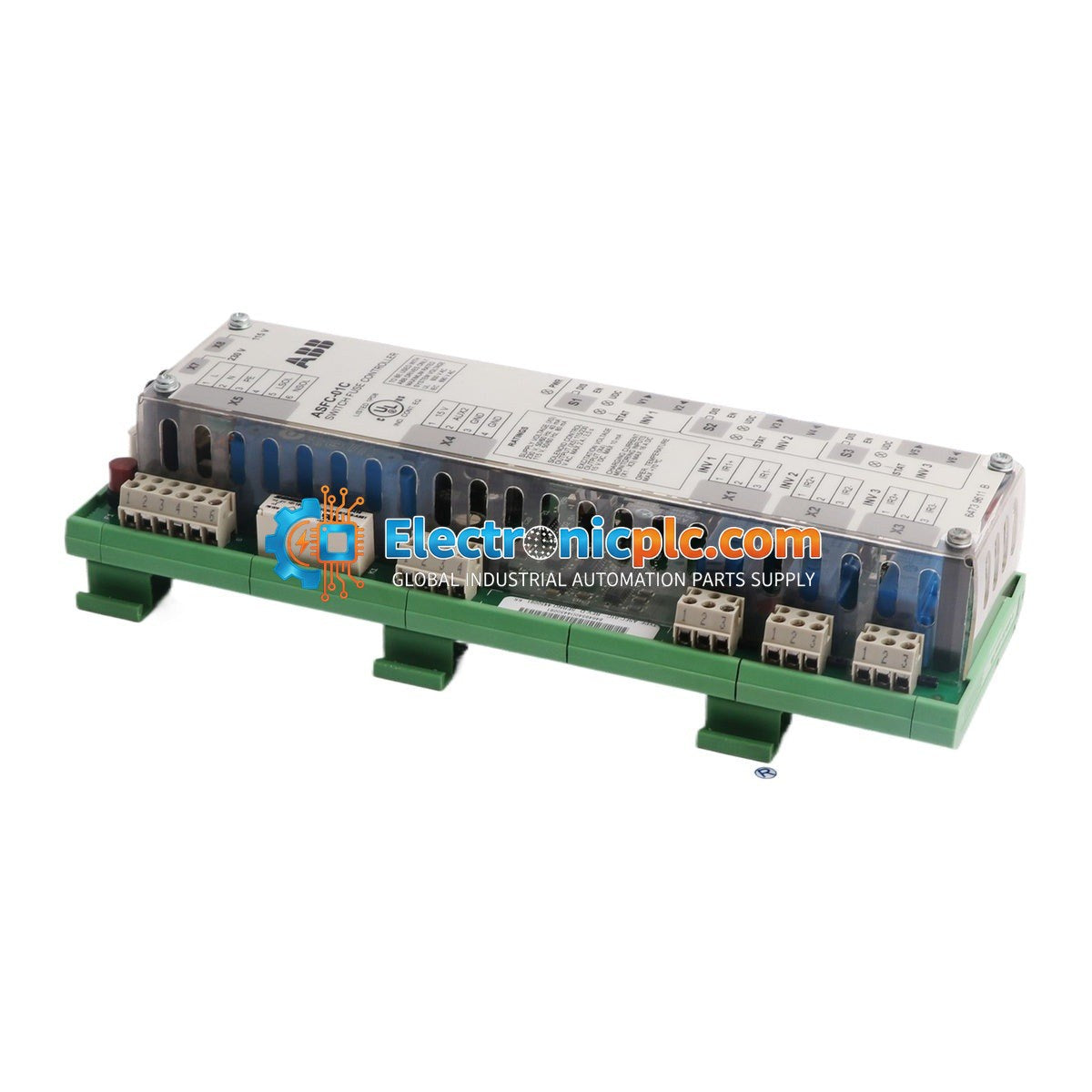

The ABB ASFC-01C is a dedicated Switch Fuse Controller designed for industrial control applications. This module provides precise monitoring and control functionality for switch fuse systems, ensuring reliable operation within electrical distribution and protection circuits. It is engineered to operate across a standard voltage range and frequency, making it suitable for diverse industrial environments.

Features

• Designed for switch fuse control applications
• Supports input voltage range of 115-230 V AC
• Compatible with 50/60 Hz power frequency
• Current rating: 40-80 mA
• Robust construction for industrial reliability

Technical Specifications

Installation Guidelines

• Ensure the power supply is completely disconnected before installing or removing the ASFC-01C module.
• Mount the unit in a clean, dry environment protected from excessive dust, moisture, and corrosive gases.
• Ensure adequate ventilation around the module to maintain operating temperatures within specified limits.
• Verify that all terminal connections are secure and tightened to the manufacturer's recommended torque specifications.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module to prevent damage to internal components.
• Route signal and power cables separately to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the ASFC-01C?

The ASFC-01C is a switch fuse controller used to manage and monitor switch fuse operations within an industrial electrical system.

What is the operating voltage for this controller?

This unit is designed to operate on a voltage range of 115-230 V AC at 50/60 Hz.
