Description

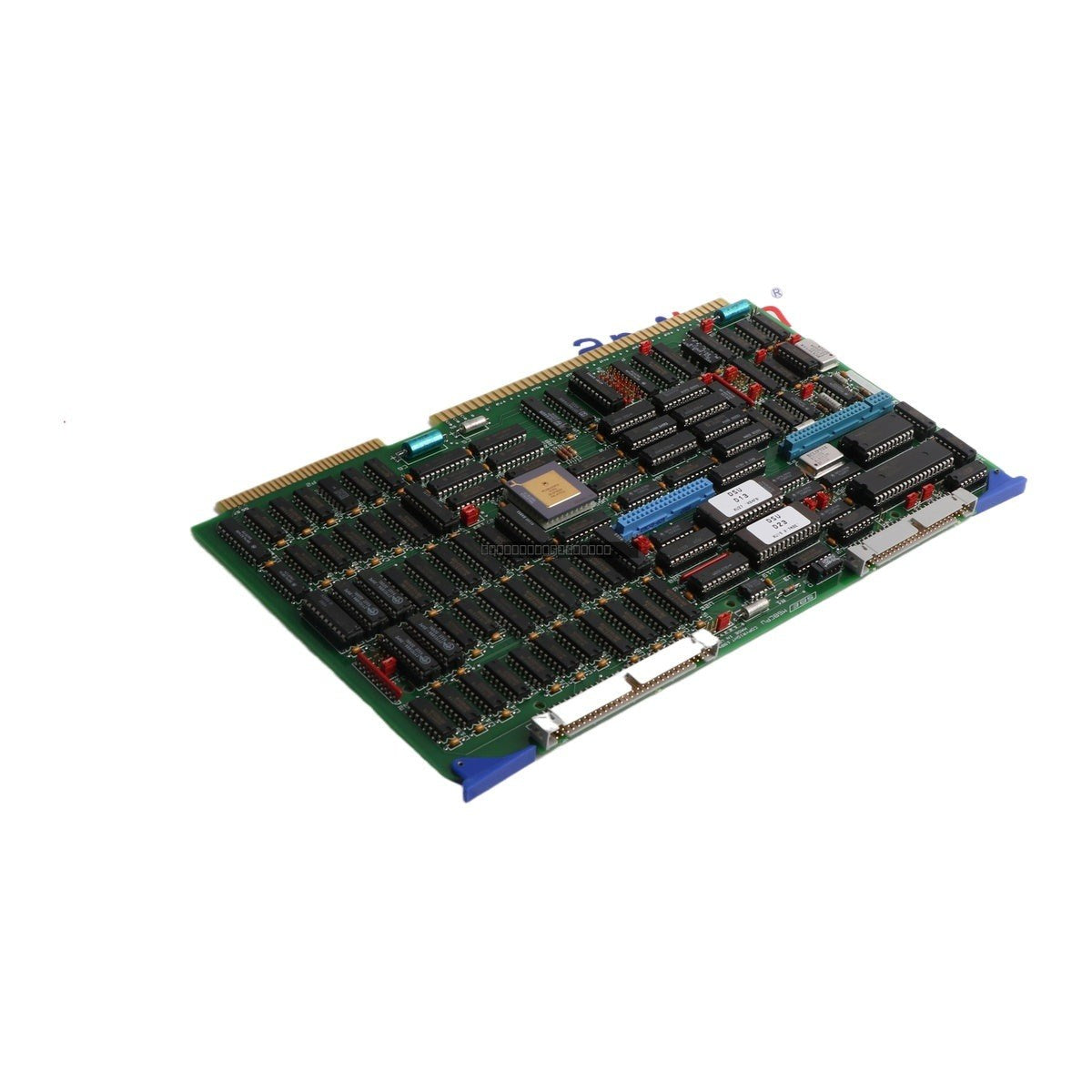

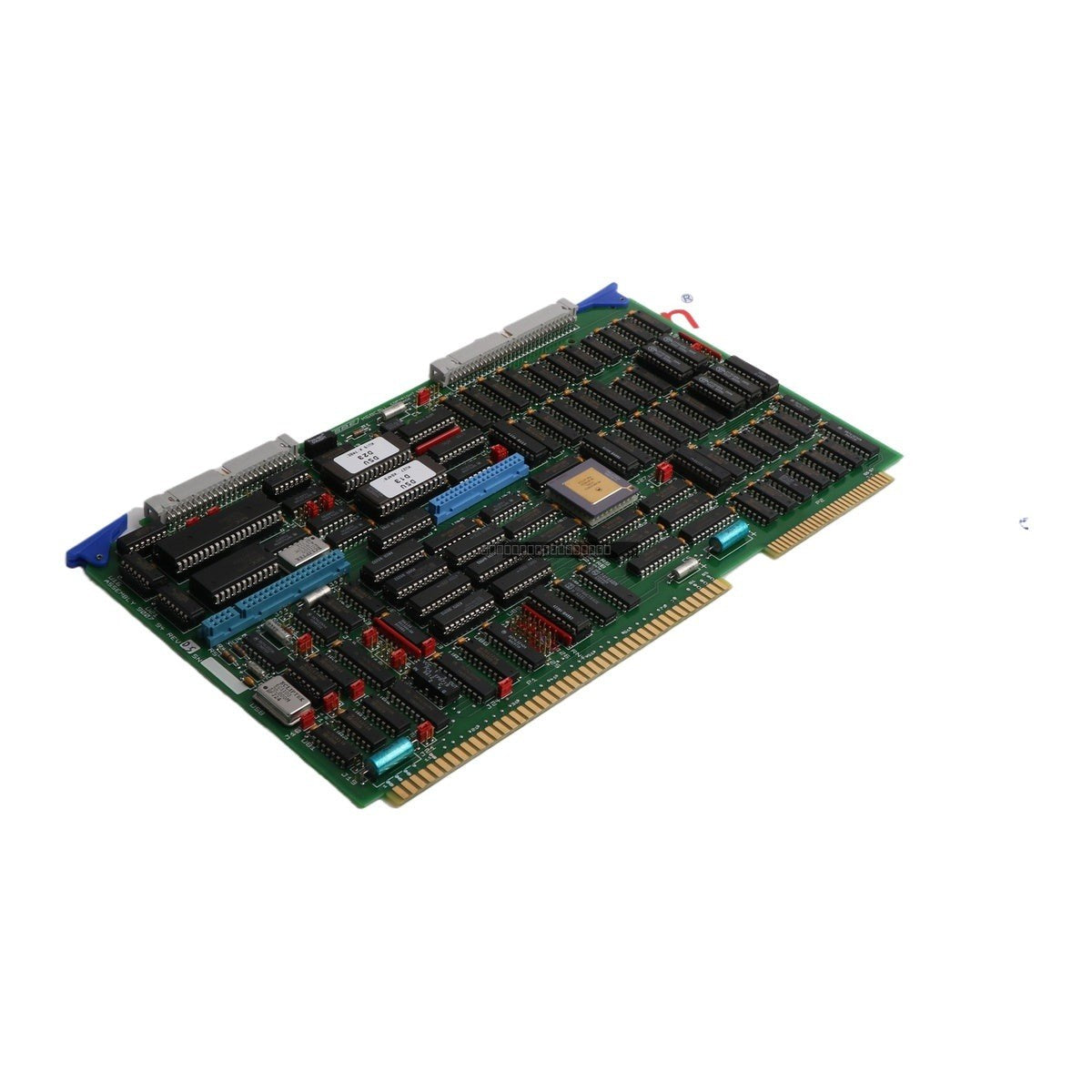

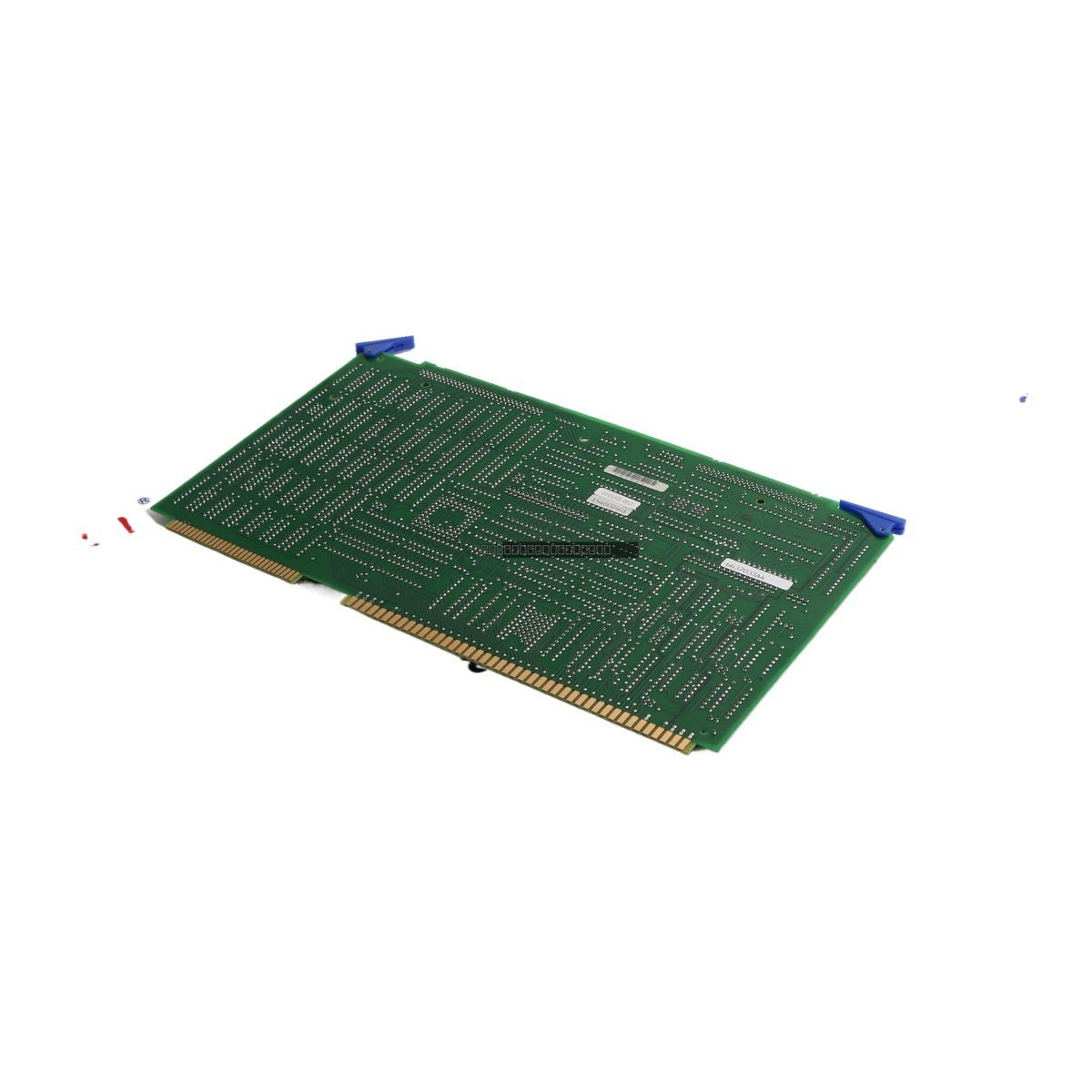

The ABB Bailey 1948024G1 is a high-performance CPU module designed for integration within industrial control systems. Engineered for reliability and efficient data processing, this module serves as a central component for managing complex automation tasks in demanding environments. It utilizes a 32-bit RISC processor to ensure rapid execution of control logic and system operations.

Features

• 32-bit RISC processor architecture for high-speed computation.
• Integrated 24 MB RAM for robust memory management.
• Designed for 24V DC power supply systems.
• Optimized power consumption profile ranging from 8W to 15W.
• High isolation rating of 500V AC to protect internal circuitry from electrical noise and surges.

Technical Specifications

Installation Guidelines

• Ensure the control system is fully powered down before installing or removing the CPU module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
• Verify that the module is securely seated in the designated rack slot to ensure reliable backplane communication.
• Maintain adequate ventilation around the module to ensure operating temperatures remain within the specified 0 degC to +60 degC range.
• Route signal and power cables away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the 1948024G1 module?

This is a central processing unit (CPU) module used in ABB Bailey control systems to execute control algorithms and manage I/O communication.

What are the power requirements for this unit?

The module operates on a 24V DC supply with a typical power consumption between 8W and 15W.

Is this module suitable for high-humidity environments?

The module is rated for 5-95% relative humidity, provided that the environment is non-condensing.
