Description

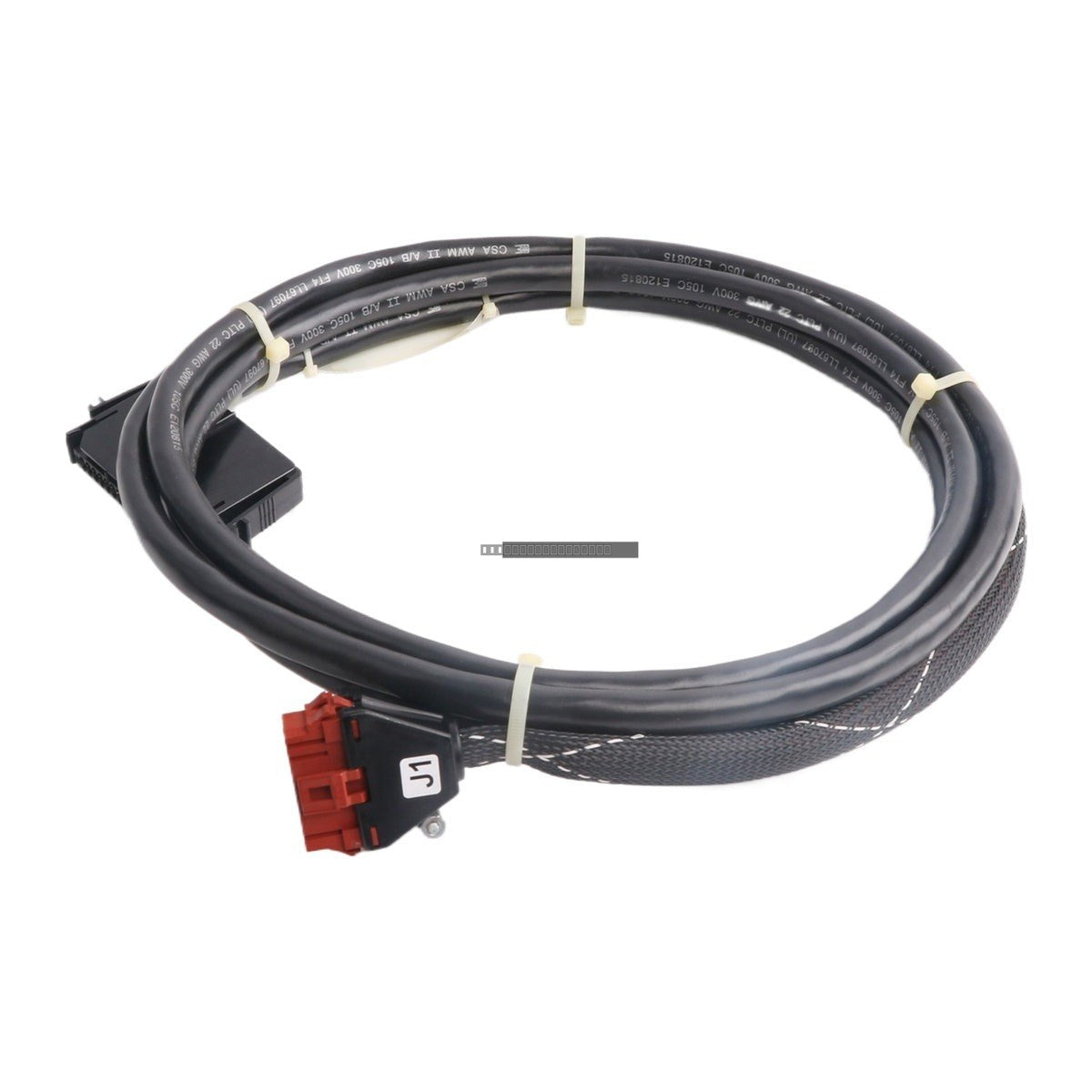

The ABB NKTU01-10 is a specialized interconnection cable designed for the Bailey Infi 90 distributed control system. This cable facilitates the signal path between the I/O module and the termination unit, ensuring reliable communication and data transfer within the control rack architecture. As a critical component for system integration, this cable is engineered to meet the specific electrical and physical requirements of the Infi 90 platform.

Features

• Designed for seamless integration between I/O modules and termination units.
• Constructed with durable PVC insulation for industrial environments.
• Standardized 10-foot length for flexible cabinet layout and routing.
• Rated for 300V operational applications.
• Original equipment component for Bailey Infi 90 control systems.

Applications

This cable is primarily utilized in industrial automation environments where Bailey Infi 90 systems are deployed. It is essential for connecting field-side termination blocks to the corresponding I/O processing modules, supporting stable signal transmission in power generation, water treatment, and heavy manufacturing control loops.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before connecting or disconnecting any I/O cables to prevent electrical shorts or damage to module pins.
• Route the cable through designated cable trays or conduits to minimize exposure to high-EMI sources such as power lines or heavy motor starters.
• Verify that the connector pins are clean and free of debris before insertion to ensure a secure, low-resistance connection.
• Avoid sharp bends or excessive tension during installation to maintain the integrity of the internal conductors and the PVC jacket.
• Secure the cable using standard cable management practices to prevent strain on the module connectors.

FAQ

Is the NKTU01-10 still in production?

No, this specific model has been discontinued by the manufacturer. We provide high-quality units suitable for maintaining legacy Bailey Infi 90 systems.

What is the primary function of this cable?

The NKTU01-10 serves as a bridge between the I/O module and the termination unit, allowing field signals to be processed by the control system.
