Description

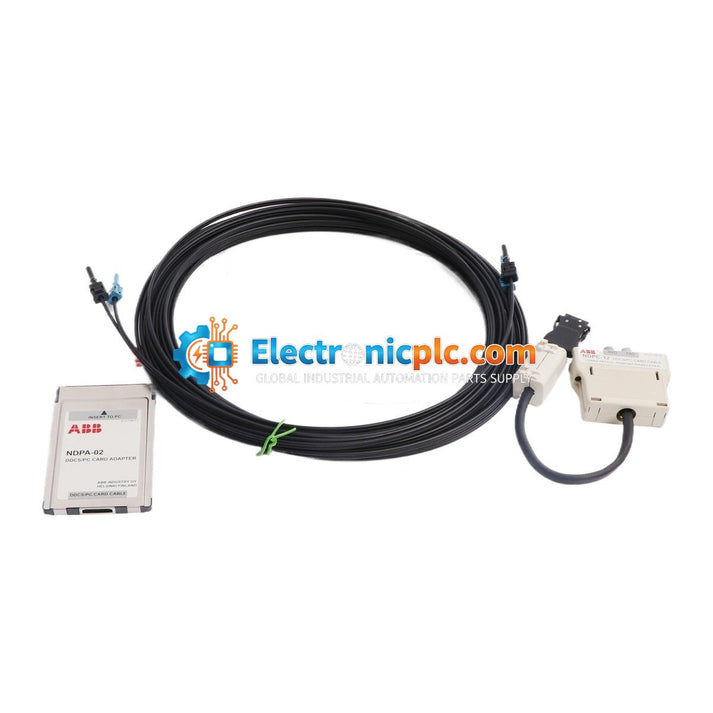

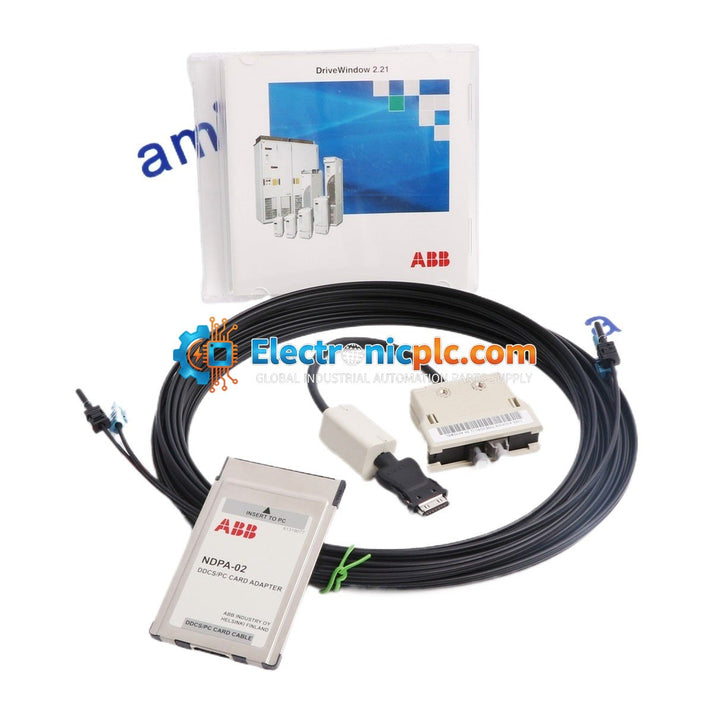

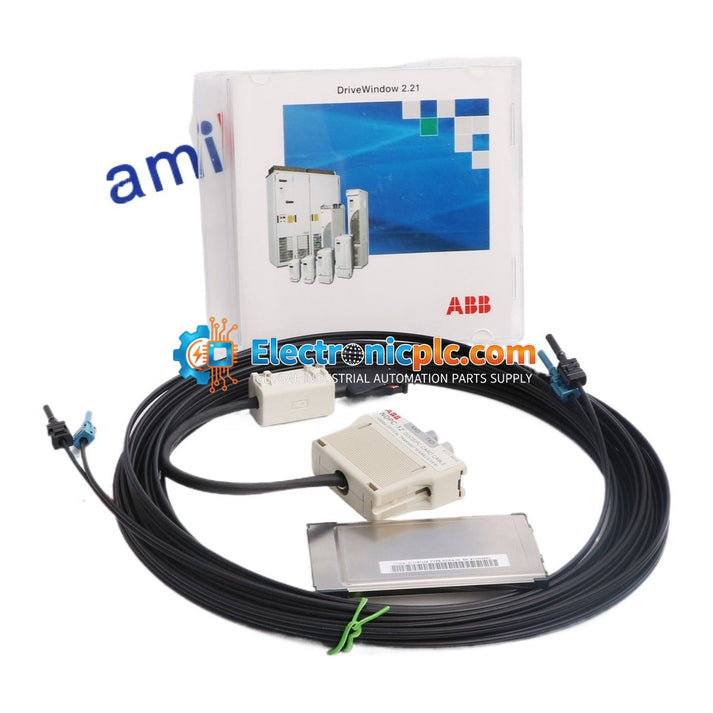

The ABB 3AFE64547992 is a specialized field kit designed for use with ABB drive systems. This kit provides the necessary PCMCIA hardware interface to enable communication between a PC and the drive, facilitating the use of the DriveWindow software suite for configuration, monitoring, and diagnostics.

Features

• Enables connectivity between PC and ABB drive hardware
• Utilizes PCMCIA interface standard
• Essential for DriveWindow software operation
• Compact, field-ready design for maintenance and commissioning tasks

Applications

This field kit is primarily used by field service engineers and maintenance technicians for the commissioning, parameterization, and troubleshooting of ABB industrial drives. It is a critical component for establishing a stable communication link during drive startup or when performing firmware updates and data logging.

Technical Specifications

Installation Guidelines

• Ensure the PCMCIA slot on the host computer is powered down or supports hot-swapping before insertion.
• Verify that the appropriate DriveWindow software drivers are installed on the host PC prior to connecting the hardware.
• Handle the PCMCIA card with care to avoid bending pins or damaging the connector interface.
• Keep the connection cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure stable data transmission.
• Store in a clean, dry environment when not in use to prevent oxidation of the connector contacts.

FAQ

What is the primary purpose of the 3AFE64547992 kit?

This kit provides the physical hardware interface required to connect a computer to an ABB drive, allowing the DriveWindow software to communicate with the drive's internal control board.

Is this kit compatible with all ABB drives?

This kit is specifically designed for ABB drives that utilize the PCMCIA interface for external connectivity. Please verify your specific drive model's communication port requirements before use.
