Description

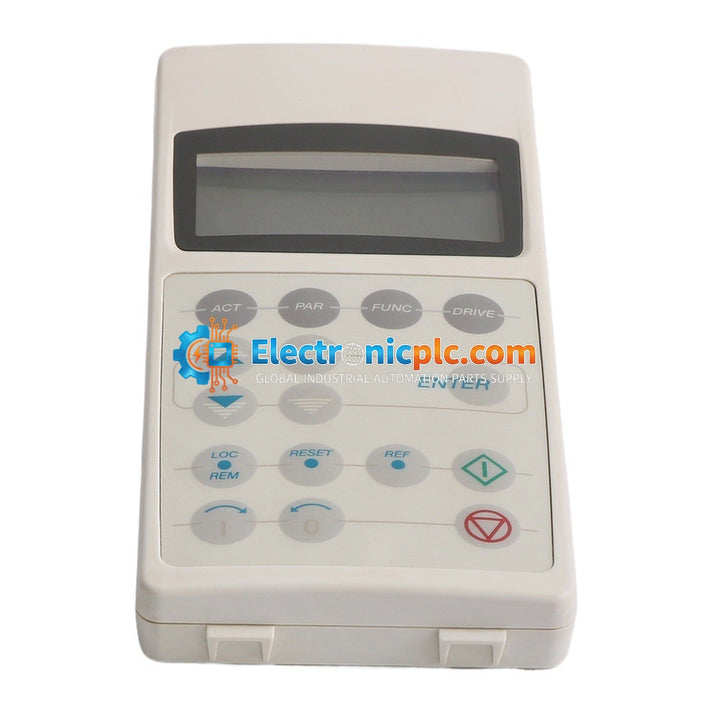

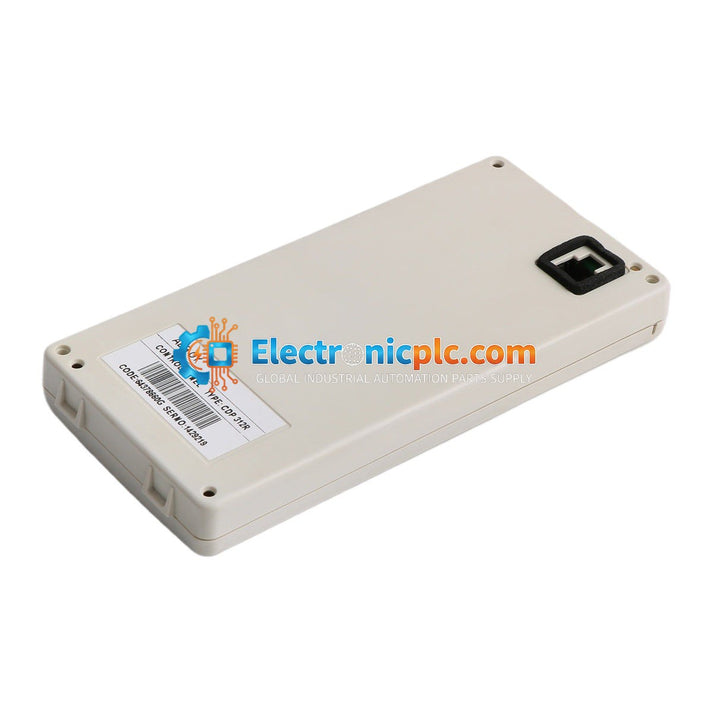

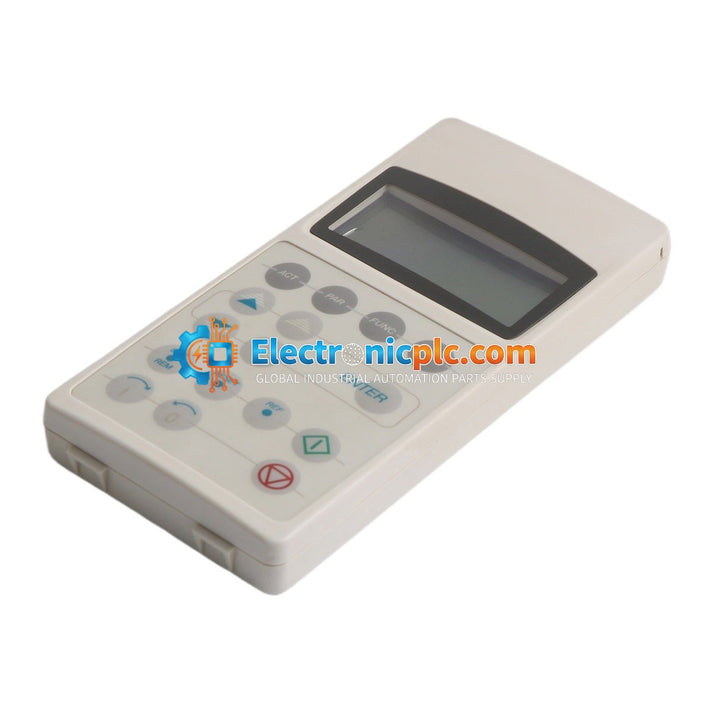

The ABB CDP312R is a dedicated control panel designed for use with the DCS 800 series drive systems. This interface module serves as the primary local operator station for controlling, configuring, and monitoring drive parameters. It provides a robust human-machine interface (HMI) that allows operators to perform system diagnostics, adjust setpoints, and view real-time process data directly at the drive location.

Features

• LCD display featuring a 4x20 character layout for clear parameter and status visualization.
• Integrated flat, tactile push-button keypad for reliable navigation and data entry.
• Versatile mounting options: can be attached directly to the drive module or mounted remotely on a cabinet door.
• Designed for seamless integration with ABB DCS 800 drive architectures.

Applications

The CDP312R control panel is primarily utilized in industrial automation environments where ABB DCS 800 drives are deployed. Typical applications include motor control systems, conveyor drives, pump stations, and general manufacturing process control where local operator intervention and parameter adjustment are required.

Technical Specifications

Installation Guidelines

• Ensure the drive system is powered down before attempting to connect or disconnect the control panel.
• When door-mounting, ensure the panel is seated securely to maintain the integrity of the cabinet enclosure.
• Avoid routing communication cables near high-voltage power lines or high-EMI sources to prevent signal interference.
• Handle the unit with standard ESD precautions to protect internal electronics during installation.
• Verify that the connection cable is properly seated in the port to ensure consistent communication between the panel and the drive.

FAQ

Is the CDP312R compatible with other ABB drive series?

The CDP312R is specifically engineered for the DCS 800 series. Compatibility with other drive families should be verified against the specific drive's technical documentation.

Can this panel be mounted away from the drive?

Yes, the unit supports remote mounting, allowing it to be installed on the exterior of a control cabinet door for easier operator access.
