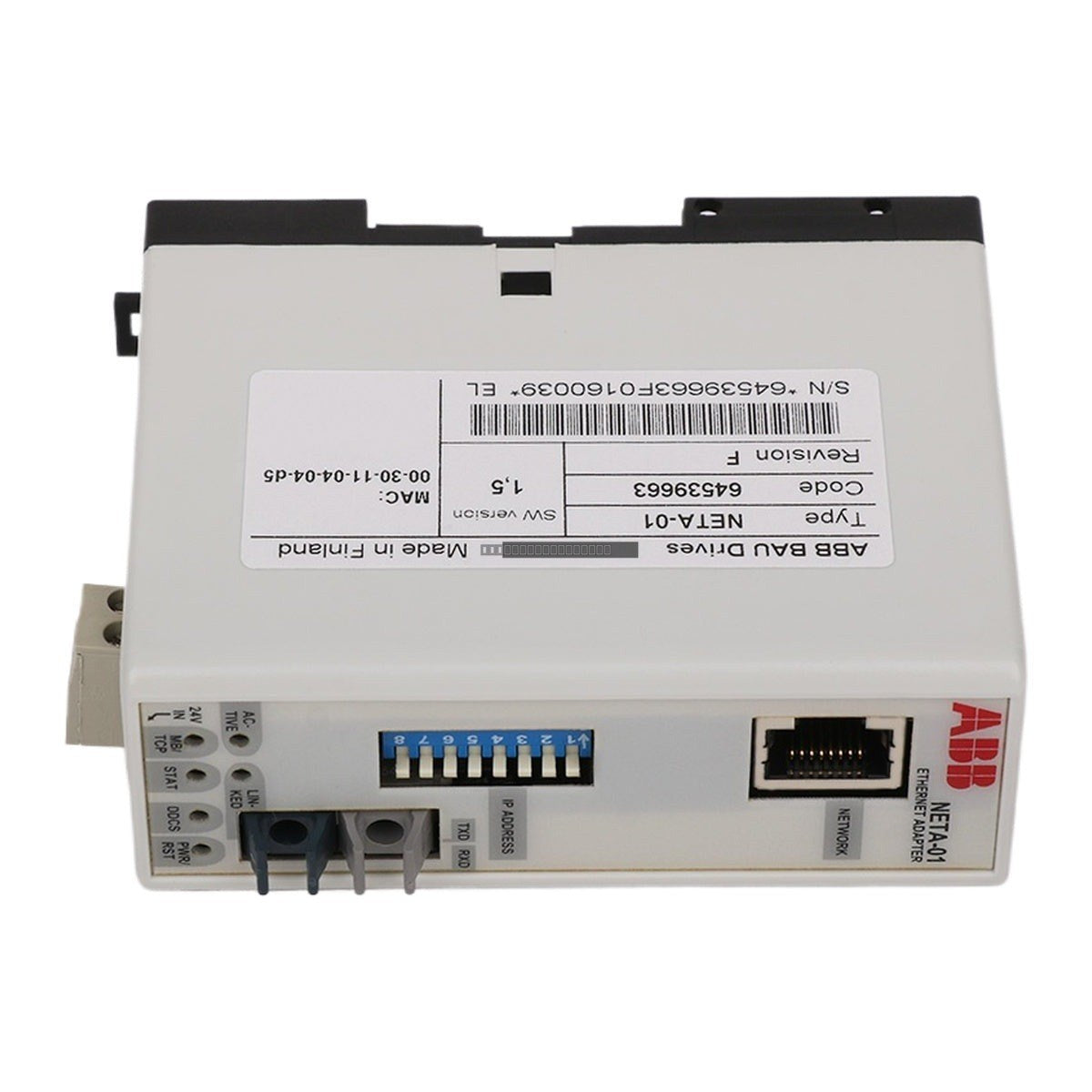

The ABB NETA-01 is a dedicated Ethernet adapter module designed to facilitate network communication for compatible ABB drive systems. This module enables seamless integration of drive parameters and diagnostics into industrial Ethernet networks, supporting efficient monitoring and control operations.

Features

• Supports high-speed data transfer rates up to 100 Mbps.
• Configurable via drive parameters and onboard DIP switches for flexible system integration.
• Compact design intended for standard DIN-rail mounting.
• Wide operating temperature range suitable for demanding industrial environments.
• Low power consumption profile for energy-efficient operation.

Technical Specifications

Installation Guidelines

• Ensure the drive system is fully powered down before installing or removing the NETA-01 module.
• Mount the module securely onto a standard industrial mounting rail, ensuring proper alignment with the drive's communication interface.
• Verify that the 24 V DC power supply meets the specified voltage range to prevent module damage.
• Configure the necessary DIP switches according to the specific network requirements and drive parameter settings before commissioning.
• Maintain proper cable routing practices to minimize electromagnetic interference (EMI) near communication lines.
• Handle the module using standard ESD (electrostatic discharge) protection practices to prevent internal component damage.

FAQ

Q: What is the primary function of the NETA-01 module?
A: The NETA-01 serves as an Ethernet adapter, allowing ABB drives to communicate over Ethernet networks for remote monitoring and parameter management.

Q: How is the module configured?
A: Configuration is performed through a combination of drive-specific parameters and physical DIP switches located on the module.

Q: Can this module be used in high-temperature environments?
A: Yes, the NETA-01 is rated for an operating temperature range of -25 degC to +70 degC, making it suitable for most industrial cabinet installations.
